BLACK FOSTER MICRO CUSTOM

CUSTOM SYSTEMS

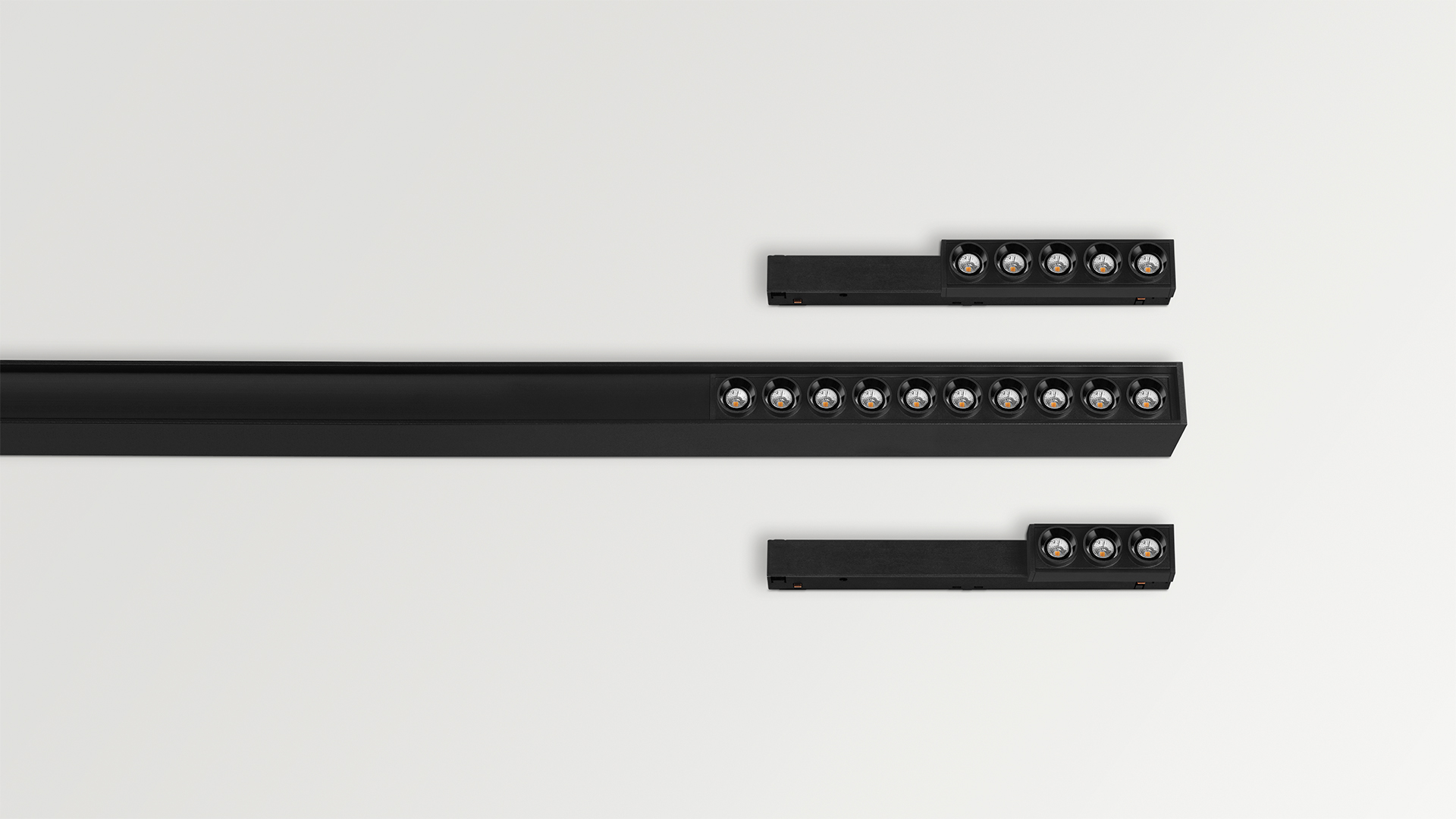

Black Foster Micro Custom Surface opens a new paradigm of miniaturisation in the linear and customisable system which integrates "The Invisible Black" effect lighting. Like its big brother, the Micro surface version has complete mobility and flexibility of its modules within the already installed profile.

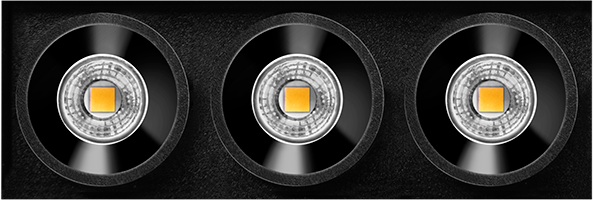

BLACK FOSTER MICRO CUSTOM MODULE 3
BLACK FOSTER MICRO CUSTOM MODULE 3
BLACK FOSTER MICRO CUSTOM MODULE 5
BLACK FOSTER MICRO CUSTOM MODULE 5
BLACK FOSTER MICRO CUSTOM MODULE 10
BLACK FOSTER MICRO CUSTOM MODULE 10

BLACK FOSTER MICRO CUSTOM MODULE 3

  • Luminous flux

    465 lm / 480 lm / 495 lm / 510 lm

  • Lighting efficiency

    87%

  • Power

    4.2 W

  • Dimming

    0-10V, DALI

  • Colour temperature

    2700K / 3000K / 3500K / 4000K

  • Chromatic stability

    MacAdam Step 3

  • Light beam angle

    37°

EPD Instructions BIM
Luminous flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • Mounting Accessory
      IC Rated
        Input Voltage
          CRI
            Light beam angle
              Dimming
                Cord length
                  Colour

                    • Model

                      Ref.

                      Mounting Accessory / Driver

                      Colour

                      Lum. flux

                      Power

                      Input Voltage

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      IC Rated

                    • BLACK FOSTER MICRO CUSTOM MODULE 3 UL DIM 0/10V 2700K N
                      Reference:

                      U4511010N

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Matt black

                      Luminous flux:

                      465 lm

                      Power:

                      4.2 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V

                      IC Rated:

                      -

                    • BLACK FOSTER MICRO CUSTOM MODULE 3 UL DIM 0/10V 3000K N
                      Reference:

                      U4511011N

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Matt black

                      Luminous flux:

                      480 lm

                      Power:

                      4.2 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V

                      IC Rated:

                      -

                    • BLACK FOSTER MICRO CUSTOM MODULE 3 UL DIM 0/10V 3500K N
                      Reference:

                      U4511013N

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Matt black

                      Luminous flux:

                      495 lm

                      Power:

                      4.2 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3500K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V

                      IC Rated:

                      -

                    • BLACK FOSTER MICRO CUSTOM MODULE 3 UL DIM 0/10V 4000K N
                      Reference:

                      U4511012N

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Matt black

                      Luminous flux:

                      510 lm

                      Power:

                      4.2 W

                      Input Voltage:

                      -

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V

                      IC Rated:

                      -

                    • BLACK FOSTER MICRO CUSTOM MODULE 3 UL DIM DALI 2700K N
                      Reference:

                      U4511020N

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Matt black

                      Luminous flux:

                      465 lm

                      Power:

                      4.2 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      Dimming:

                      DALI

                      IC Rated:

                      -

                    • BLACK FOSTER MICRO CUSTOM MODULE 3 UL DIM DALI 3000K N
                      Reference:

                      U4511021N

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Matt black

                      Luminous flux:

                      480 lm

                      Power:

                      4.2 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      Dimming:

                      DALI

                      IC Rated:

                      -

                    • BLACK FOSTER MICRO CUSTOM MODULE 3 UL DIM DALI 3500K N
                      Reference:

                      U4511023N

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Matt black

                      Luminous flux:

                      495 lm

                      Power:

                      4.2 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3500K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      Dimming:

                      DALI

                      IC Rated:

                      -

                    • BLACK FOSTER MICRO CUSTOM MODULE 3 UL DIM DALI 4000K N
                      Reference:

                      U4511022N

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Matt black

                      Luminous flux:

                      510 lm

                      Power:

                      4.2 W

                      Input Voltage:

                      -

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      Dimming:

                      DALI

                      IC Rated:

                      -

                    Accessories

                    BLACK FOSTER CUSTOM ACCESSORIES
