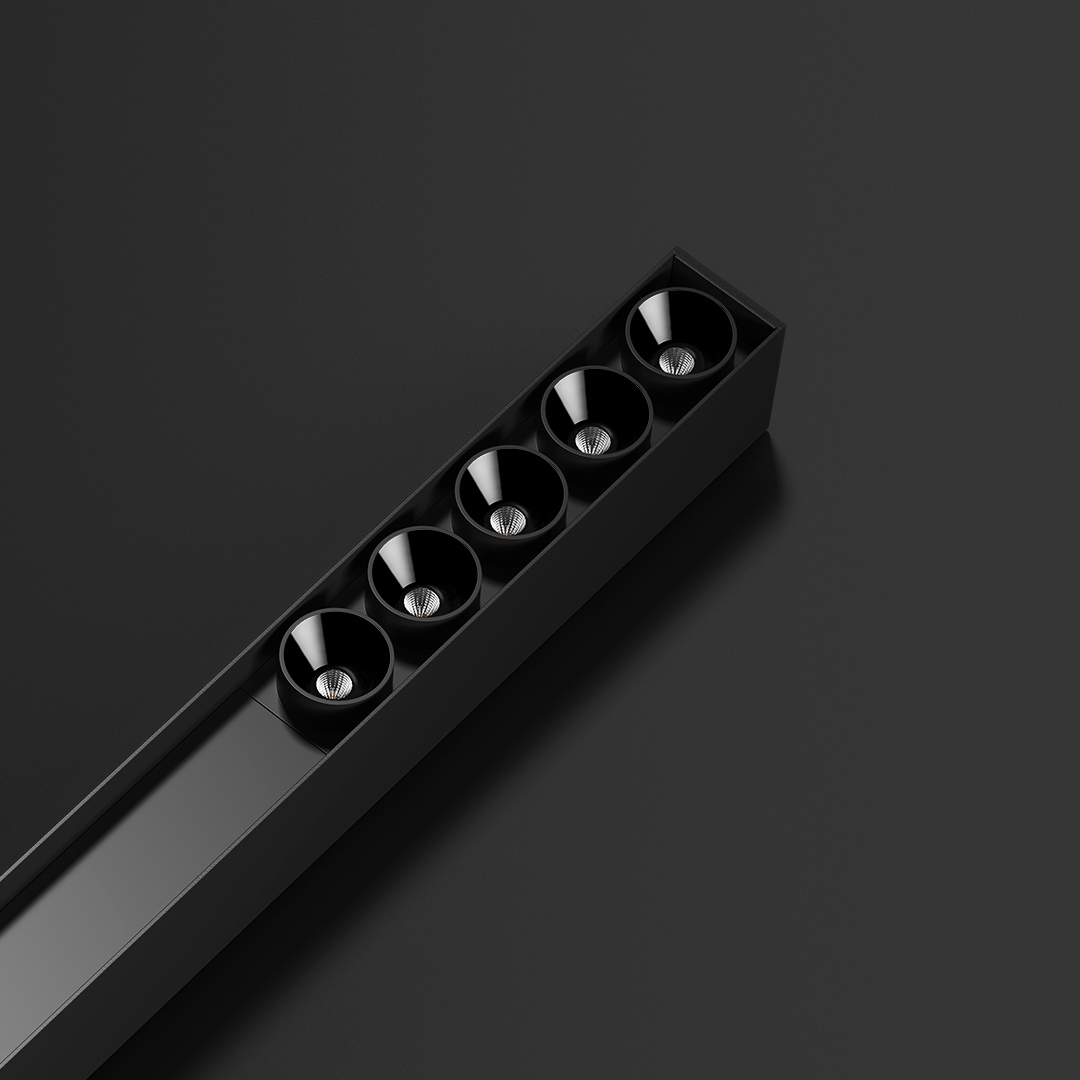

BLACK FOSTER CUSTOM MODULE

CUSTOM SYSTEMS

Black Foster Custom Module enables the redistribution of its combinable modules once the system is installed. Light-emitting and blind segments can be repositioned as the space changes thanks to the freedom allowed by its adapter. Furthermore, the Black Foster Custom Module system features a Fit 27 projector module for integrated accent lighting.

BLACK FOSTER CUSTOM MODULE 3

BLACK FOSTER CUSTOM MODULE 5

BLACK FOSTER CUSTOM MODULE 10

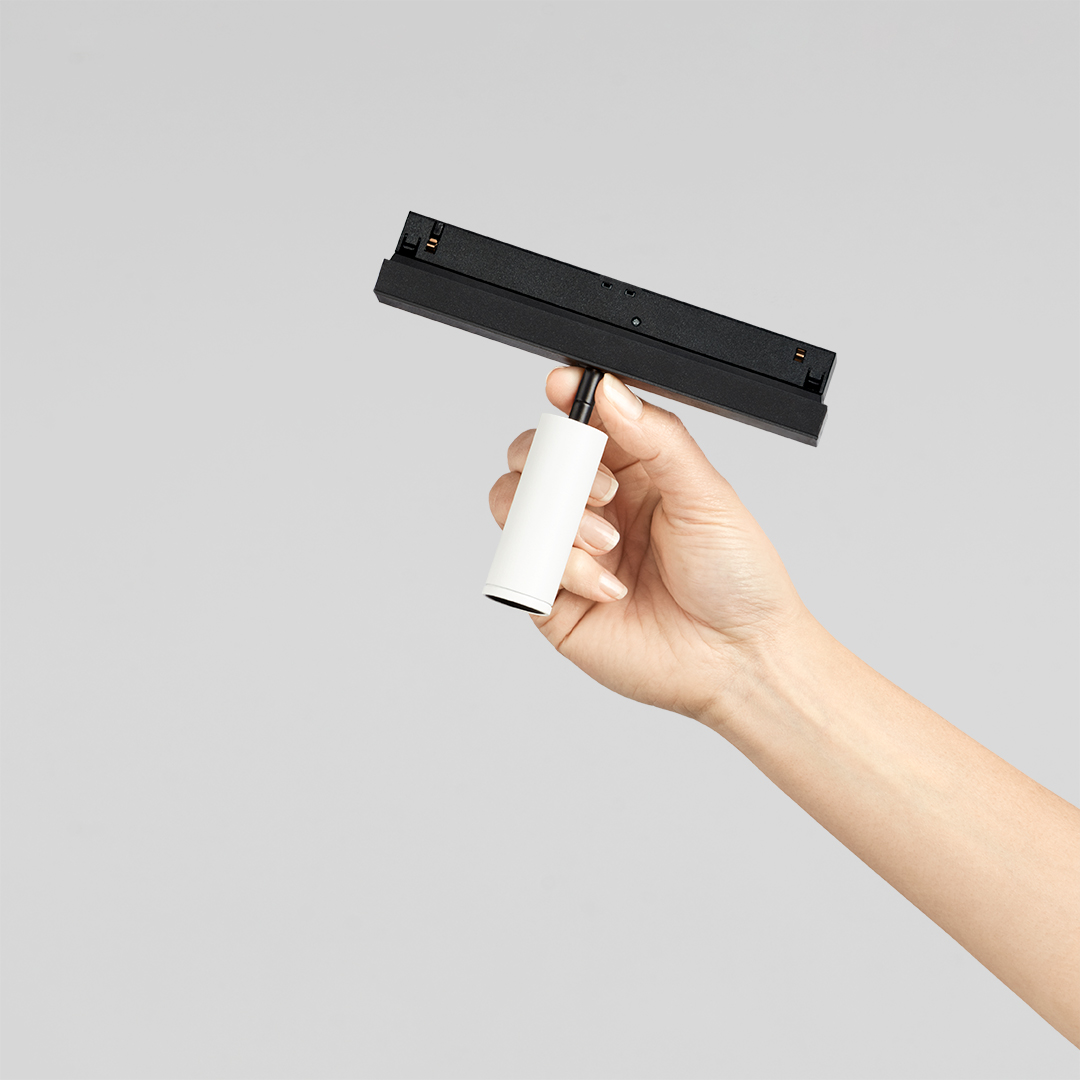

BLACK FOSTER CUSTOM MODULE FIT 27

BLACK FOSTER CUSTOM MODULE 3

Luminous flux

570 lm / 630 lm / 690 lm / 750 lm
Lighting efficiency

90% / 92%
Power

6.3 W
Dimming

0-10V, DALI
Colour temperature

2700K / 3000K / 3500K / 4000K
Chromatic stability

MacAdam Step 3
Light beam angle

19° / 38°

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Input Voltage

Temp.

CRI

Beam angle

Efficiency

Dimming

IC Rated

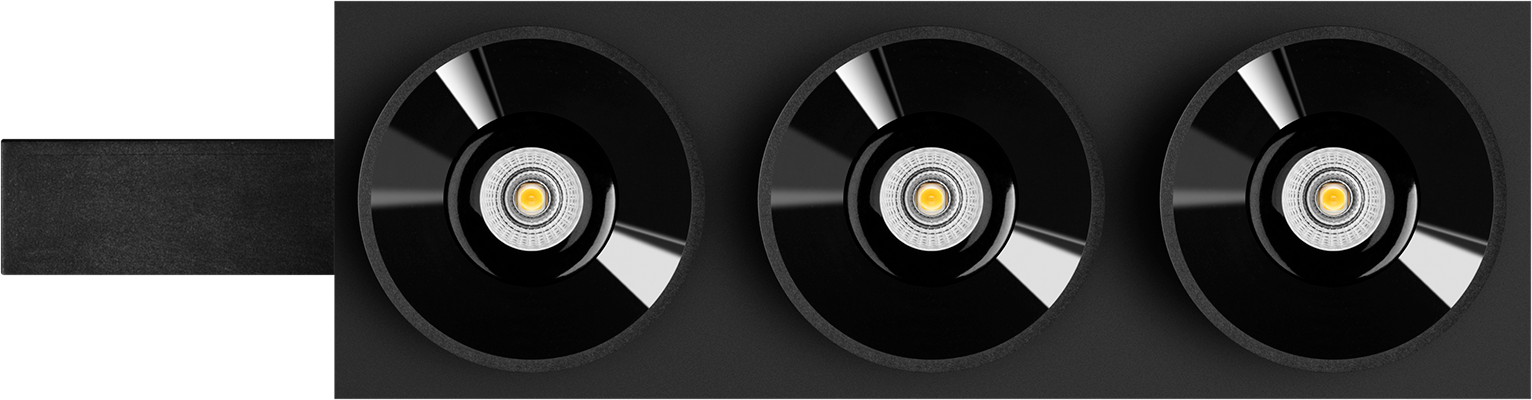

BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM 0/10V 2700K N

Reference:

U4533010N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

570 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-

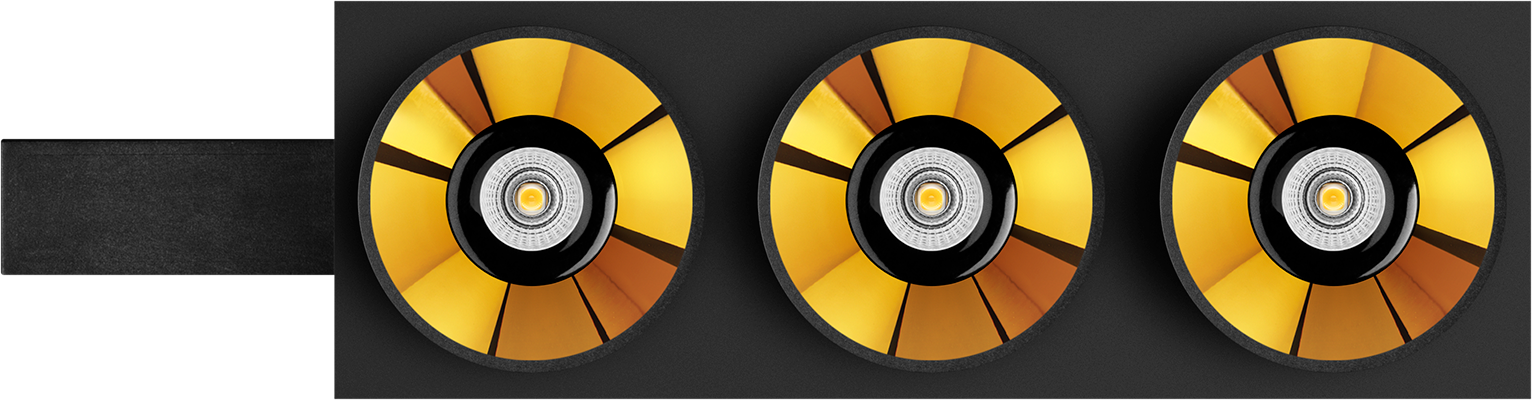

BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM 0/10V 2700K NMG

Reference:

U4533010NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

570 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM 0/10V 3000K N

Reference:

U4533011N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

630 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM 0/10V 3000K NMG

Reference:

U4533011NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

630 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM 0/10V 3500K N

Reference:

U4533013N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

690 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM 0/10V 3500K NMG

Reference:

U4533013NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

690 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM 0/10V 4000K N

Reference:

U4533012N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

750 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM 0/10V 4000K NMG

Reference:

U4533012NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

750 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM DALI 2700K N

Reference:

U4533020N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

570 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM DALI 2700K NMG

Reference:

U4533020NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

570 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM DALI 3000K N

Reference:

U4533021N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

630 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM DALI 3000K NMG

Reference:

U4533021NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

630 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM DALI 3500K N

Reference:

U4533023N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

690 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM DALI 3500K NMG

Reference:

U4533023NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

690 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM DALI 4000K N

Reference:

U4533022N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

750 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL FLOOD DIM DALI 4000K NMG

Reference:

U4533022NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

750 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM 0/10V 2700K N

Reference:

U4533110N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

570 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM 0/10V 2700K NMG

Reference:

U4533110NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

570 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM 0/10V 3000K N

Reference:

U4533111N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

630 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM 0/10V 3000K NMG

Reference:

U4533111NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

630 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM 0/10V 3500K N

Reference:

U4533113N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

690 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM 0/10V 3500K NMG

Reference:

U4533113NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

690 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM 0/10V 4000K N

Reference:

U4533112N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

750 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM 0/10V 4000K NMG

Reference:

U4533112NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

750 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM DALI 2700K N

Reference:

U4533120N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

570 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM DALI 2700K NMG

Reference:

U4533120NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

570 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM DALI 3000K N

Reference:

U4533121N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

630 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM DALI 3000K NMG

Reference:

U4533121NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

630 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM DALI 3500K N

Reference:

U4533123N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

690 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM DALI 3500K NMG

Reference:

U4533123NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

690 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM DALI 4000K N

Reference:

U4533122N

Mounting Accessory / Driver:

-

Colour:

Matt black

Luminous flux:

750 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
BLACK FOSTER CUSTOM MODULE 3 UL SPOT DIM DALI 4000K NMG

Reference:

U4533122NMG

Mounting Accessory / Driver:

-

Colour:

Black-Metallized gold

Luminous flux:

750 lm

Power:

6.3 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-

Accessories

BLACK FOSTER CUSTOM ACCESSORIES

¿Te interesa este producto? Contáctanos

Phone

This field is for validation purposes and should be left unchanged.

Nombre*

Apellidos*

Email*

Teléfono*

País*

Ciudad*

Empresa*

Profesión*

Especifica tu profesión*

Tu mensaje

He leído y acepto la política de privacidad. *

Quiero suscribirme al newsletter.

BLACK FOSTER CUSTOM MODULE

CUSTOM SYSTEMS

BLACK FOSTER CUSTOM MODULE 3

Luminous flux

Power

Colour temperature

Lighting efficiency

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Accessories

¿Te interesa este producto? Contáctanos

Related products

BLACK FOSTER MICRO CUSTOM

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

EPD

Downloads

Register

Log in

Select your location

Select your market
