DEEP

CEILING RECESSED

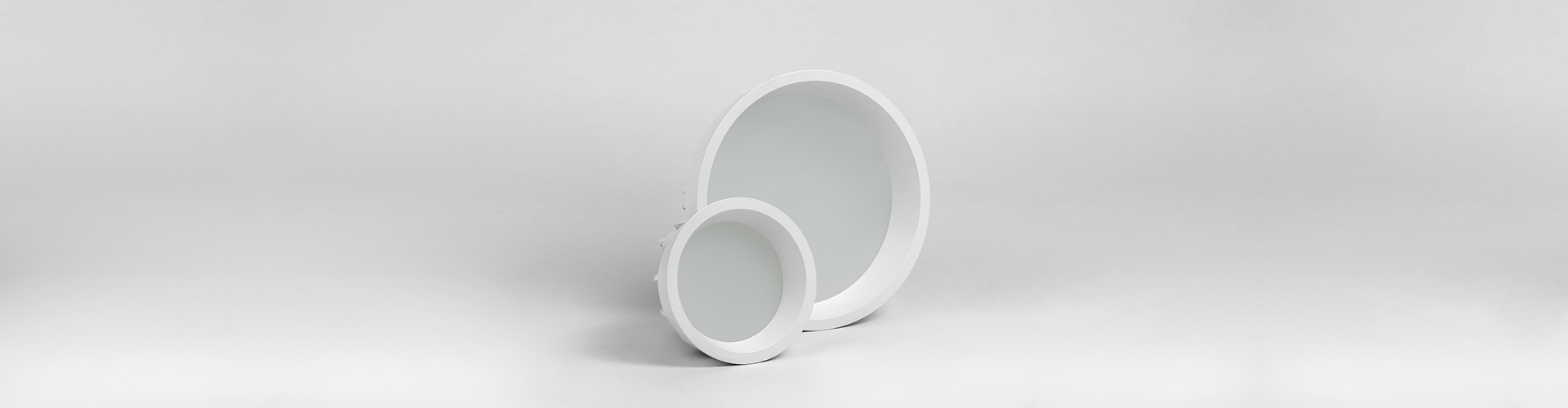

Deep is an LED downlight for general lighting functions designed with a recessed diffuser which considerably reduces ceiling brightness.

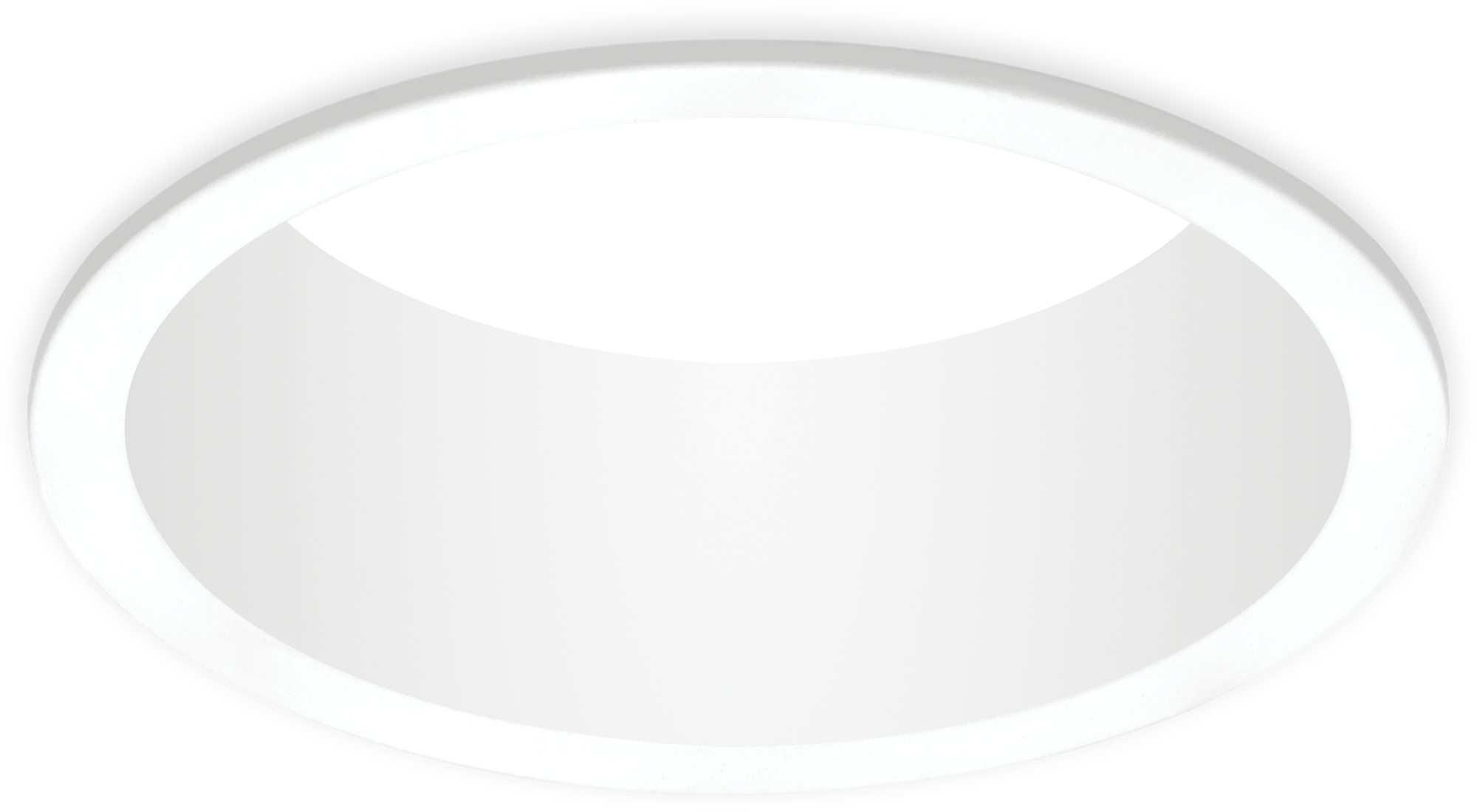

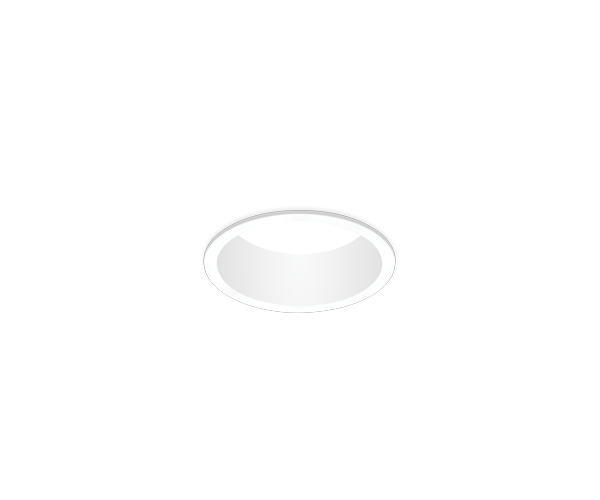

DEEP MINI

DEEP

DEEP MINI

Mounting accessories

Remodel Box, New Construction Plaster Frame L
Luminous flux

1280 lm / 1375 lm / 1400 lm
Lighting efficiency

76%
Power

10 W
Dimming

0-10V / TRIAC dimming only at 120Vac.
Colour temperature

2700K / 3000K / 4000K
Chromatic stability

MacAdam Step 2
Light beam angle

89°

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Input Voltage

Temp.

CRI

Beam angle

Efficiency

Dimming

IC Rated
DEEP MINI UL 2700K WT

Reference:

U2500110WT

Mounting Accessory / Driver:

Remodel Box
REMODEL BOX 9.5-16.8W 700mA 120-277V
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1280 lm

Power:

10 W

Input Voltage:

120-277 V

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

89°

Lighting efficiency:

76%

Dimming:

0-10V / TRIAC dimming only at 120Vac.

IC Rated:

Yes
DEEP MINI UL 2700K WT

Reference:

U2500110WT

Mounting Accessory / Driver:

New Construction Plaster Frame L
NC PLASTER FRAME L Ø122 9.5-16.8W 700mA 120-277V
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1280 lm

Power:

10 W

Input Voltage:

120-277 V

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

89°

Lighting efficiency:

76%

Dimming:

0-10V / TRIAC dimming only at 120Vac.

IC Rated:

Yes
DEEP MINI UL 3000K WT

Reference:

U2500111WT

Mounting Accessory / Driver:

Remodel Box
REMODEL BOX 9.5-16.8W 700mA 120-277V
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1375 lm

Power:

10 W

Input Voltage:

120-277 V

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

89°

Lighting efficiency:

76%

Dimming:

0-10V / TRIAC dimming only at 120Vac.

IC Rated:

Yes
DEEP MINI UL 3000K WT

Reference:

U2500111WT

Mounting Accessory / Driver:

New Construction Plaster Frame L
NC PLASTER FRAME L Ø122 9.5-16.8W 700mA 120-277V
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1375 lm

Power:

10 W

Input Voltage:

120-277 V

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

89°

Lighting efficiency:

76%

Dimming:

0-10V / TRIAC dimming only at 120Vac.

IC Rated:

Yes
DEEP MINI UL 4000K WT

Reference:

U2500112WT

Mounting Accessory / Driver:

Remodel Box
REMODEL BOX 9.5-16.8W 700mA 120-277V
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1400 lm

Power:

10 W

Input Voltage:

120-277 V

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

89°

Lighting efficiency:

76%

Dimming:

0-10V / TRIAC dimming only at 120Vac.

IC Rated:

Yes
DEEP MINI UL 4000K WT

Reference:

U2500112WT

Mounting Accessory / Driver:

New Construction Plaster Frame L
NC PLASTER FRAME L Ø122 9.5-16.8W 700mA 120-277V
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1400 lm

Power:

10 W

Input Voltage:

120-277 V

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

89°

Lighting efficiency:

76%

Dimming:

0-10V / TRIAC dimming only at 120Vac.

IC Rated:

Yes
