STRAM

CEILING RECESSED

A recessed downlight with one bezel, with marked presence. In the Prismatic version you will discover the attractive and efficient effect of its diffusor’s light waves which, in addition, reduces the UGR.

Awards

  • Delta Awards´14 Selected

    Delta Awards´14 Selected

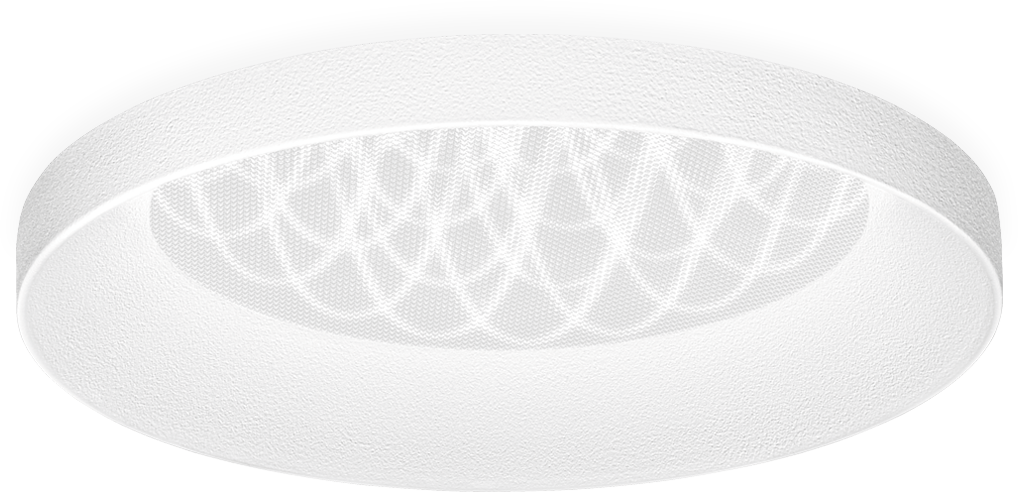

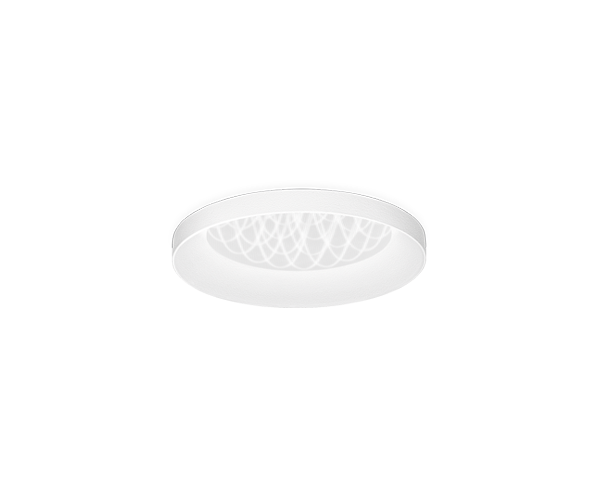

STRAM MINI PRISMATIC
STRAM MINI PRISMATIC
STRAM PRISMATIC
STRAM PRISMATIC

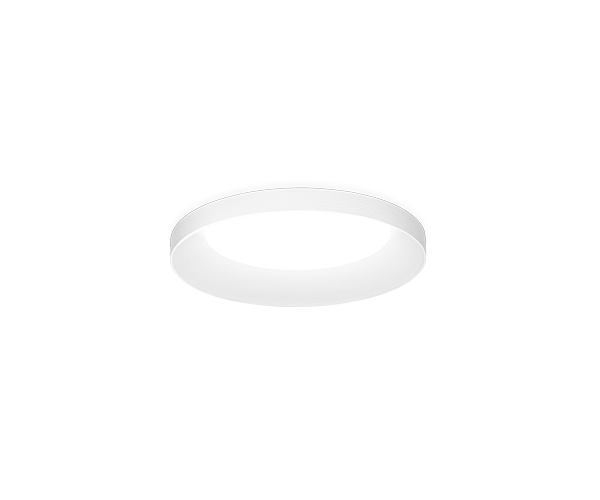

STRAM MINI
STRAM MINI

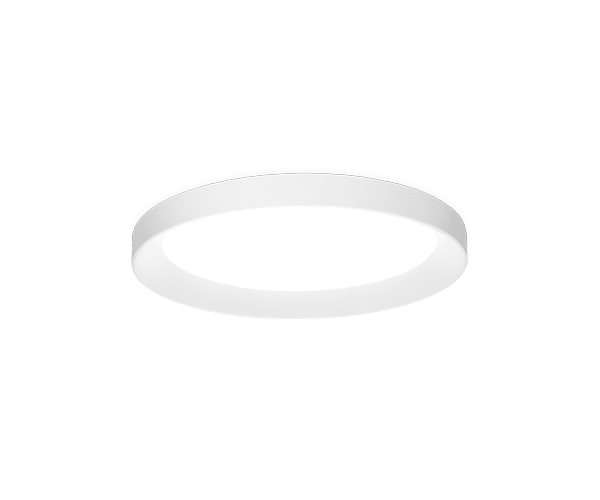

STRAM
STRAM

STRAM MINI PRISMATIC

  • Mounting accessories

    Remodel Box, New Construction Plaster Frame L

  • Luminous flux

    1280 lm / 1375 lm / 1400 lm

  • Lighting efficiency

    80%

  • Power

    10 W

  • Dimming

    0-10V / TRIAC dimming only at 120Vac.

  • Colour temperature

    2700K / 3000K / 4000K

  • Chromatic stability

    MacAdam Step 2

  • Light beam angle

    87°

EPD Instructions BIM
Luminous flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • Mounting Accessory
      IC Rated
        Input Voltage
          CRI
            Light beam angle
              Dimming
                Cord length
                  Colour

                    • Model

                      Ref.

                      Mounting Accessory / Driver

                      Colour

                      Lum. flux

                      Power

                      Input Voltage

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      IC Rated

                    • STRAM MINI PRISMATIC UL 2700K WT
                      Reference:

                      U2370110WT

                      Mounting Accessory / Driver:

                      Remodel Box
                      REMODEL BOX 9.5-16.8W 700mA 120-277V
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1280 lm

                      Power:

                      10 W

                      Input Voltage:

                      120-277 V

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      0-10V / TRIAC dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • STRAM MINI PRISMATIC UL 2700K WT
                      Reference:

                      U2370110WT

                      Mounting Accessory / Driver:

                      New Construction Plaster Frame L
                      NC PLASTER FRAME L Ø122 9.5-16.8W 700mA 120-277V
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1280 lm

                      Power:

                      10 W

                      Input Voltage:

                      120-277 V

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      0-10V / TRIAC dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • STRAM MINI PRISMATIC UL 3000K WT
                      Reference:

                      U2370111WT

                      Mounting Accessory / Driver:

                      Remodel Box
                      REMODEL BOX 9.5-16.8W 700mA 120-277V
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1375 lm

                      Power:

                      10 W

                      Input Voltage:

                      120-277 V

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      0-10V / TRIAC dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • STRAM MINI PRISMATIC UL 3000K WT
                      Reference:

                      U2370111WT

                      Mounting Accessory / Driver:

                      New Construction Plaster Frame L
                      NC PLASTER FRAME L Ø122 9.5-16.8W 700mA 120-277V
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1375 lm

                      Power:

                      10 W

                      Input Voltage:

                      120-277 V

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      0-10V / TRIAC dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • STRAM MINI PRISMATIC UL 4000K WT
                      Reference:

                      U2370112WT

                      Mounting Accessory / Driver:

                      Remodel Box
                      REMODEL BOX 9.5-16.8W 700mA 120-277V
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1400 lm

                      Power:

                      10 W

                      Input Voltage:

                      120-277 V

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      0-10V / TRIAC dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • STRAM MINI PRISMATIC UL 4000K WT
                      Reference:

                      U2370112WT

                      Mounting Accessory / Driver:

                      New Construction Plaster Frame L
                      NC PLASTER FRAME L Ø122 9.5-16.8W 700mA 120-277V
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1400 lm

                      Power:

                      10 W

                      Input Voltage:

                      120-277 V

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      87°

                      Lighting efficiency:

                      80%

                      Dimming:

                      0-10V / TRIAC dimming only at 120Vac.

                      IC Rated:

                      Yes

                    ¿Te interesa este producto? Contáctanos
