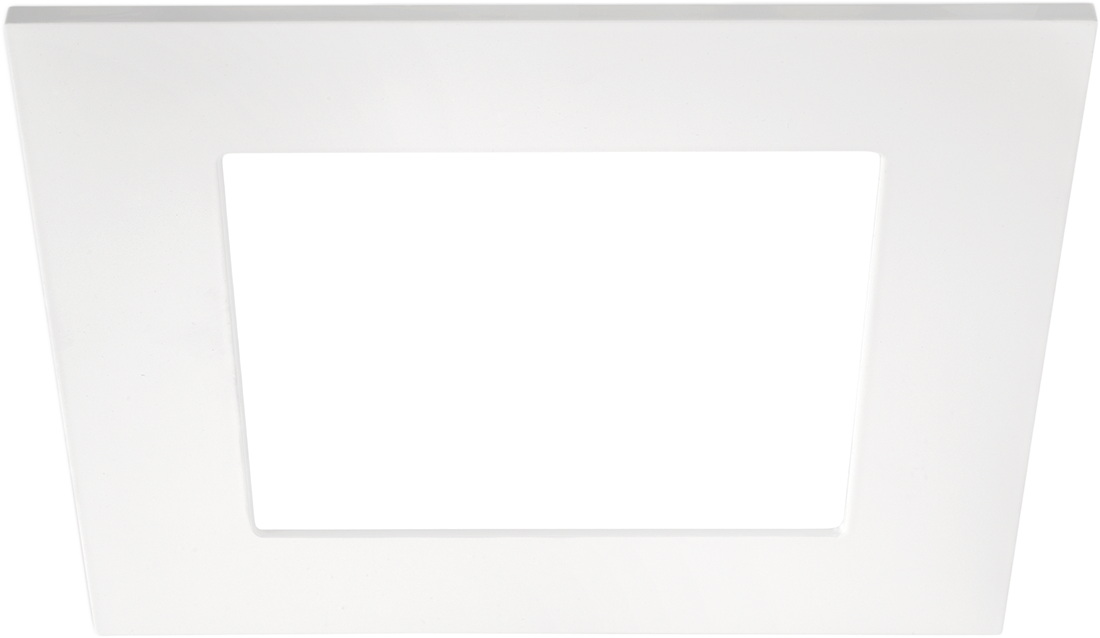

QUAD

CEILING RECESSED

The elegance of a squared perimeter downlight combined with the easy installation of a round fitting hole.

QUAD

  • Mounting accessories

    Remodel Box, New Construction Plaster Frame L

  • Luminous flux

    1855 lm / 1885 lm / 3025 lm / 3075 lm

  • Lighting efficiency

    76%

  • Power

    12 W / 22 W

  • Dimming

    0-10V / TRIAC/ELV dimming only at 120Vac.

  • Colour temperature

    3000K / 4000K

  • Chromatic stability

    MacAdam Step 2

  • Light beam angle

    102°

EPD Instructions BIM
Luminous flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • Mounting Accessory
      IC Rated
        Input Voltage
          CRI
            Light beam angle
              Dimming
                Cord length
                  Colour

                    • Model

                      Ref.

                      Mounting Accessory / Driver

                      Colour

                      Lum. flux

                      Power

                      Input Voltage

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      IC Rated

                    • QUAD UL 3000K W
                      Reference:

                      U1890111W

                      Mounting Accessory / Driver:

                      Remodel Box
                      REMODEL BOX 11.2-16.8W 400mA
                      (Mandatory / not included)

                      Colour:

                      Matt white

                      Luminous flux:

                      1855 lm

                      Power:

                      12 W

                      Input Voltage:

                      120/277 V

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      102°

                      Lighting efficiency:

                      76%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • QUAD UL 3000K W
                      Reference:

                      U1890111W

                      Mounting Accessory / Driver:

                      Remodel Box
                      REMODEL BOX 20-29.4W 700mA
                      (Mandatory / not included)

                      Colour:

                      Matt white

                      Luminous flux:

                      3025 lm

                      Power:

                      22 W

                      Input Voltage:

                      120/277 V

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      102°

                      Lighting efficiency:

                      76%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • QUAD UL 3000K W
                      Reference:

                      U1890111W

                      Mounting Accessory / Driver:

                      New Construction Plaster Frame L
                      NC PLASTER FRAME L Ø205 11.2-16.8W 400mA
                      (Mandatory / not included)

                      Colour:

                      Matt white

                      Luminous flux:

                      1855 lm

                      Power:

                      12 W

                      Input Voltage:

                      120/277 V

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      102°

                      Lighting efficiency:

                      76%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • QUAD UL 3000K W
                      Reference:

                      U1890111W

                      Mounting Accessory / Driver:

                      New Construction Plaster Frame L
                      NC PLASTER FRAME L Ø205 20-29.4W 700mA
                      (Mandatory / not included)

                      Colour:

                      Matt white

                      Luminous flux:

                      3025 lm

                      Power:

                      22 W

                      Input Voltage:

                      120/277 V

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      102°

                      Lighting efficiency:

                      76%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • QUAD UL 4000K W
                      Reference:

                      U1890112W

                      Mounting Accessory / Driver:

                      Remodel Box
                      REMODEL BOX 11.2-16.8W 400mA
                      (Mandatory / not included)

                      Colour:

                      Matt white

                      Luminous flux:

                      1885 lm

                      Power:

                      12 W

                      Input Voltage:

                      120/277 V

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      102°

                      Lighting efficiency:

                      76%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • QUAD UL 4000K W
                      Reference:

                      U1890112W

                      Mounting Accessory / Driver:

                      Remodel Box
                      REMODEL BOX 20-29.4W 700mA
                      (Mandatory / not included)

                      Colour:

                      Matt white

                      Luminous flux:

                      3075 lm

                      Power:

                      22 W

                      Input Voltage:

                      120/277 V

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      102°

                      Lighting efficiency:

                      76%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • QUAD UL 4000K W
                      Reference:

                      U1890112W

                      Mounting Accessory / Driver:

                      New Construction Plaster Frame L
                      NC PLASTER FRAME L Ø205 11.2-16.8W 400mA
                      (Mandatory / not included)

                      Colour:

                      Matt white

                      Luminous flux:

                      1885 lm

                      Power:

                      12 W

                      Input Voltage:

                      120/277 V

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      102°

                      Lighting efficiency:

                      76%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • QUAD UL 4000K W
                      Reference:

                      U1890112W

                      Mounting Accessory / Driver:

                      New Construction Plaster Frame L
                      NC PLASTER FRAME L Ø205 20-29.4W 700mA
                      (Mandatory / not included)

                      Colour:

                      Matt white

                      Luminous flux:

                      3075 lm

                      Power:

                      22 W

                      Input Voltage:

                      120/277 V

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      102°

                      Lighting efficiency:

                      76%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120Vac.

                      IC Rated:

                      Yes
