SALT

SUSPENSION

High Bay light fitting performance combined with the design of a unique decorative piece. Salt integrates driver and heat dissipation into the design of the fitting itself and achieves on the one hand an excellent thermal management and on the other hand the freedom to hang the fixture at any desired height. And to prevent glare, Salt disposes of a diffusor covering the light source. Ideal thus also for residential and ample spaces.

Awards

If Prodcut Design Award 2015
German Design Award Nominee 2016

SALT

Luminous flux

3545 lm / 3600 lm / 5125 lm / 5225 lm
Lighting efficiency

66%
Power

23 W / 35 W
Dimming

0-10V / TRIAC/ELV dimming only at 120V
Colour temperature

3000K / 4000K
Chromatic stability

MacAdam Step 2
Light beam angle

77°
Cord length

3.05 m

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Input Voltage

Temp.

CRI

Beam angle

Efficiency

Dimming

IC Rated

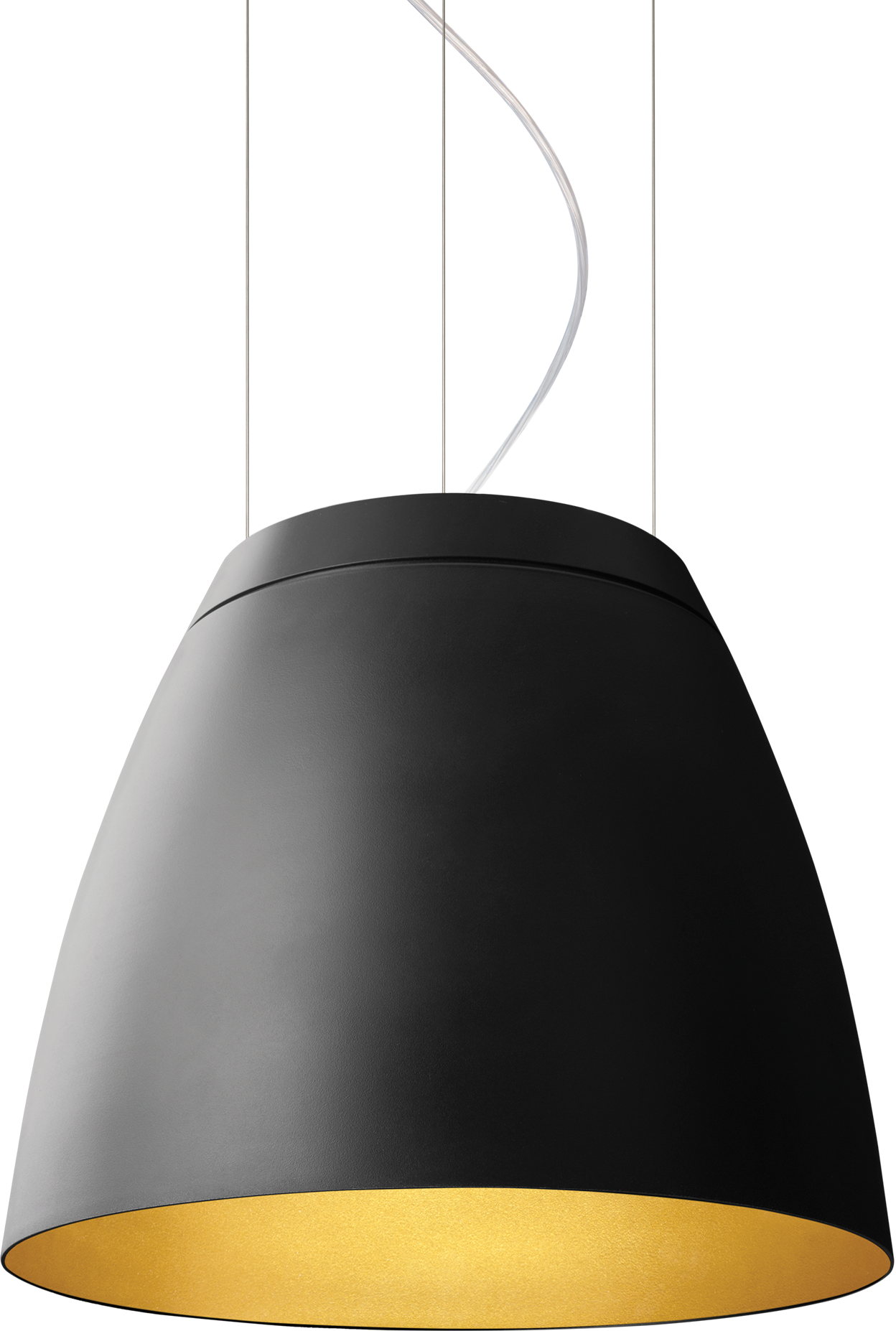

SALT 1 UL 3000K NG

Reference:

U2200111NG

Mounting Accessory / Driver:

-

Colour:

Black-Gold

Luminous flux:

3545 lm

Power:

23 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-

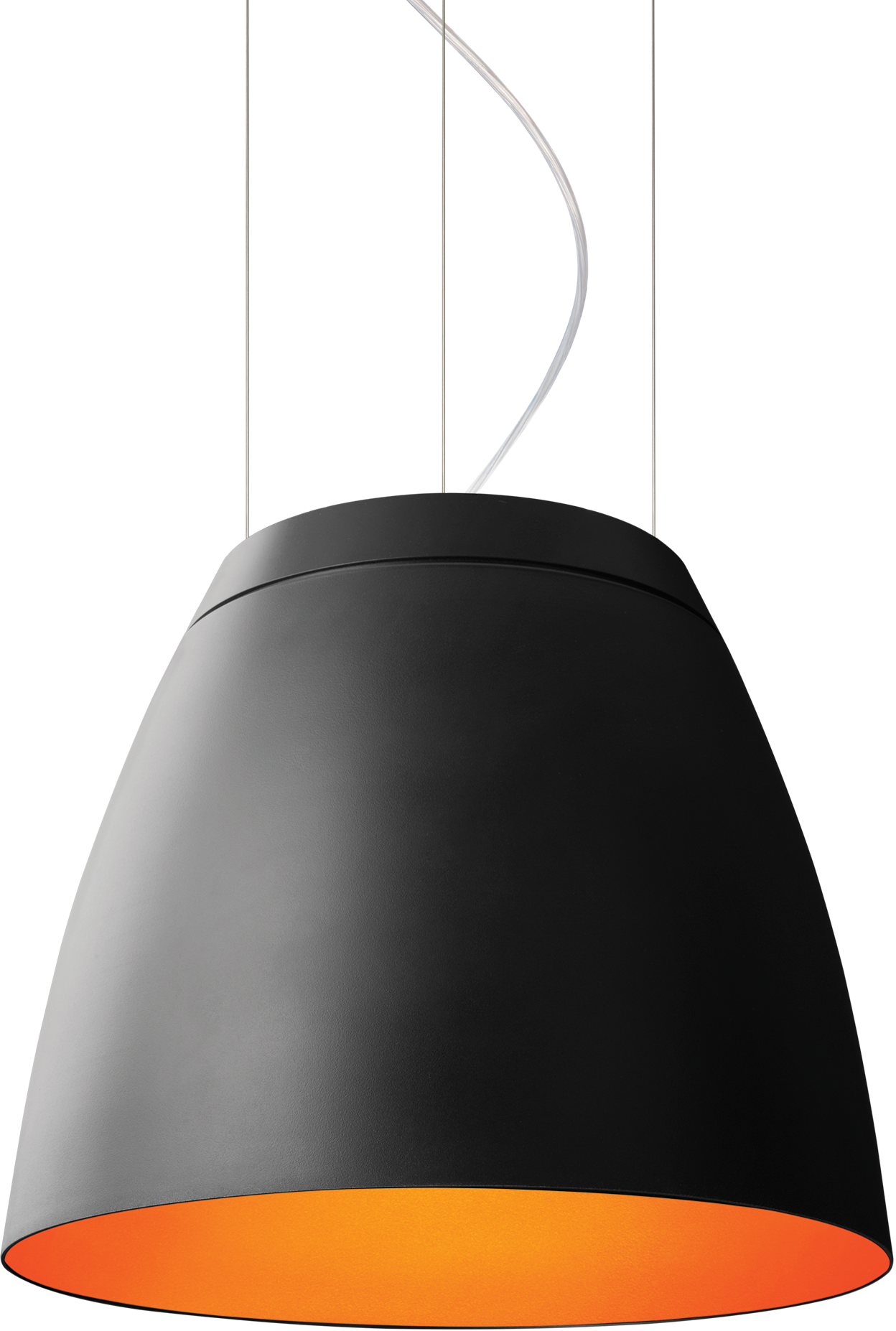

SALT 1 UL 3000K NR

Reference:

U2200111NR

Mounting Accessory / Driver:

-

Colour:

Black-Red

Luminous flux:

3545 lm

Power:

23 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-

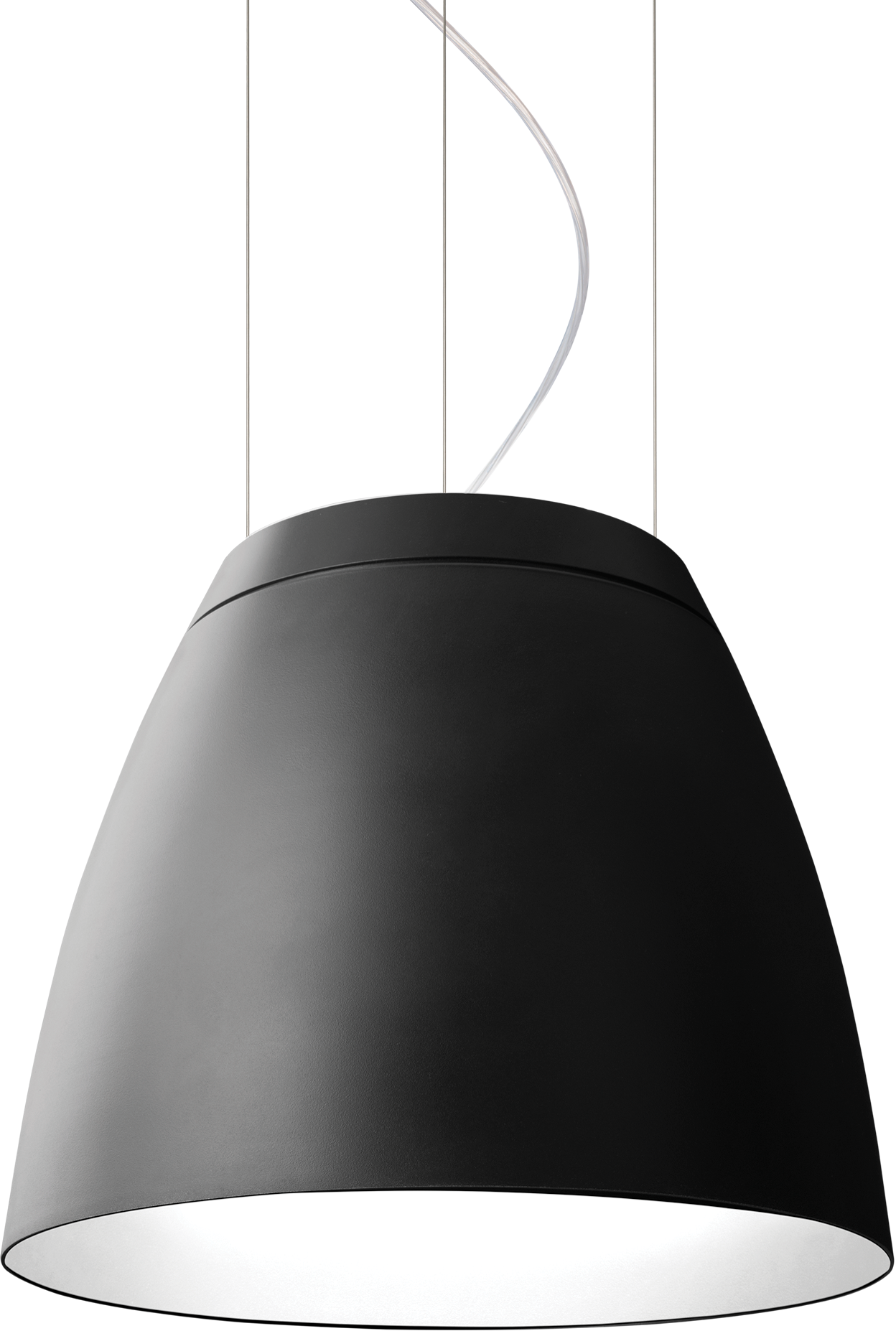

SALT 1 UL 3000K NW

Reference:

U2200111NW

Mounting Accessory / Driver:

-

Colour:

Black-White

Luminous flux:

3545 lm

Power:

23 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-

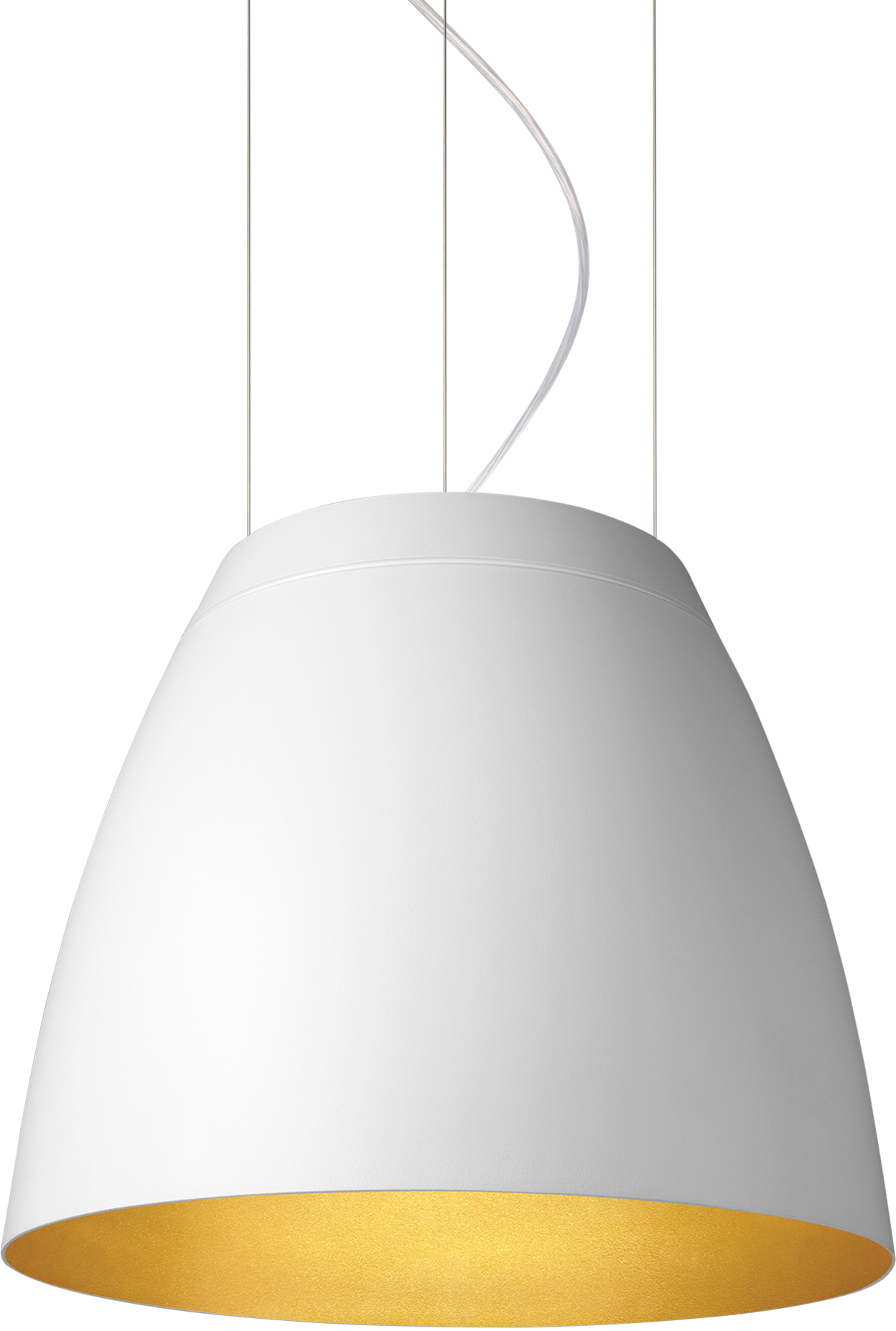

SALT 1 UL 3000K WG

Reference:

U2200111WG

Mounting Accessory / Driver:

-

Colour:

White-Gold

Luminous flux:

3545 lm

Power:

23 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-

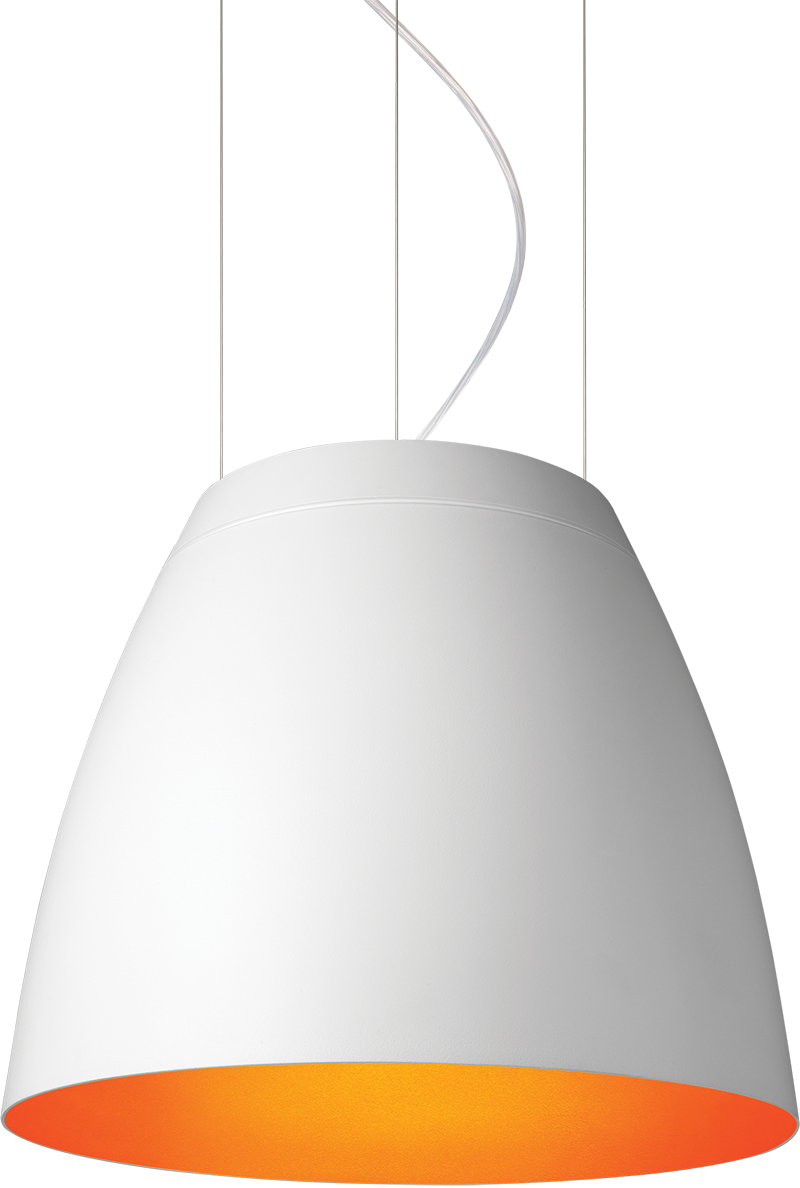

SALT 1 UL 3000K WR

Reference:

U2200111WR

Mounting Accessory / Driver:

-

Colour:

White-Red

Luminous flux:

3545 lm

Power:

23 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-

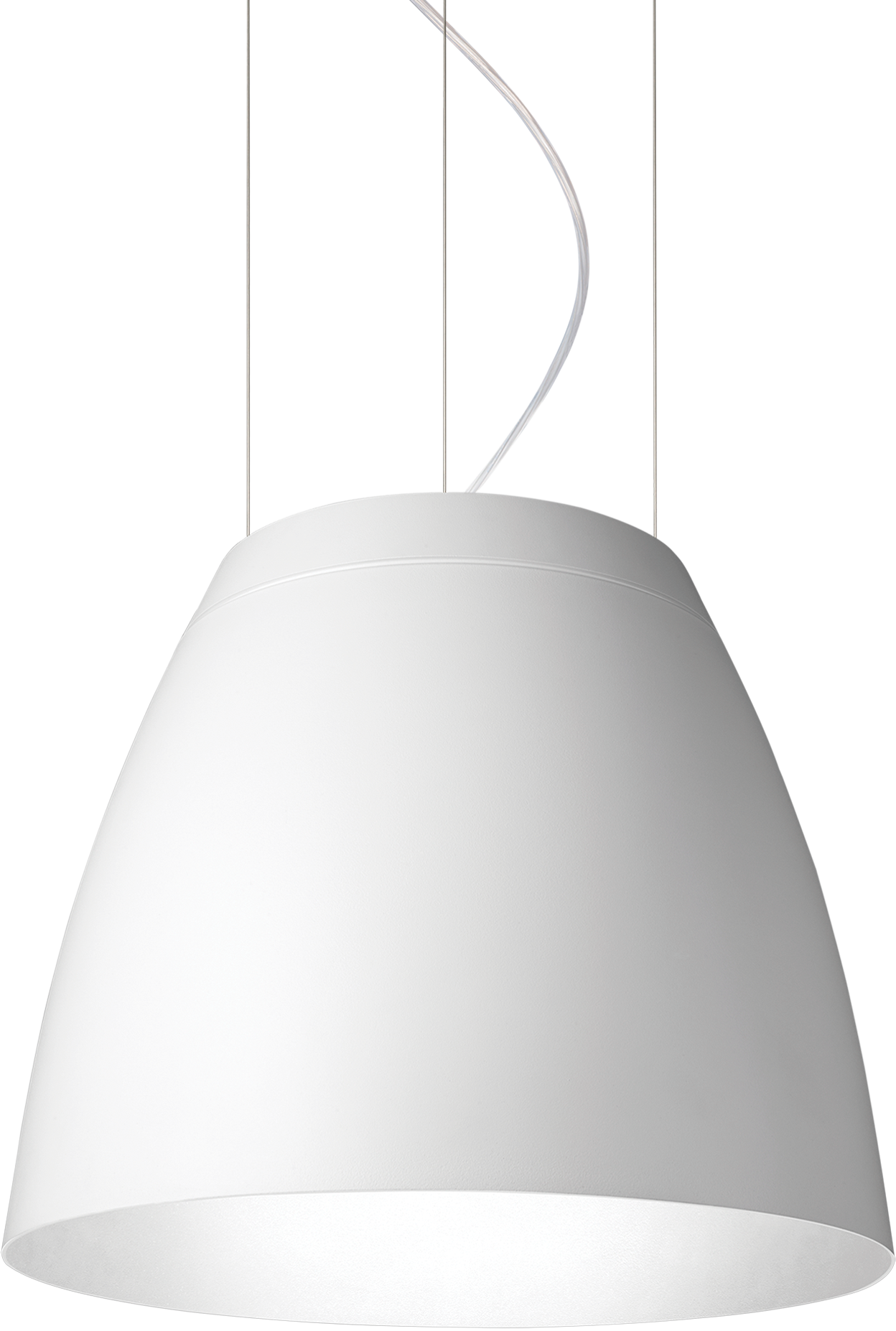

SALT 1 UL 3000K WW

Reference:

U2200111WW

Mounting Accessory / Driver:

-

Colour:

White-White

Luminous flux:

3545 lm

Power:

23 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 1 UL 4000K NG

Reference:

U2200112NG

Mounting Accessory / Driver:

-

Colour:

Black-Gold

Luminous flux:

3600 lm

Power:

23 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 1 UL 4000K NR

Reference:

U2200112NR

Mounting Accessory / Driver:

-

Colour:

Black-Red

Luminous flux:

3600 lm

Power:

23 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 1 UL 4000K NW

Reference:

U2200112NW

Mounting Accessory / Driver:

-

Colour:

Black-White

Luminous flux:

3600 lm

Power:

23 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 1 UL 4000K WG

Reference:

U2200112WG

Mounting Accessory / Driver:

-

Colour:

White-Gold

Luminous flux:

3600 lm

Power:

23 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 1 UL 4000K WR

Reference:

U2200112WR

Mounting Accessory / Driver:

-

Colour:

White-Red

Luminous flux:

3600 lm

Power:

23 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 1 UL 4000K WW

Reference:

U2200112WW

Mounting Accessory / Driver:

-

Colour:

White-White

Luminous flux:

3600 lm

Power:

23 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 2 UL 3000K NG

Reference:

U2200211NG

Mounting Accessory / Driver:

-

Colour:

Black-Gold

Luminous flux:

5125 lm

Power:

35 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 2 UL 3000K NR

Reference:

U2200211NR

Mounting Accessory / Driver:

-

Colour:

Black-Red

Luminous flux:

5125 lm

Power:

35 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 2 UL 3000K NW

Reference:

U2200211NW

Mounting Accessory / Driver:

-

Colour:

Black-White

Luminous flux:

5125 lm

Power:

35 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 2 UL 3000K WG

Reference:

U2200211WG

Mounting Accessory / Driver:

-

Colour:

White-Gold

Luminous flux:

5125 lm

Power:

35 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 2 UL 3000K WR

Reference:

U2200211WR

Mounting Accessory / Driver:

-

Colour:

White-Red

Luminous flux:

5125 lm

Power:

35 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 2 UL 3000K WW

Reference:

U2200211WW

Mounting Accessory / Driver:

-

Colour:

White-White

Luminous flux:

5125 lm

Power:

35 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 2 UL 4000K NG

Reference:

U2200212NG

Mounting Accessory / Driver:

-

Colour:

Black-Gold

Luminous flux:

5225 lm

Power:

35 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 2 UL 4000K NR

Reference:

U2200212NR

Mounting Accessory / Driver:

-

Colour:

Black-Red

Luminous flux:

5225 lm

Power:

35 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 2 UL 4000K NW

Reference:

U2200212NW

Mounting Accessory / Driver:

-

Colour:

Black-White

Luminous flux:

5225 lm

Power:

35 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 2 UL 4000K WG

Reference:

U2200212WG

Mounting Accessory / Driver:

-

Colour:

White-Gold

Luminous flux:

5225 lm

Power:

35 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 2 UL 4000K WR

Reference:

U2200212WR

Mounting Accessory / Driver:

-

Colour:

White-Red

Luminous flux:

5225 lm

Power:

35 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
SALT 2 UL 4000K WW

Reference:

U2200212WW

Mounting Accessory / Driver:

-

Colour:

White-White

Luminous flux:

5225 lm

Power:

35 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

77°

Lighting efficiency:

66%

Dimming:

0-10V / TRIAC/ELV dimming only at 120V

IC Rated:

-
