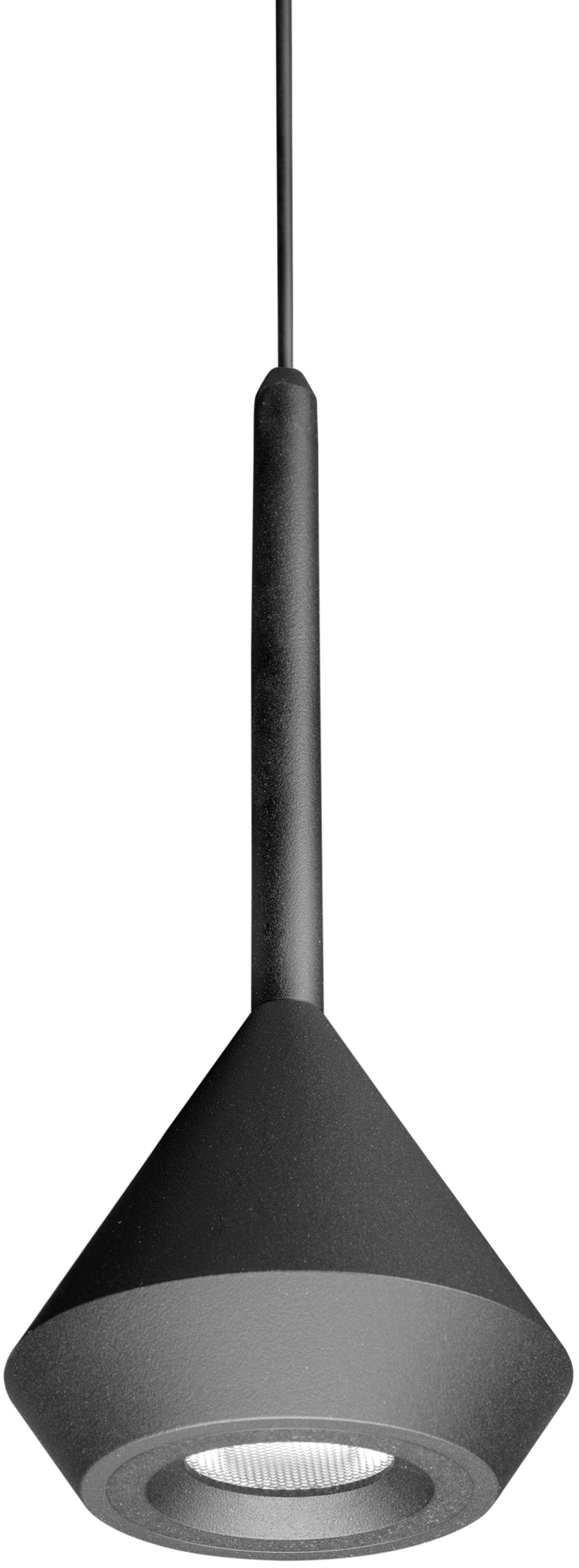

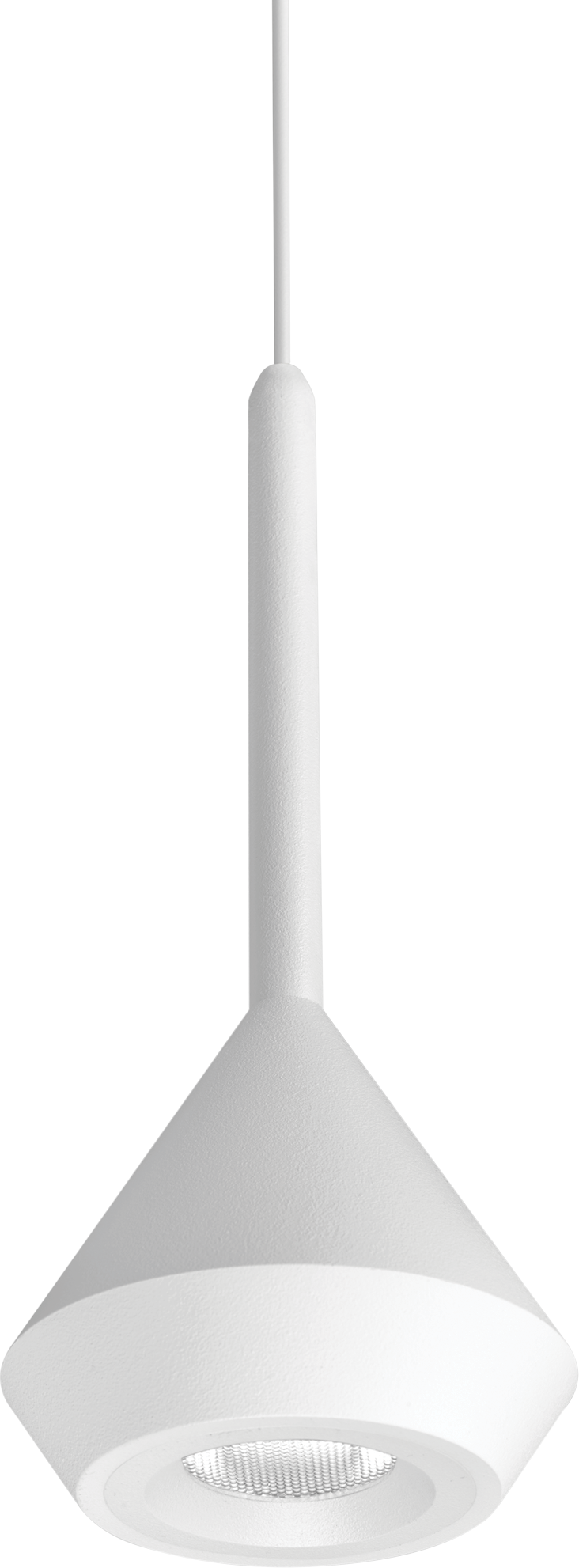

SPIN

SUSPENSION

Reduced dimensions, clear lines and a mechanized geometry combined in a pendant luminaire for accent lighting. Its ultra-thin cable gives Spin a sensation of aerial floatability. Can be fitted individually or configured in a group.

Awards

Iconic Awards 2016 Winner
German Design Award Nominee 2016
A´design Award Winner 2015 Gold

SPIN

Mounting accessories

Remote Box
Luminous flux

600 lm / 630 lm / 680 lm
Lighting efficiency

84% / 86%
Power

6.5 W
Dimming

0-10V
Colour temperature

2700K / 3000K / 4000K
Chromatic stability

MacAdam Step 2
Light beam angle

24 / 40
Cord length

2 m / 3 m / 5 m

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

IC Rated
SPIN UL 2M 24º 2700K NT

Reference:

U2220200NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 2M 24º 2700K WT

Reference:

U2220200WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 2M 24º 3000K NT

Reference:

U2220201NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 2M 24º 3000K WT

Reference:

U2220201WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 2M 24º 4000K NT

Reference:

U2220202NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 2M 24º 4000K WT

Reference:

U2220202WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 2M 40º 2700K NT

Reference:

U2220210NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 2M 40º 2700K WT

Reference:

U2220210WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 2M 40º 3000K NT

Reference:

U2220211NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 2M 40º 3000K WT

Reference:

U2220211WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 2M 40º 4000K NT

Reference:

U2220212NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 2M 40º 4000K WT

Reference:

U2220212WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 3M 24º 2700K NT

Reference:

U2221200NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 3M 24º 2700K WT

Reference:

U2221200WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 3M 24º 3000K NT

Reference:

U2221201NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 3M 24º 3000K WT

Reference:

U2221201WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 3M 24º 4000K NT

Reference:

U2221202NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 3M 24º 4000K WT

Reference:

U2221202WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 3M 40º 2700K NT

Reference:

U2221210NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 3M 40º 2700K WT

Reference:

U2221210WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 3M 40º 3000K NT

Reference:

U2221211NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 3M 40º 3000K WT

Reference:

U2221211WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 3M 40º 4000K NT

Reference:

U2221212NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 3M 40º 4000K WT

Reference:

U2221212WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 5M 24º 2700K NT

Reference:

U2222200NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 5M 24º 2700K WT

Reference:

U2222200WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 5M 24º 3000K NT

Reference:

U2222201NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 5M 24º 3000K WT

Reference:

U2222201WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 5M 24º 4000K NT

Reference:

U2222202NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 5M 24º 4000K WT

Reference:

U2222202WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN UL 5M 40º 2700K NT

Reference:

U2222210NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 5M 40º 2700K WT

Reference:

U2222210WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 5M 40º 3000K NT

Reference:

U2222211NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 5M 40º 3000K WT

Reference:

U2222211WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 5M 40º 4000K NT

Reference:

U2222212NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN UL 5M 40º 4000K WT

Reference:

U2222212WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 2M 24º 2700K NT

Reference:

U2210200NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 2M 24º 2700K WT

Reference:

U2210200WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 2M 24º 3000K NT

Reference:

U2210201NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 2M 24º 3000K WT

Reference:

U2210201WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 2M 24º 4000K NT

Reference:

U2210202NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 2M 24º 4000K WT

Reference:

U2210202WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 2M 40º 2700K NT

Reference:

U2210210NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 2M 40º 2700K WT

Reference:

U2210210WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 2M 40º 3000K NT

Reference:

U2210211NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 2M 40º 3000K WT

Reference:

U2210211WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 2M 40º 4000K NT

Reference:

U2210212NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 2M 40º 4000K WT

Reference:

U2210212WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 3M 24º 2700K NT

Reference:

U2211200NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 3M 24º 2700K WT

Reference:

U2211200WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 3M 24º 3000K NT

Reference:

U2211201NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 3M 24º 3000K WT

Reference:

U2211201WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 3M 24º 4000K NT

Reference:

U2211202NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 3M 24º 4000K WT

Reference:

U2211202WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 3M 40º 2700K NT

Reference:

U2211210NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 3M 40º 2700K WT

Reference:

U2211210WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 3M 40º 3000K NT

Reference:

U2211211NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 3M 40º 3000K WT

Reference:

U2211211WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 3M 40º 4000K NT

Reference:

U2211212NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 3M 40º 4000K WT

Reference:

U2211212WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 5M 24º 2700K NT

Reference:

U2212200NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 5M 24º 2700K WT

Reference:

U2212200WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 5M 24º 3000K NT

Reference:

U2212201NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 5M 24º 3000K WT

Reference:

U2212201WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 5M 24º 4000K NT

Reference:

U2212202NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 5M 24º 4000K WT

Reference:

U2212202WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

24

Lighting efficiency:

86%

IC Rated:

Yes
SPIN BASE UL 5M 40º 2700K NT

Reference:

U2212210NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 5M 40º 2700K WT

Reference:

U2212210WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

600 lm

Power:

6.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 5M 40º 3000K NT

Reference:

U2212211NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 5M 40º 3000K WT

Reference:

U2212211WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

630 lm

Power:

6.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 5M 40º 4000K NT

Reference:

U2212212NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes
SPIN BASE UL 5M 40º 4000K WT

Reference:

U2212212WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 1 to 3 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

680 lm

Power:

6.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40

Lighting efficiency:

84%

IC Rated:

Yes

Accessories

CORD ACCESSORY

¿Te interesa este producto? Contáctanos

Facebook

This field is for validation purposes and should be left unchanged.

Nombre*

Apellidos*

Email*

Teléfono*

País*

Ciudad*

Empresa*

Profesión*

Especifica tu profesión*

Tu mensaje

He leído y acepto la política de privacidad. *

Quiero suscribirme al newsletter.

SPIN

SUSPENSION

Awards

Iconic Awards 2016 Winner

German Design Award Nominee 2016

A´design Award Winner 2015 Gold

SPIN

Luminous flux

Power

Colour temperature

Lighting efficiency

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Accessories

¿Te interesa este producto? Contáctanos

Related products

ART

HOLLY

SALT

BLACK FOSTER SUSPENSION

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
