ART

SUSPENSION

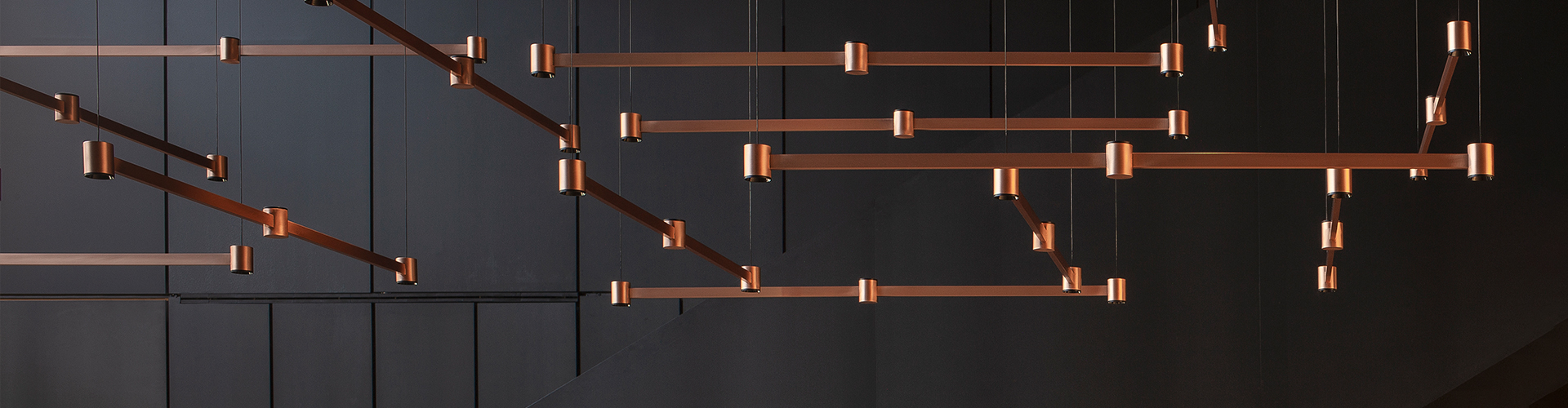

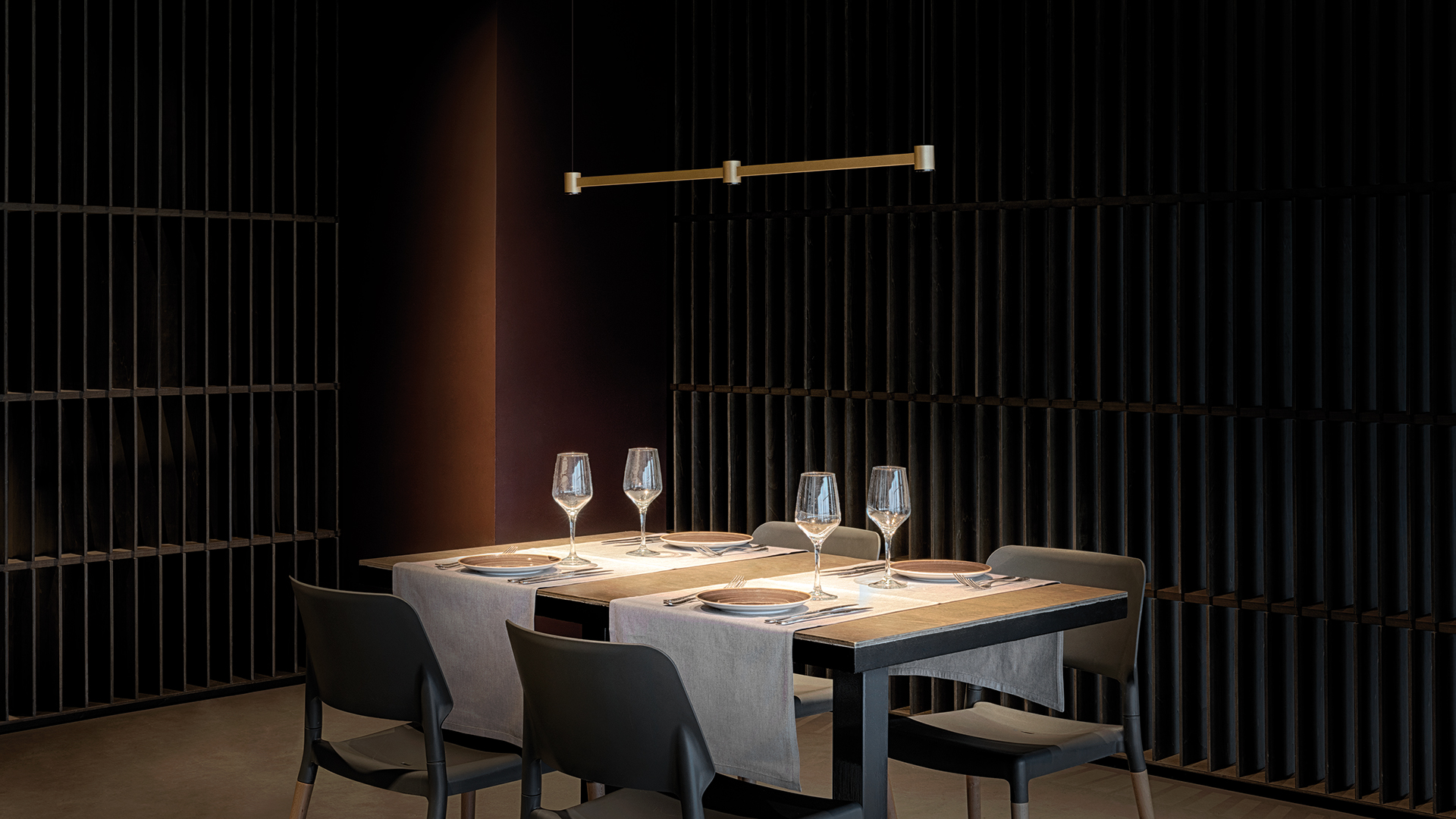

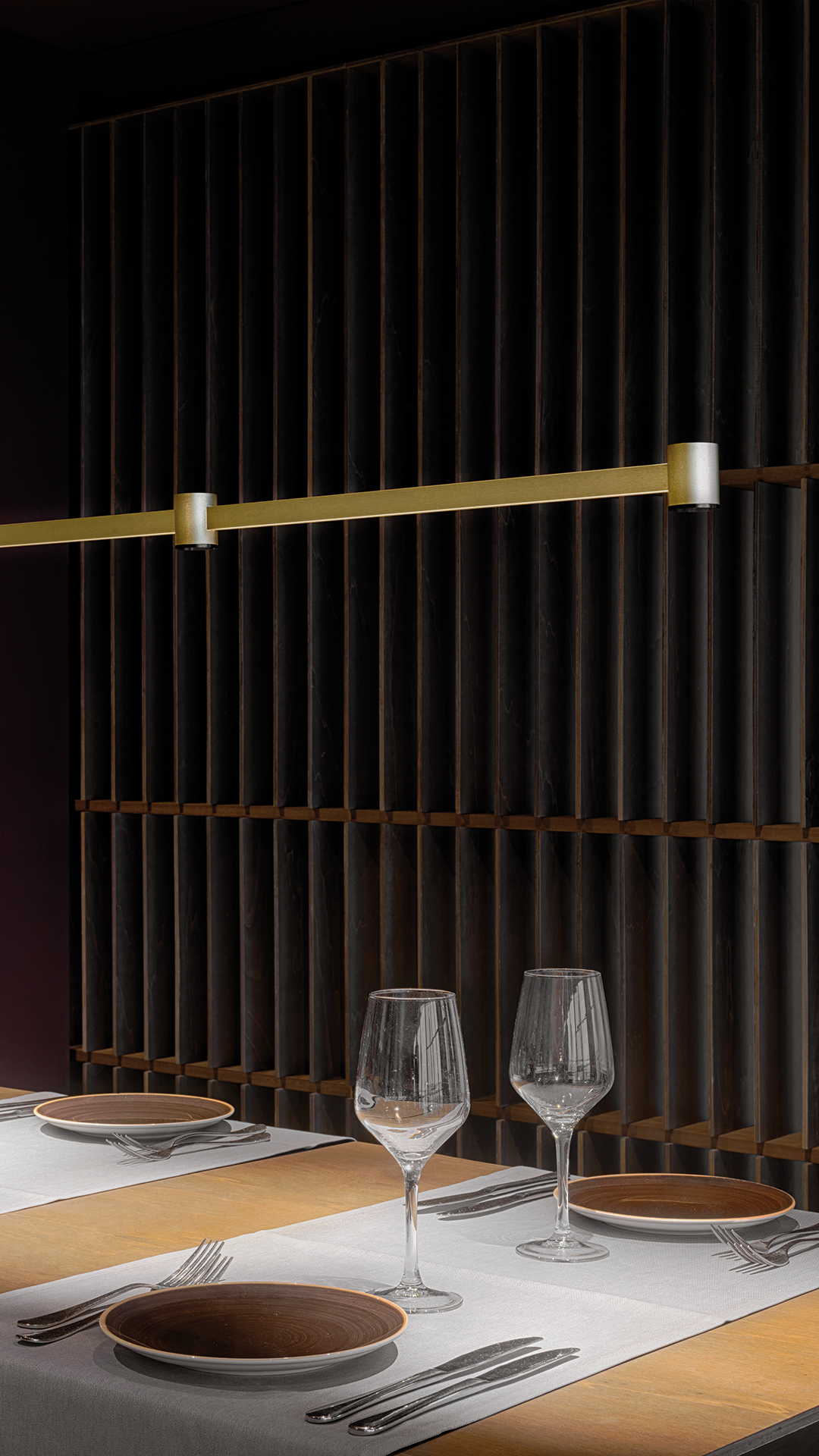

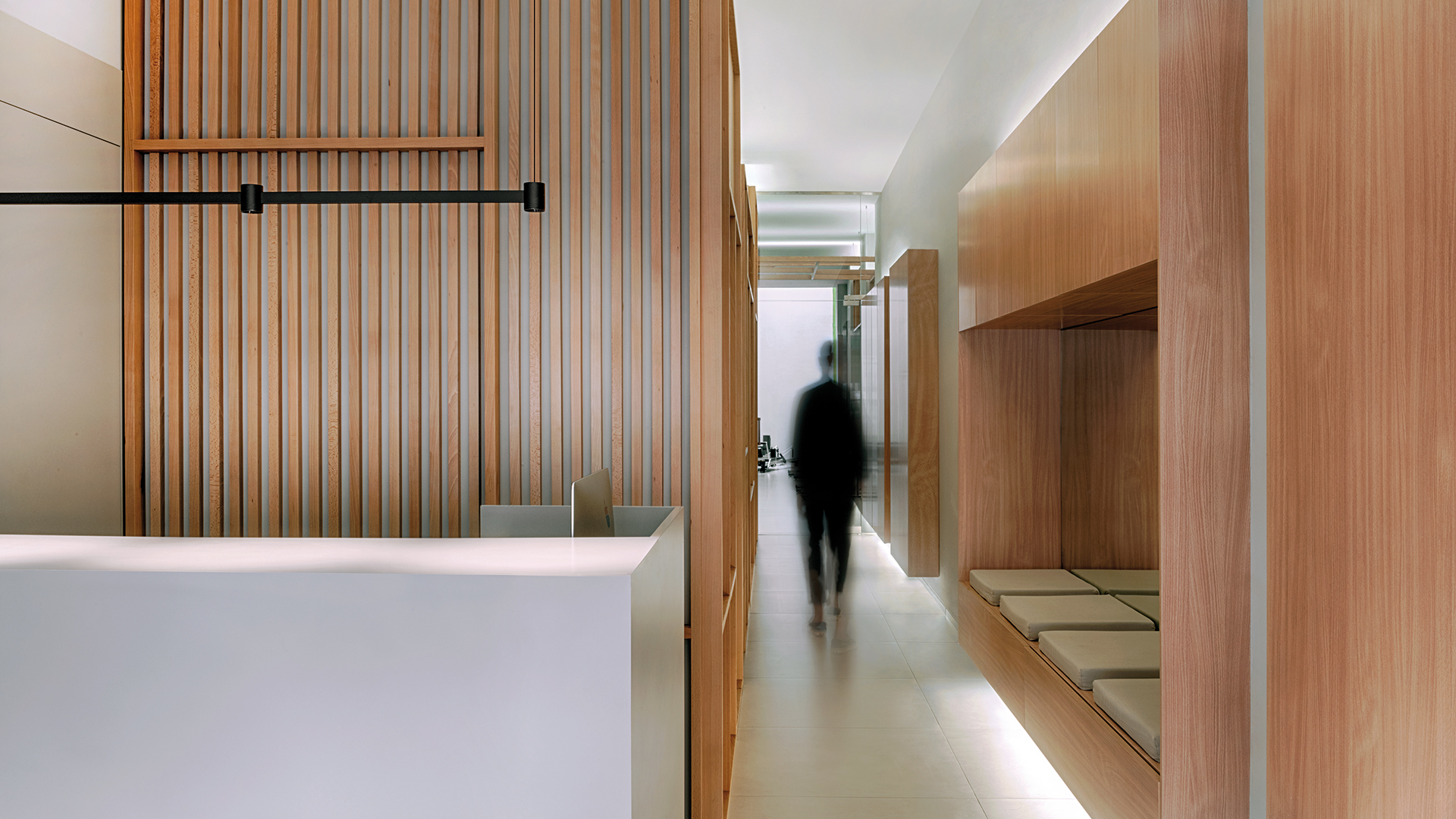

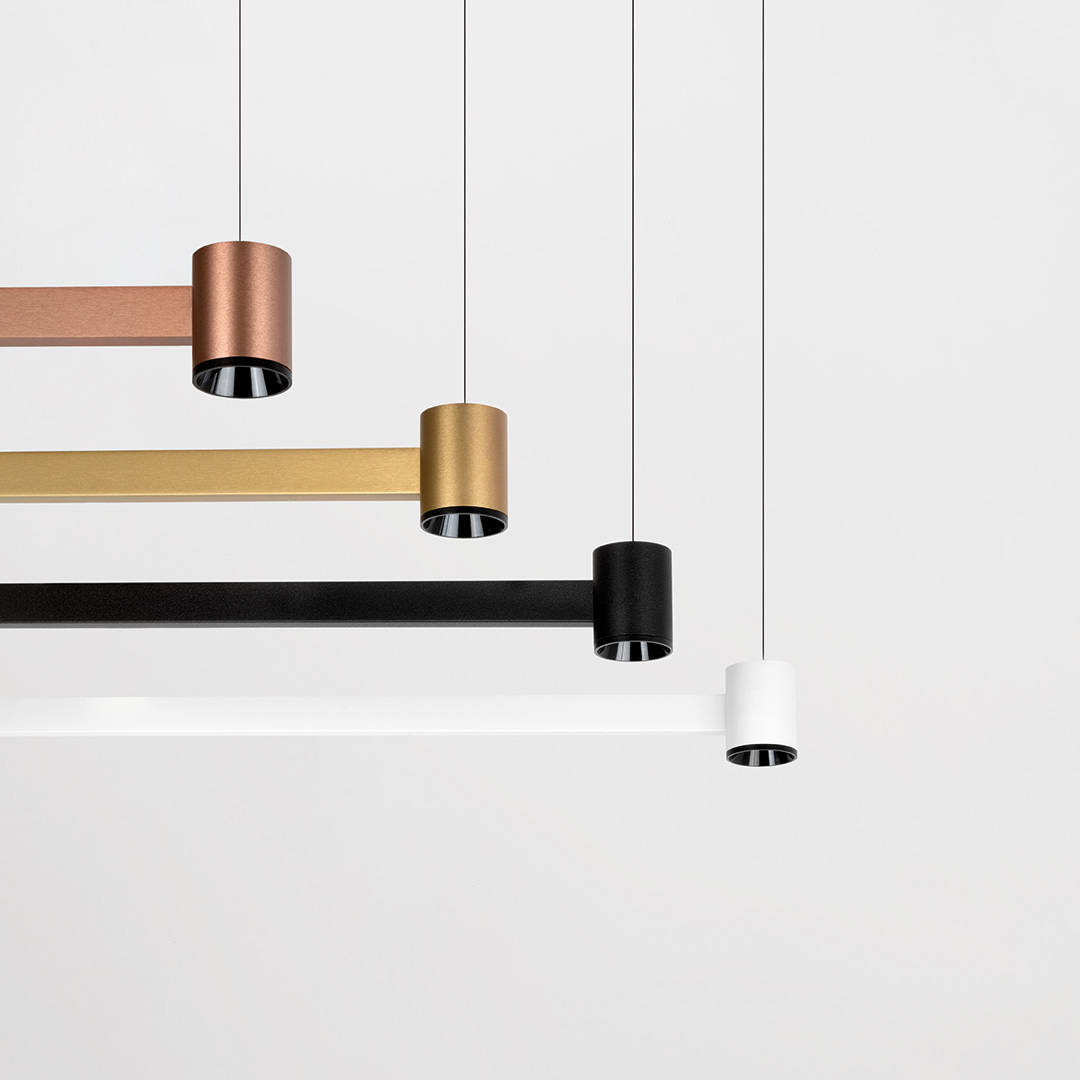

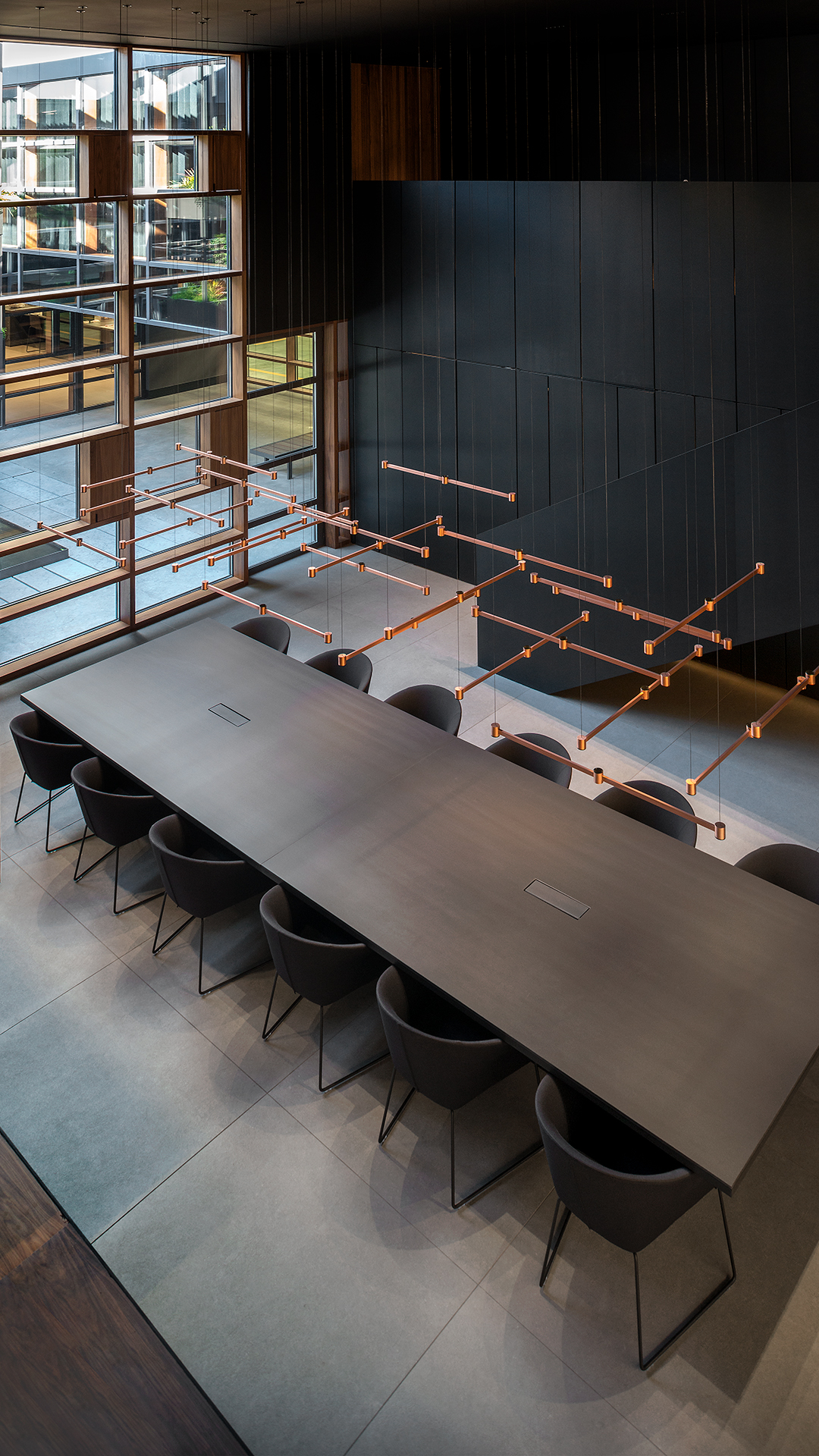

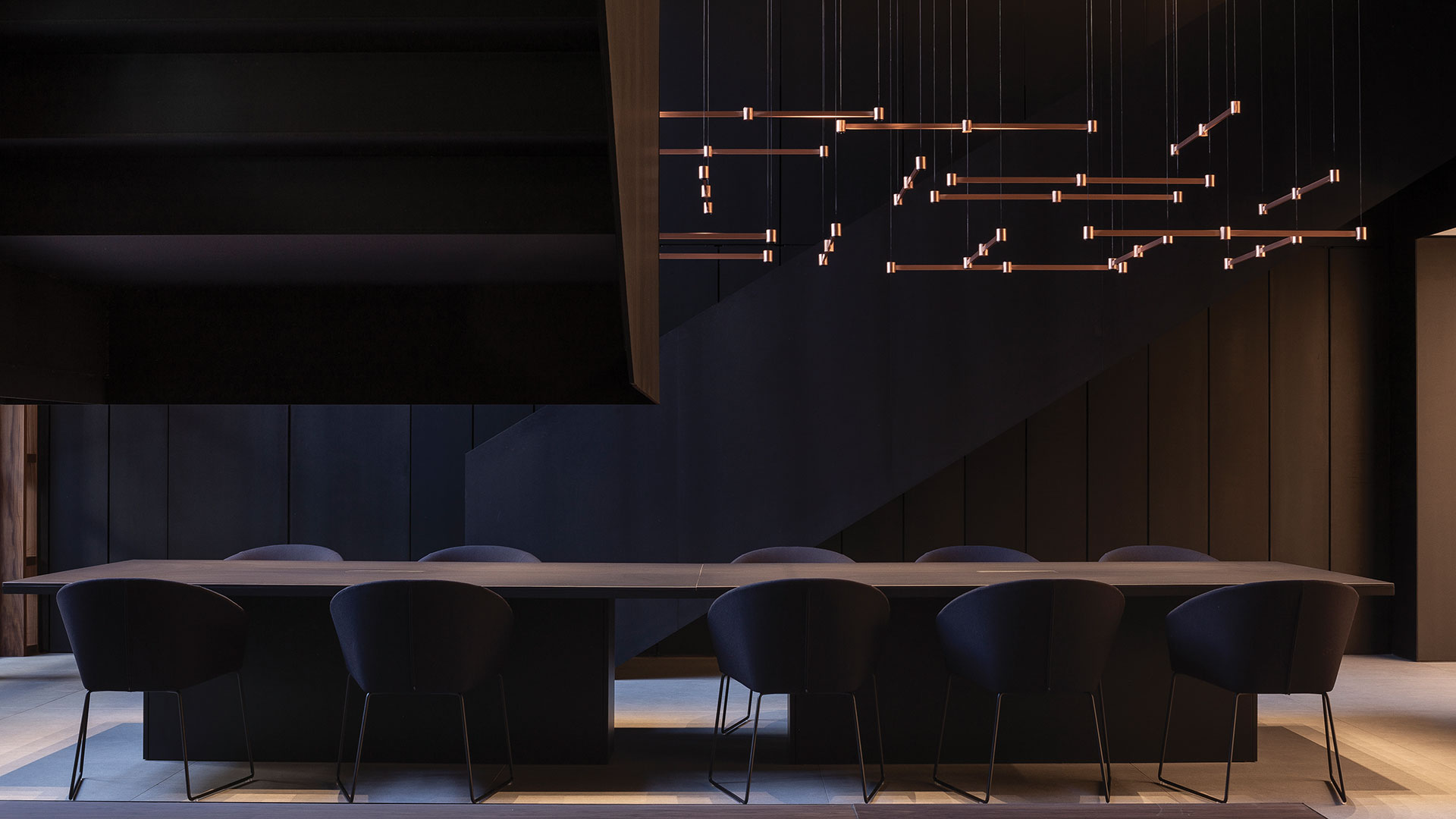

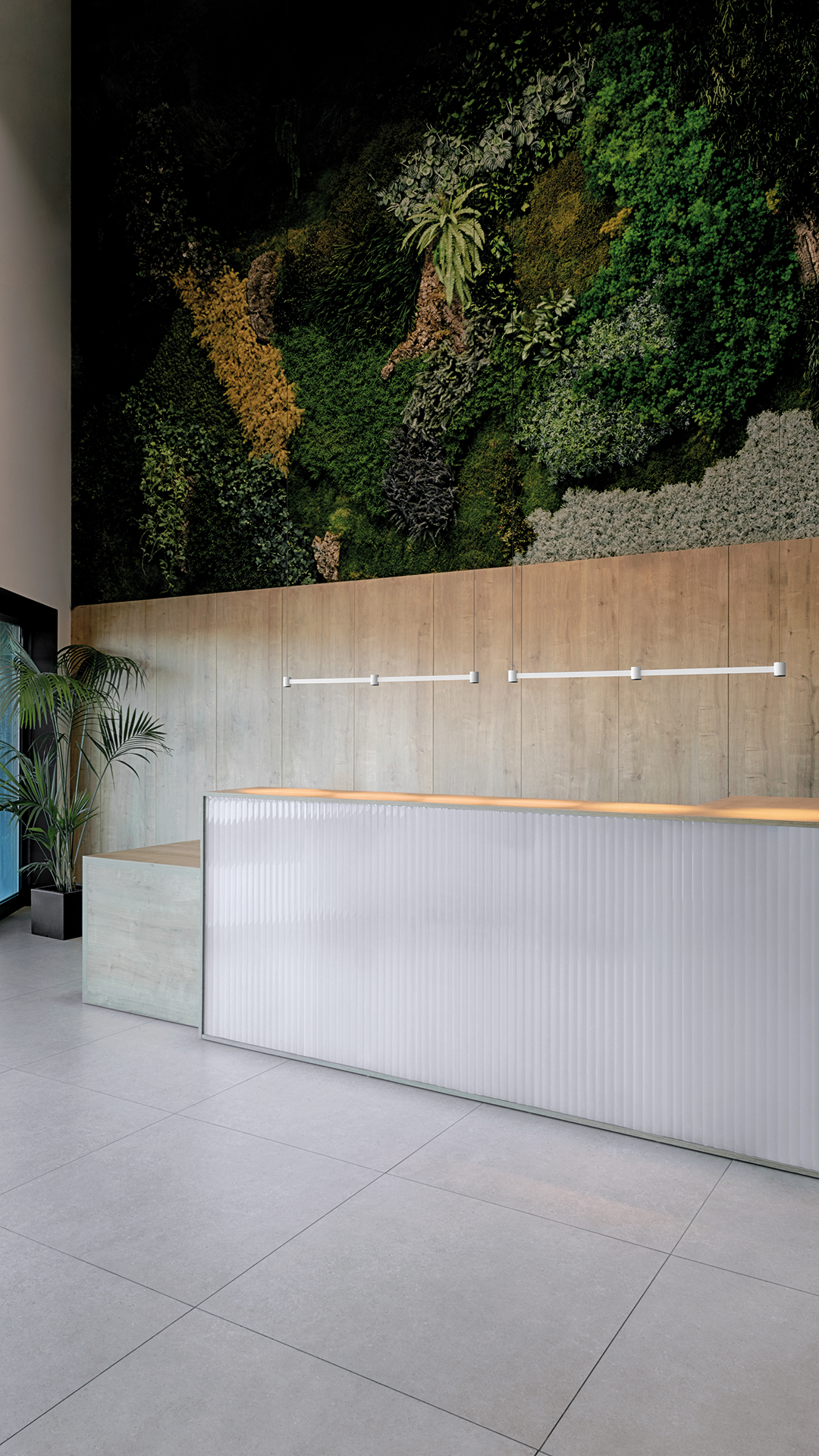

Art is a minimalist and rational suspended luminary that allows an ambitious range of composition possibilities. Individually, it transmits a sober look, but when combined – in an ordered or anarchic way – it is revealed as a sculptural piece of Art. This luminary can offer ambient lighting in any kind of actual interior design project. Its versatility makes possible both, a discreet lighting over a table or an artistic composition to smoothly light up vertical opened spaces.

Awards

  • Reddot Design Award Winner 2019

    Reddot Design Award Winner 2019

  • Archiproducts Design Award Winner 2019

    Archiproducts Design Award Winner 2019

  • Adcv Silver 2019

    Adcv Silver 2019

  • Fx International Interior Design Award Shortlist 2019

    Fx International Interior Design Award Shortlist 2019

  • Delta Awards´20 Bronze

    Delta Awards´20 Bronze

ART
ART

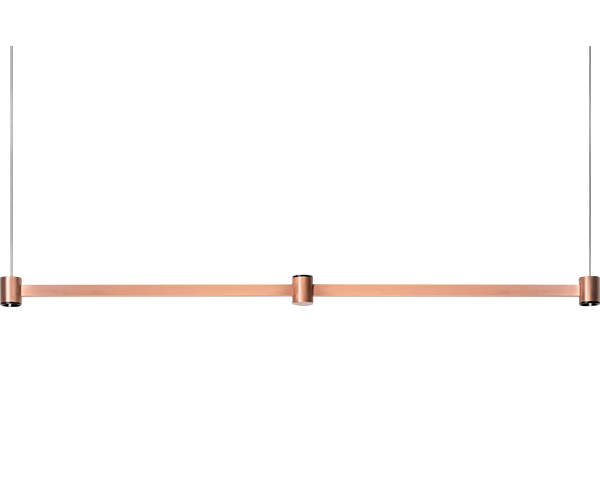

ART DIRECT & INDIRECT
ART DIRECT & INDIRECT

ART

  • Mounting accessories

    Remote Box - Case L

  • Luminous flux

    570 lm / 630 lm

  • Lighting efficiency

    92%

  • Power

    6.3 W

  • Dimming

    0-10V

  • Colour temperature

    2700K / 3000K

  • Chromatic stability

    MacAdam Step 3

  • Light beam angle

    38

  • Cord length

    MAX 5 m

EPD Instructions BIM
Luminous flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • Mounting Accessory
      IC Rated
        Input Voltage
          CRI
            Light beam angle
              Dimming
                Cord length
                  Colour

                    • Model

                      Ref.

                      Mounting Accessory / Driver

                      Colour

                      Lum. flux

                      Power

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      IC Rated

                    • ART UL 5M 2700K BC
                      Reference:

                      U3420010BC

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 5.6-33W 700mA
                      U100003602 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

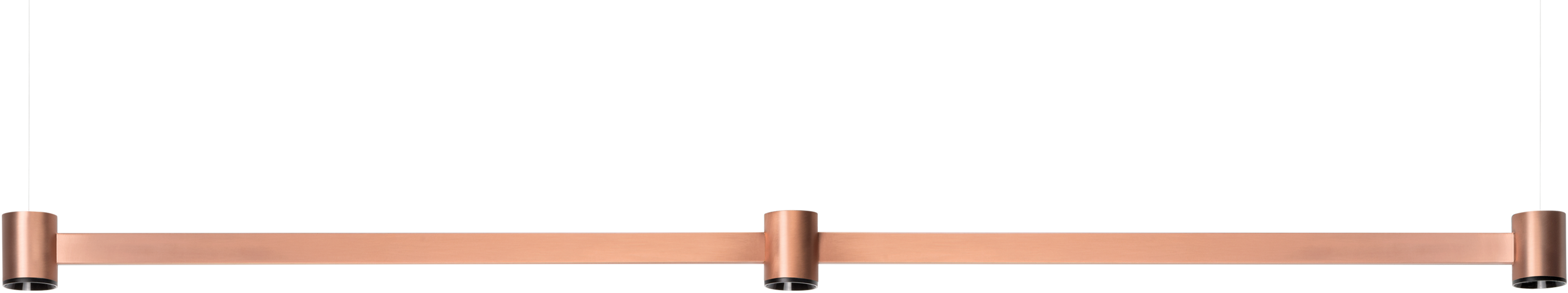

                      Brushed Copper

                      Luminous flux:

                      570 lm

                      Power:

                      6.3 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38

                      Lighting efficiency:

                      92%

                      IC Rated:

                      Yes

                    • ART UL 5M 2700K BG
                      Reference:

                      U3420010BG

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 5.6-33W 700mA
                      U100003602 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

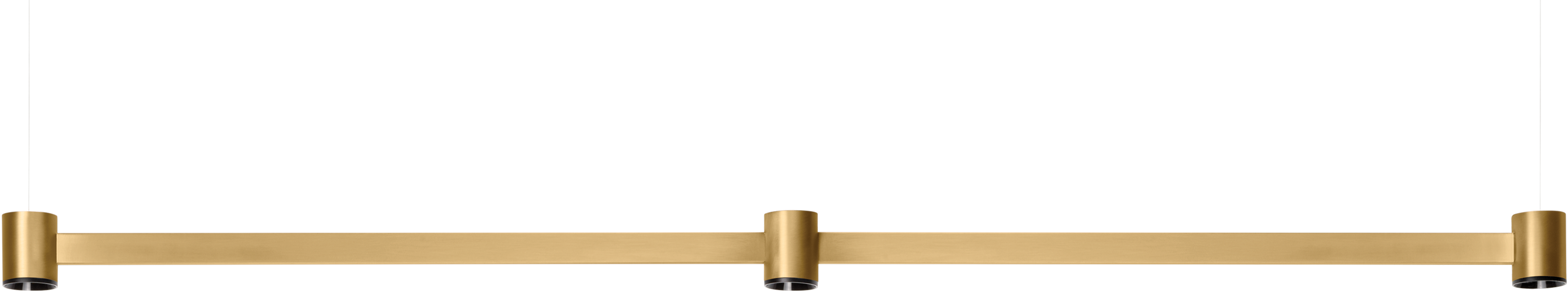

                      Brushed Gold

                      Luminous flux:

                      570 lm

                      Power:

                      6.3 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38

                      Lighting efficiency:

                      92%

                      IC Rated:

                      Yes

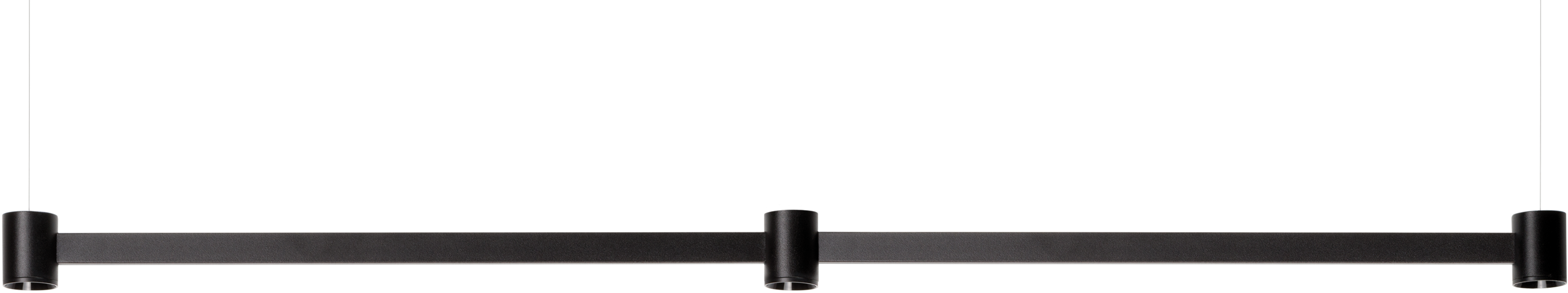

                    • ART UL 5M 2700K NT
                      Reference:

                      U3420010NT

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 5.6-33W 700mA
                      U100003602 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      570 lm

                      Power:

                      6.3 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38

                      Lighting efficiency:

                      92%

                      IC Rated:

                      Yes

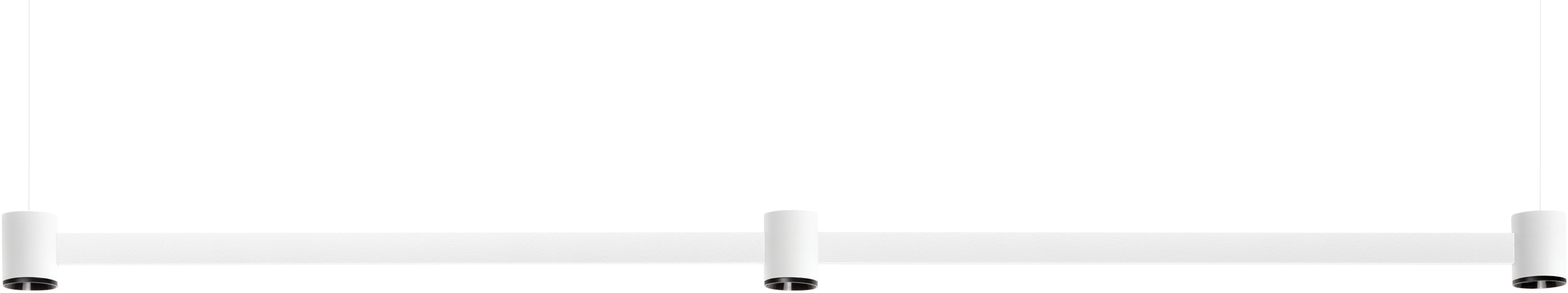

                    • ART UL 5M 2700K WT
                      Reference:

                      U3420010WT

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 5.6-33W 700mA
                      U100003602 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      570 lm

                      Power:

                      6.3 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38

                      Lighting efficiency:

                      92%

                      IC Rated:

                      Yes

                    • ART UL 5M 3000K BC
                      Reference:

                      U3420011BC

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 5.6-33W 700mA
                      U100003602 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Brushed Copper

                      Luminous flux:

                      630 lm

                      Power:

                      6.3 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38

                      Lighting efficiency:

                      92%

                      IC Rated:

                      Yes

                    • ART UL 5M 3000K BG
                      Reference:

                      U3420011BG

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 5.6-33W 700mA
                      U100003602 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Brushed Gold

                      Luminous flux:

                      630 lm

                      Power:

                      6.3 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38

                      Lighting efficiency:

                      92%

                      IC Rated:

                      Yes

                    • ART UL 5M 3000K NT
                      Reference:

                      U3420011NT

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 5.6-33W 700mA
                      U100003602 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      630 lm

                      Power:

                      6.3 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38

                      Lighting efficiency:

                      92%

                      IC Rated:

                      Yes

                    • ART UL 5M 3000K WT
                      Reference:

                      U3420011WT

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 5.6-33W 700mA
                      U100003602 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      630 lm

                      Power:

                      6.3 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38

                      Lighting efficiency:

                      92%

                      IC Rated:

                      Yes
