BLACK FOSTER MICRO SURFACE

SURFACE

Black Foster has a very descrete presence in the interior design due to its reduced dimensions and its extremely low glare helping the piece not to gain much prominence. The downlight retains high levels of shielding, taking lighting comfort to another level as regards miniaturisation.

Awards

  • Reddot Design Award Lighting Design Winner 2023

    Reddot Design Award Lighting Design Winner 2023

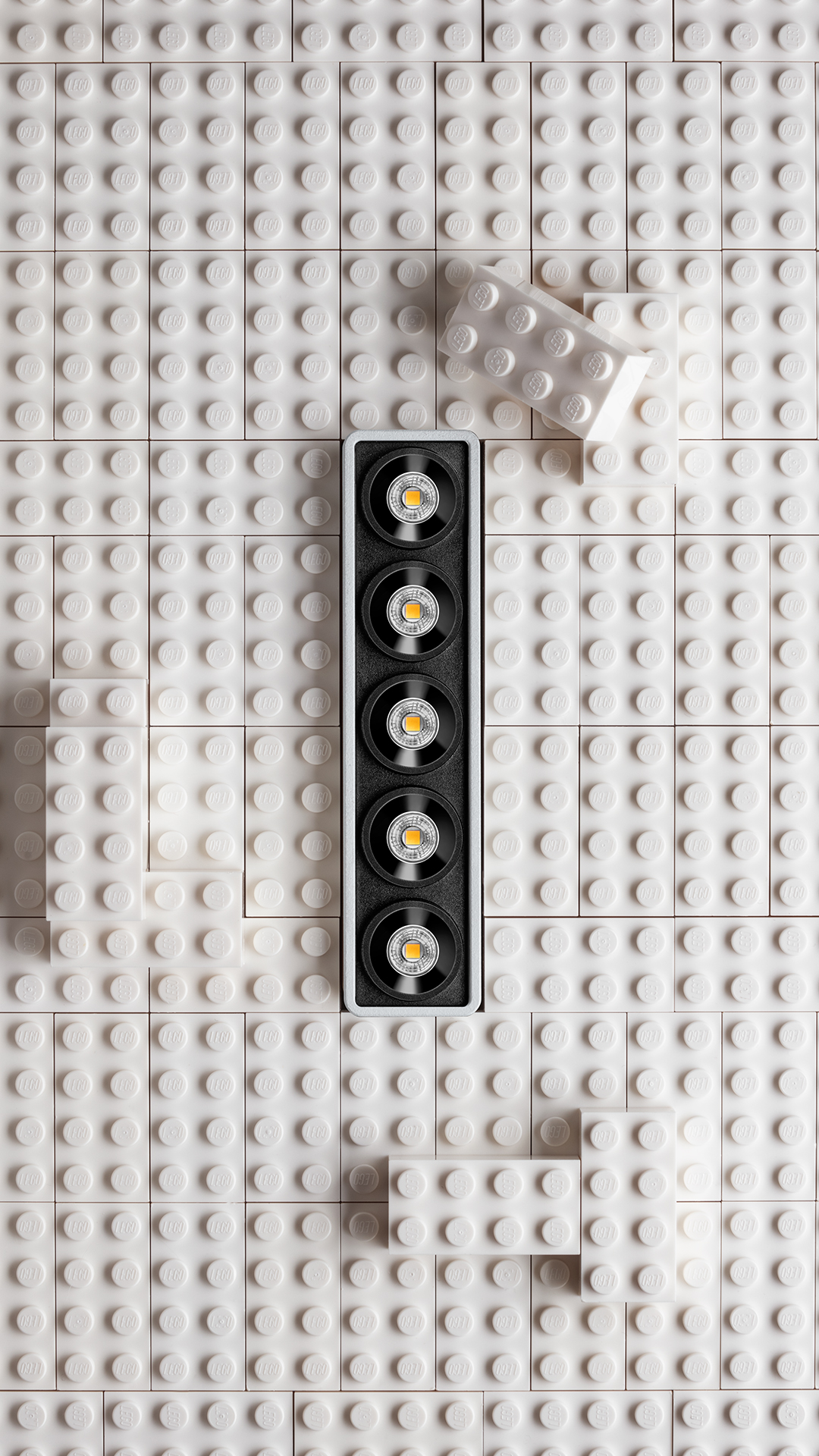

BLACK FOSTER MICRO SURFACE 5
BLACK FOSTER MICRO SURFACE 5

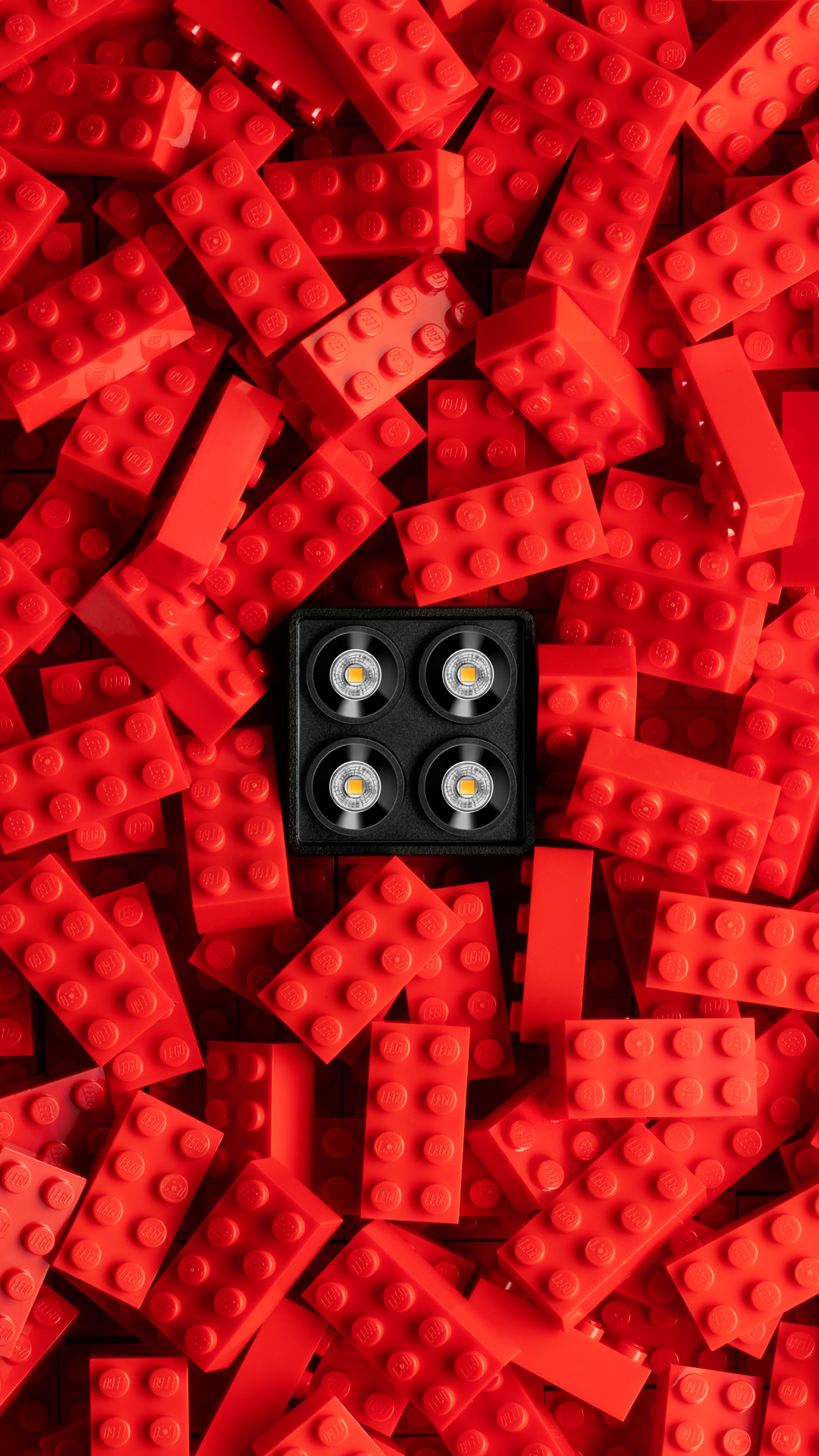

BLACK FOSTER MICRO SURFACE 2x2
BLACK FOSTER MICRO SURFACE 2x2
BLACK FOSTER MICRO SURFACE 3x3
BLACK FOSTER MICRO SURFACE 3x3

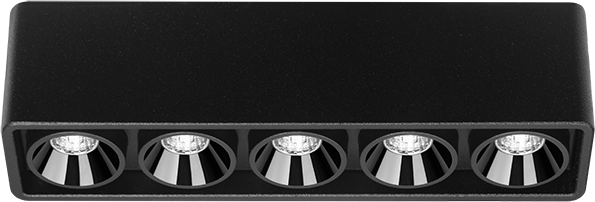

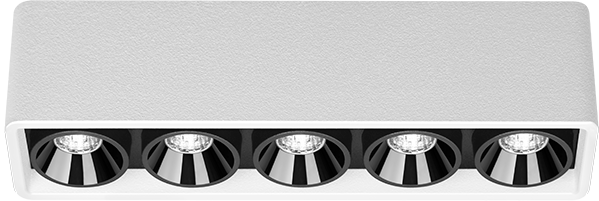

BLACK FOSTER MICRO SURFACE 5

  • Mounting accessories

    Remote Box

  • Luminous flux

    775 lm / 800 lm / 825 lm / 850 lm

  • Lighting efficiency

    87%

  • Power

    7 W

  • Dimming

    0-10V

  • Colour temperature

    2700K / 3000K / 3500K / 4000K

  • Chromatic stability

    MacAdam Step 3

  • Light beam angle

    37°

EPD Instructions BIM
Luminous flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • Mounting Accessory
      IC Rated
        Input Voltage
          CRI
            Light beam angle
              Dimming
                Cord length
                  Colour

                    • Model

                      Ref.

                      Mounting Accessory / Driver

                      Colour

                      Lum. flux

                      Power

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      IC Rated

                    • BLACK FOSTER MICRO SURFACE 5 UL 2700K NT
                      Reference:

                      U4592000NT

                      Mounting Accessory / Driver:

                      Remote Box
                      REMOTE BOX 4-23W 500mA
                      U1000035 · 1 to 3 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      775 lm

                      Power:

                      7 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      IC Rated:

                      Yes

                    • BLACK FOSTER MICRO SURFACE 5 UL 2700K WT
                      Reference:

                      U4592000WT

                      Mounting Accessory / Driver:

                      Remote Box
                      REMOTE BOX 4-23W 500mA
                      U1000035 · 1 to 3 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      775 lm

                      Power:

                      7 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      IC Rated:

                      Yes

                    • BLACK FOSTER MICRO SURFACE 5 UL 3000K NT
                      Reference:

                      U4592001NT

                      Mounting Accessory / Driver:

                      Remote Box
                      REMOTE BOX 4-23W 500mA
                      U1000035 · 1 to 3 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      800 lm

                      Power:

                      7 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      IC Rated:

                      Yes

                    • BLACK FOSTER MICRO SURFACE 5 UL 3000K WT
                      Reference:

                      U4592001WT

                      Mounting Accessory / Driver:

                      Remote Box
                      REMOTE BOX 4-23W 500mA
                      U1000035 · 1 to 3 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      800 lm

                      Power:

                      7 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      IC Rated:

                      Yes

                    • BLACK FOSTER MICRO SURFACE 5 UL 3500K NT
                      Reference:

                      U4592003NT

                      Mounting Accessory / Driver:

                      Remote Box
                      REMOTE BOX 4-23W 500mA
                      U1000035 · 1 to 3 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      825 lm

                      Power:

                      7 W

                      Colour temperature:

                      3500K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      IC Rated:

                      Yes

                    • BLACK FOSTER MICRO SURFACE 5 UL 3500K WT
                      Reference:

                      U4592003WT

                      Mounting Accessory / Driver:

                      Remote Box
                      REMOTE BOX 4-23W 500mA
                      U1000035 · 1 to 3 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      825 lm

                      Power:

                      7 W

                      Colour temperature:

                      3500K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      IC Rated:

                      Yes

                    • BLACK FOSTER MICRO SURFACE 5 UL 4000K NT
                      Reference:

                      U4592002NT

                      Mounting Accessory / Driver:

                      Remote Box
                      REMOTE BOX 4-23W 500mA
                      U1000035 · 1 to 3 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      850 lm

                      Power:

                      7 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      IC Rated:

                      Yes

                    • BLACK FOSTER MICRO SURFACE 5 UL 4000K WT
                      Reference:

                      U4592002WT

                      Mounting Accessory / Driver:

                      Remote Box
                      REMOTE BOX 4-23W 500mA
                      U1000035 · 1 to 3 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      850 lm

                      Power:

                      7 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      37°

                      Lighting efficiency:

                      87%

                      IC Rated:

                      Yes
