STRAM SURFACE

SURFACE

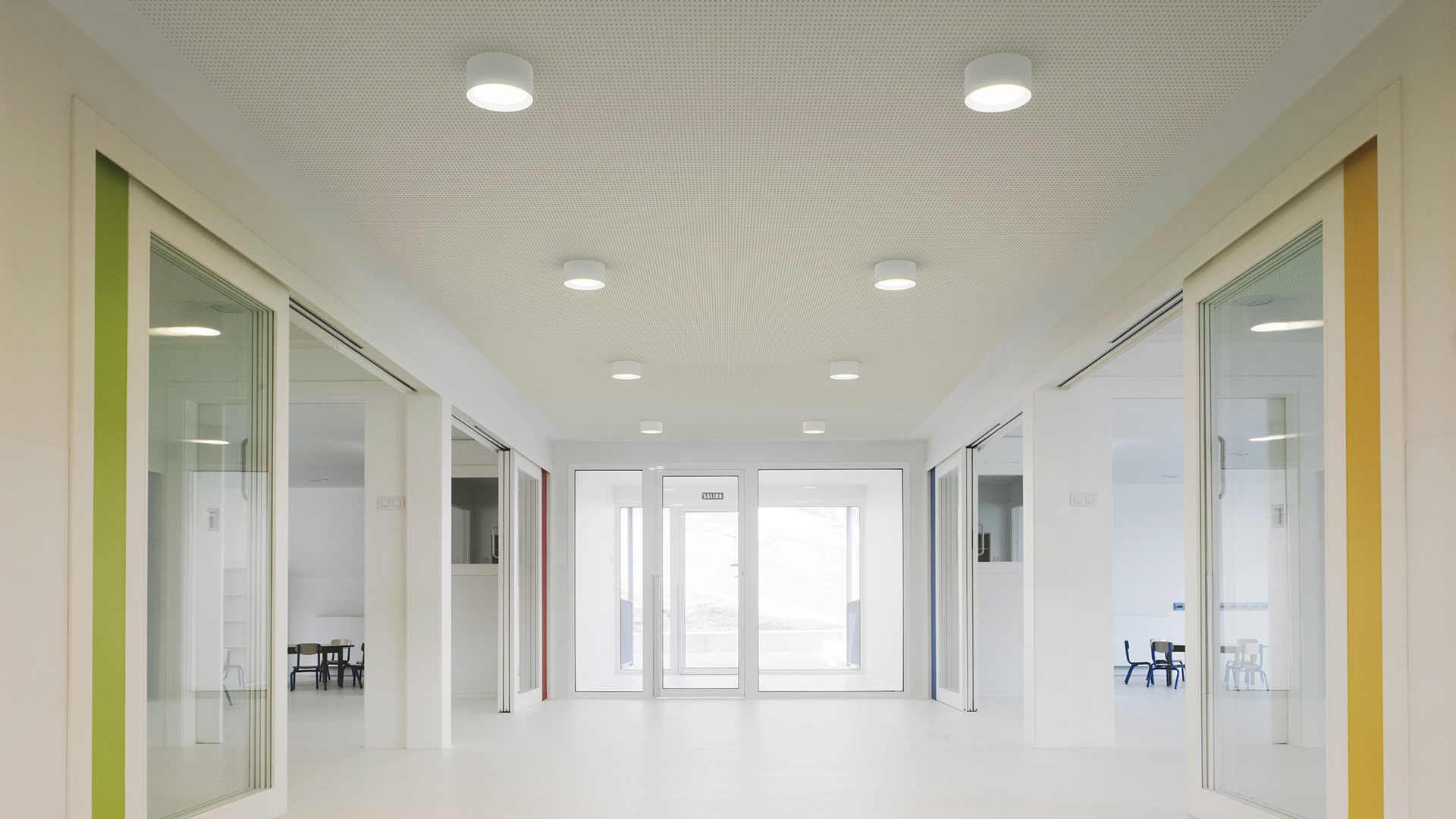

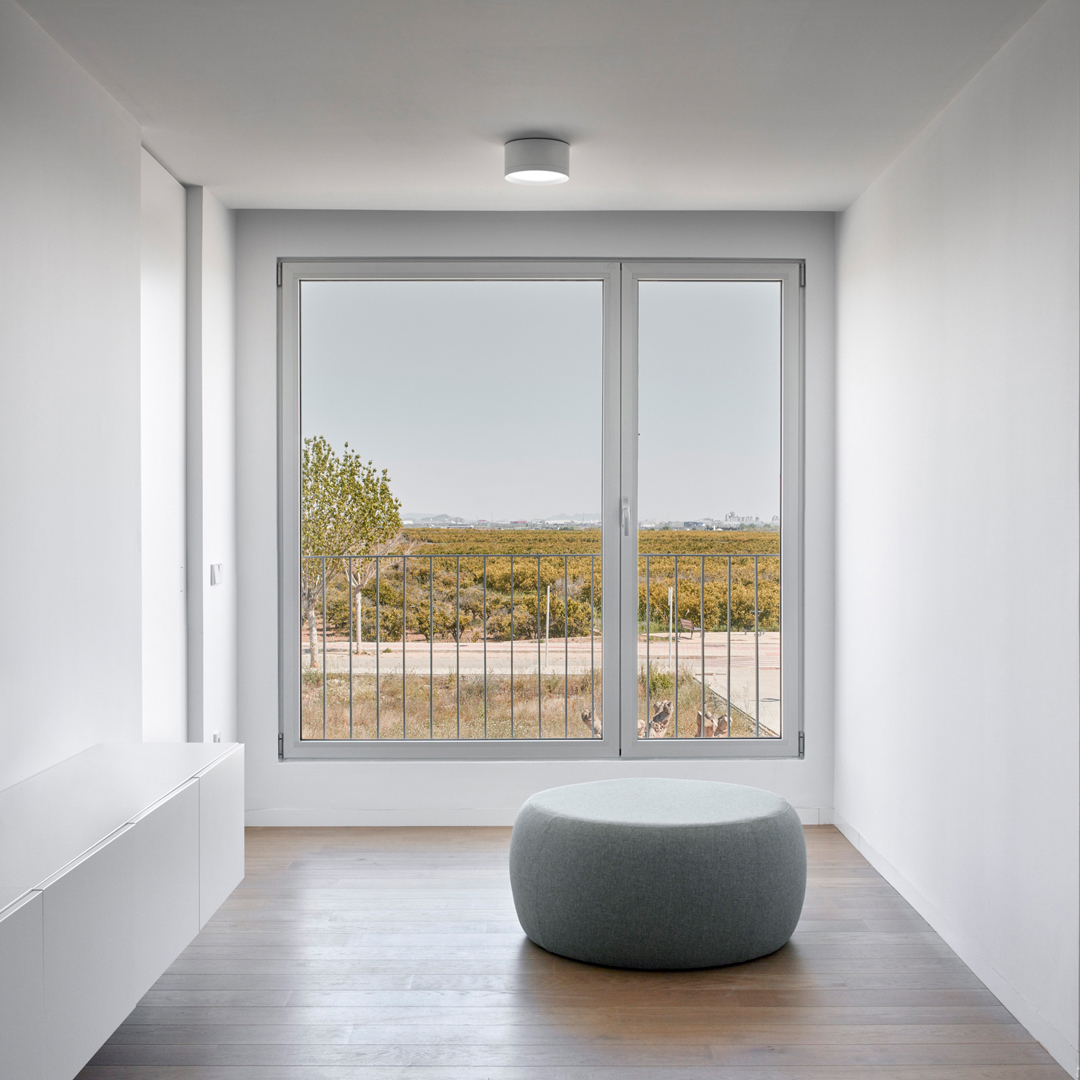

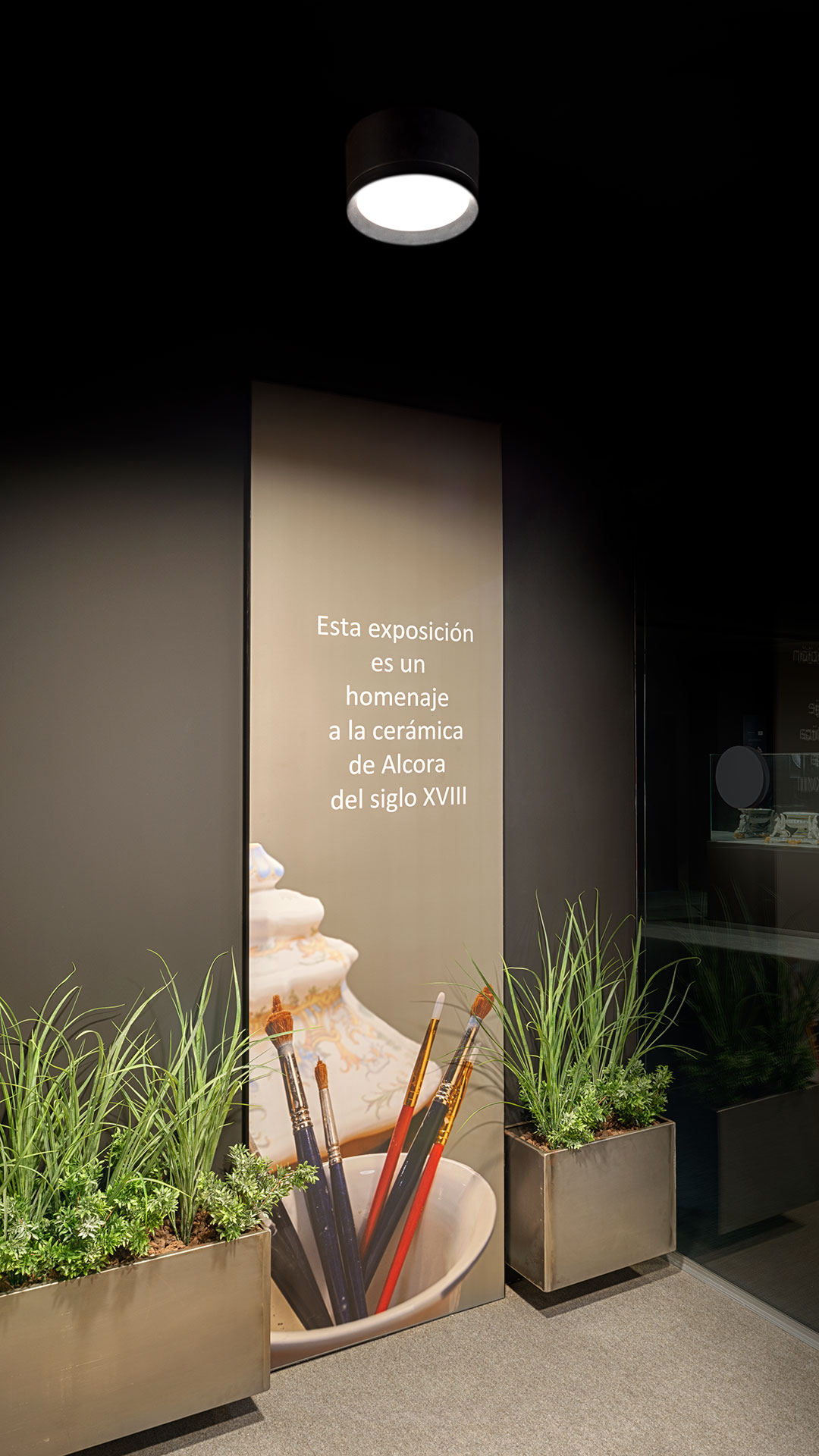

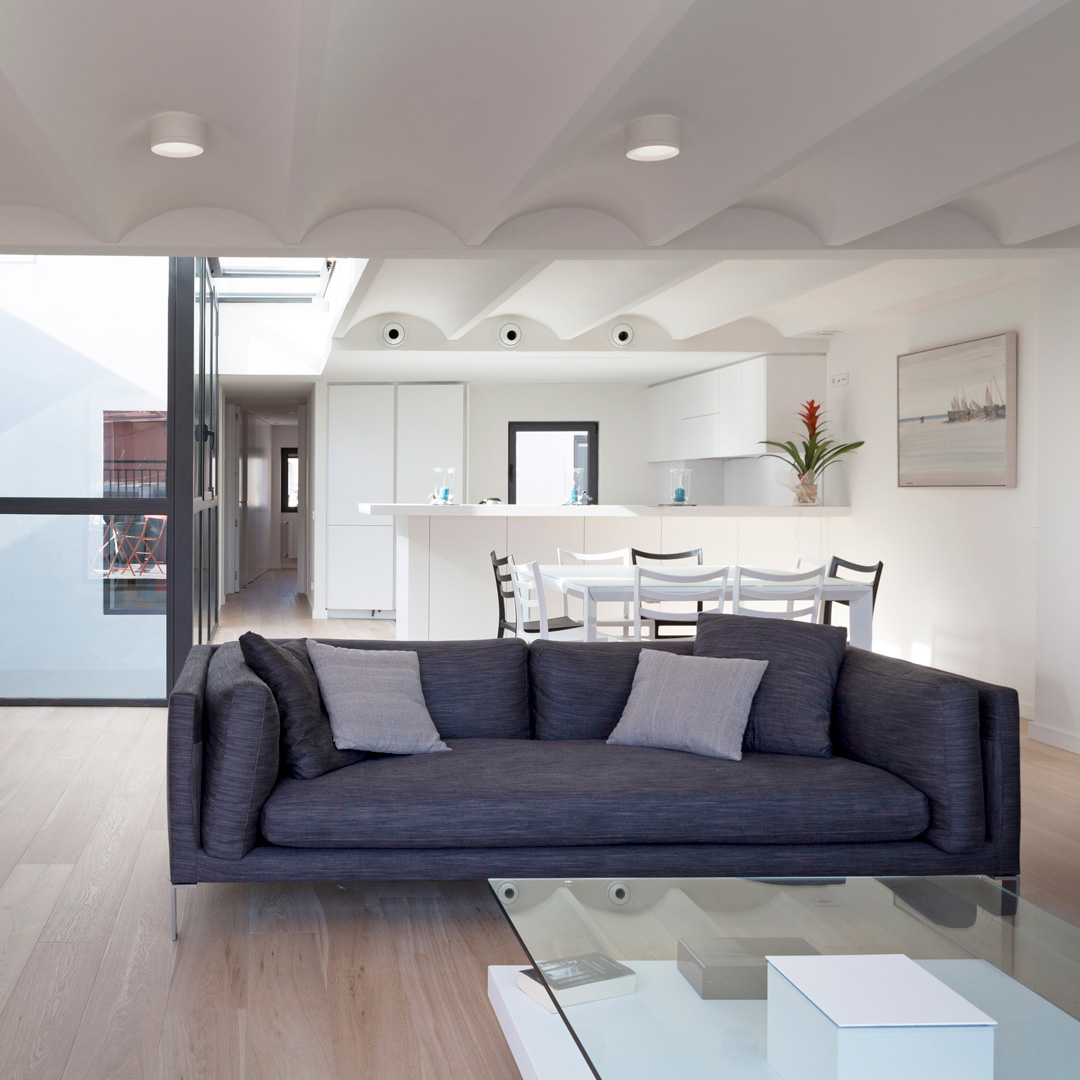

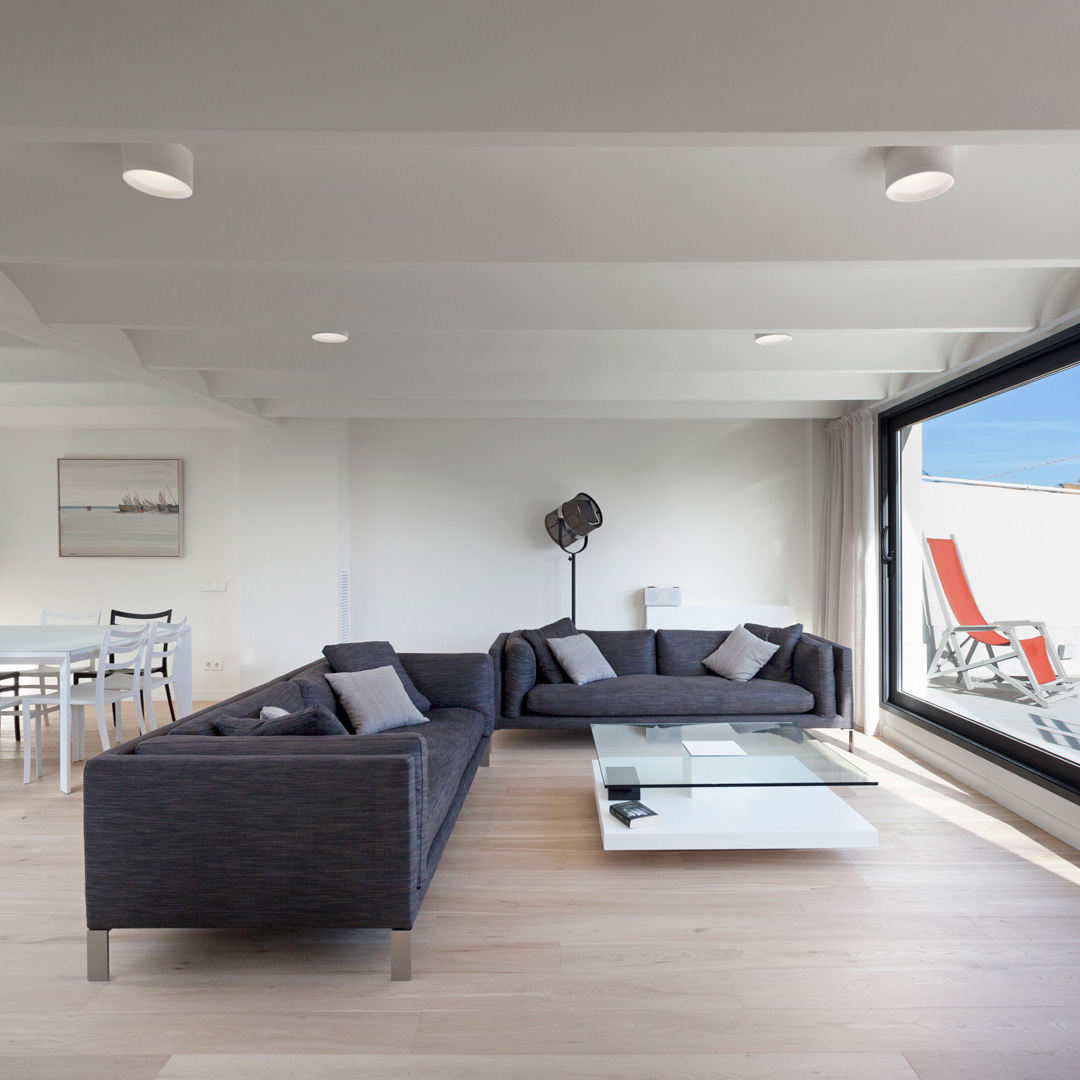

Stram Surface is the surface downlight that conserves the aesthetics and lighting effects of Stram in spaces where it is impossible to recess in the ceiling. The distinctiveness of its bezel, along with a serene, impeccable presence, in a luminary that can offer high luminous fluxes on a par with its minimalist beauty and elegance.

STRAM SURFACE

  • Luminous flux

    1720 lm / 1855 lm / 1885 lm / 2800 lm / 3025 lm / 3075 lm

  • Lighting efficiency

    87%

  • Power

    12 W / 22 W

  • Dimming

    0-10V / TRIAC/ELV dimming only at 120V

  • Colour temperature

    2700K / 3000K / 4000K

  • Chromatic stability

    MacAdam Step 2

  • Light beam angle

    99°

EPD Instructions BIM
Luminous flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • Mounting Accessory
      IC Rated
        Input Voltage
          CRI
            Light beam angle
              Dimming
                Cord length
                  Colour

                    • Model

                      Ref.

                      Mounting Accessory / Driver

                      Colour

                      Lum. flux

                      Power

                      Input Voltage

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      IC Rated

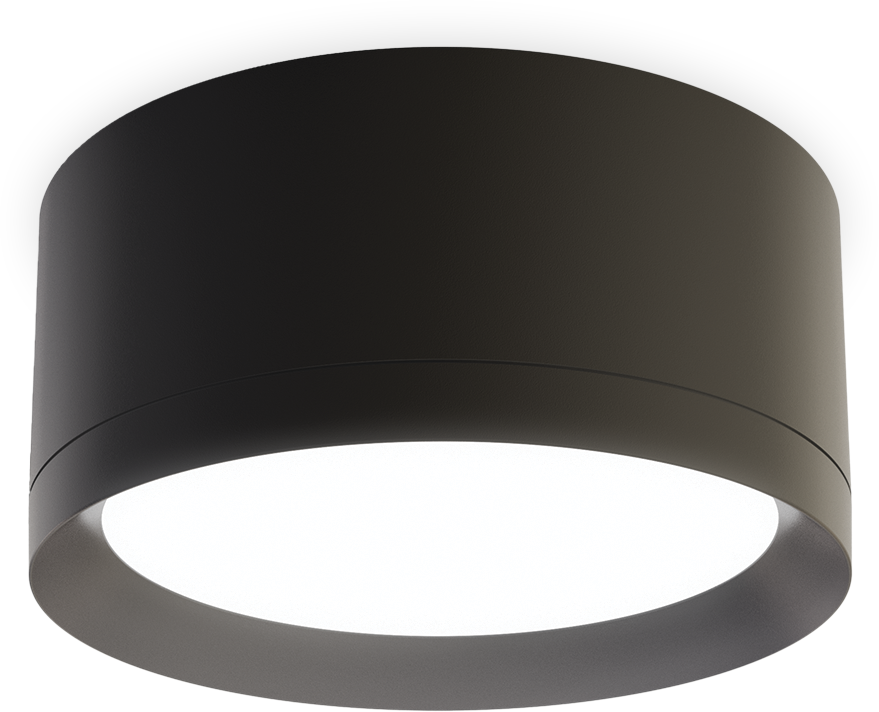

                    • STRAM SURFACE 1 UL 2700K NT
                      Reference:

                      U2460110NT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured black

                      Luminous flux:

                      1720 lm

                      Power:

                      12 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      99°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -

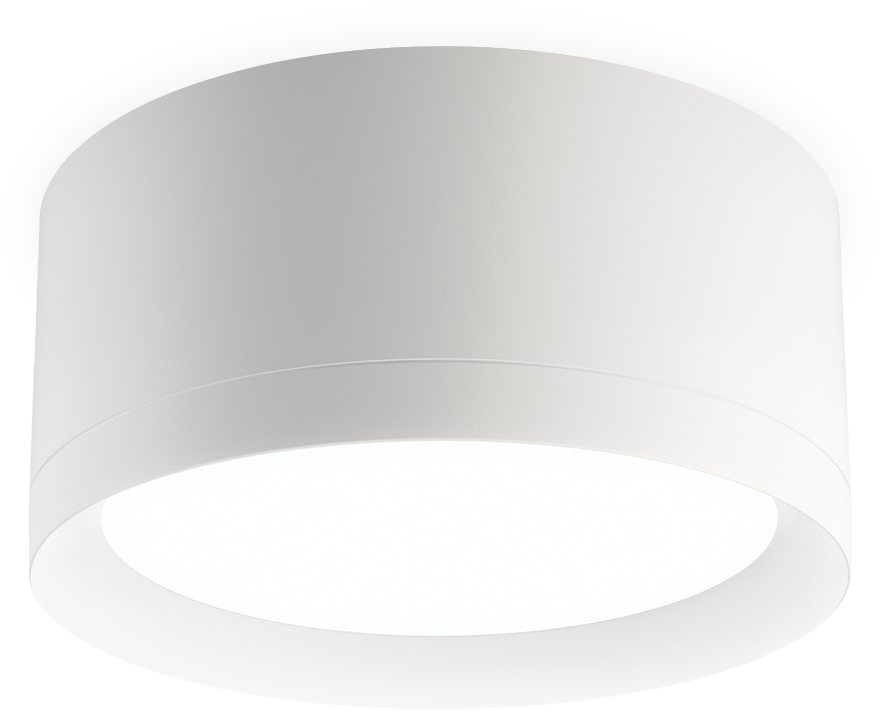

                    • STRAM SURFACE 1 UL 2700K WT
                      Reference:

                      U2460110WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      1720 lm

                      Power:

                      12 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      99°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -

                    • STRAM SURFACE 1 UL 3000K NT
                      Reference:

                      U2460111NT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured black

                      Luminous flux:

                      1855 lm

                      Power:

                      12 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      99°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -

                    • STRAM SURFACE 1 UL 3000K WT
                      Reference:

                      U2460111WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      1855 lm

                      Power:

                      12 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      99°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -

                    • STRAM SURFACE 1 UL 4000K NT
                      Reference:

                      U2460112NT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured black

                      Luminous flux:

                      1885 lm

                      Power:

                      12 W

                      Input Voltage:

                      -

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      99°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -

                    • STRAM SURFACE 1 UL 4000K WT
                      Reference:

                      U2460112WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      1885 lm

                      Power:

                      12 W

                      Input Voltage:

                      -

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      99°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -

                    • STRAM SURFACE 2 UL 2700K NT
                      Reference:

                      U2460210NT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured black

                      Luminous flux:

                      2800 lm

                      Power:

                      22 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      99°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -

                    • STRAM SURFACE 2 UL 2700K WT
                      Reference:

                      U2460210WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      2800 lm

                      Power:

                      22 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      99°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -

                    • STRAM SURFACE 2 UL 3000K NT
                      Reference:

                      U2460211NT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured black

                      Luminous flux:

                      3025 lm

                      Power:

                      22 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      99°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -

                    • STRAM SURFACE 2 UL 3000K WT
                      Reference:

                      U2460211WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      3025 lm

                      Power:

                      22 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      99°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -

                    • STRAM SURFACE 2 UL 4000K NT
                      Reference:

                      U2460212NT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured black

                      Luminous flux:

                      3075 lm

                      Power:

                      22 W

                      Input Voltage:

                      -

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      99°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -

                    • STRAM SURFACE 2 UL 4000K WT
                      Reference:

                      U2460212WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      3075 lm

                      Power:

                      22 W

                      Input Voltage:

                      -

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      99°

                      Lighting efficiency:

                      87%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -
