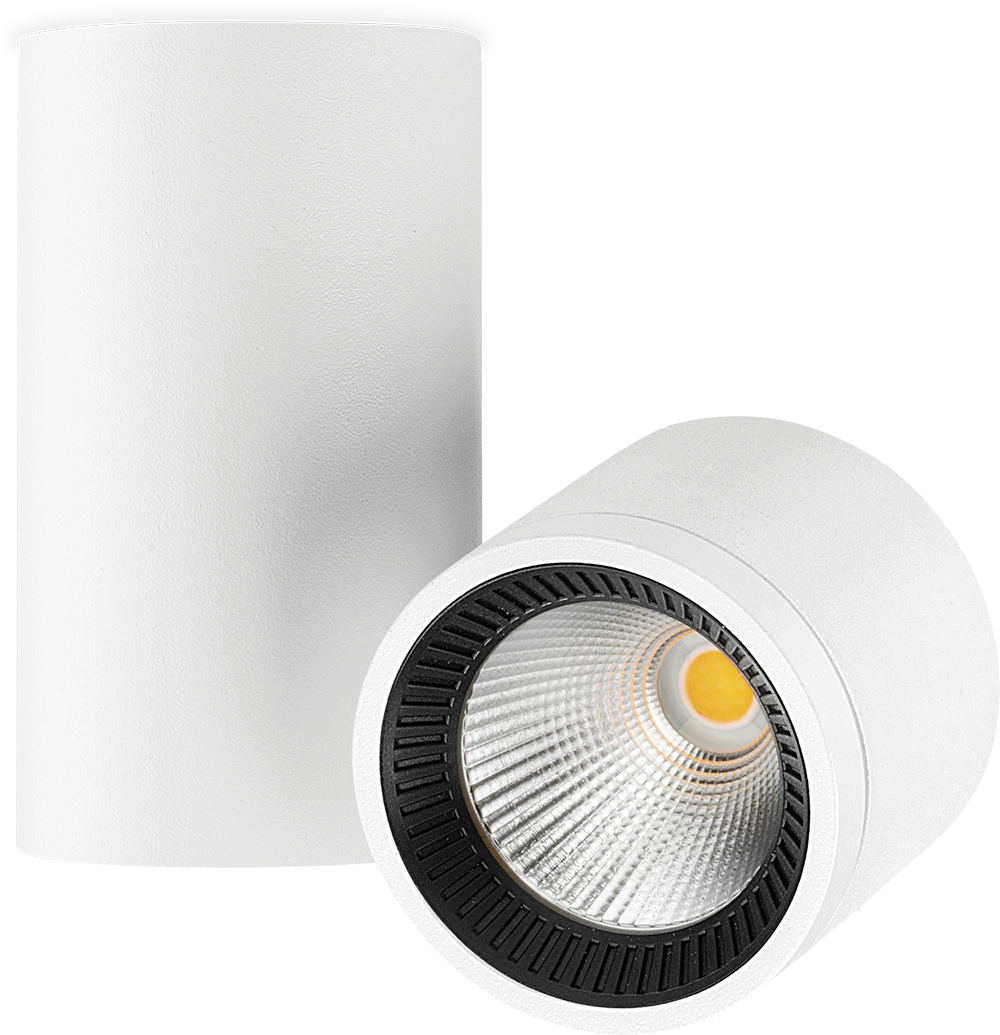

iO SURFACE

SURFACE

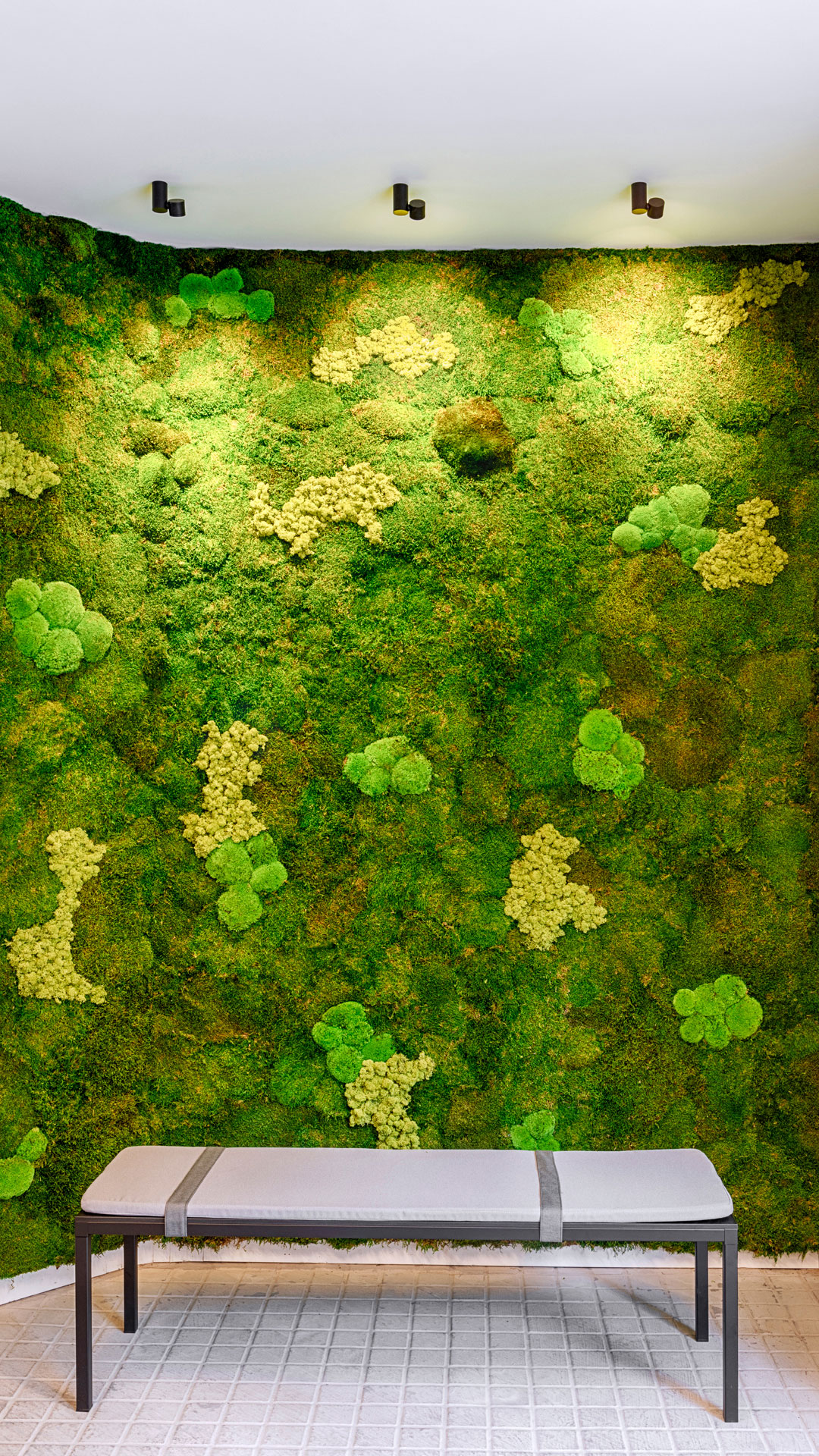

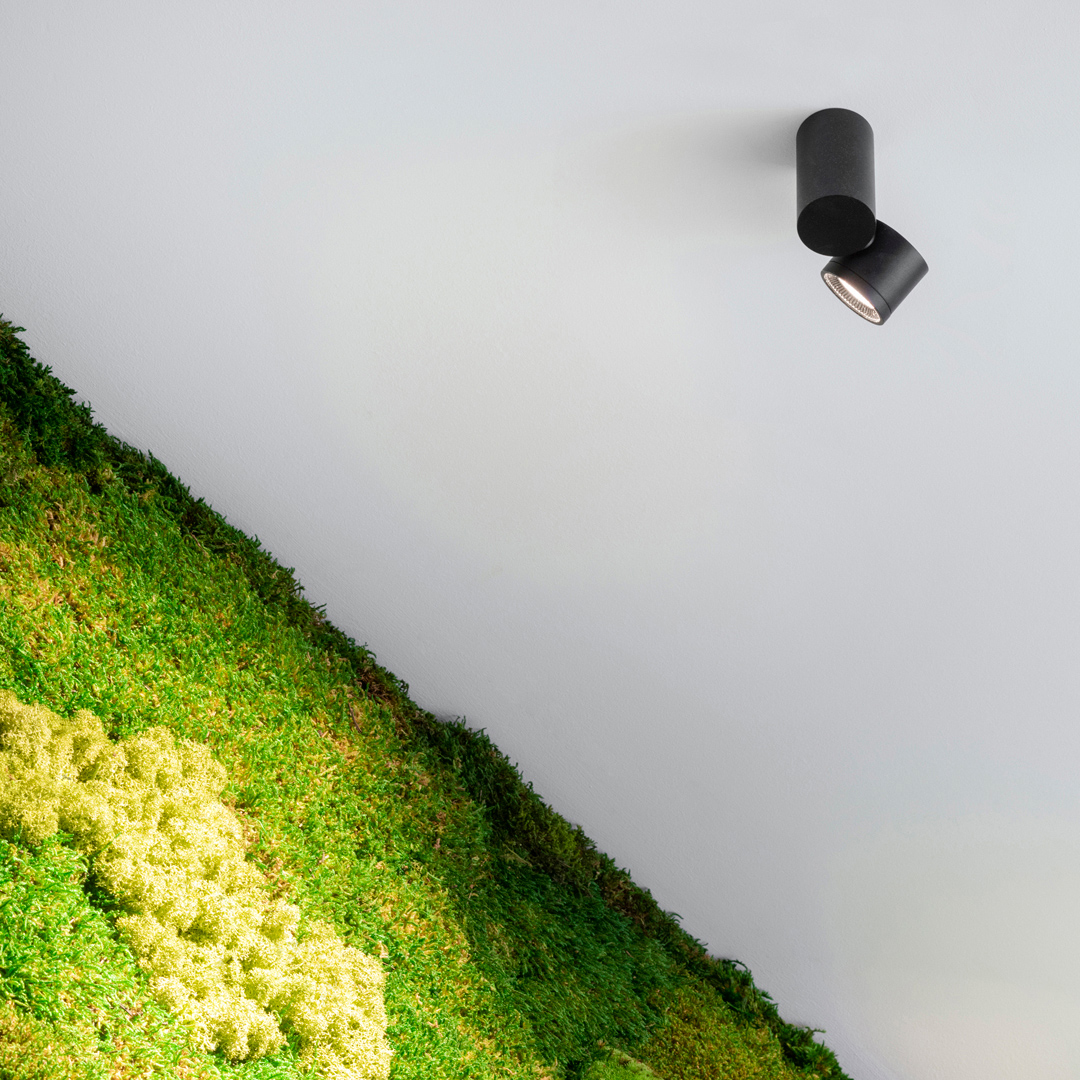

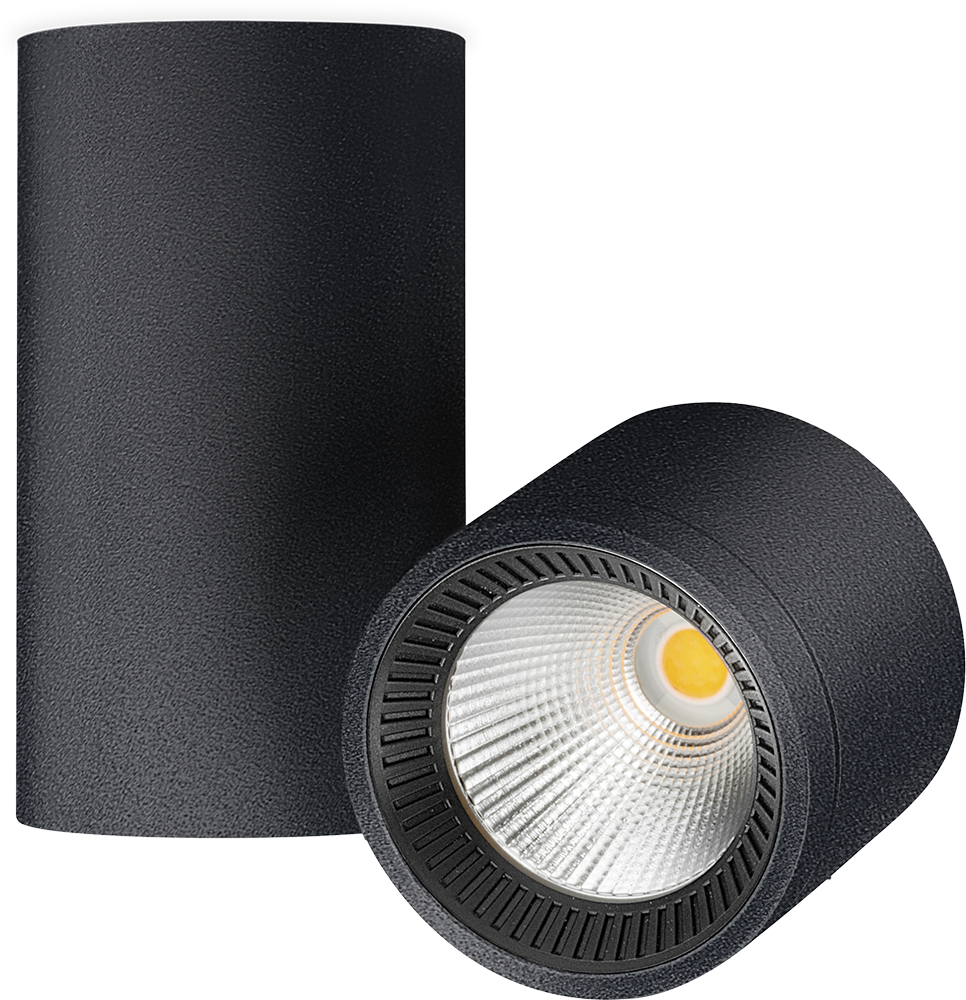

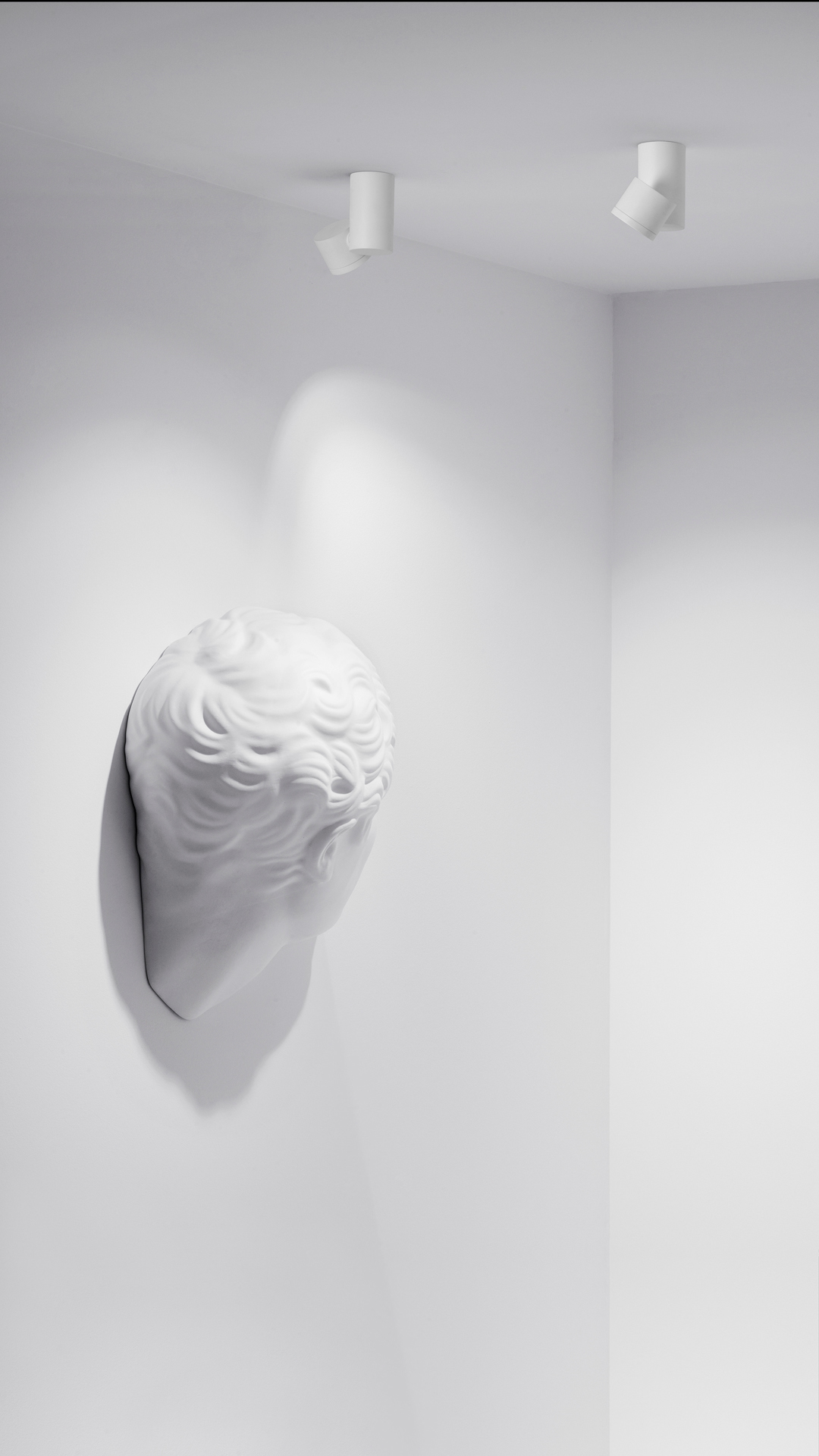

iO is a LED spotlight miniaturised in a fixture that is so small that it fits on the palm of your hand. Designed for accent lighting applications, its small dimensions mean it can be fitted in display cabinets, shop windows and small places without generating an invasive presence on the scene.

Awards

Silver Delta Adi Awards 2016
If Product Design Award 2017 Winner
Adcv Gold 2017
Good Design Award 2017

iO SURFACE

Mounting accessories

Remote Box
Luminous flux

485 lm / 505 lm / 520 lm
Lighting efficiency

86% / 89% / 92%
Power

4.5 W
Dimming

0-10V
Colour temperature

2700K / 3000K / 4000K
Chromatic stability

MacAdam Step 2
Light beam angle

20 / 30 / 56

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

IC Rated
IO SURFACE UL 20º 2700K NT

Reference:

U2630110NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

485 lm

Power:

4.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20

Lighting efficiency:

92%

IC Rated:

Yes
IO SURFACE UL 20º 2700K WT

Reference:

U2630110WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

485 lm

Power:

4.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20

Lighting efficiency:

92%

IC Rated:

Yes
IO SURFACE UL 20º 3000K NT

Reference:

U2630111NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

505 lm

Power:

4.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20

Lighting efficiency:

92%

IC Rated:

Yes
IO SURFACE UL 20º 3000K WT

Reference:

U2630111WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

505 lm

Power:

4.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20

Lighting efficiency:

92%

IC Rated:

Yes
IO SURFACE UL 20º 4000K NT

Reference:

U2630112NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

520 lm

Power:

4.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

20

Lighting efficiency:

92%

IC Rated:

Yes
IO SURFACE UL 20º 4000K WT

Reference:

U2630112WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

520 lm

Power:

4.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

20

Lighting efficiency:

92%

IC Rated:

Yes
IO SURFACE UL 30º 2700K NT

Reference:

U2630120NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

485 lm

Power:

4.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30

Lighting efficiency:

89%

IC Rated:

Yes
IO SURFACE UL 30º 2700K WT

Reference:

U2630120WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

485 lm

Power:

4.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30

Lighting efficiency:

89%

IC Rated:

Yes
IO SURFACE UL 30º 3000K NT

Reference:

U2630121NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

505 lm

Power:

4.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30

Lighting efficiency:

89%

IC Rated:

Yes
IO SURFACE UL 30º 3000K WT

Reference:

U2630121WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

505 lm

Power:

4.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30

Lighting efficiency:

89%

IC Rated:

Yes
IO SURFACE UL 30º 4000K NT

Reference:

U2630122NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

520 lm

Power:

4.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

30

Lighting efficiency:

89%

IC Rated:

Yes
IO SURFACE UL 30º 4000K WT

Reference:

U2630122WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

520 lm

Power:

4.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

30

Lighting efficiency:

89%

IC Rated:

Yes
IO SURFACE UL 56º 2700K NT

Reference:

U2630130NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

485 lm

Power:

4.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56

Lighting efficiency:

86%

IC Rated:

Yes
IO SURFACE UL 56º 2700K WT

Reference:

U2630130WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

485 lm

Power:

4.5 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56

Lighting efficiency:

86%

IC Rated:

Yes
IO SURFACE UL 56º 3000K NT

Reference:

U2630131NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

505 lm

Power:

4.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56

Lighting efficiency:

86%

IC Rated:

Yes
IO SURFACE UL 56º 3000K WT

Reference:

U2630131WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

505 lm

Power:

4.5 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56

Lighting efficiency:

86%

IC Rated:

Yes
IO SURFACE UL 56º 4000K NT

Reference:

U2630132NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

520 lm

Power:

4.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

56

Lighting efficiency:

86%

IC Rated:

Yes
IO SURFACE UL 56º 4000K WT

Reference:

U2630132WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 5 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

520 lm

Power:

4.5 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

56

Lighting efficiency:

86%

IC Rated:

Yes

Accessories

BEAM MIXER DIFFUSER

ANTI-GLARE HONEYCOMB LOUVER
