PUCK

SURFACE

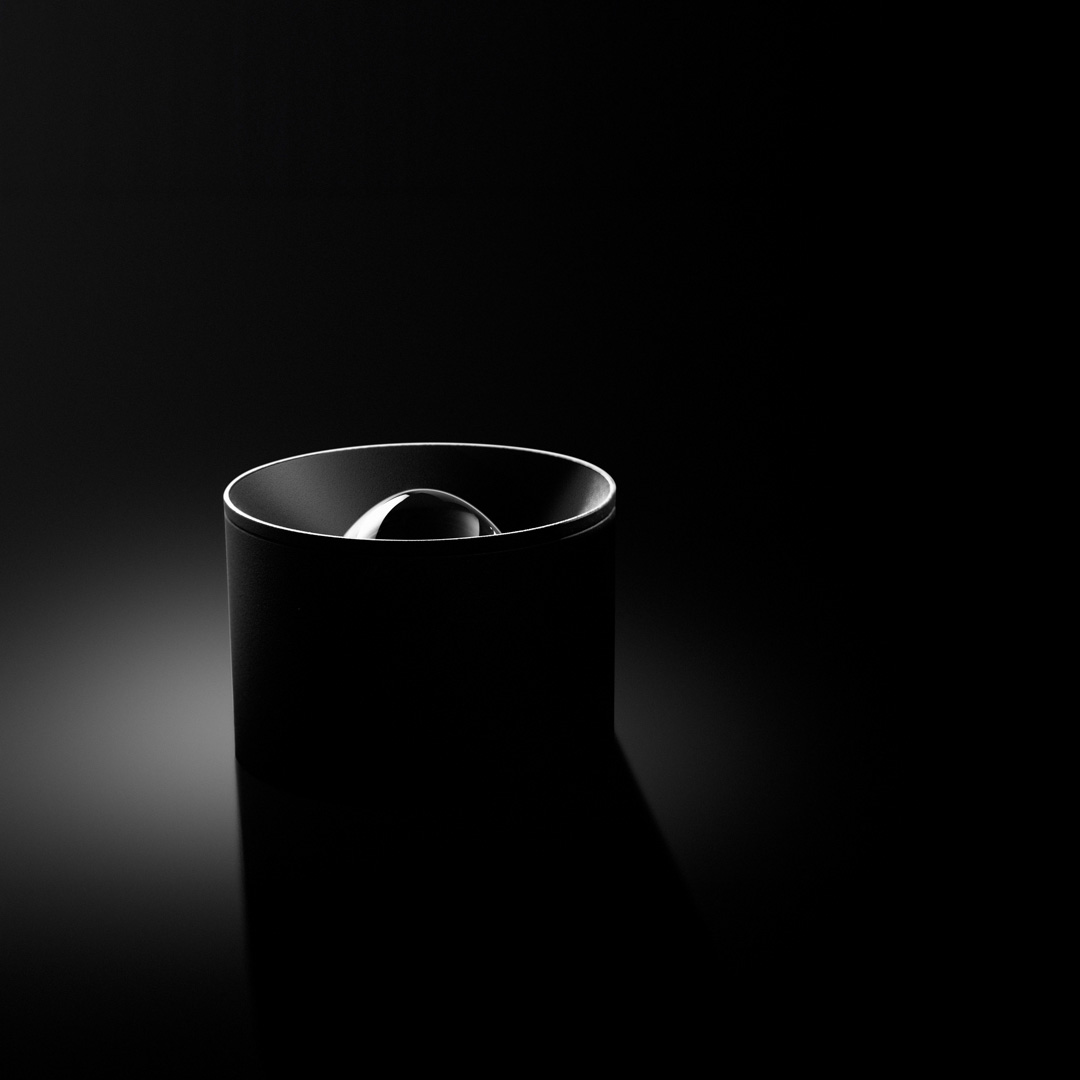

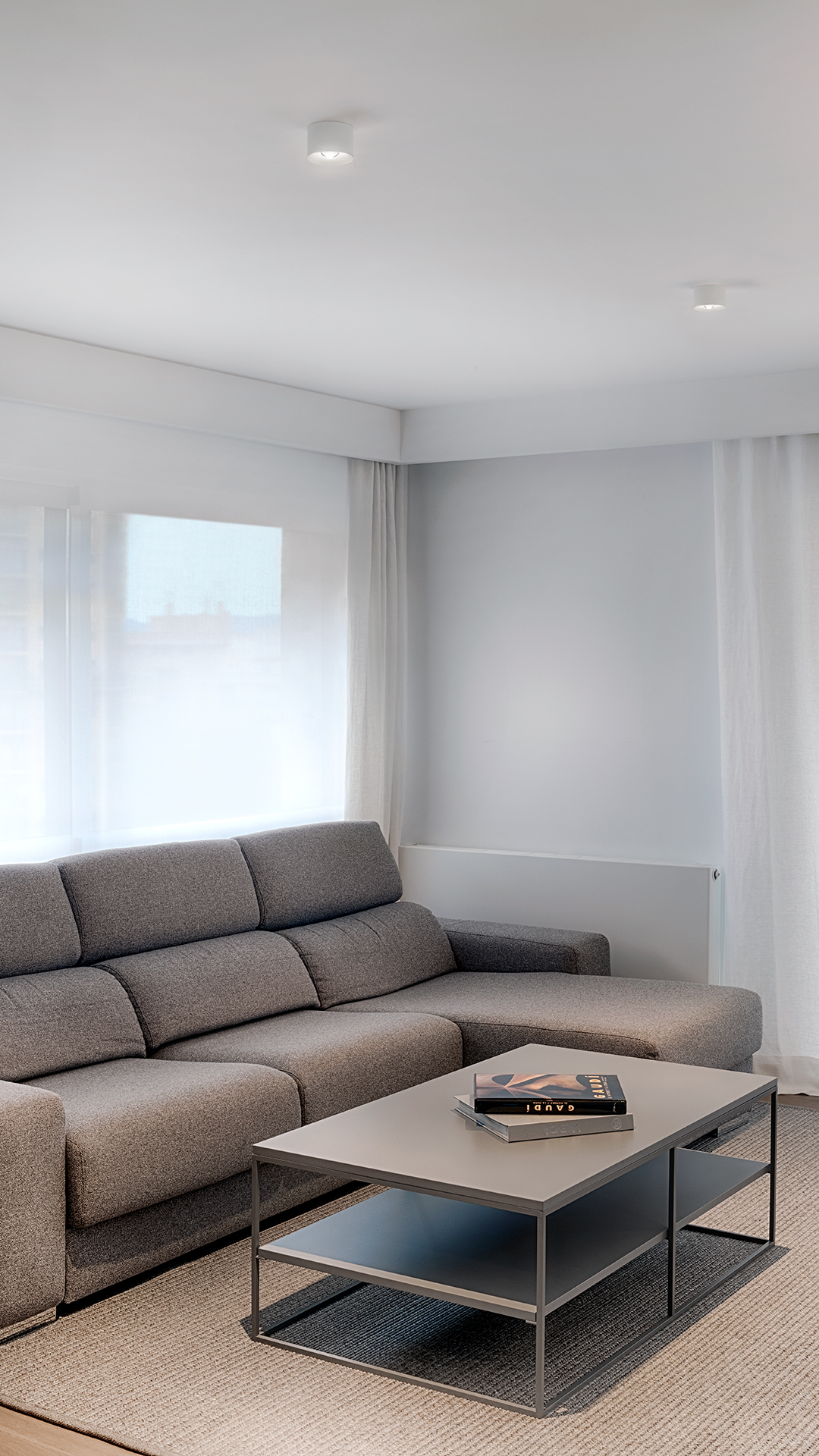

Puck is designed to undertake general lighting functions and, moreover, given its ultra-compact format, aims to conserve discretion in those places where it is impossible to recess the appliances in the ceiling. Puck’s minimalist presence is formally summed up in a circular piece, entirely manufactured in aluminium.

Awards

  • Iconic Award Interior Innovation 2017 Winner

    Iconic Award Interior Innovation 2017 Winner

PUCK M
PUCK M

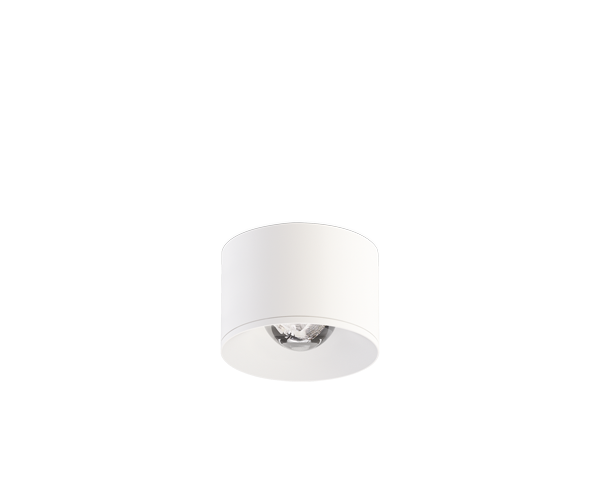

PUCK L
PUCK L

PUCK M

  • Mounting accessories

    Remote Box - Case L

  • Luminous flux

    1125 lm / 1200 lm / 1220 lm / 1270 lm

  • Lighting efficiency

    75%

  • Power

    9 W

  • Dimming

    0-10V

  • Colour temperature

    2700K / 3000K / 3500K / 4000K

  • Chromatic stability

    MacAdam Step 2

  • Light beam angle

    44°

EPD Instructions BIM
Luminous flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • Mounting Accessory
      IC Rated
        Input Voltage
          CRI
            Light beam angle
              Dimming
                Cord length
                  Colour

                    • Model

                      Ref.

                      Mounting Accessory / Driver

                      Colour

                      Lum. flux

                      Power

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      IC Rated

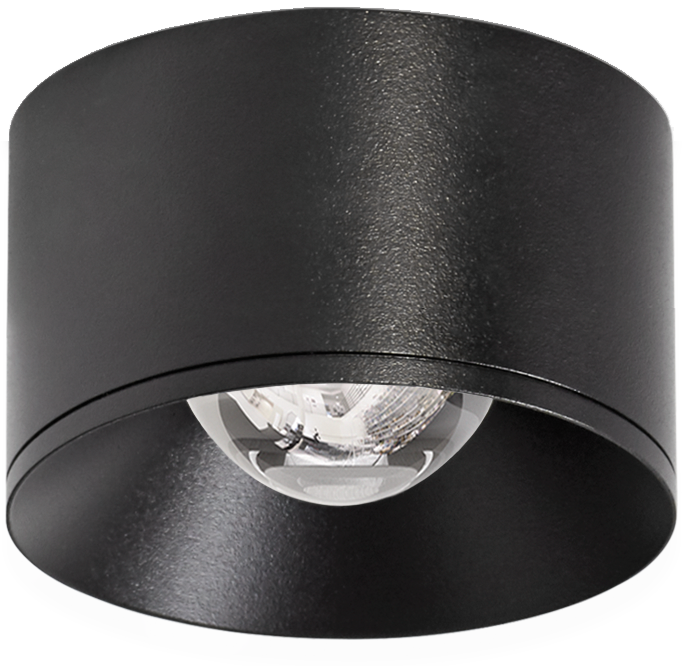

                    • PUCK M UL 2700K NT
                      Reference:

                      U2511000NT

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 8-20W 500mA
                      U1000116 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      1125 lm

                      Power:

                      9 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      44°

                      Lighting efficiency:

                      75%

                      IC Rated:

                      Yes

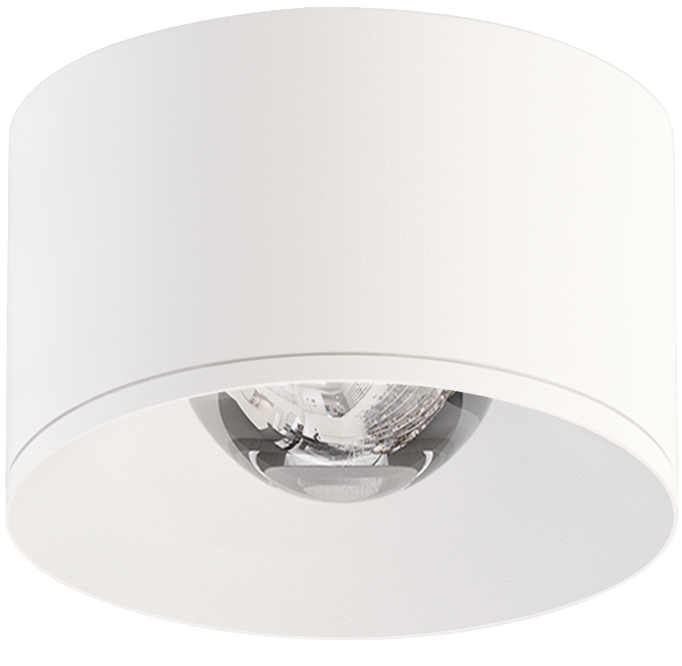

                    • PUCK M UL 2700K WT
                      Reference:

                      U2511000WT

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 8-20W 500mA
                      U1000116 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1125 lm

                      Power:

                      9 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      44°

                      Lighting efficiency:

                      75%

                      IC Rated:

                      Yes

                    • PUCK M UL 3000K NT
                      Reference:

                      U2511001NT

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 8-20W 500mA
                      U1000116 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      1200 lm

                      Power:

                      9 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      44°

                      Lighting efficiency:

                      75%

                      IC Rated:

                      Yes

                    • PUCK M UL 3000K WT
                      Reference:

                      U2511001WT

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 8-20W 500mA
                      U1000116 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1200 lm

                      Power:

                      9 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      44°

                      Lighting efficiency:

                      75%

                      IC Rated:

                      Yes

                    • PUCK M UL 3500K NT
                      Reference:

                      U2511003NT

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 8-20W 500mA
                      U1000116 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      1220 lm

                      Power:

                      9 W

                      Colour temperature:

                      3500K

                      CRI:

                      CRI>90

                      Light beam angle:

                      44°

                      Lighting efficiency:

                      75%

                      IC Rated:

                      Yes

                    • PUCK M UL 3500K WT
                      Reference:

                      U2511003WT

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 8-20W 500mA
                      U1000116 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1220 lm

                      Power:

                      9 W

                      Colour temperature:

                      3500K

                      CRI:

                      CRI>90

                      Light beam angle:

                      44°

                      Lighting efficiency:

                      75%

                      IC Rated:

                      Yes

                    • PUCK M UL 4000K NT
                      Reference:

                      U2511002NT

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 8-20W 500mA
                      U1000116 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      1270 lm

                      Power:

                      9 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      44°

                      Lighting efficiency:

                      75%

                      IC Rated:

                      Yes

                    • PUCK M UL 4000K WT
                      Reference:

                      U2511002WT

                      Mounting Accessory / Driver:

                      Remote Box - Case L
                      REMOTE BOX 8-20W 500mA
                      U1000116 · 1 to 2 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1270 lm

                      Power:

                      9 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      44°

                      Lighting efficiency:

                      75%

                      IC Rated:

                      Yes
