SKY

SURFACE

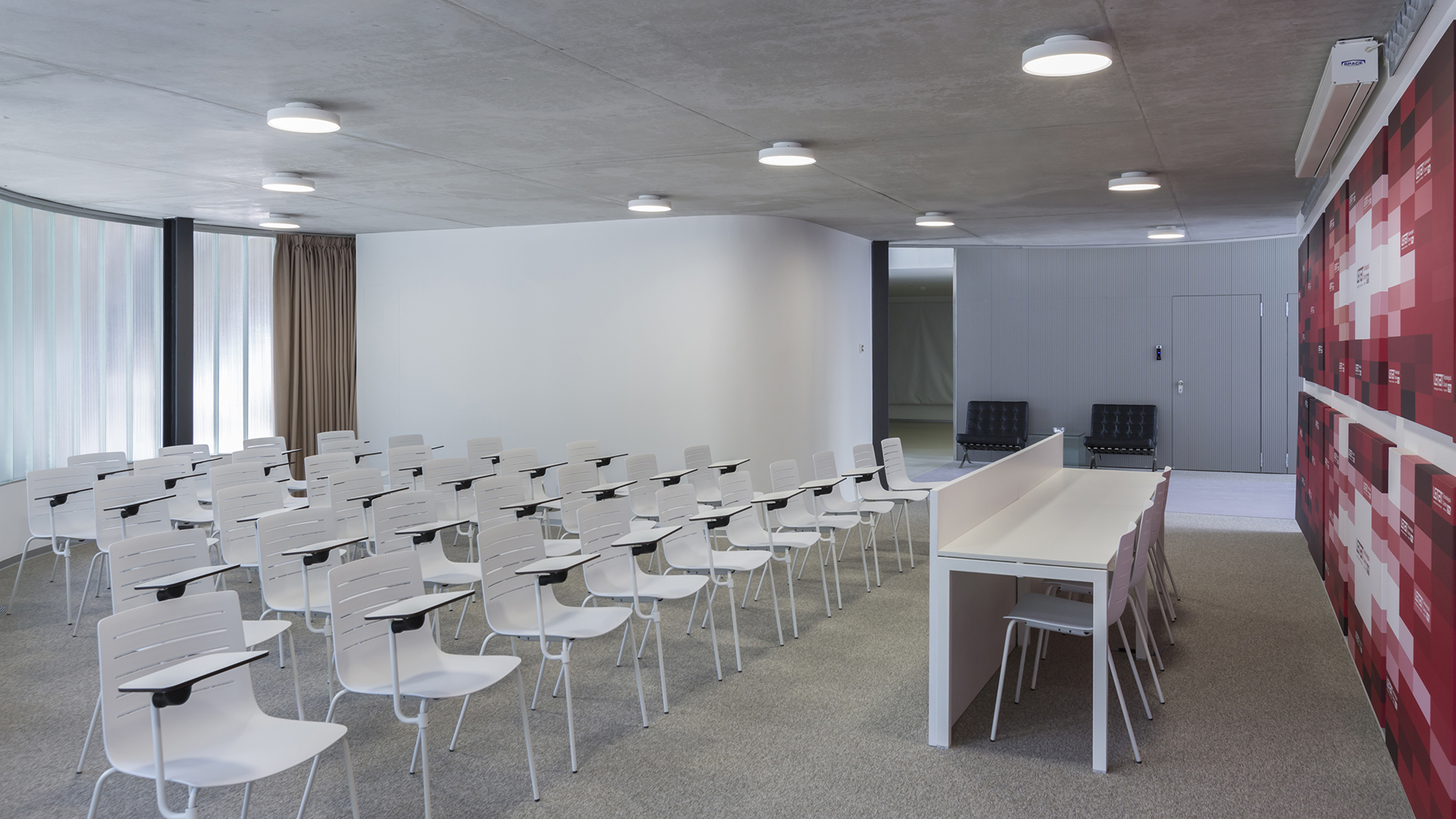

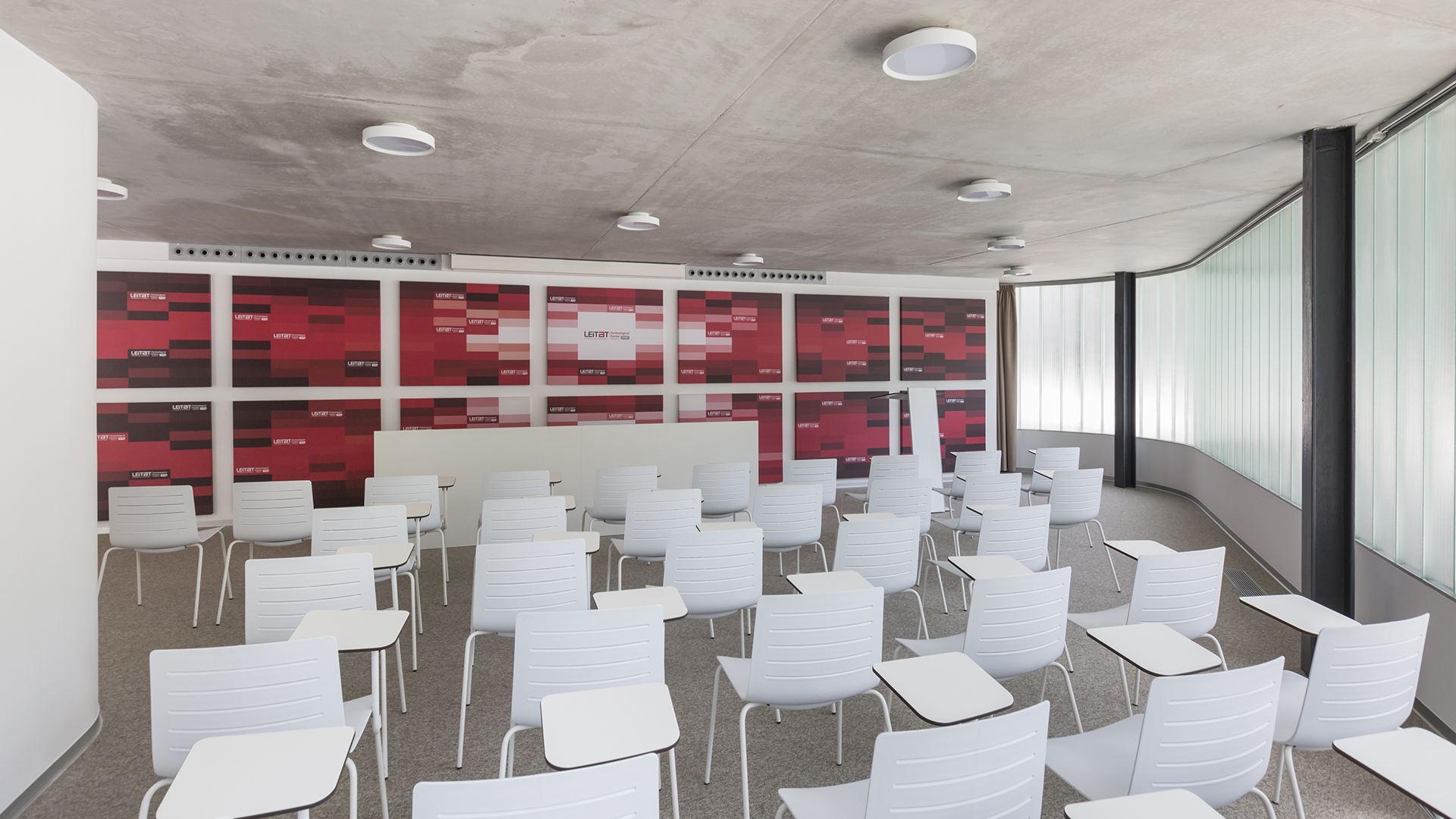

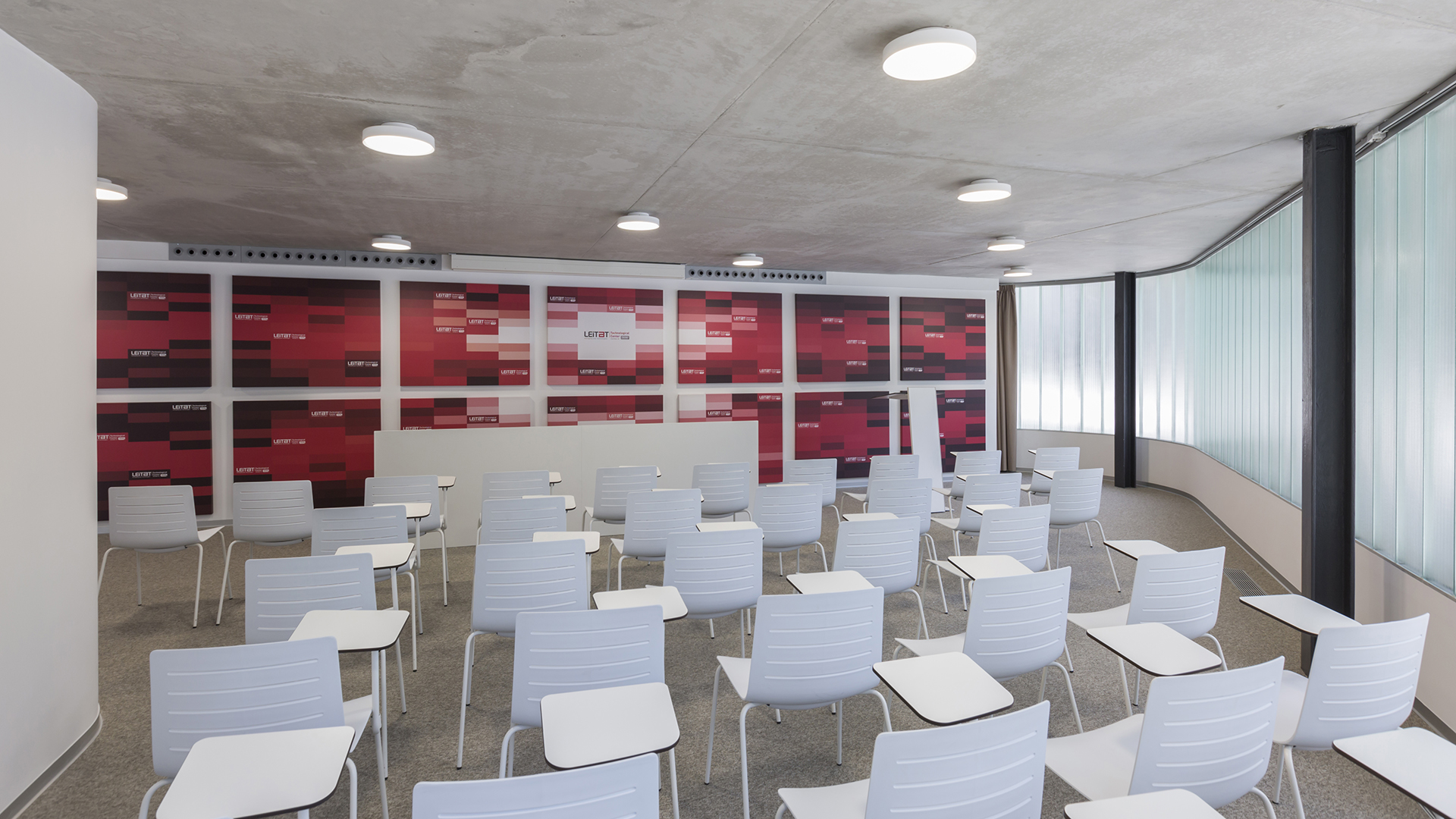

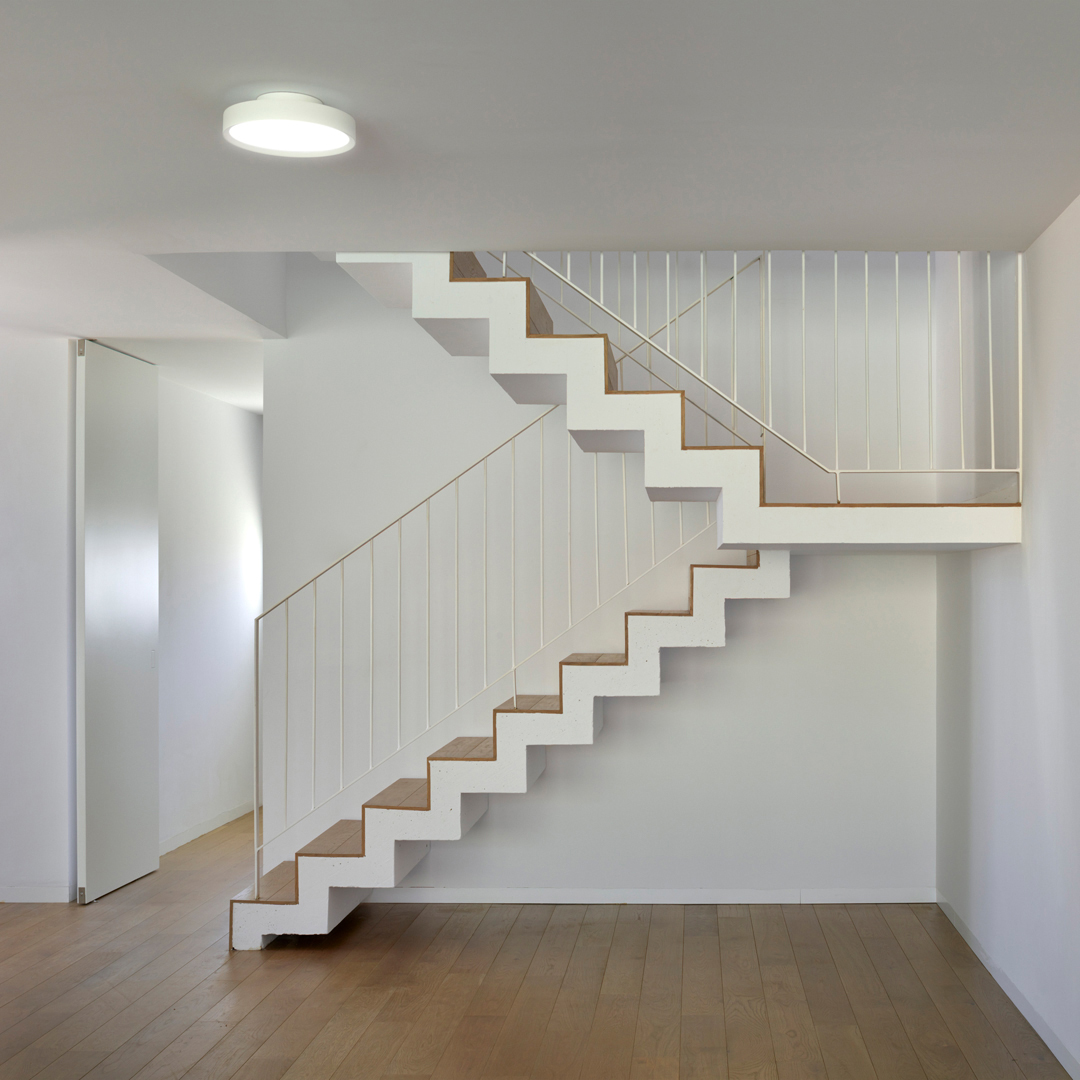

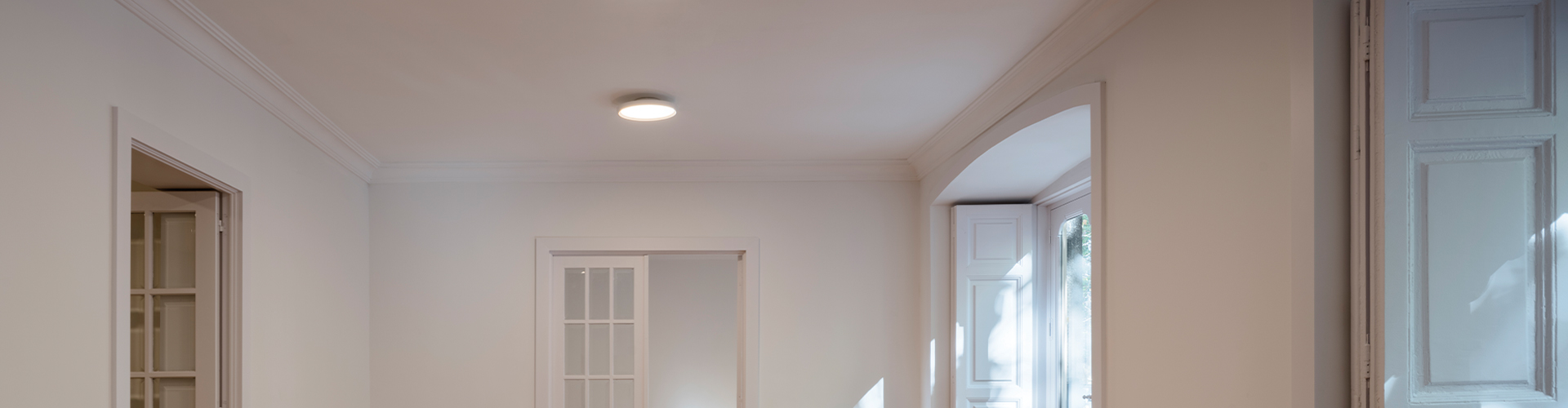

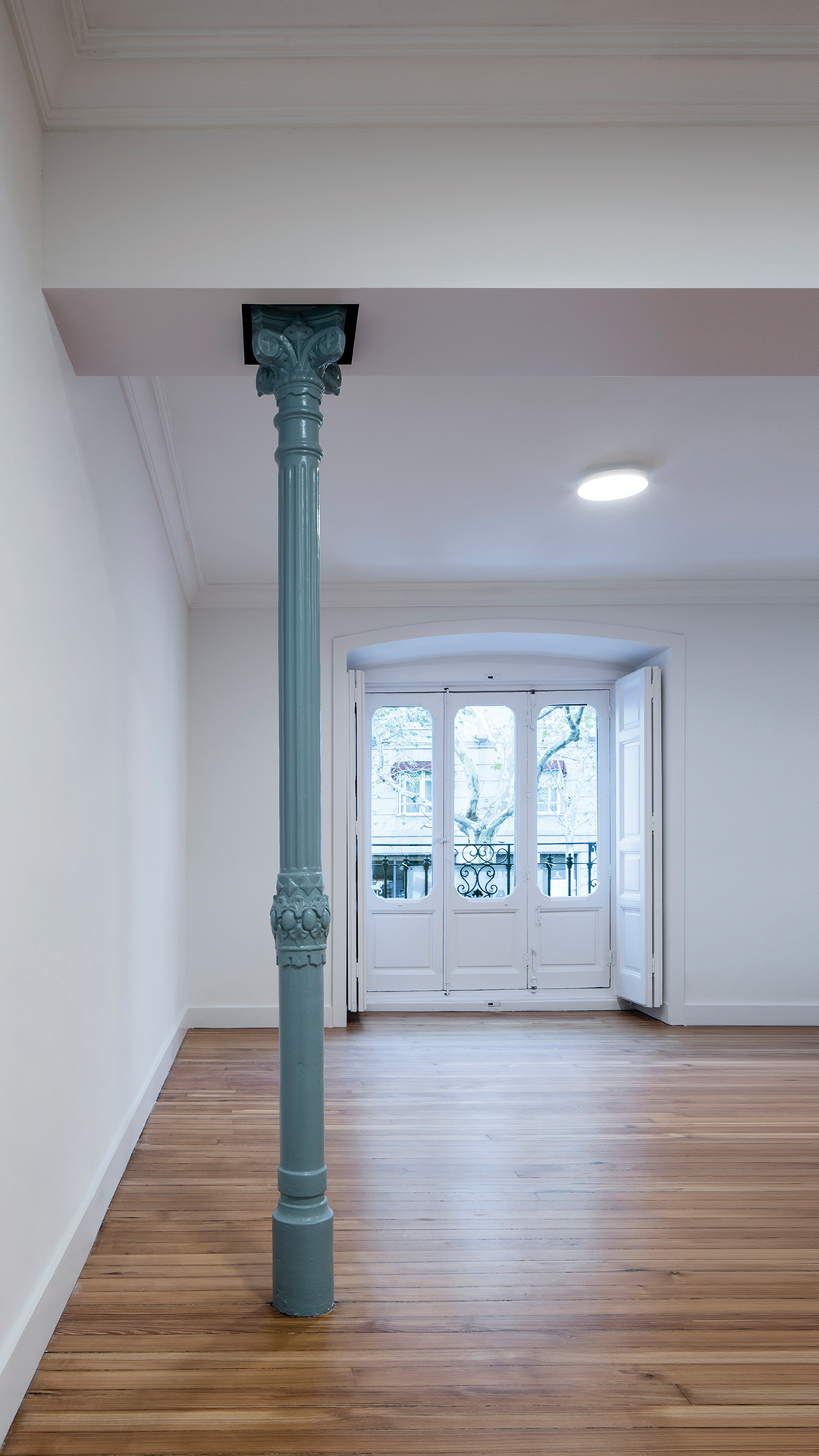

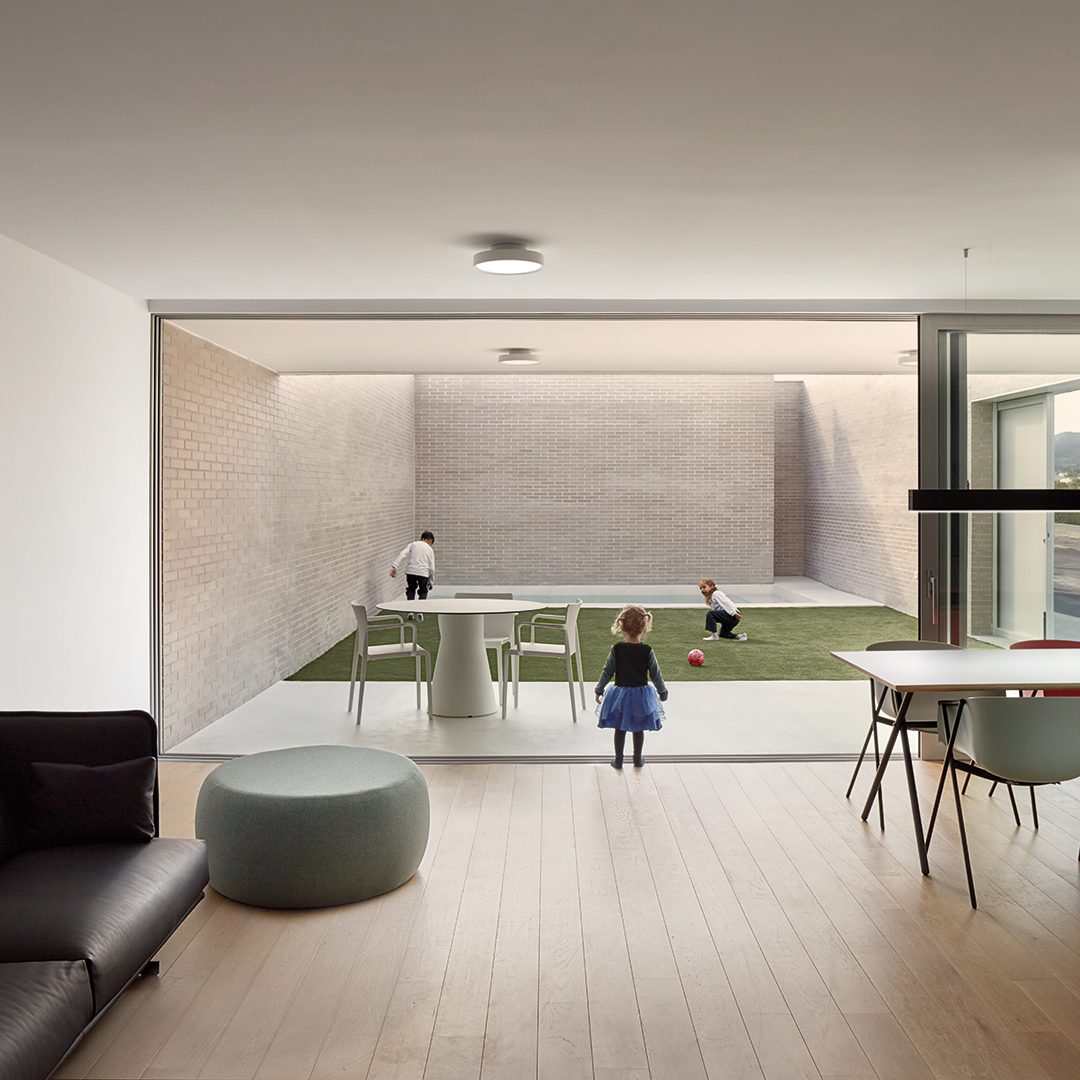

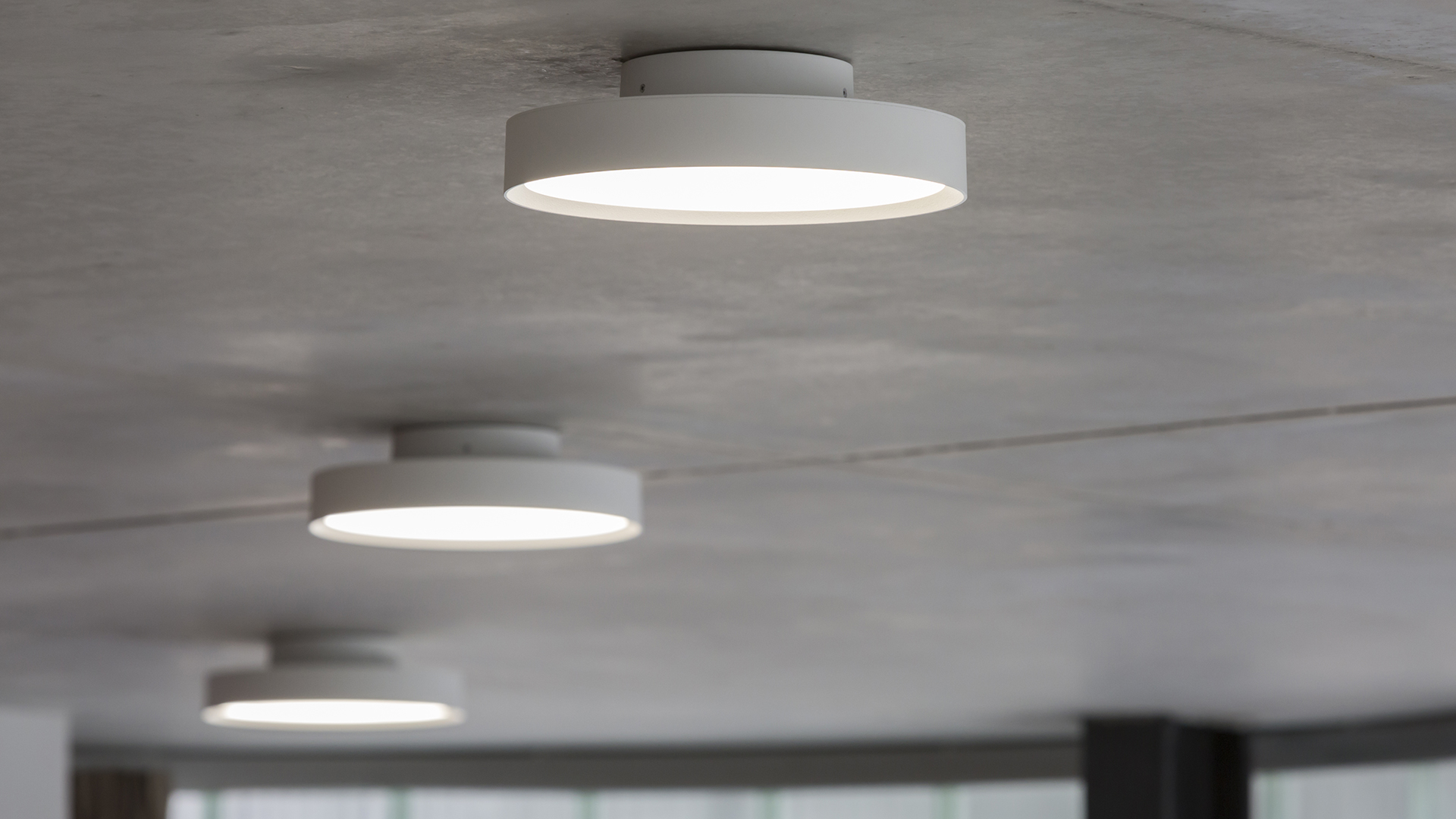

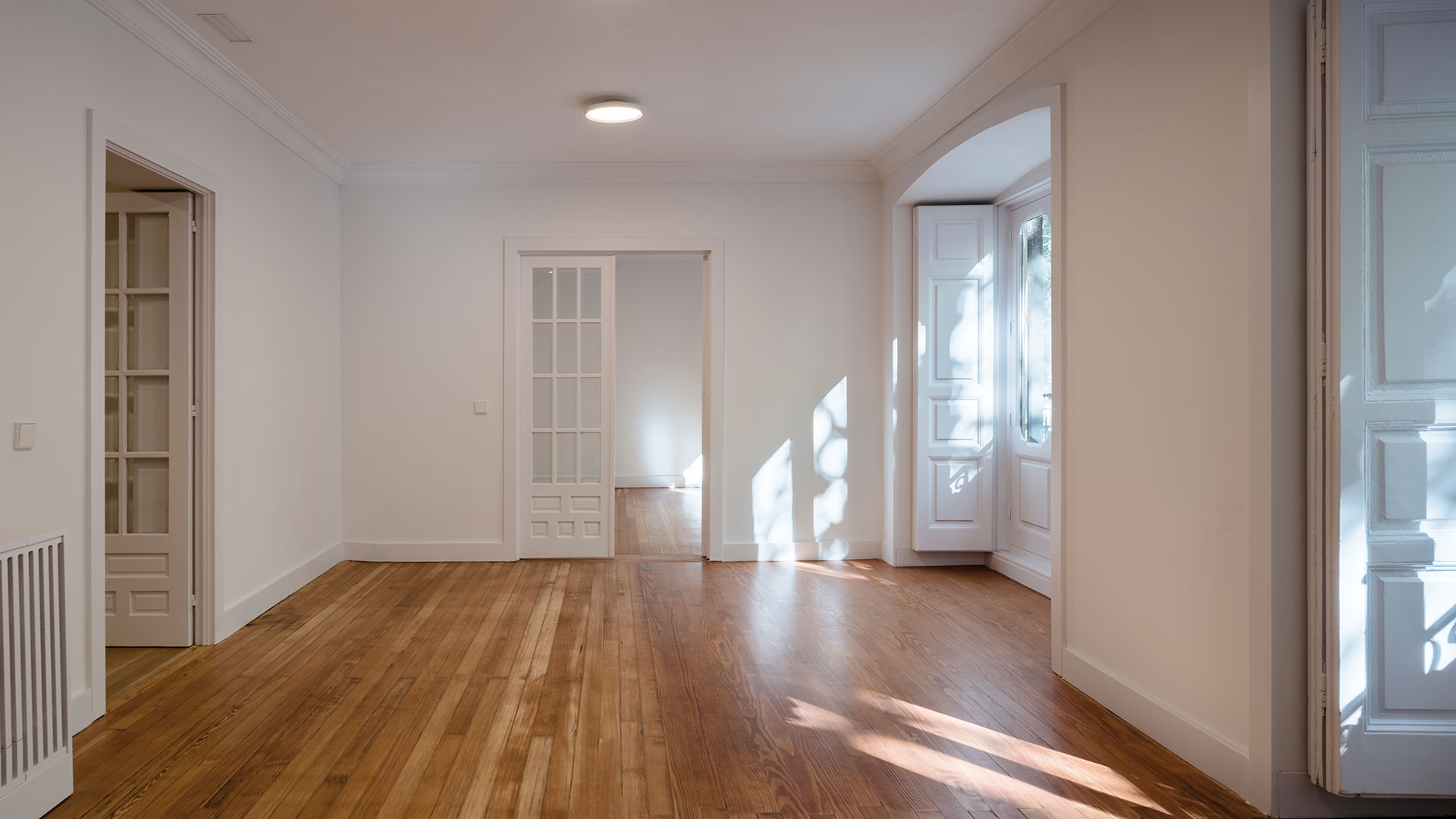

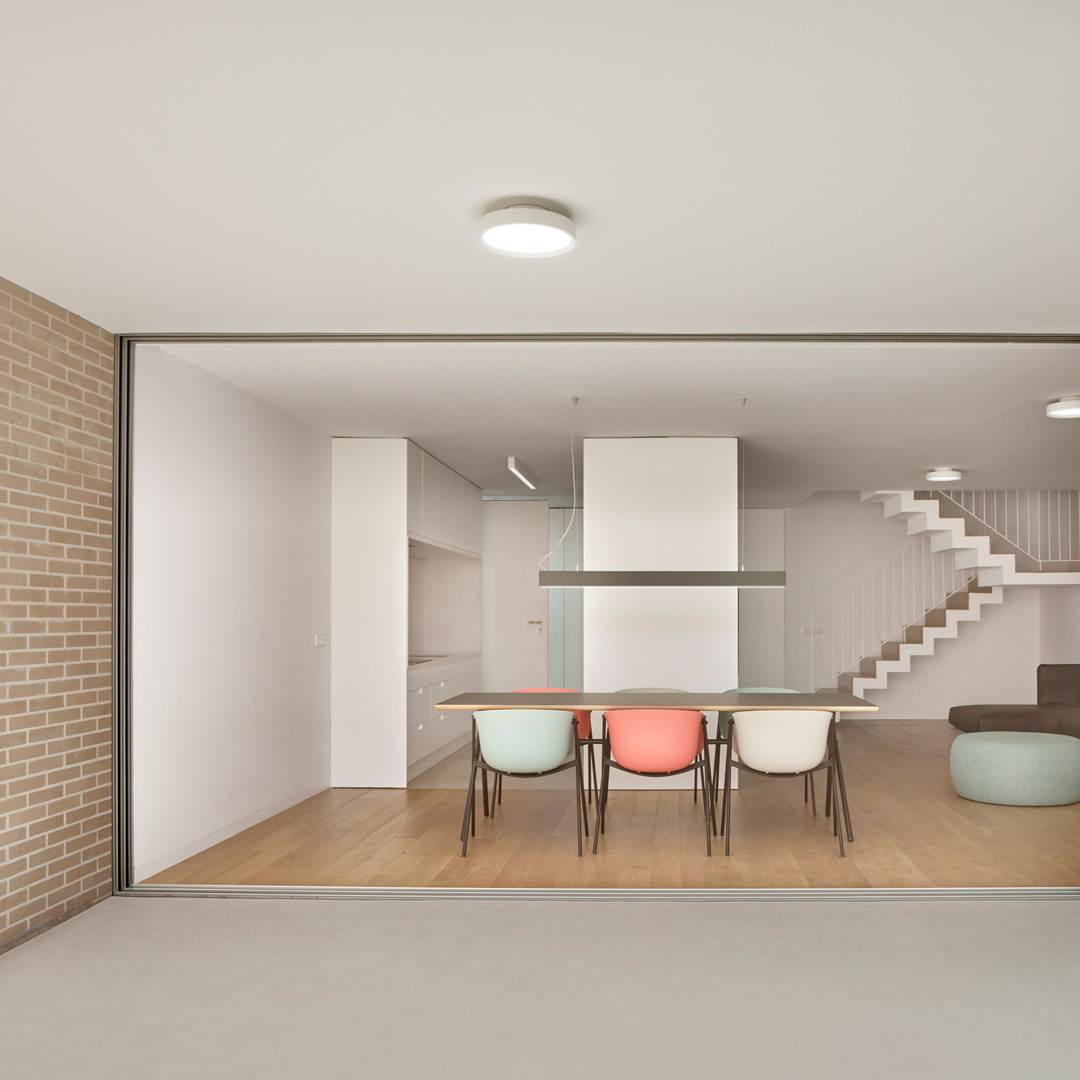

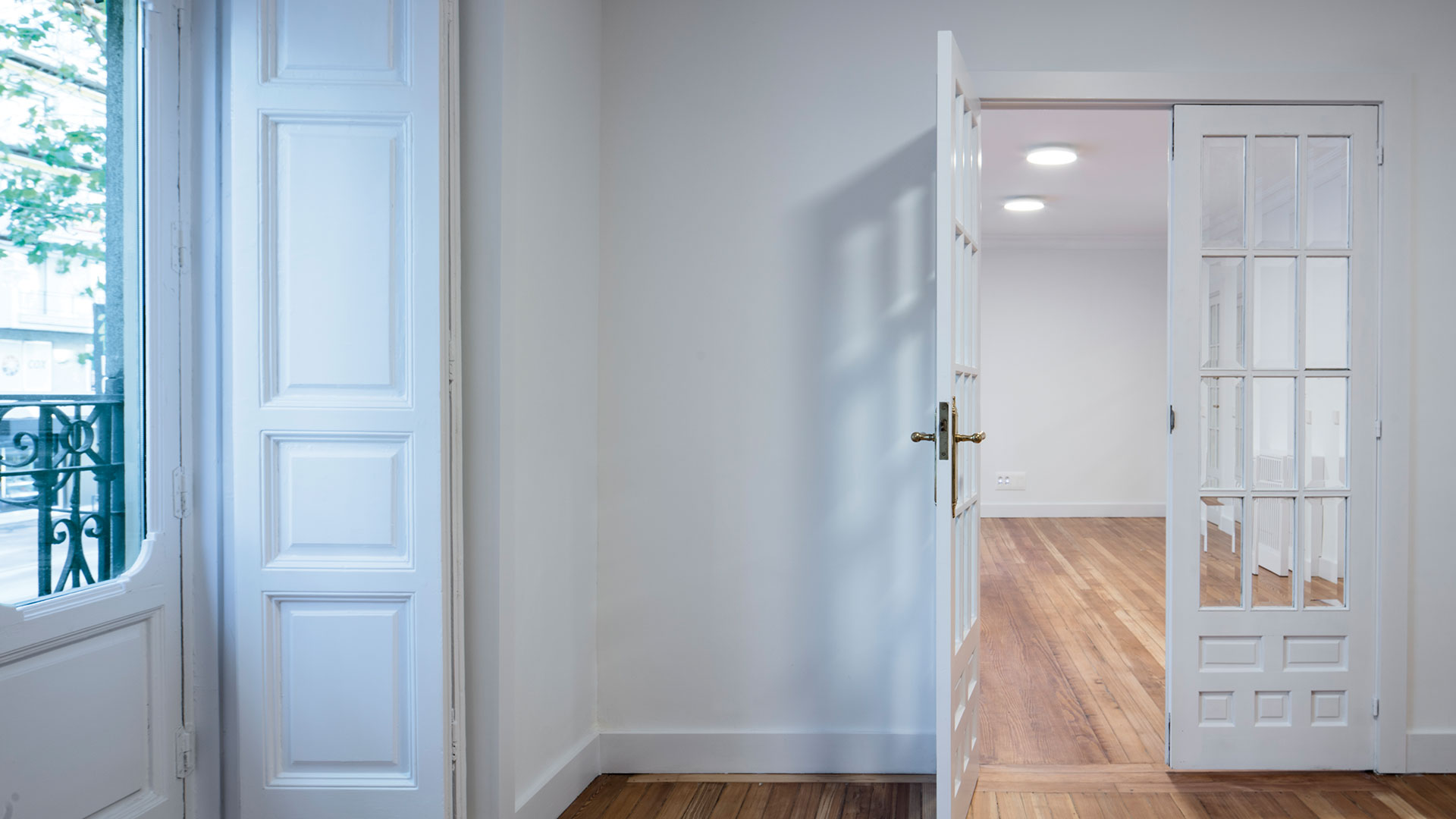

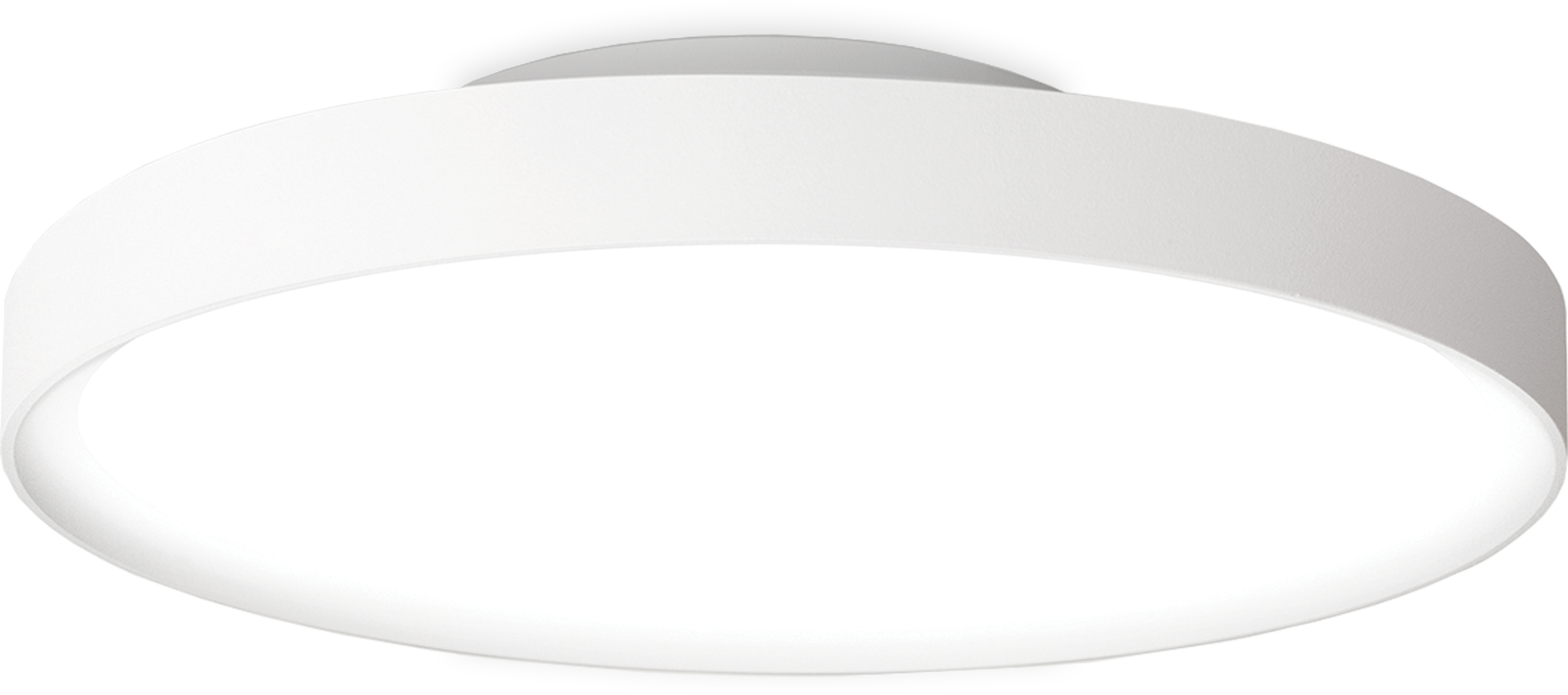

Surface fitted, its design gives Sky the appearance of levitating a few centimeters away from the ceiling and so creates a special and unique effect. Able to provide major luminous flux, Sky can be fitted in projects with very high ceilings, but also stands out for its elegant aesthetics and finishes in smaller spaces.

Awards

  • A´design Award Winner 2015 Silver

    A´design Award Winner 2015 Silver

SKY

  • Luminous flux

    2950 lm / 2980 lm / 5525 lm / 5610 lm

  • Lighting efficiency

    81%

  • Power

    18.5 W / 38 W

  • Dimming

    0-10V / TRIAC/ELV dimming only at 120V

  • Colour temperature

    3000K / 4000K

  • Chromatic stability

    MacAdam Step 2

  • Light beam angle

    105°

EPD Instructions BIM
Luminous flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • Mounting Accessory
      IC Rated
        Input Voltage
          CRI
            Light beam angle
              Dimming
                Cord length
                  Colour

                    • Model

                      Ref.

                      Mounting Accessory / Driver

                      Colour

                      Lum. flux

                      Power

                      Input Voltage

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      IC Rated

                    • SKY 1 UL 3000K WT
                      Reference:

                      U1950111WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      2950 lm

                      Power:

                      18.5 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      105°

                      Lighting efficiency:

                      81%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -

                    • SKY 1 UL 4000K WT
                      Reference:

                      U1950112WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      2980 lm

                      Power:

                      18.5 W

                      Input Voltage:

                      -

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      105°

                      Lighting efficiency:

                      81%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -

                    • SKY 2 UL 3000K WT
                      Reference:

                      U1950211WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      5525 lm

                      Power:

                      38 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      105°

                      Lighting efficiency:

                      81%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -

                    • SKY 2 UL 4000K WT
                      Reference:

                      U1950212WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      5610 lm

                      Power:

                      38 W

                      Input Voltage:

                      -

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      105°

                      Lighting efficiency:

                      81%

                      Dimming:

                      0-10V / TRIAC/ELV dimming only at 120V

                      IC Rated:

                      -
