DROP

CEILING RECESSED

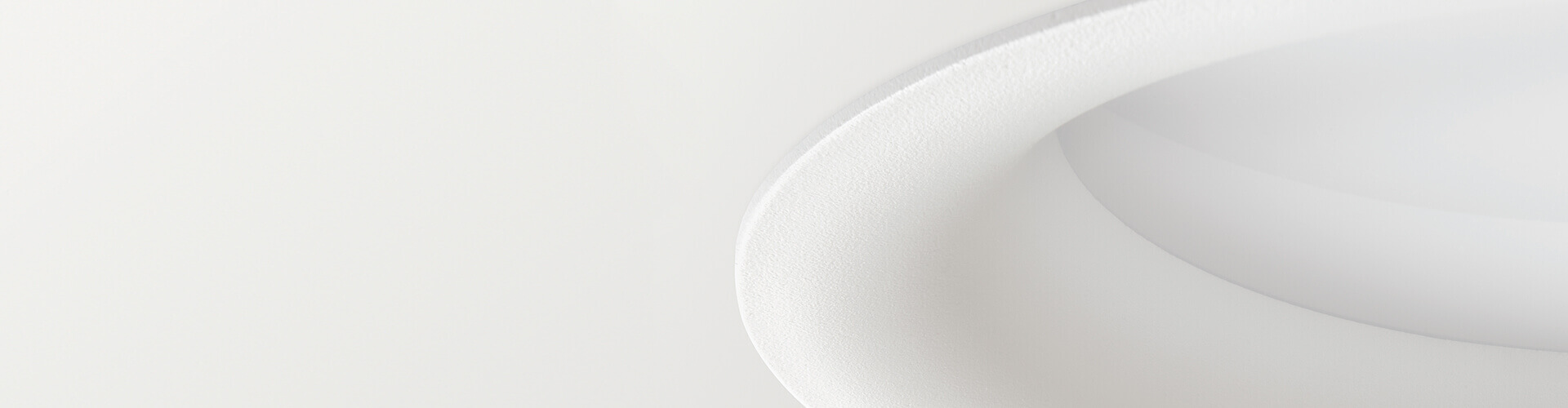

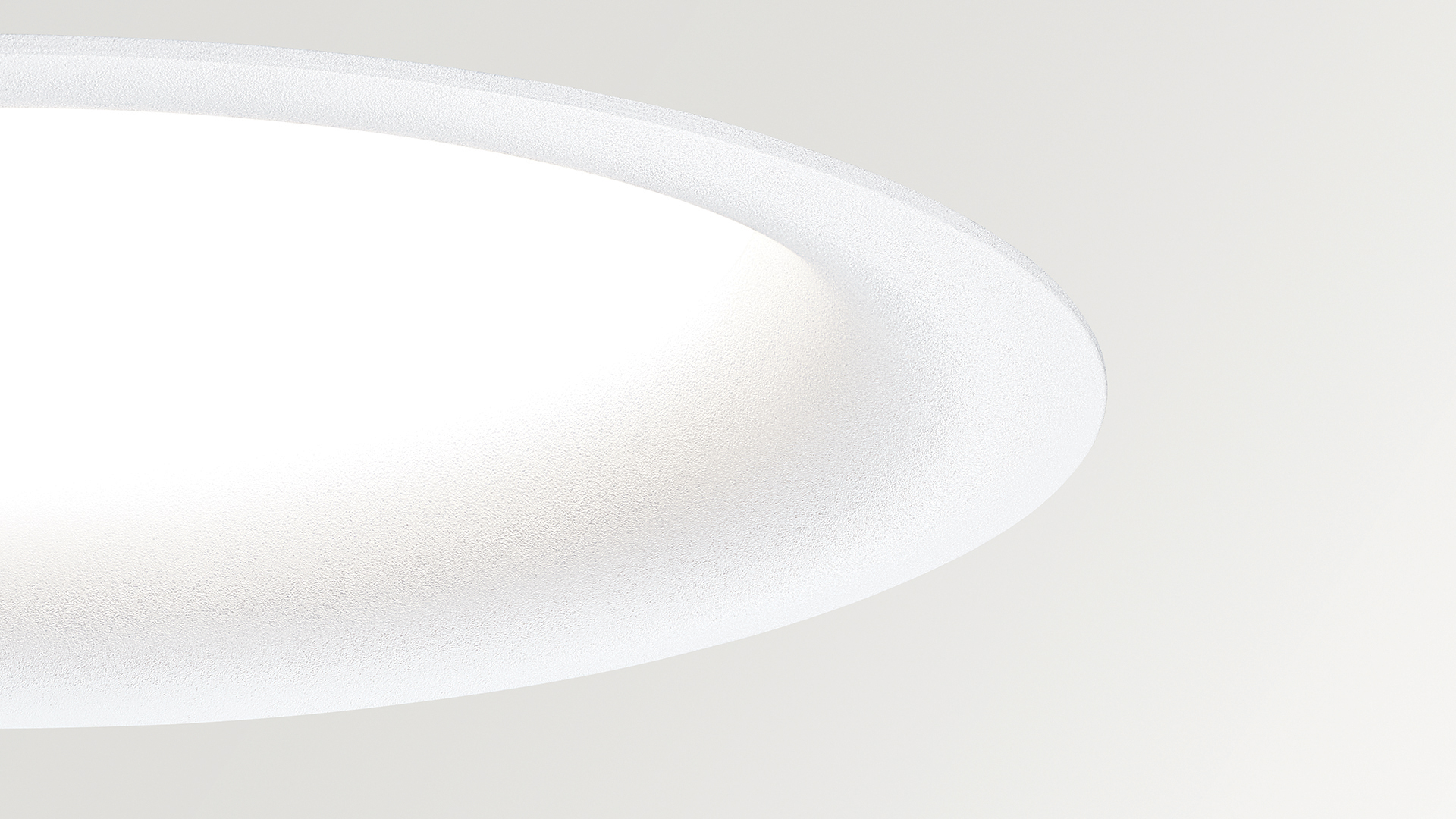

When lit, the lighting of Drop produces an effect of erasing visually the rims of the fitting, creating the illusion of illumination which resembles that of a natural skylight.

Awards

  • A´design Award Winner 2015 Iron

    A´design Award Winner 2015 Iron

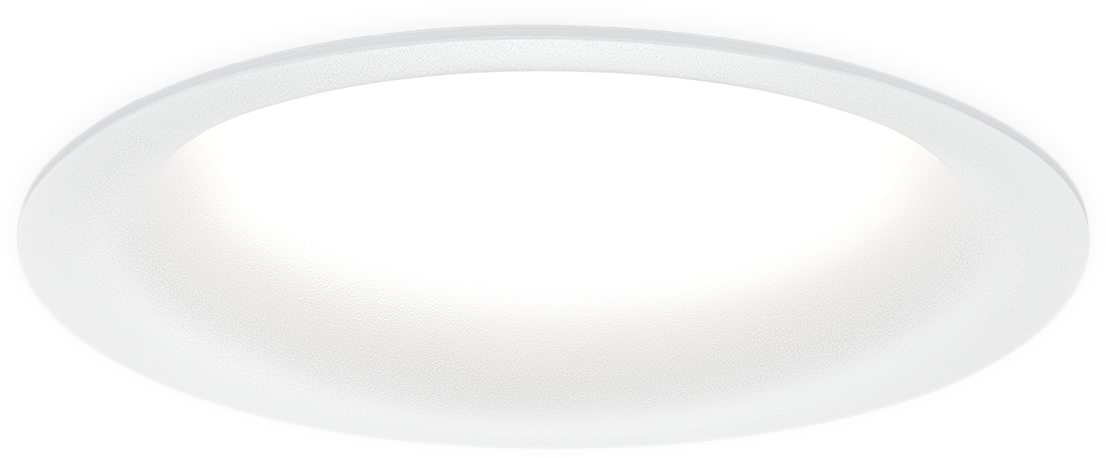

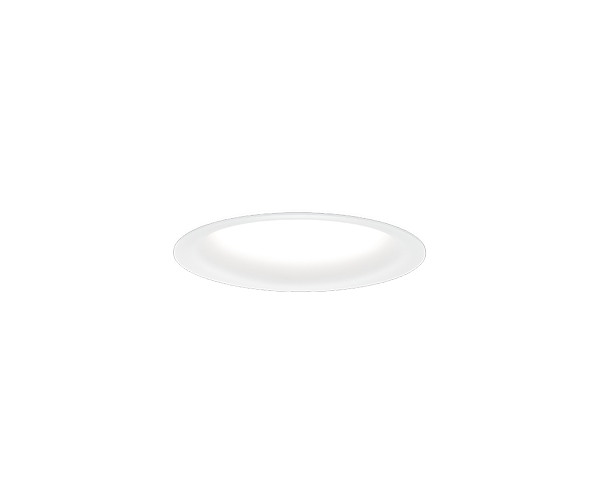

DROP MINI
DROP MINI
DROP
DROP

DROP MINI

  • Mounting accessories

    Remodel Box, New Construction Plaster Frame L

  • Luminous flux

    1280 lm / 1375 lm / 1400 lm

  • Lighting efficiency

    78%

  • Power

    10 W

  • Dimming

    0-10V / TRIAC dimming only at 120Vac.

  • Colour temperature

    2700K / 3000K / 4000K

  • Chromatic stability

    MacAdam Step 2

  • Light beam angle

    94°

EPD Instructions BIM
Luminous flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • Mounting Accessory
      IC Rated
        Input Voltage
          CRI
            Light beam angle
              Dimming
                Cord length
                  Colour

                    • Model

                      Ref.

                      Mounting Accessory / Driver

                      Colour

                      Lum. flux

                      Power

                      Input Voltage

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      IC Rated

                    • DROP MINI UL 2700K WT
                      Reference:

                      U1940110WT

                      Mounting Accessory / Driver:

                      Remodel Box
                      REMODEL BOX 9.5-16.8W 700mA 120-277V
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1280 lm

                      Power:

                      10 W

                      Input Voltage:

                      120-277 V

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      94°

                      Lighting efficiency:

                      78%

                      Dimming:

                      0-10V / TRIAC dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • DROP MINI UL 2700K WT
                      Reference:

                      U1940110WT

                      Mounting Accessory / Driver:

                      New Construction Plaster Frame L
                      NC PLASTER FRAME L Ø140 9.5-16.8W 700mA 120-277V
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1280 lm

                      Power:

                      10 W

                      Input Voltage:

                      120-277 V

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      94°

                      Lighting efficiency:

                      78%

                      Dimming:

                      0-10V / TRIAC dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • DROP MINI UL 3000K WT
                      Reference:

                      U1940111WT

                      Mounting Accessory / Driver:

                      Remodel Box
                      REMODEL BOX 9.5-16.8W 700mA 120-277V
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1375 lm

                      Power:

                      10 W

                      Input Voltage:

                      120-277 V

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      94°

                      Lighting efficiency:

                      78%

                      Dimming:

                      0-10V / TRIAC dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • DROP MINI UL 3000K WT
                      Reference:

                      U1940111WT

                      Mounting Accessory / Driver:

                      New Construction Plaster Frame L
                      NC PLASTER FRAME L Ø140 9.5-16.8W 700mA 120-277V
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1375 lm

                      Power:

                      10 W

                      Input Voltage:

                      120-277 V

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      94°

                      Lighting efficiency:

                      78%

                      Dimming:

                      0-10V / TRIAC dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • DROP MINI UL 4000K WT
                      Reference:

                      U1940112WT

                      Mounting Accessory / Driver:

                      Remodel Box
                      REMODEL BOX 9.5-16.8W 700mA 120-277V
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1400 lm

                      Power:

                      10 W

                      Input Voltage:

                      120-277 V

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      94°

                      Lighting efficiency:

                      78%

                      Dimming:

                      0-10V / TRIAC dimming only at 120Vac.

                      IC Rated:

                      Yes

                    • DROP MINI UL 4000K WT
                      Reference:

                      U1940112WT

                      Mounting Accessory / Driver:

                      New Construction Plaster Frame L
                      NC PLASTER FRAME L Ø140 9.5-16.8W 700mA 120-277V
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1400 lm

                      Power:

                      10 W

                      Input Voltage:

                      120-277 V

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      94°

                      Lighting efficiency:

                      78%

                      Dimming:

                      0-10V / TRIAC dimming only at 120Vac.

                      IC Rated:

                      Yes
