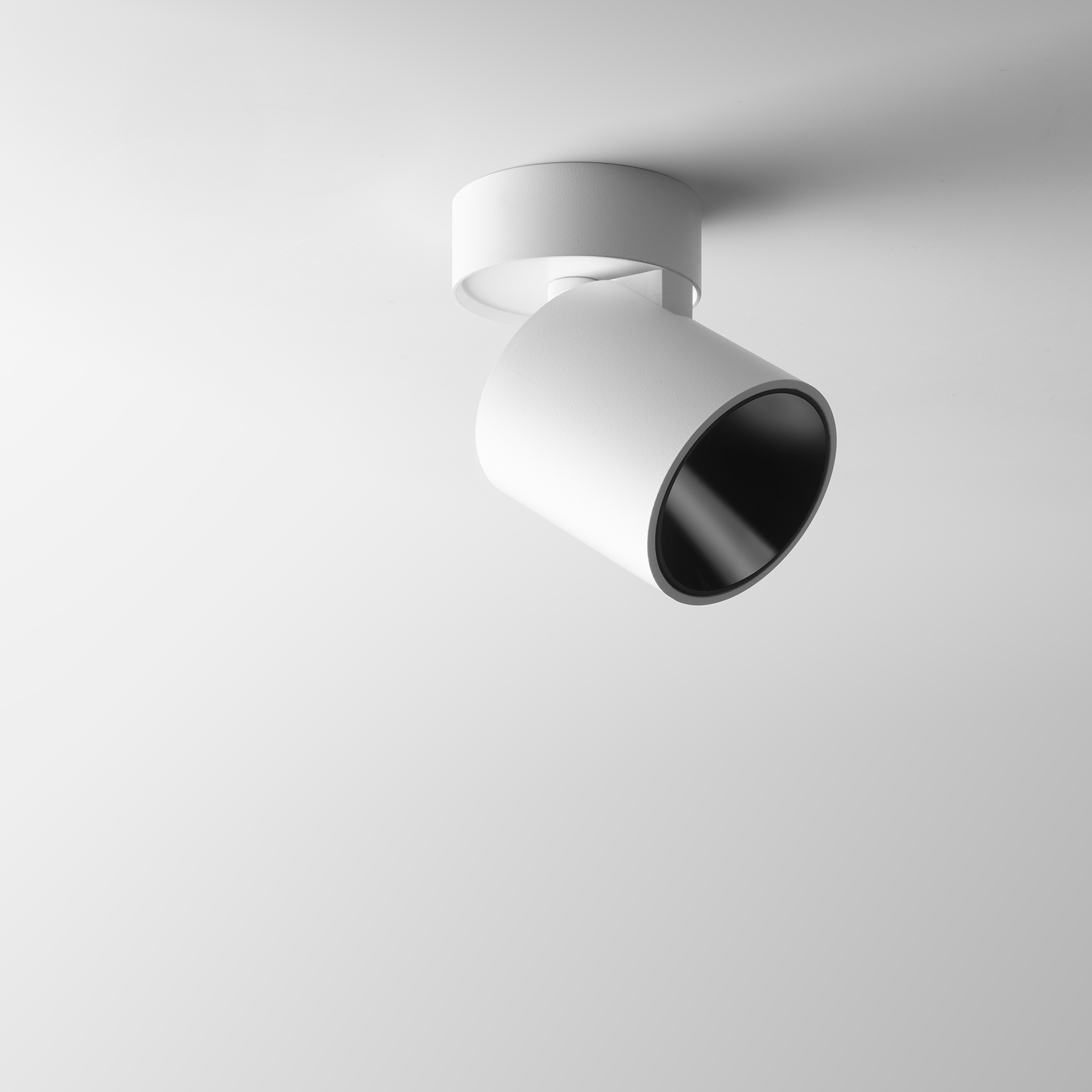

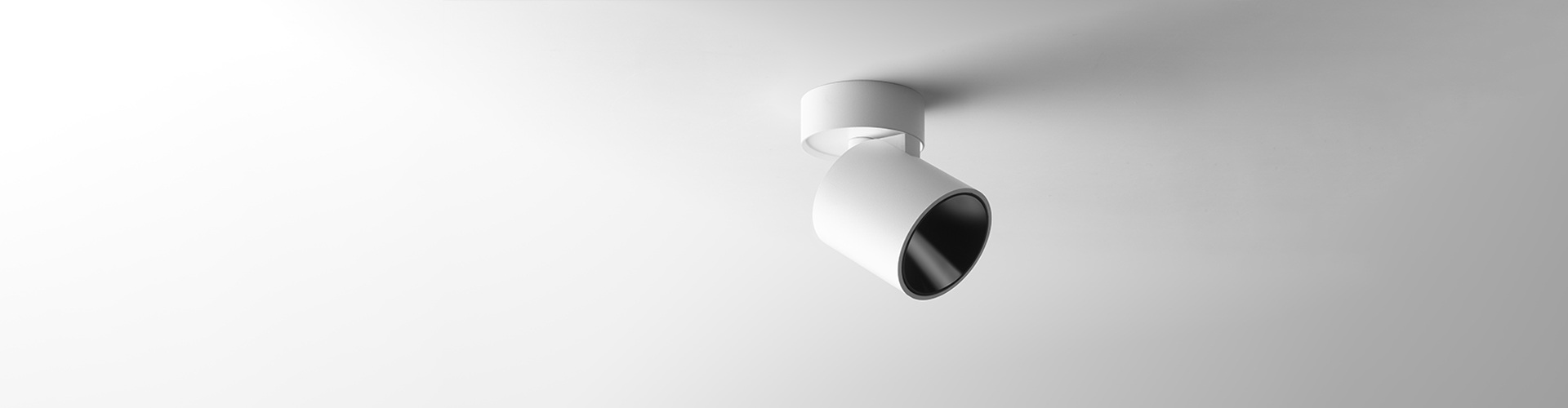

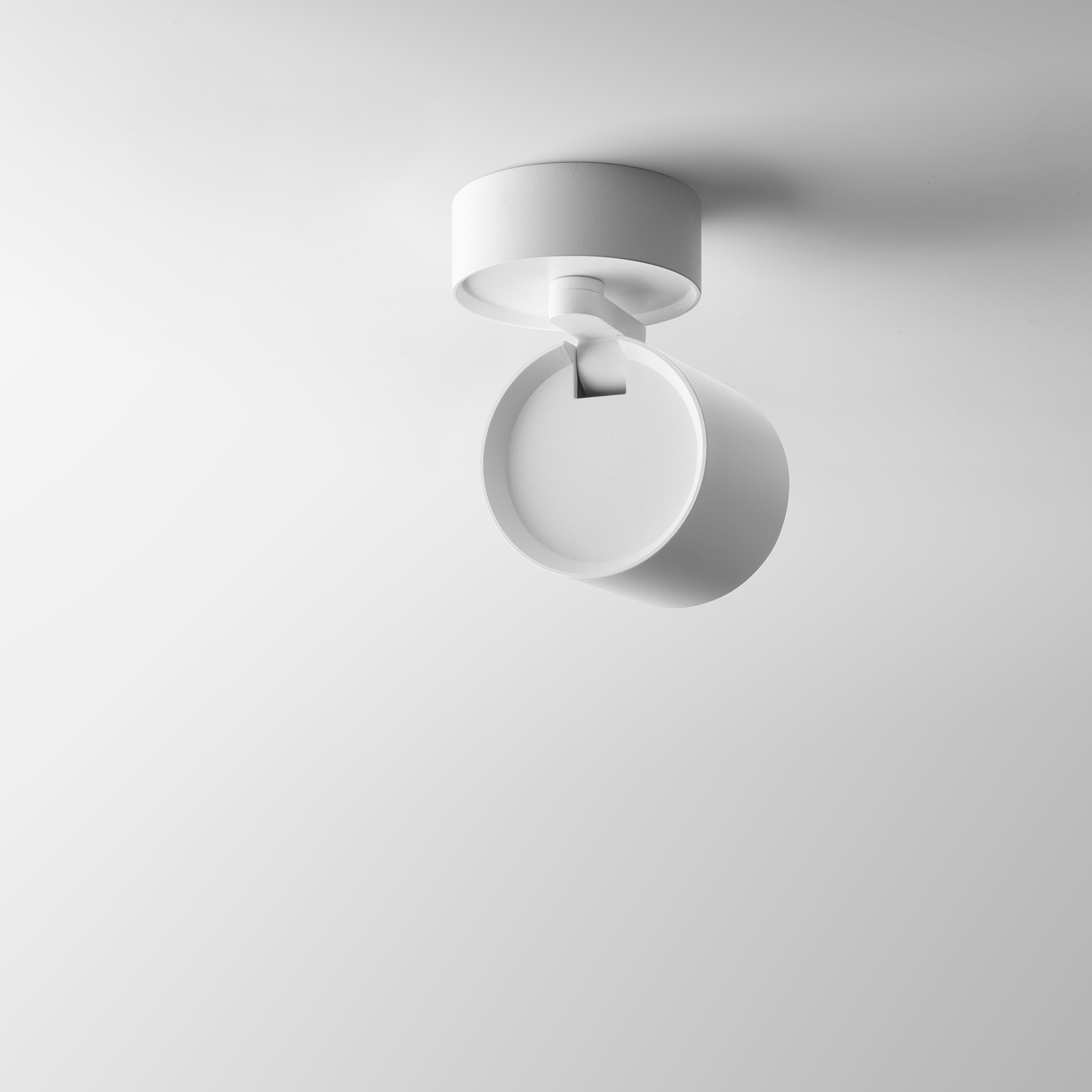

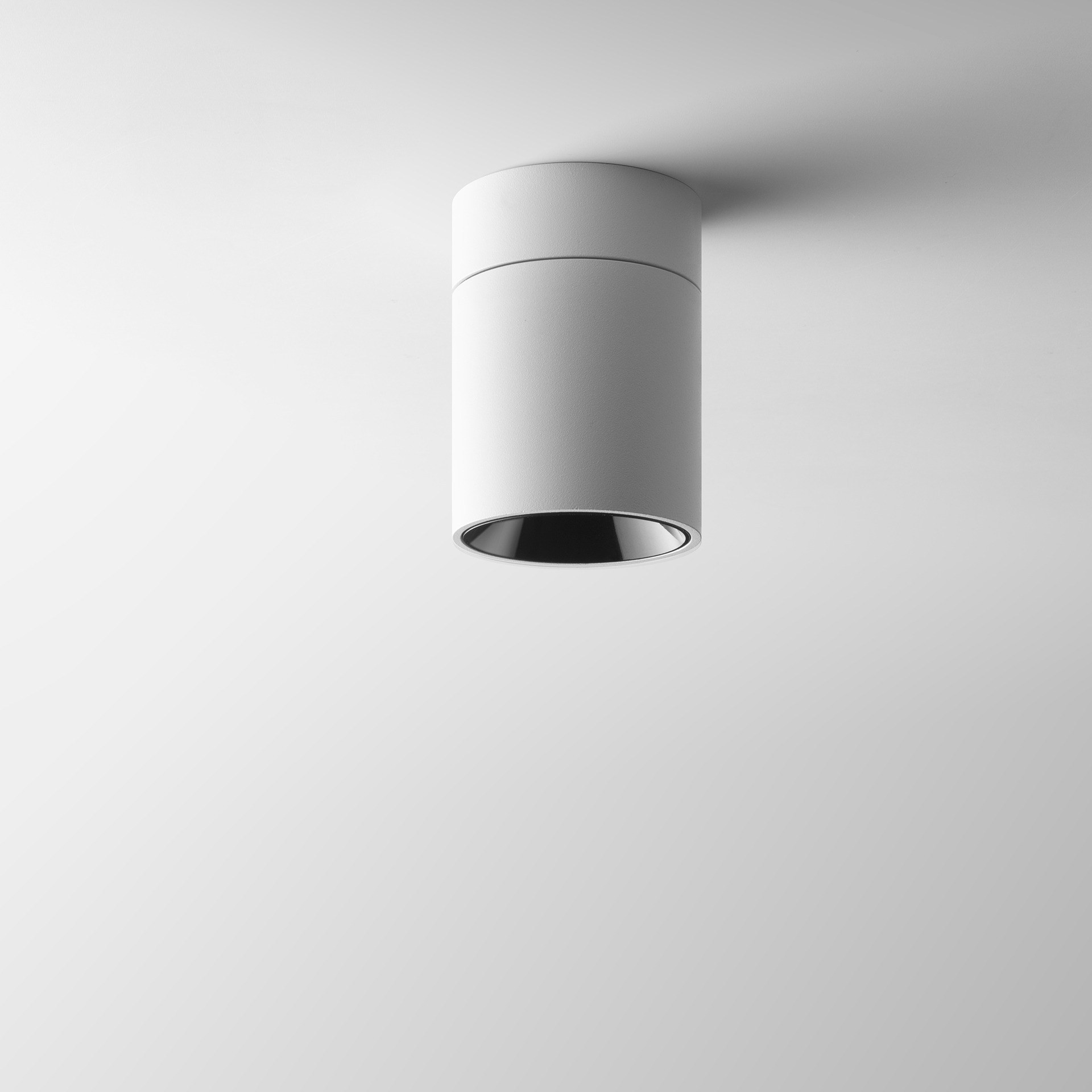

FLIP SURFACE

SURFACE

Flip is pure form and movement. Its adjustable and tilting and design imbues versatility and enables this product to bathe light wherever it is desired.

FLIP SURFACE

Mounting accessories

Remote Box
Luminous flux

620 lm / 650 lm / 680 lm / 690 lm
Lighting efficiency

78% / 86%
Power

6 W
Dimming

0-10V
Colour temperature

2700K / 3000K / 3500K / 4000K
Chromatic stability

MacAdam Step 2
Light beam angle

23° / 34°

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

IC Rated

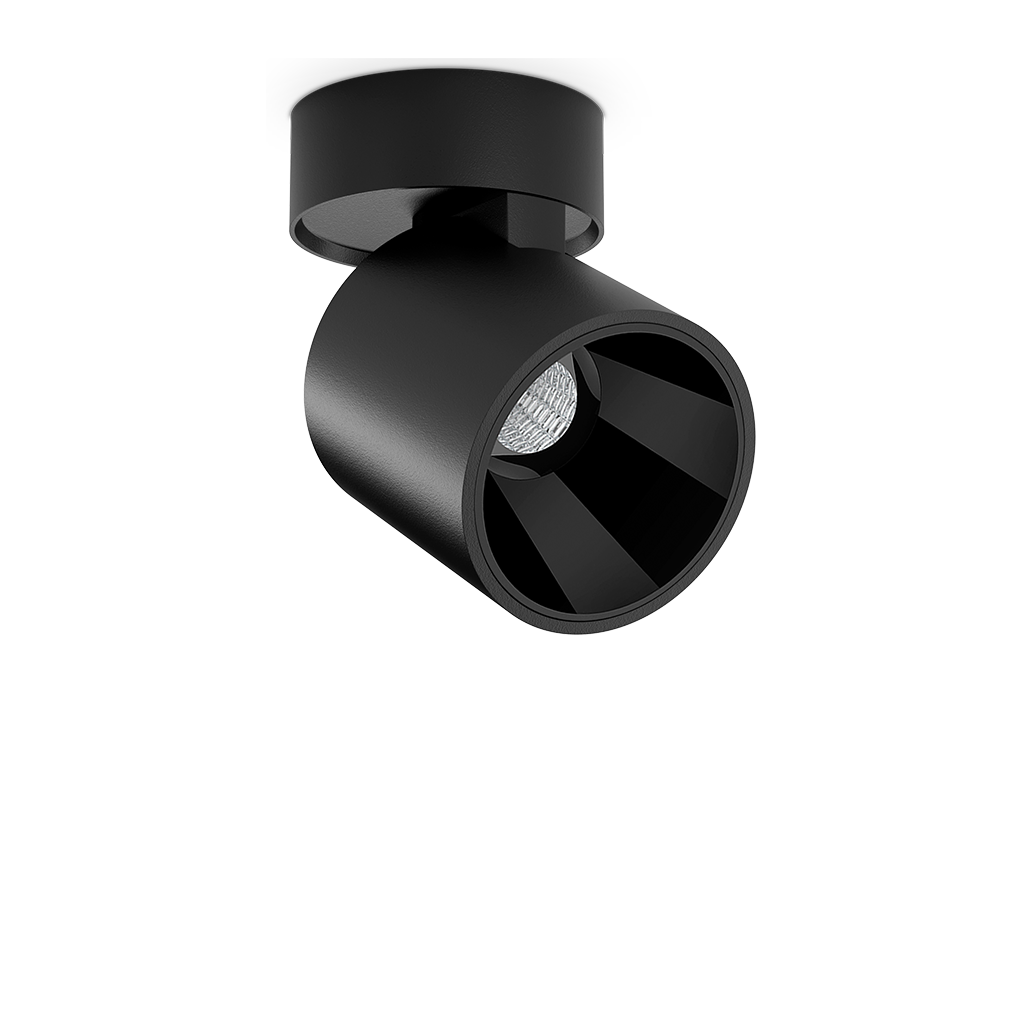

FLIP SURFACE UL SPOT 2700K NT

Reference:

U4900010NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

620 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

IC Rated:

Yes

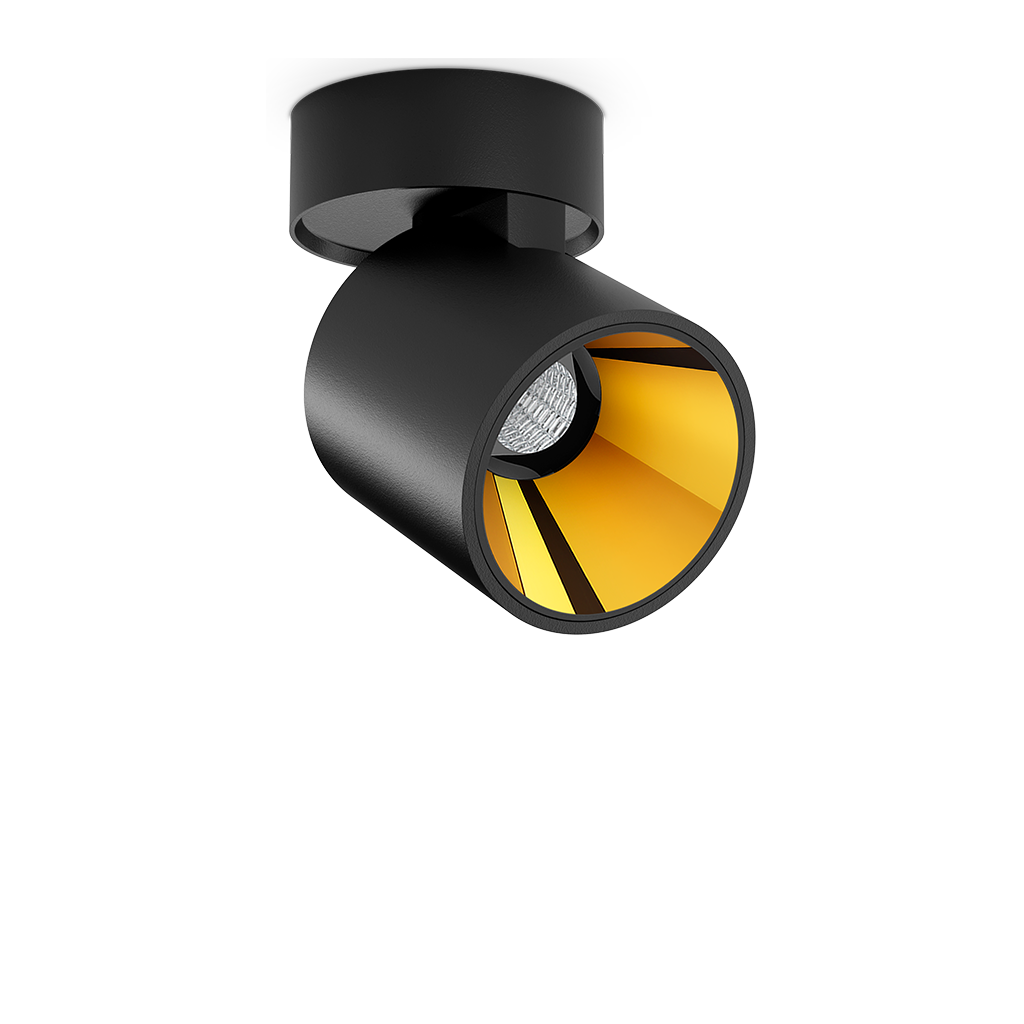

FLIP SURFACE UL SPOT 2700K NTMG

Reference:

U4900010NTMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black-Metallized gold

Luminous flux:

620 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

IC Rated:

Yes

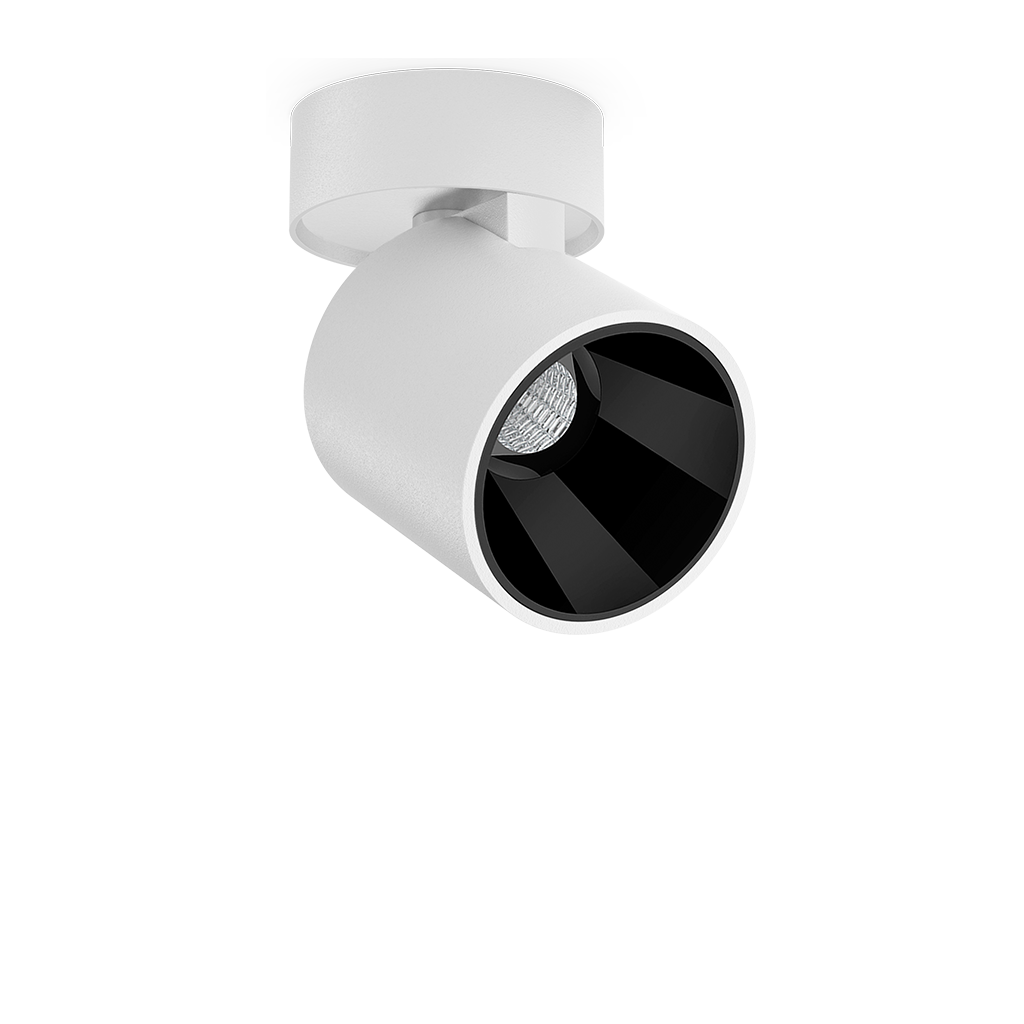

FLIP SURFACE UL SPOT 2700K WT

Reference:

U4900010WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

620 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

IC Rated:

Yes
FLIP SURFACE UL SPOT 3000K NT

Reference:

U4900011NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

650 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

IC Rated:

Yes
FLIP SURFACE UL SPOT 3000K NTMG

Reference:

U4900011NTMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black-Metallized gold

Luminous flux:

650 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

IC Rated:

Yes
FLIP SURFACE UL SPOT 3000K WT

Reference:

U4900011WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

650 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

IC Rated:

Yes
FLIP SURFACE UL SPOT 3500K NT

Reference:

U4900013NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

680 lm

Power:

6 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

IC Rated:

Yes
FLIP SURFACE UL SPOT 3500K NTMG

Reference:

U4900013NTMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black-Metallized gold

Luminous flux:

680 lm

Power:

6 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

IC Rated:

Yes
FLIP SURFACE UL SPOT 3500K WT

Reference:

U4900013WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

680 lm

Power:

6 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

IC Rated:

Yes
FLIP SURFACE UL SPOT 4000K NT

Reference:

U4900012NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

690 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

IC Rated:

Yes
FLIP SURFACE UL SPOT 4000K NTMG

Reference:

U4900012NTMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black-Metallized gold

Luminous flux:

690 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

IC Rated:

Yes
FLIP SURFACE UL SPOT 4000K WT

Reference:

U4900012WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

690 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

IC Rated:

Yes
FLIP SURFACE UL FLOOD 2700K NT

Reference:

U4900020NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

620 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes
FLIP SURFACE UL FLOOD 2700K NTMG

Reference:

U4900020NTMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black-Metallized gold

Luminous flux:

620 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes
FLIP SURFACE UL FLOOD 2700K WT

Reference:

U4900020WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

620 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes

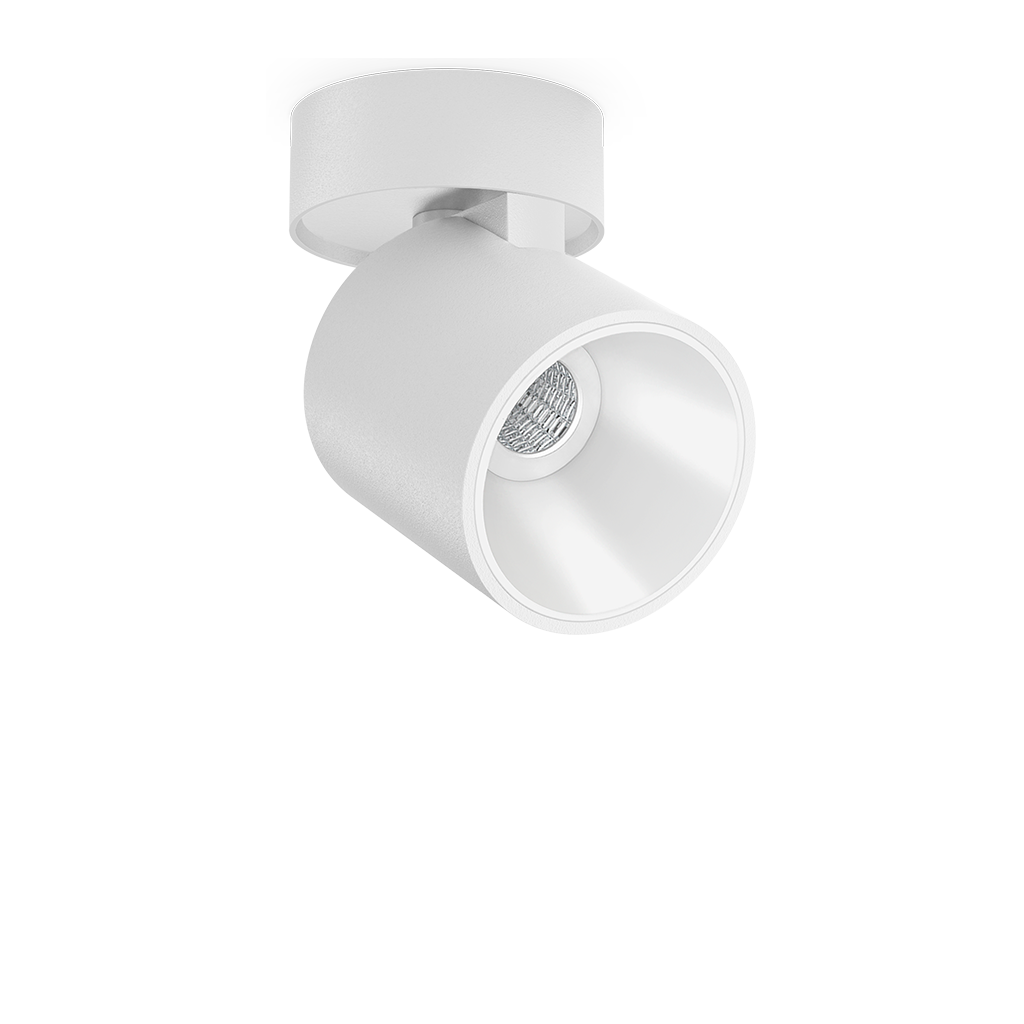

FLIP SURFACE UL FLOOD 2700K WTW

Reference:

U4900020WTW

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

620 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes
FLIP SURFACE UL FLOOD 3000K NT

Reference:

U4900021NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

650 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes
FLIP SURFACE UL FLOOD 3000K NTMG

Reference:

U4900021NTMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black-Metallized gold

Luminous flux:

650 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes
FLIP SURFACE UL FLOOD 3000K WT

Reference:

U4900021WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

650 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes
FLIP SURFACE UL FLOOD 3000K WTW

Reference:

U4900021WTW

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

650 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes
FLIP SURFACE UL FLOOD 3500K NT

Reference:

U4900023NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

680 lm

Power:

6 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes
FLIP SURFACE UL FLOOD 3500K NTMG

Reference:

U4900023NTMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black-Metallized gold

Luminous flux:

680 lm

Power:

6 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes
FLIP SURFACE UL FLOOD 3500K WT

Reference:

U4900023WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

680 lm

Power:

6 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes
FLIP SURFACE UL FLOOD 3500K WTW

Reference:

U4900023WTW

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

680 lm

Power:

6 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes
FLIP SURFACE UL FLOOD 4000K NT

Reference:

U4900022NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

690 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes
FLIP SURFACE UL FLOOD 4000K NTMG

Reference:

U4900022NTMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black-Metallized gold

Luminous flux:

690 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes
FLIP SURFACE UL FLOOD 4000K WT

Reference:

U4900022WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

690 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes
FLIP SURFACE UL FLOOD 4000K WTW

Reference:

U4900022WTW

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

690 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

78%

IC Rated:

Yes

¿Te interesa este producto? Contáctanos

Comments

This field is for validation purposes and should be left unchanged.

Nombre*

Apellidos*

Email*

Teléfono*

País*

Ciudad*

Empresa*

Profesión*

Especifica tu profesión*

Tu mensaje

He leído y acepto la política de privacidad. *

Quiero suscribirme al newsletter.

FLIP SURFACE

SURFACE

FLIP SURFACE

Luminous flux

Power

Colour temperature

Lighting efficiency

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

¿Te interesa este producto? Contáctanos

Related products

SKY

STRAM SURFACE

TOP

iO SURFACE

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

EPD

Downloads

Register

Log in

Select your location

Select your market
