TWIST

CEILING RECESSED

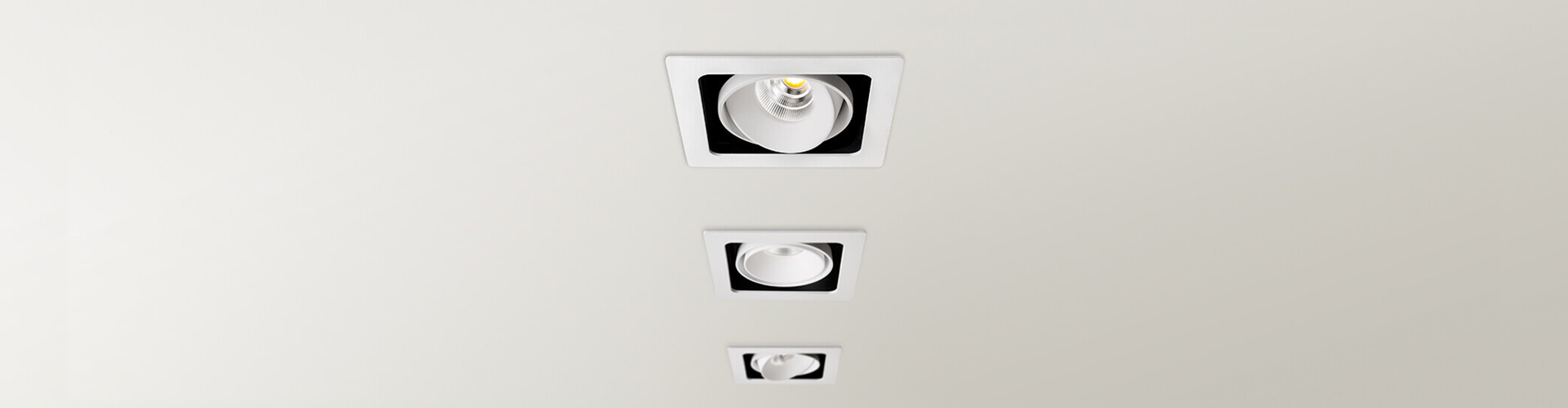

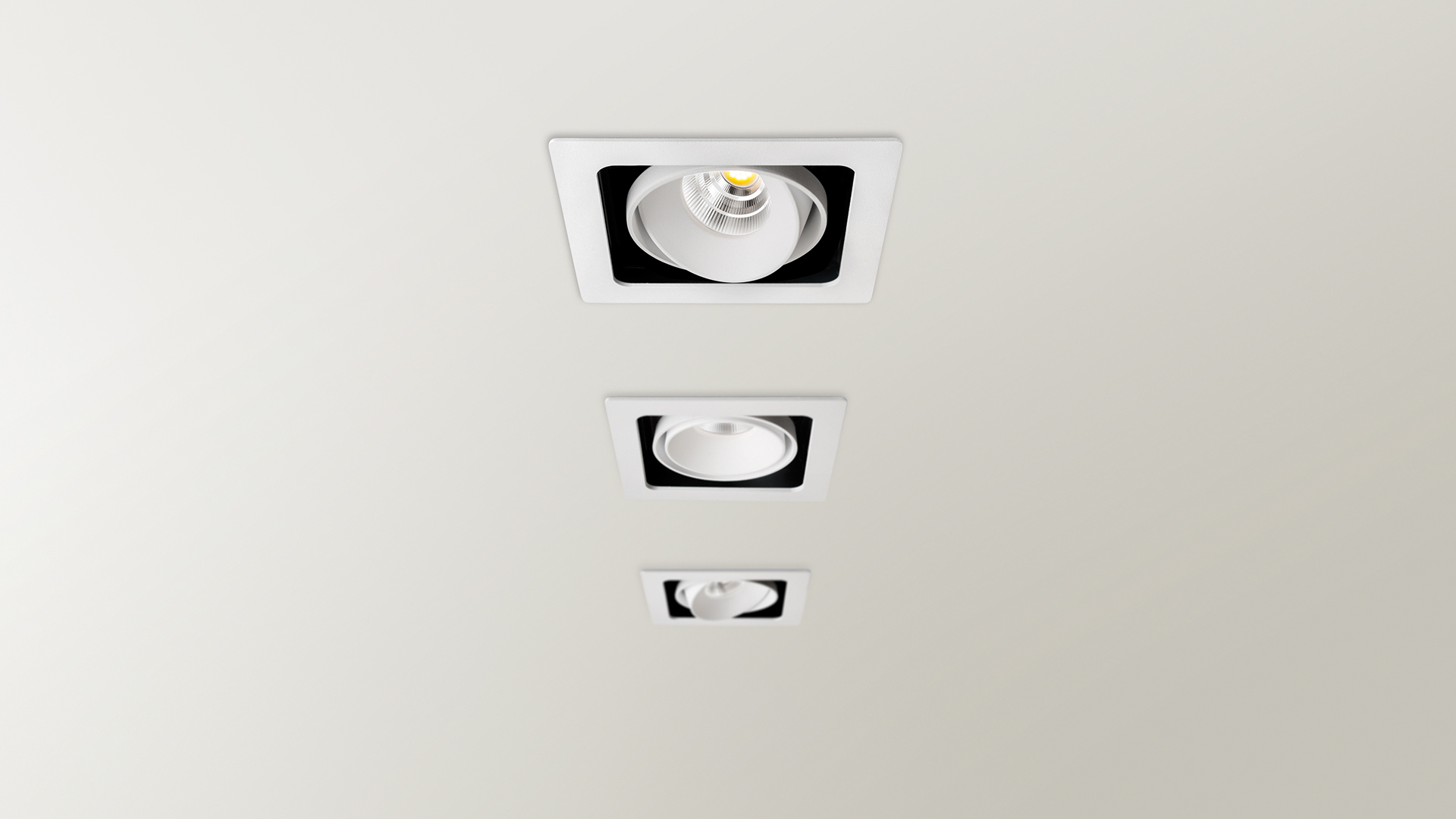

Twist is a LED luminary, with adjustable beams, with remarkable performance and small format. Twist is ideal for applications that require máximum directionability and outstanding luminous flux.

TWIST

  • Mounting accessories

    Remote Box - Case S

  • Luminous flux

    1016 lm / 1057 lm / 1073 lm

  • Lighting efficiency

    86% / 92%

  • Power

    8.4 W

  • Dimming

    0-10V

  • Colour temperature

    2700K / 3000K / 4000K

  • Chromatic stability

    MacAdam Step 2

  • Light beam angle

    19 / 40

EPD Instructions BIM
Luminous flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • Mounting Accessory
      IC Rated
        Input Voltage
          CRI
            Light beam angle
              Dimming
                Cord length
                  Colour

                    • Model

                      Ref.

                      Mounting Accessory / Driver

                      Colour

                      Lum. flux

                      Power

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      IC Rated

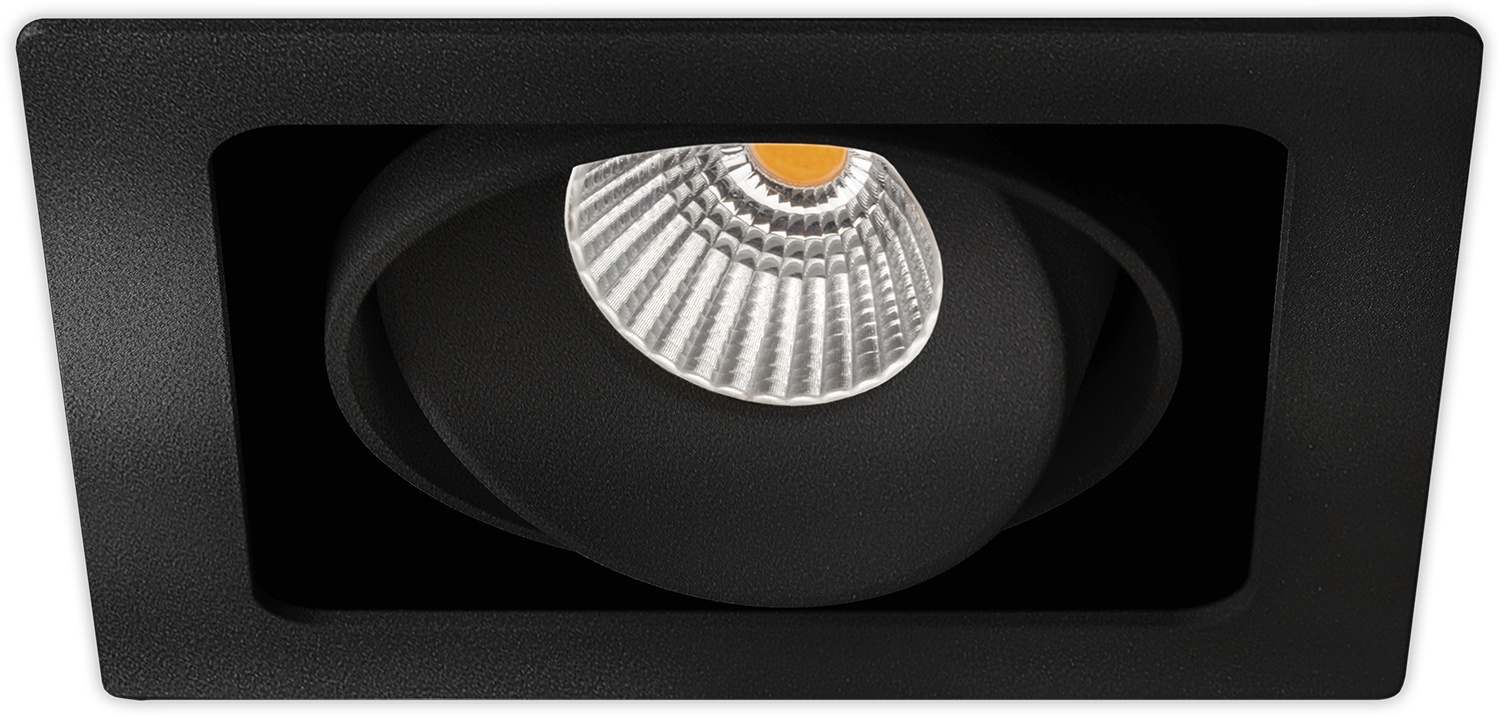

                    • TWIST UL SPOT 2700K NT
                      Reference:

                      U2041210NT

                      Mounting Accessory / Driver:

                      Remote Box - Case S
                      REMOTE BOX 6-10,5W 250mA
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      1016 lm

                      Power:

                      8.4 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      19

                      Lighting efficiency:

                      92%

                      IC Rated:

                      Yes

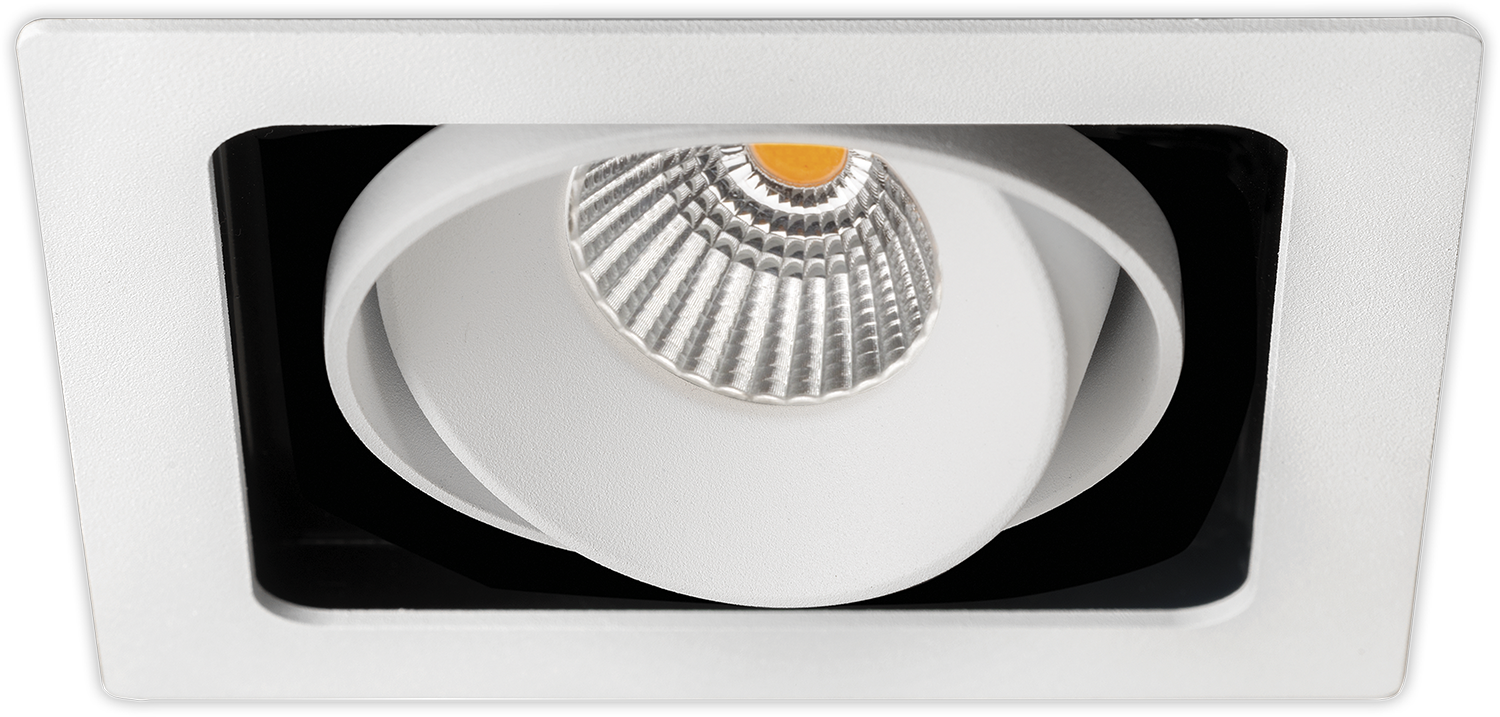

                    • TWIST UL SPOT 2700K WT
                      Reference:

                      U2041210WT

                      Mounting Accessory / Driver:

                      Remote Box - Case S
                      REMOTE BOX 6-10,5W 250mA
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1016 lm

                      Power:

                      8.4 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      19

                      Lighting efficiency:

                      92%

                      IC Rated:

                      Yes

                    • TWIST UL SPOT 3000K NT
                      Reference:

                      U2041211NT

                      Mounting Accessory / Driver:

                      Remote Box - Case S
                      REMOTE BOX 6-10,5W 250mA
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      1057 lm

                      Power:

                      8.4 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      19

                      Lighting efficiency:

                      92%

                      IC Rated:

                      Yes

                    • TWIST UL SPOT 3000K WT
                      Reference:

                      U2041211WT

                      Mounting Accessory / Driver:

                      Remote Box - Case S
                      REMOTE BOX 6-10,5W 250mA
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1057 lm

                      Power:

                      8.4 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      19

                      Lighting efficiency:

                      92%

                      IC Rated:

                      Yes

                    • TWIST UL SPOT 4000K NT
                      Reference:

                      U2041212NT

                      Mounting Accessory / Driver:

                      Remote Box - Case S
                      REMOTE BOX 6-10,5W 250mA
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      1073 lm

                      Power:

                      8.4 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      19

                      Lighting efficiency:

                      92%

                      IC Rated:

                      Yes

                    • TWIST UL SPOT 4000K WT
                      Reference:

                      U2041212WT

                      Mounting Accessory / Driver:

                      Remote Box - Case S
                      REMOTE BOX 6-10,5W 250mA
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1073 lm

                      Power:

                      8.4 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      19

                      Lighting efficiency:

                      92%

                      IC Rated:

                      Yes

                    • TWIST UL FLOOD 2700K NT
                      Reference:

                      U2041220NT

                      Mounting Accessory / Driver:

                      Remote Box - Case S
                      REMOTE BOX 6-10,5W 250mA
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      1016 lm

                      Power:

                      8.4 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      40

                      Lighting efficiency:

                      86%

                      IC Rated:

                      Yes

                    • TWIST UL FLOOD 2700K WT
                      Reference:

                      U2041220WT

                      Mounting Accessory / Driver:

                      Remote Box - Case S
                      REMOTE BOX 6-10,5W 250mA
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1016 lm

                      Power:

                      8.4 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      40

                      Lighting efficiency:

                      86%

                      IC Rated:

                      Yes

                    • TWIST UL FLOOD 3000K NT
                      Reference:

                      U2041221NT

                      Mounting Accessory / Driver:

                      Remote Box - Case S
                      REMOTE BOX 6-10,5W 250mA
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      1057 lm

                      Power:

                      8.4 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      40

                      Lighting efficiency:

                      86%

                      IC Rated:

                      Yes

                    • TWIST UL FLOOD 3000K WT
                      Reference:

                      U2041221WT

                      Mounting Accessory / Driver:

                      Remote Box - Case S
                      REMOTE BOX 6-10,5W 250mA
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1057 lm

                      Power:

                      8.4 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      40

                      Lighting efficiency:

                      86%

                      IC Rated:

                      Yes

                    • TWIST UL FLOOD 4000K NT
                      Reference:

                      U2041222NT

                      Mounting Accessory / Driver:

                      Remote Box - Case S
                      REMOTE BOX 6-10,5W 250mA
                      (Mandatory / not included)

                      Colour:

                      Textured black

                      Luminous flux:

                      1073 lm

                      Power:

                      8.4 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      40

                      Lighting efficiency:

                      86%

                      IC Rated:

                      Yes

                    • TWIST UL FLOOD 4000K WT
                      Reference:

                      U2041222WT

                      Mounting Accessory / Driver:

                      Remote Box - Case S
                      REMOTE BOX 6-10,5W 250mA
                      (Mandatory / not included)

                      Colour:

                      Textured white

                      Luminous flux:

                      1073 lm

                      Power:

                      8.4 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      40

                      Lighting efficiency:

                      86%

                      IC Rated:

                      Yes

                    Accessories

                    OPTIONAL MOUNTING ACCESSORY
