COCO RECESSED

CEILING RECESSED

A lightweight and powerful solution. Coco is a spotlight with a qualitative and uniform light distribution and provides great freedom of light emissions with four opening angles -flood, medium, spot and superspot - a 360° rotation and a 90° tilt. With an exceptional lm/W ratio, it can be fitted with various accessories: anti-glare honeycomb and anti-glare screen, which reduce glare to facilitate visual comfort, and the linear filter, which sets a linear light distribution. Coco invites one to interact with the light through a version with integrated dimmer, enabling one to adjust the desired intensity in each luminaire. Its tunable white version replicates the effects of natural light by regulating the intensity and colour temperature.

Awards

European Product Design Winner 2018

COCO RECESSED

Mounting accessories

Remote Box
Luminous flux

750 lm / 800 lm / 830 lm / 850 lm / 1010 lm / 1200 lm / 1250 lm / 1310 lm / 1340 lm
Lighting efficiency

66% / 84% / 85% / 86% / 87% / 89%
Power

6 W / 8.5 W / 8.7 W
Dimming

0-10V
Colour temperature

1800 - 4000K / 2700K / 2700 - 5000K / 3000K / 3500K / 4000K
Chromatic stability

MacAdam Step 2 / MacAdam Step 3
Light beam angle

12° / 20° / 28° / 34° / 42° / 48° / 54°

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

IC Rated

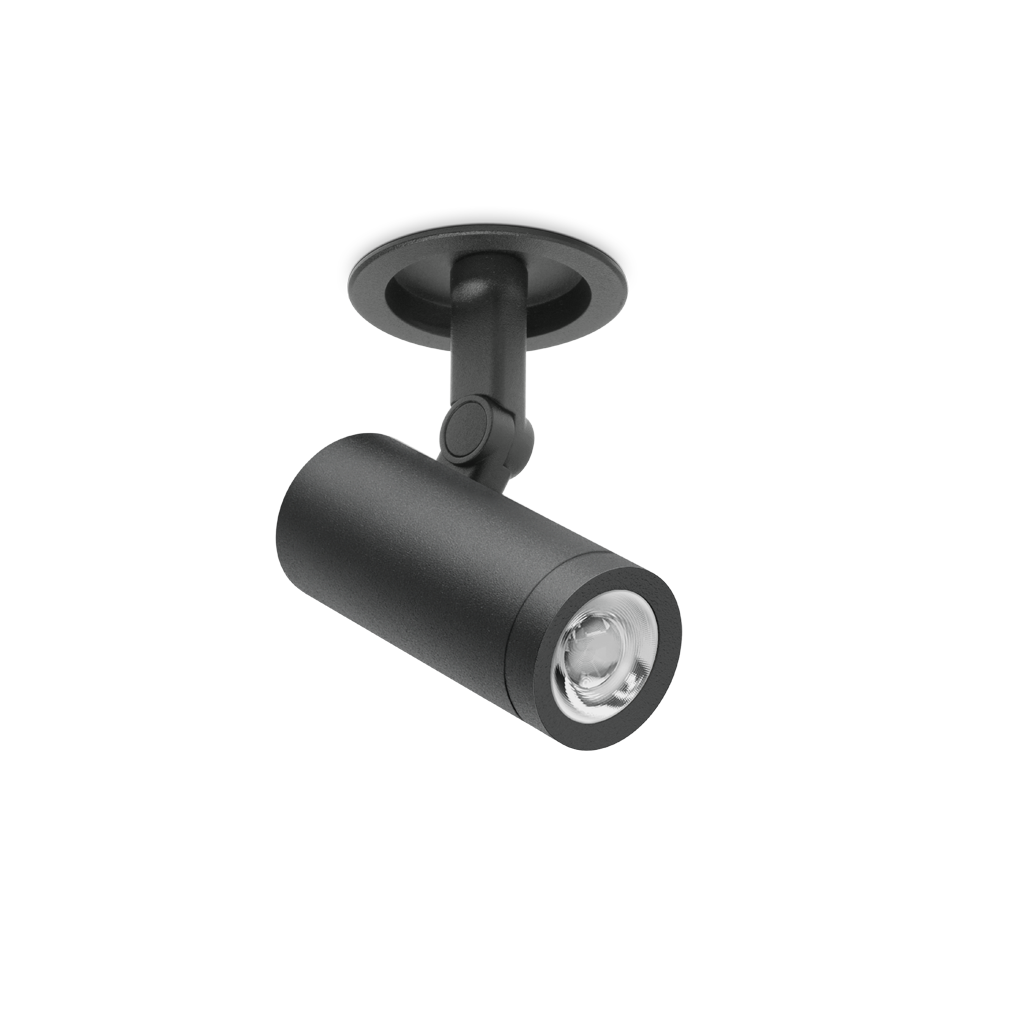

COCO RECESSED SUPER SPOT UL 2700K NT

Reference:

U5300200NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

750 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

66%

IC Rated:

Yes

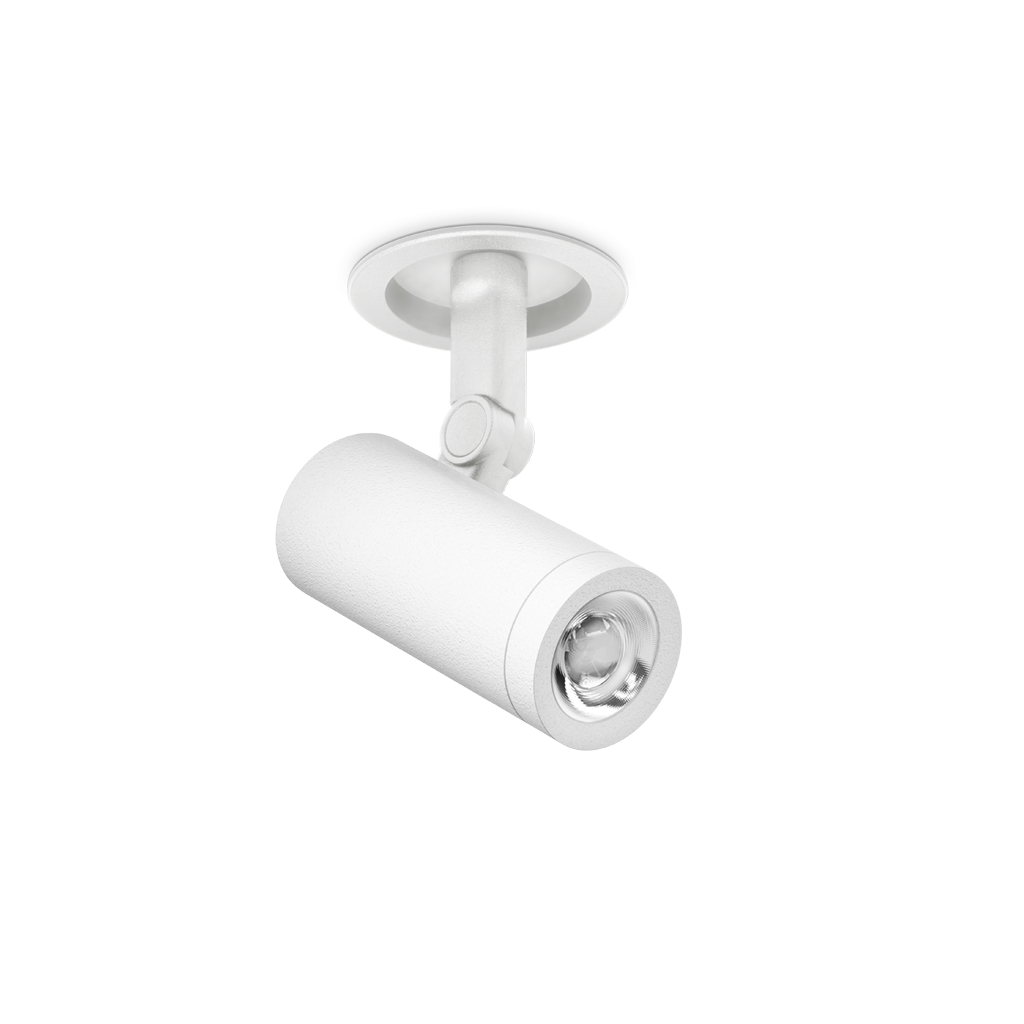

COCO RECESSED SUPER SPOT UL 2700K WT

Reference:

U5300200WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

750 lm

Power:

6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

66%

IC Rated:

Yes
COCO RECESSED SUPER SPOT UL 3000K NT

Reference:

U5300201NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

800 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

66%

IC Rated:

Yes
COCO RECESSED SUPER SPOT UL 3000K WT

Reference:

U5300201WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

800 lm

Power:

6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

66%

IC Rated:

Yes
COCO RECESSED SUPER SPOT UL 3500K NT

Reference:

U5300203NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

830 lm

Power:

6 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

66%

IC Rated:

Yes
COCO RECESSED SUPER SPOT UL 3500K WT

Reference:

U5300203WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

830 lm

Power:

6 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

66%

IC Rated:

Yes
COCO RECESSED SUPER SPOT UL 4000K NT

Reference:

U5300202NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

850 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

66%

IC Rated:

Yes
COCO RECESSED SUPER SPOT UL 4000K WT

Reference:

U5300202WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 4 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

850 lm

Power:

6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

66%

IC Rated:

Yes
COCO RECESSED UL SPOT 2700K NT

Reference:

U5300210NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

1200 lm

Power:

8.7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

87%

IC Rated:

Yes
COCO RECESSED UL SPOT 2700K WT

Reference:

U5300210WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1200 lm

Power:

8.7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

87%

IC Rated:

Yes
COCO RECESSED UL SPOT 3000K NT

Reference:

U5300211NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

1250 lm

Power:

8.7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

87%

IC Rated:

Yes
COCO RECESSED UL SPOT 3000K WT

Reference:

U5300211WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1250 lm

Power:

8.7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

87%

IC Rated:

Yes
COCO RECESSED UL SPOT 3500K NT

Reference:

U5300213NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

1310 lm

Power:

8.7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

87%

IC Rated:

Yes
COCO RECESSED UL SPOT 3500K WT

Reference:

U5300213WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1310 lm

Power:

8.7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

87%

IC Rated:

Yes
COCO RECESSED UL SPOT 4000K NT

Reference:

U5300212NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

1340 lm

Power:

8.7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

87%

IC Rated:

Yes
COCO RECESSED UL SPOT 4000K WT

Reference:

U5300212WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1340 lm

Power:

8.7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

87%

IC Rated:

Yes
COCO RECESSED UL MEDIUM 2700K NT

Reference:

U5300220NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

1200 lm

Power:

8.7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

89%

IC Rated:

Yes
COCO RECESSED UL MEDIUM 2700K WT

Reference:

U5300220WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1200 lm

Power:

8.7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

89%

IC Rated:

Yes
COCO RECESSED UL MEDIUM 3000K NT

Reference:

U5300221NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

1250 lm

Power:

8.7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

89%

IC Rated:

Yes
COCO RECESSED UL MEDIUM 3000K WT

Reference:

U5300221WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1250 lm

Power:

8.7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

89%

IC Rated:

Yes
COCO RECESSED UL MEDIUM 3500K NT

Reference:

U5300223NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

1310 lm

Power:

8.7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

89%

IC Rated:

Yes
COCO RECESSED UL MEDIUM 3500K WT

Reference:

U5300223WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1310 lm

Power:

8.7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

89%

IC Rated:

Yes
COCO RECESSED UL MEDIUM 4000K NT

Reference:

U5300222NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

1340 lm

Power:

8.7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

89%

IC Rated:

Yes
COCO RECESSED UL MEDIUM 4000K WT

Reference:

U5300222WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1340 lm

Power:

8.7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

89%

IC Rated:

Yes
COCO RECESSED UL FLOOD 2700K NT

Reference:

U5300230NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

1200 lm

Power:

8.7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

48°

Lighting efficiency:

86%

IC Rated:

Yes
COCO RECESSED UL FLOOD 2700K WT

Reference:

U5300230WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1200 lm

Power:

8.7 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

48°

Lighting efficiency:

86%

IC Rated:

Yes
COCO RECESSED UL FLOOD 3000K NT

Reference:

U5300231NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

1250 lm

Power:

8.7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

48°

Lighting efficiency:

86%

IC Rated:

Yes
COCO RECESSED UL FLOOD 3000K WT

Reference:

U5300231WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1250 lm

Power:

8.7 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

48°

Lighting efficiency:

86%

IC Rated:

Yes
COCO RECESSED UL FLOOD 3500K NT

Reference:

U5300233NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

1310 lm

Power:

8.7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

48°

Lighting efficiency:

86%

IC Rated:

Yes
COCO RECESSED UL FLOOD 3500K WT

Reference:

U5300233WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1310 lm

Power:

8.7 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

48°

Lighting efficiency:

86%

IC Rated:

Yes
COCO RECESSED UL FLOOD 4000K NT

Reference:

U5300232NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

1340 lm

Power:

8.7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

48°

Lighting efficiency:

86%

IC Rated:

Yes
COCO RECESSED UL FLOOD 4000K WT

Reference:

U5300232WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4-23W 500mA
U1000035 · 1 to 2 Luminaires
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1340 lm

Power:

8.7 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

48°

Lighting efficiency:

86%

IC Rated:

Yes
COCO RECESSED TW UL 1800K-4000K SPOT NT

Reference:

U5301217NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4 - 18W 500mA
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

850 lm

Power:

8.5 W

Colour temperature:

1800 - 4000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

85%

IC Rated:

Yes
COCO RECESSED TW UL 1800K-4000K SPOT WT

Reference:

U5301217WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4 - 18W 500mA
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

850 lm

Power:

8.5 W

Colour temperature:

1800 - 4000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

85%

IC Rated:

Yes
COCO RECESSED TW UL 2700K-5000K SPOT NT

Reference:

U5301218NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4 - 18W 500mA
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

1010 lm

Power:

8.5 W

Colour temperature:

2700 - 5000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

85%

IC Rated:

Yes
COCO RECESSED TW UL 2700K-5000K SPOT WT

Reference:

U5301218WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4 - 18W 500mA
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1010 lm

Power:

8.5 W

Colour temperature:

2700 - 5000K

CRI:

CRI>90

Light beam angle:

28°

Lighting efficiency:

85%

IC Rated:

Yes
COCO RECESSED TW UL 1800K-4000K MEDIUM NT

Reference:

U5301227NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4 - 18W 500mA
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

850 lm

Power:

8.5 W

Colour temperature:

1800 - 4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

87%

IC Rated:

Yes
COCO RECESSED TW UL 1800K-4000K MEDIUM WT

Reference:

U5301227WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4 - 18W 500mA
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

850 lm

Power:

8.5 W

Colour temperature:

1800 - 4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

87%

IC Rated:

Yes
COCO RECESSED TW UL 2700K-5000K MEDIUM NT

Reference:

U5301228NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4 - 18W 500mA
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

1010 lm

Power:

8.5 W

Colour temperature:

2700 - 5000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

87%

IC Rated:

Yes
COCO RECESSED TW UL 2700K-5000K MEDIUM WT

Reference:

U5301228WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4 - 18W 500mA
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1010 lm

Power:

8.5 W

Colour temperature:

2700 - 5000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

87%

IC Rated:

Yes
COCO RECESSED TW UL 1800K-4000K FLOOD NT

Reference:

U5301237NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4 - 18W 500mA
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

850 lm

Power:

8.5 W

Colour temperature:

1800 - 4000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

84%

IC Rated:

Yes
COCO RECESSED TW UL 1800K-4000K FLOOD WT

Reference:

U5301237WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4 - 18W 500mA
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

850 lm

Power:

8.5 W

Colour temperature:

1800 - 4000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

84%

IC Rated:

Yes
COCO RECESSED TW UL 2700K-5000K FLOOD NT

Reference:

U5301238NT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4 - 18W 500mA
(Mandatory / not included)

Colour:

Textured black

Luminous flux:

1010 lm

Power:

8.5 W

Colour temperature:

2700 - 5000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

84%

IC Rated:

Yes
COCO RECESSED TW UL 2700K-5000K FLOOD WT

Reference:

U5301238WT

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 4 - 18W 500mA
(Mandatory / not included)

Colour:

Textured white

Luminous flux:

1010 lm

Power:

8.5 W

Colour temperature:

2700 - 5000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

84%

IC Rated:

Yes

Accessories

HONEYCOMB LOUVER

ANTI-GLARE SCREEN

LINEAR FILTER

¿Te interesa este producto? Contáctanos

Phone

This field is for validation purposes and should be left unchanged.

Nombre*

Apellidos*

Email*

Teléfono*

País*

Ciudad*

Empresa*

Profesión*

Especifica tu profesión*

Tu mensaje

He leído y acepto la política de privacidad. *

Quiero suscribirme al newsletter.

COCO RECESSED

CEILING RECESSED

Awards

European Product Design Winner 2018

COCO RECESSED

Luminous flux

Power

Colour temperature

Lighting efficiency

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Accessories

¿Te interesa este producto? Contáctanos

Related products

DEEP

QUAD

STRAM

MIX

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

EPD

Downloads

Register

Log in

Select your location

Select your market
