FIT 24V

TRACK LIGHTS

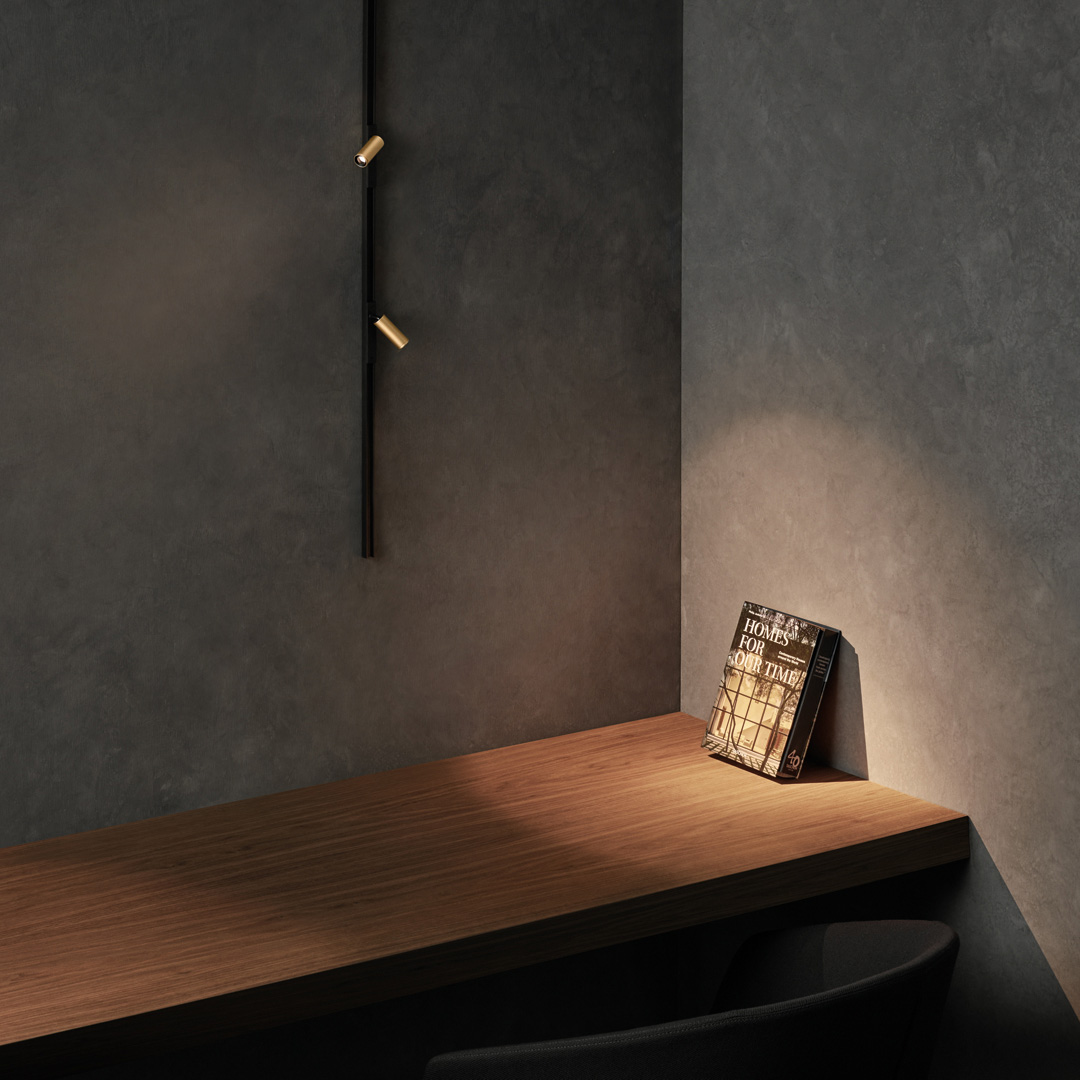

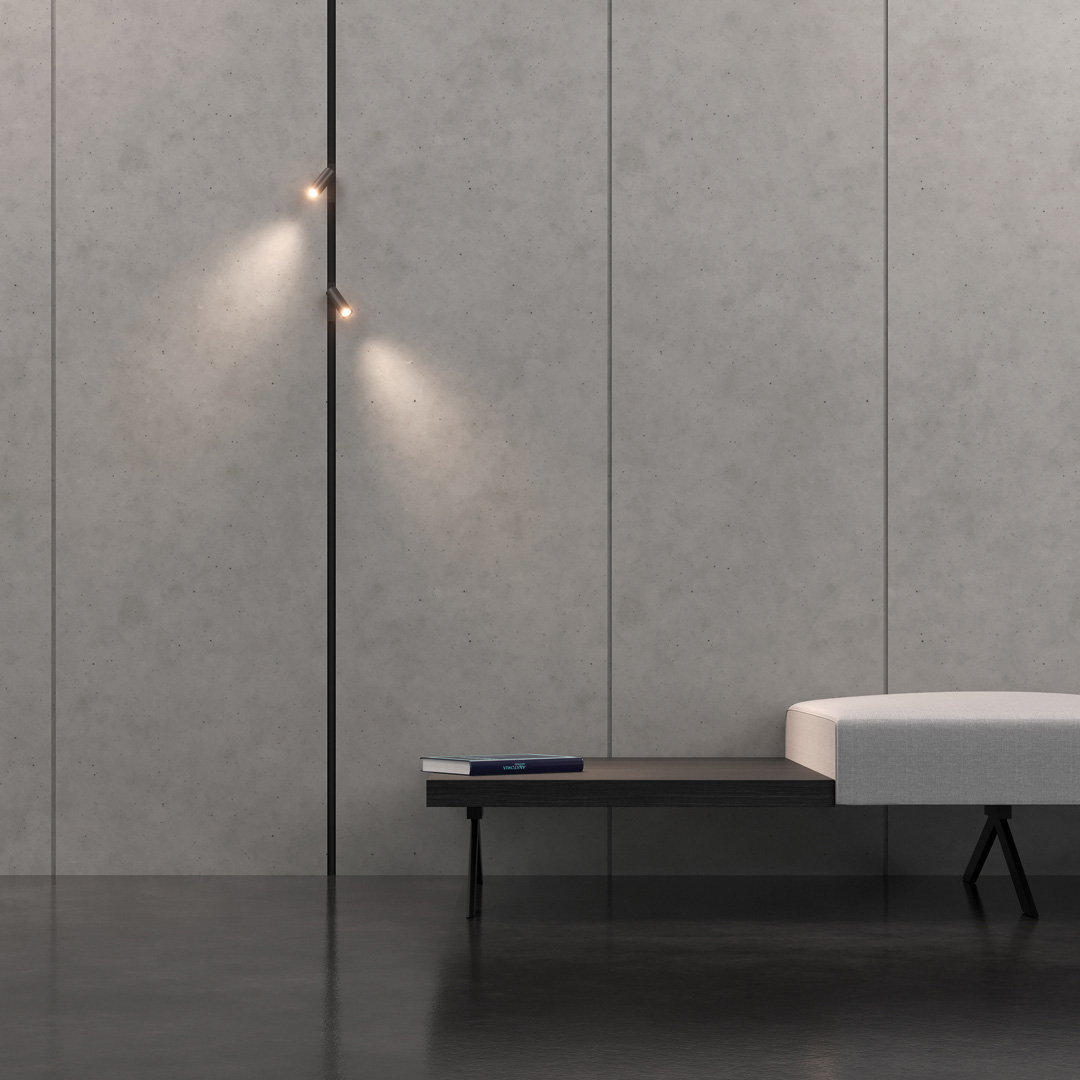

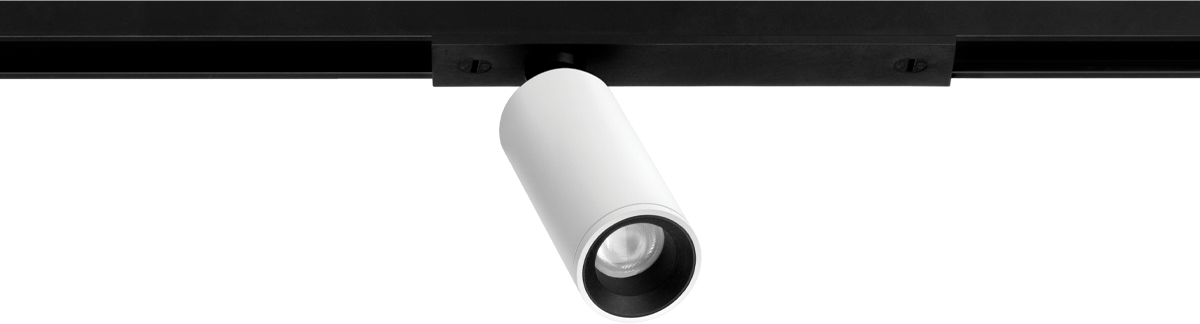

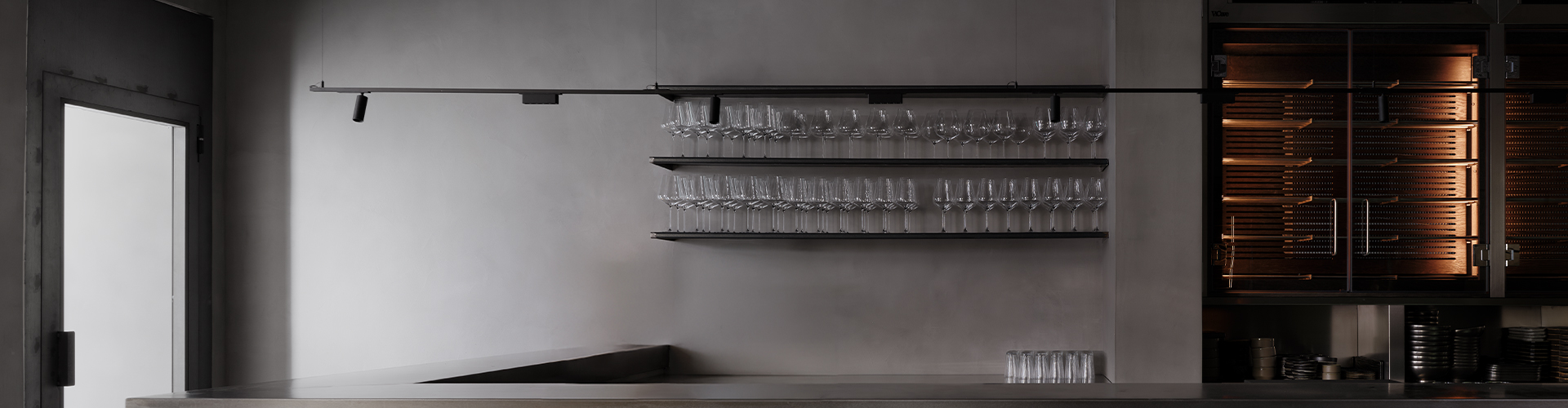

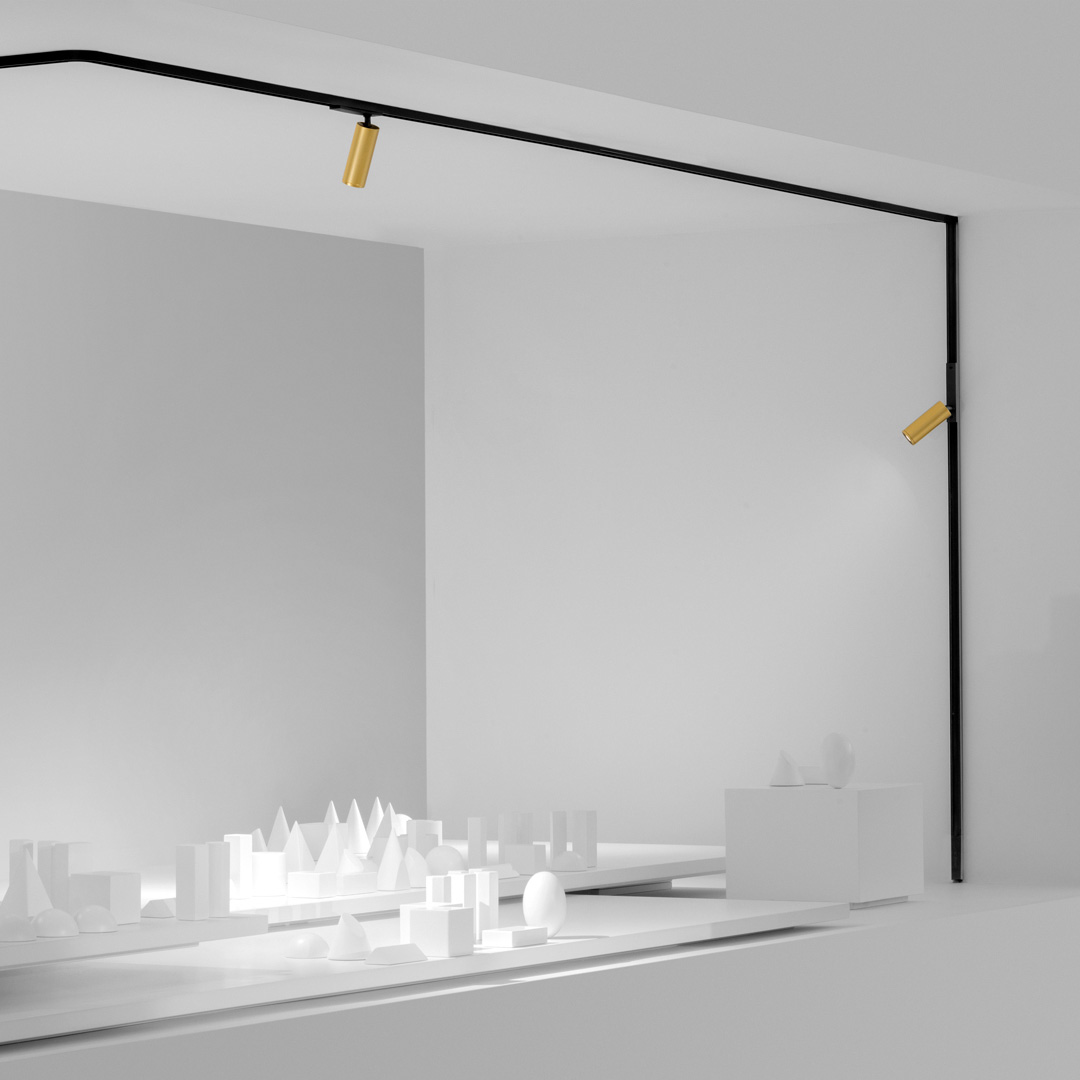

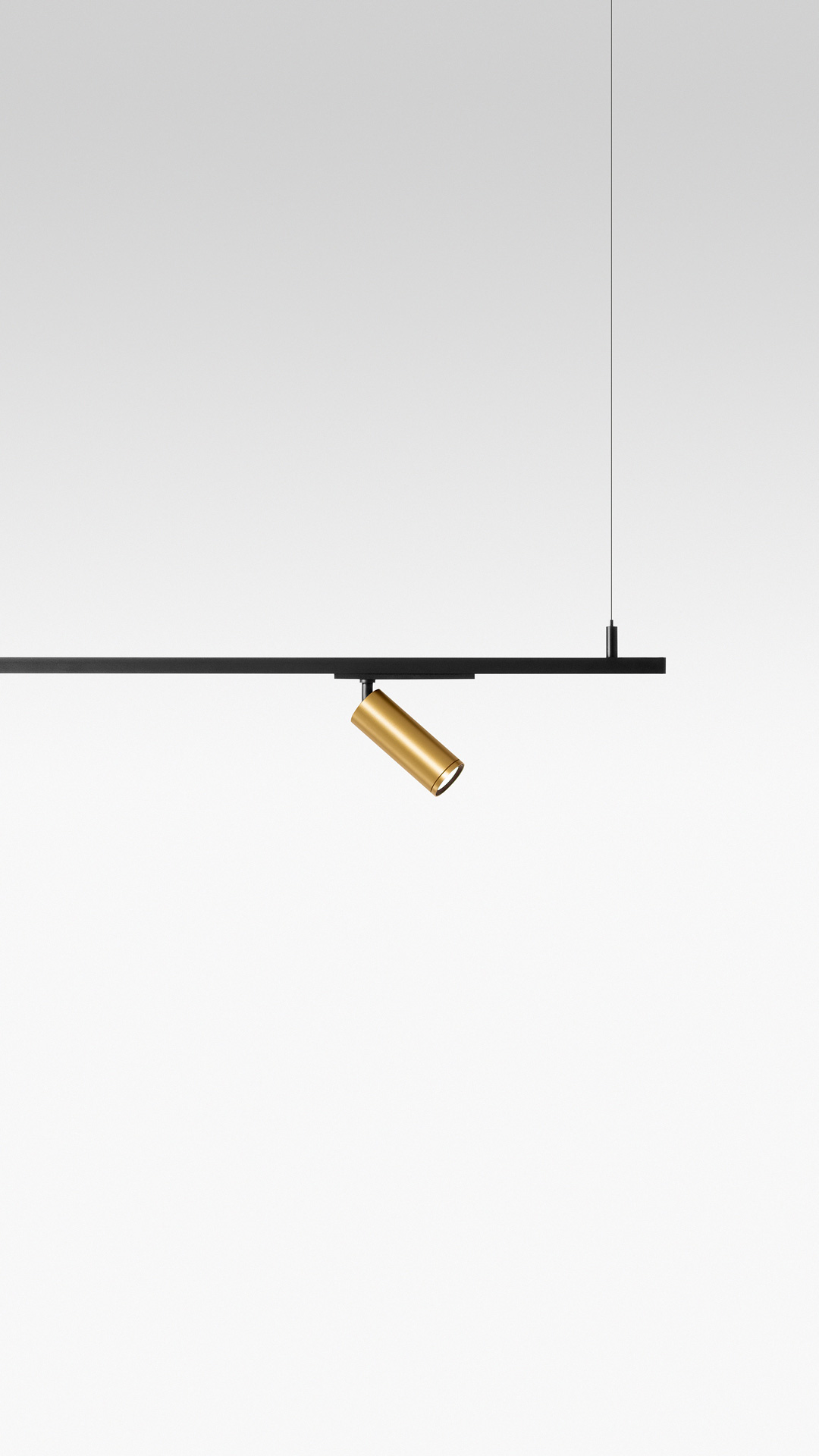

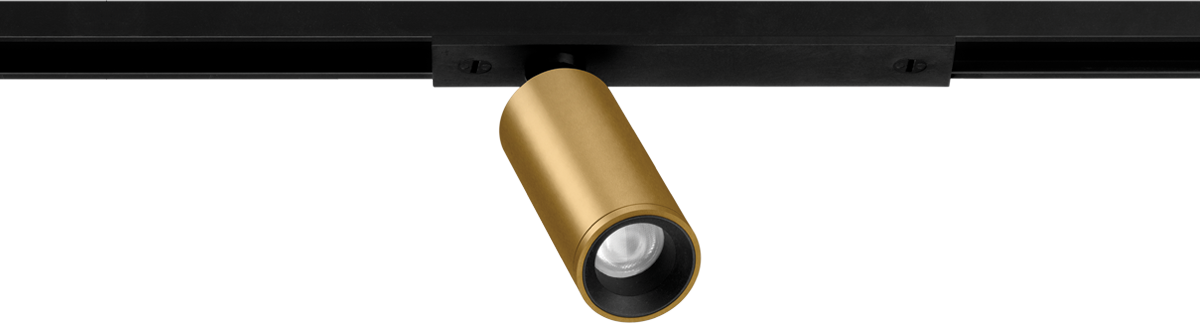

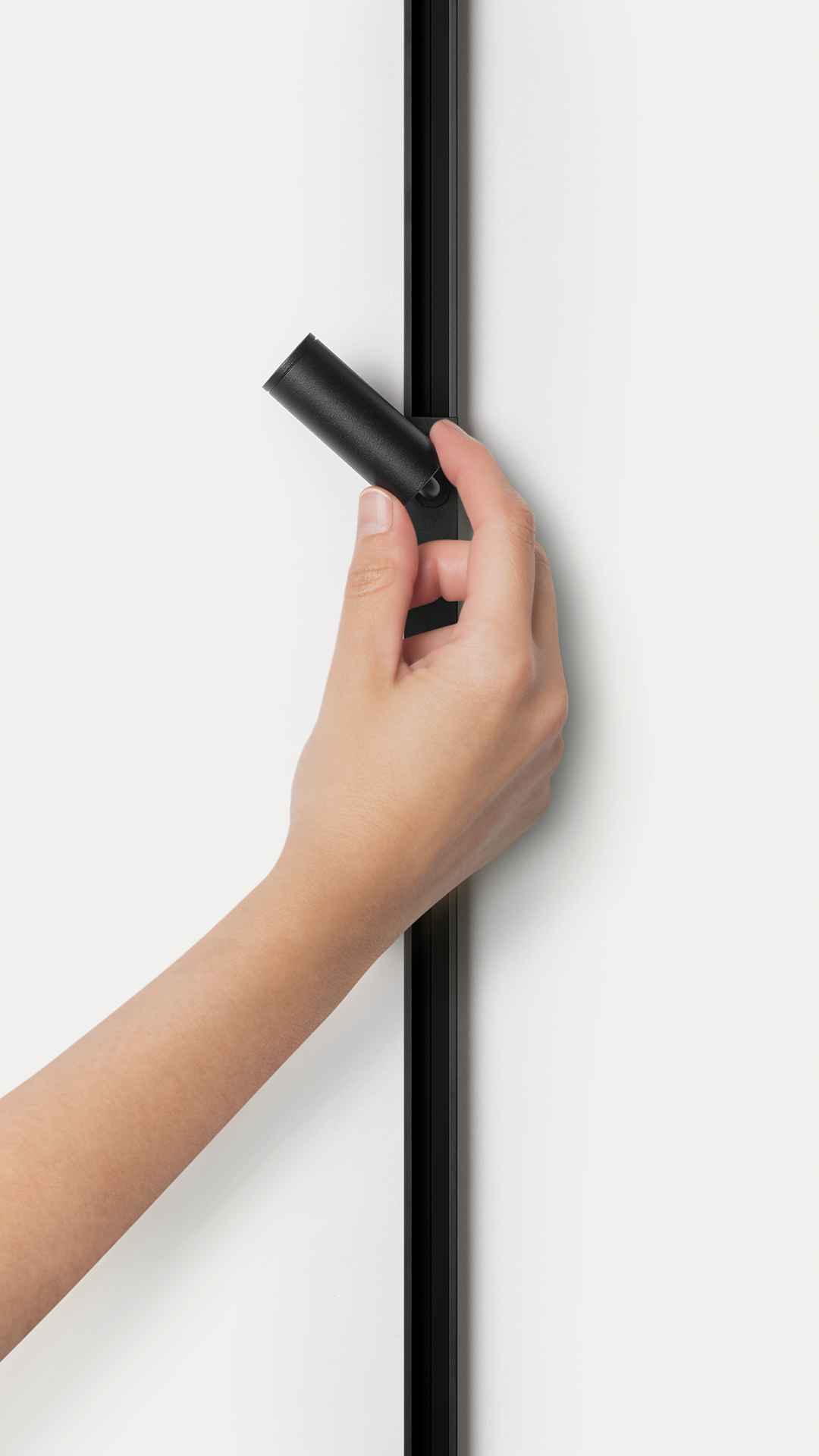

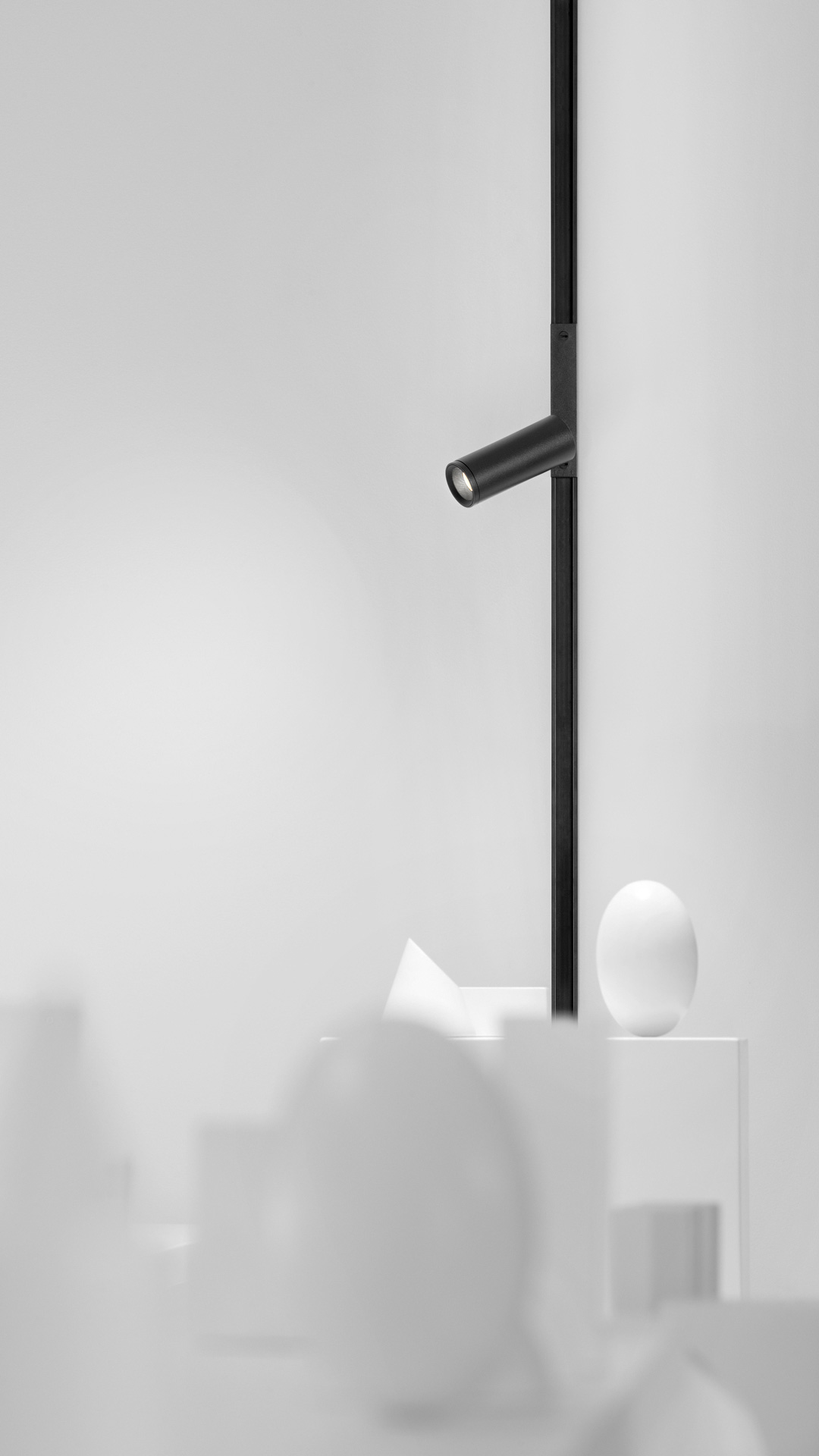

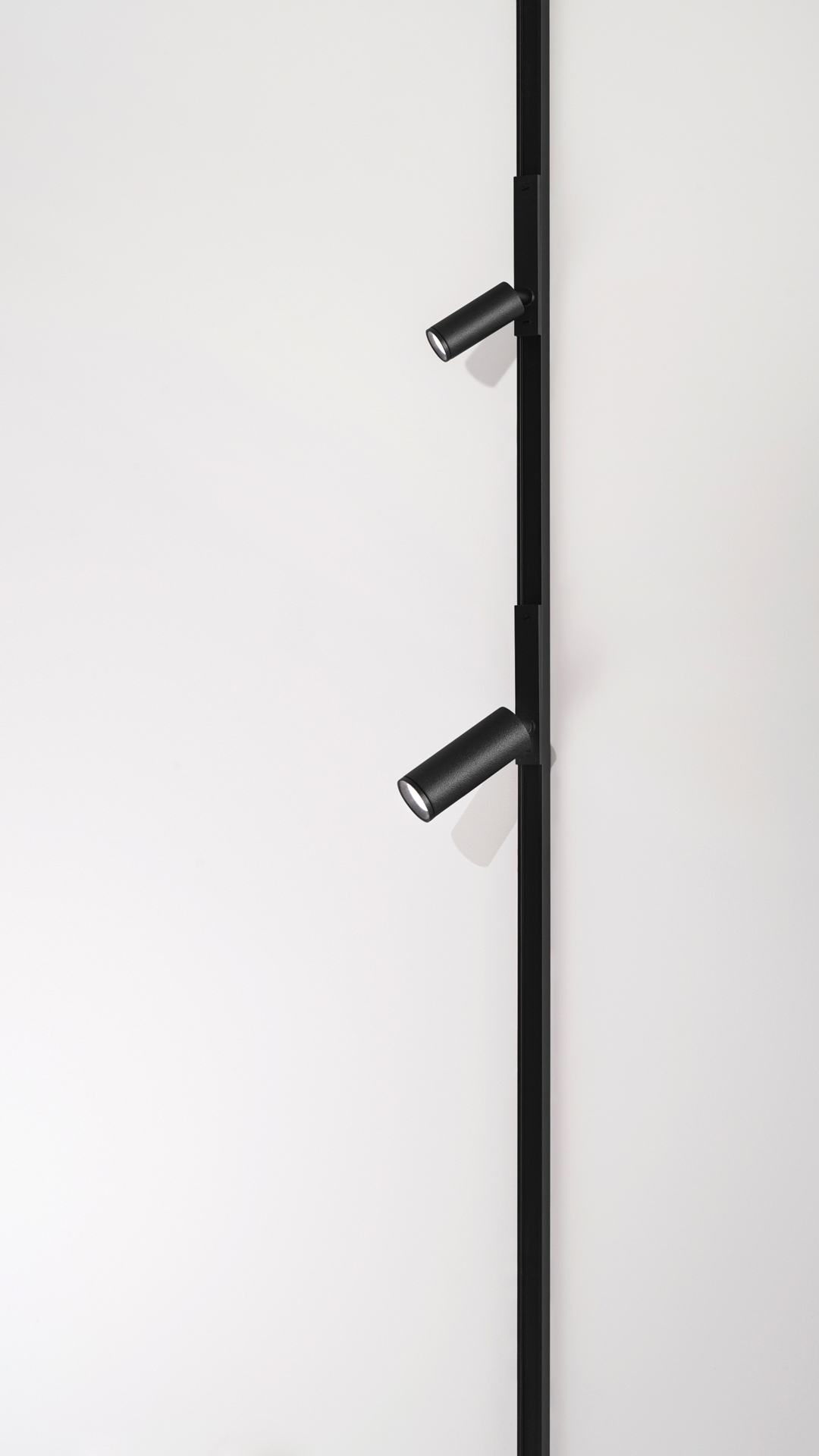

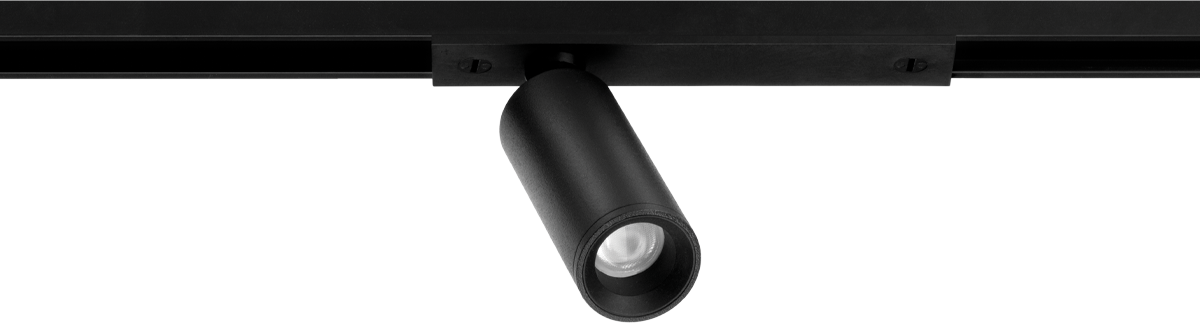

Fit 24V is a projector for the Minimal Track system. Cylindrical geometry and essential forms, it stands out for its minimalistic looking and its functionality as it can be orientated in any direction. The black perimeter around its mouth highlights its anti-glare vocation.

Awards

Reddot Design Award Innovate Product Winner 2020
Reddot Design Award Lighting Design Winner 2020
Delta Awards´20 Bronze
European Product Design 2020 Honorable Mention
Fx International Interior Design Award
Archiproduct Design Award Winner 2020

FIT 20 24V

FIT 27 24V

FIT 20 24V

Luminous flux

127 lm / 150 lm
Lighting efficiency

81% / 87% / 88%
Power

2.1 W
Dimming

Dim options
Colour temperature

2700K / 3000K
Chromatic stability

MacAdam Step 3
Light beam angle

12° / 30° / 54°

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Input Voltage

Temp.

CRI

Beam angle

Efficiency

Dimming

IC Rated
FIT 20 24V UL SPOT 2700K G

Reference:

U3860010G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL SPOT 2700K NT

Reference:

U3860010NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL SPOT 2700K WT

Reference:

U3860010WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL SPOT 3000K G

Reference:

U3860011G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL SPOT 3000K NT

Reference:

U3860011NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL SPOT 3000K WT

Reference:

U3860011WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL MEDIUM 2700K G

Reference:

U3860020G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL MEDIUM 2700K NT

Reference:

U3860020NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL MEDIUM 2700K WT

Reference:

U3860020WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL MEDIUM 3000K G

Reference:

U3860021G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL MEDIUM 3000K NT

Reference:

U3860021NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL MEDIUM 3000K WT

Reference:

U3860021WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL FLOOD 2700K G

Reference:

U3860030G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL FLOOD 2700K NT

Reference:

U3860030NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL FLOOD 2700K WT

Reference:

U3860030WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL FLOOD 3000K G

Reference:

U3860031G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL FLOOD 3000K NT

Reference:

U3860031NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

Dim options

IC Rated:

-
FIT 20 24V UL FLOOD 3000K WT

Reference:

U3860031WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

Dim options

IC Rated:

-

Accessories

MINIMAL TRACK OPTIONS
