SIX 48V

TRACK LIGHTS

Six 48V is a family of spotlights for track applications that stands out for its minimalistic presence and maximum light output. Available in four different sizes, its body encloses an innovative combination of reflector and lens which allows SIX to direct light with the maximum uniformity in a very small distance. SIX can be freely orientated in any direction.

Awards

German Design Award Winner 2019
Good Design Award 2018

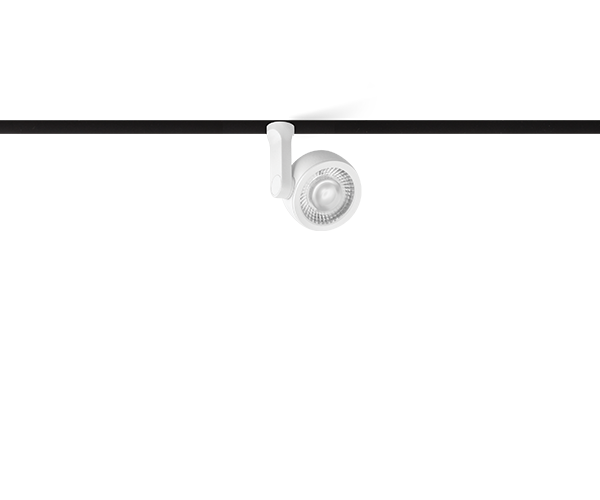

SIX XS 48V

SIX M 48V

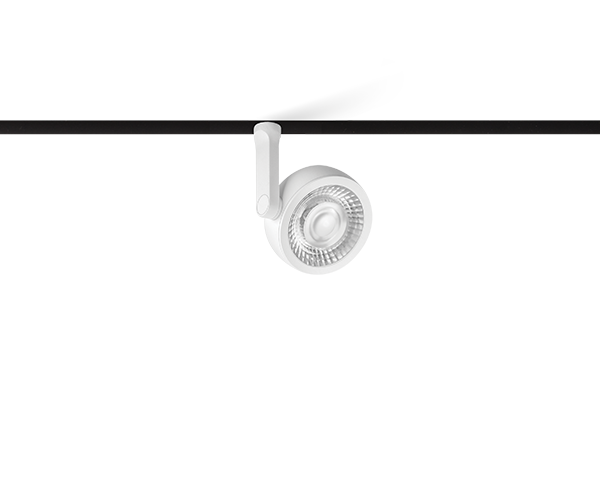

SIX S 48V

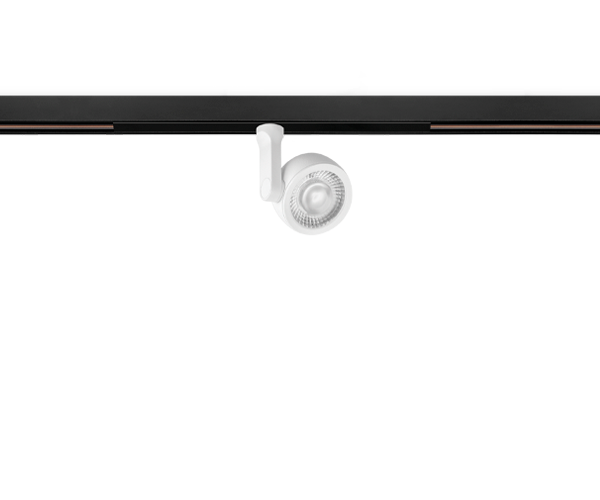

SIX XS 48V SHORT

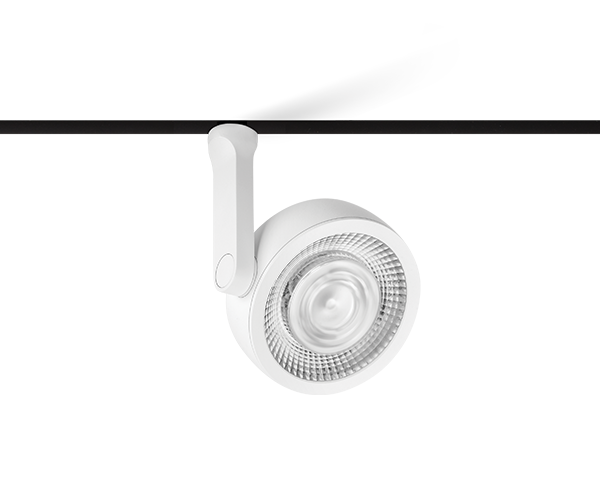

SIX L 48V

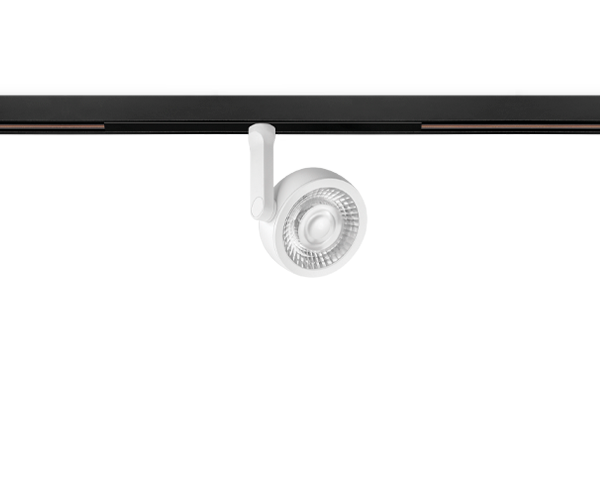

SIX S 48V SHORT

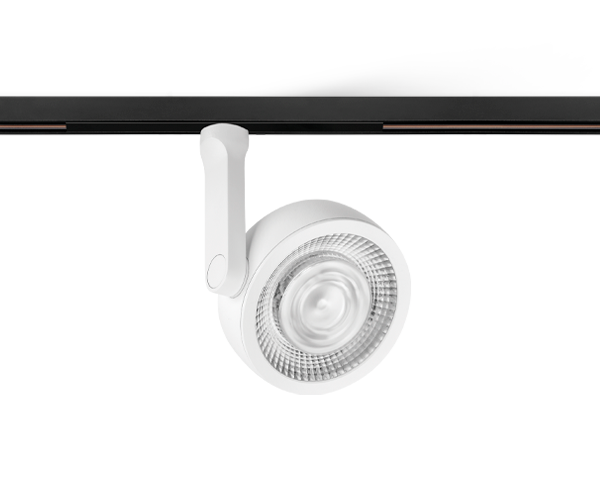

SIX L 48V SHORT

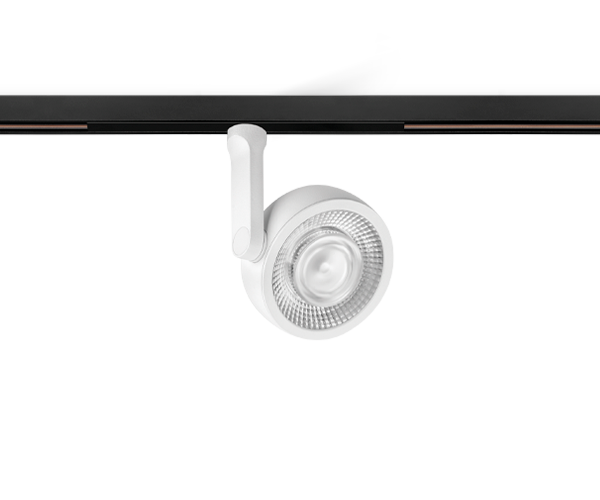

SIX M 48V SHORT

SIX XS 48V

Luminous flux

470 lm / 500 lm / 530 lm
Lighting efficiency

86% / 88% / 90%
Power

4.5 W
Dimming

0-10V, DALI
Colour temperature

2700K / 3000K / 4000K
Chromatic stability

MacAdam Step 2
Light beam angle

17° / 23° / 34°

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Input Voltage

Temp.

CRI

Beam angle

Efficiency

Dimming

IC Rated

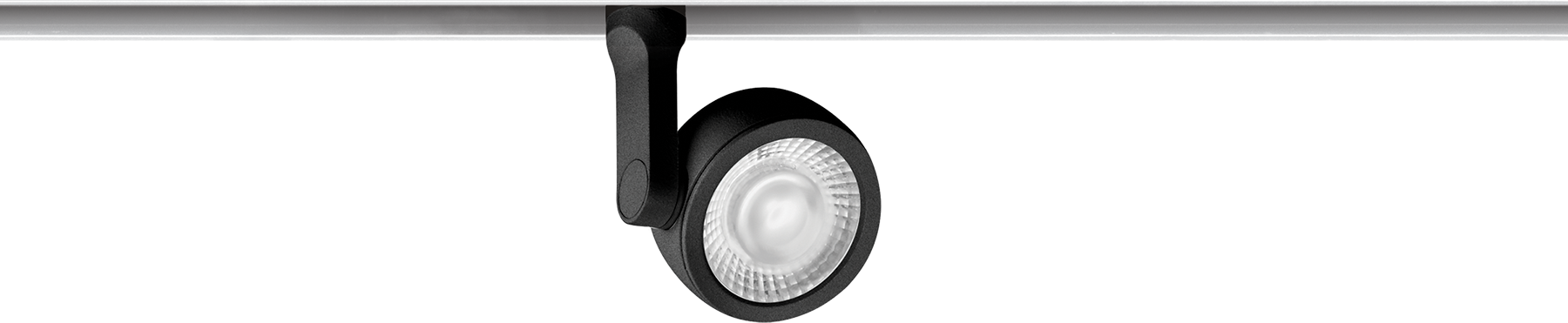

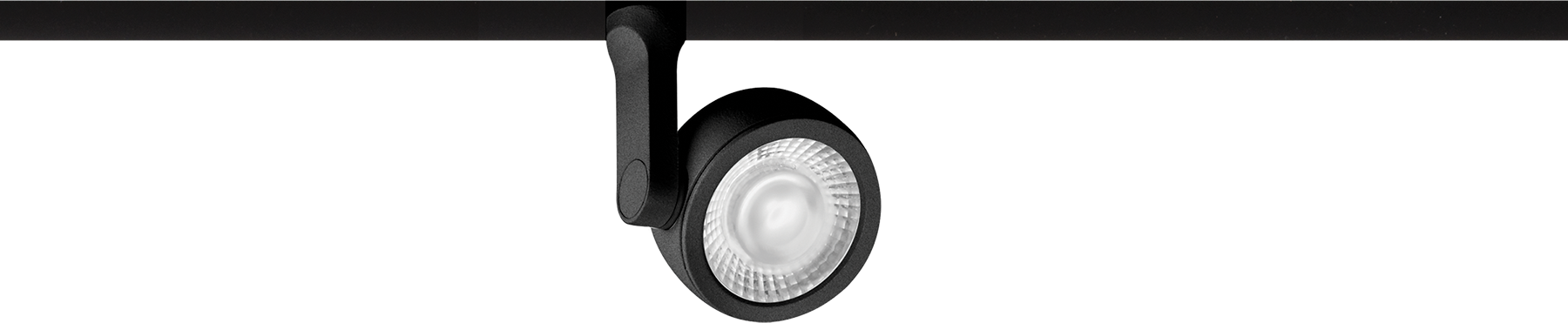

SIX XS 48V UL DIM 0/10V 17º 2700K NT

Reference:

U3350110NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-

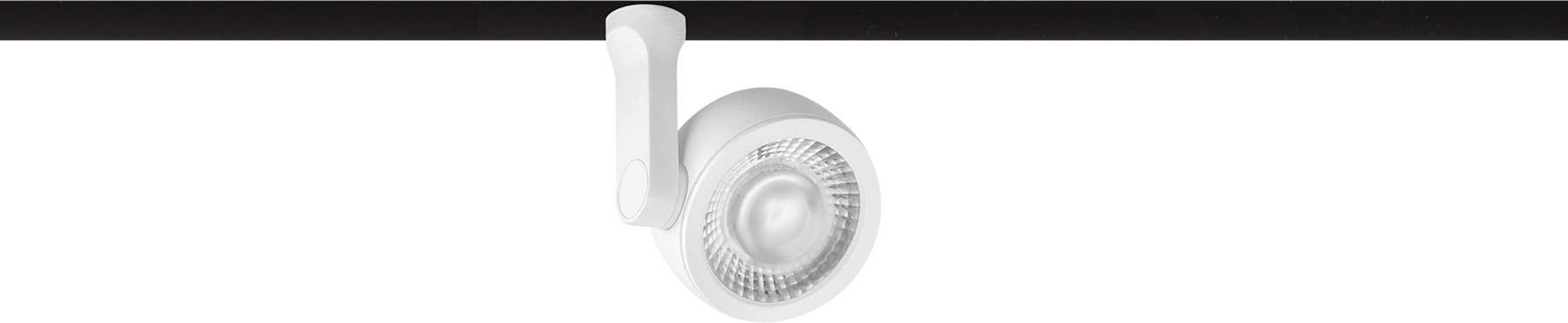

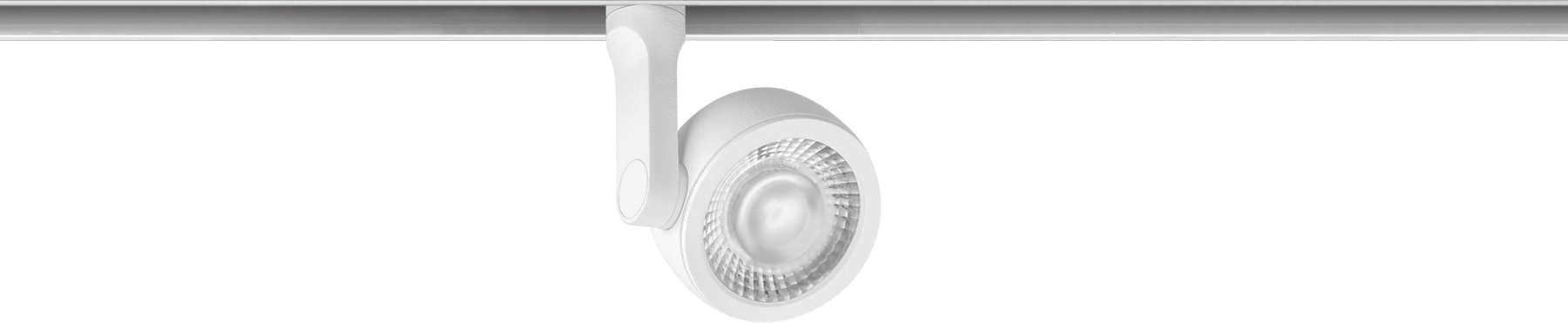

SIX XS 48V UL DIM 0/10V 17º 2700K WT

Reference:

U3350110WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 17º 3000K NT

Reference:

U3350111NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 17º 3000K WT

Reference:

U3350111WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 17º 4000K NT

Reference:

U3350112NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 17º 4000K WT

Reference:

U3350112WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 23º 2700K NT

Reference:

U3350120NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 23º 2700K WT

Reference:

U3350120WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 23º 3000K NT

Reference:

U3350121NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 23º 3000K WT

Reference:

U3350121WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 23º 4000K NT

Reference:

U3350122NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 23º 4000K WT

Reference:

U3350122WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 34º 2700K NT

Reference:

U3350130NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 34º 2700K WT

Reference:

U3350130WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 34º 3000K NT

Reference:

U3350131NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 34º 3000K WT

Reference:

U3350131WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 34º 4000K NT

Reference:

U3350132NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 34º 4000K WT

Reference:

U3350132WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM DALI 17º 2700K NT

Reference:

U3350210NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 17º 2700K WT

Reference:

U3350210WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 17º 3000K NT

Reference:

U3350211NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 17º 3000K WT

Reference:

U3350211WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 17º 4000K NT

Reference:

U3350212NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 17º 4000K WT

Reference:

U3350212WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 23º 2700K NT

Reference:

U3350220NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 23º 2700K WT

Reference:

U3350220WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 23º 3000K NT

Reference:

U3350221NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 23º 3000K WT

Reference:

U3350221WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 23º 4000K NT

Reference:

U3350222NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 23º 4000K WT

Reference:

U3350222WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 34º 2700K NT

Reference:

U3350230NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 34º 2700K WT

Reference:

U3350230WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 34º 3000K NT

Reference:

U3350231NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 34º 3000K WT

Reference:

U3350231WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 34º 4000K NT

Reference:

U3350232NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 34º 4000K WT

Reference:

U3350232WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM 0/10V 17º 2700K NTW

Reference:

U3350110NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 17º 2700K WTW

Reference:

U3350110WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 17º 3000K NTW

Reference:

U3350111NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 17º 3000K WTW

Reference:

U3350111WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 17º 4000K NTW

Reference:

U3350112NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 17º 4000K WTW

Reference:

U3350112WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 23º 2700K NTW

Reference:

U3350120NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 23º 2700K WTW

Reference:

U3350120WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 23º 3000K NTW

Reference:

U3350121NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 23º 3000K WTW

Reference:

U3350121WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 23º 4000K NTW

Reference:

U3350122NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 23º 4000K WTW

Reference:

U3350122WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 34º 2700K NTW

Reference:

U3350130NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 34º 2700K WTW

Reference:

U3350130WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 34º 3000K NTW

Reference:

U3350131NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 34º 3000K WTW

Reference:

U3350131WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 34º 4000K NTW

Reference:

U3350132NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM 0/10V 34º 4000K WTW

Reference:

U3350132WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
SIX XS 48V UL DIM DALI 17º 2700K NTW

Reference:

U3350210NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 17º 2700K WTW

Reference:

U3350210WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 17º 3000K NTW

Reference:

U3350211NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 17º 3000K WTW

Reference:

U3350211WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 17º 4000K NTW

Reference:

U3350212NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 17º 4000K WTW

Reference:

U3350212WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 23º 2700K NTW

Reference:

U3350220NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 23º 2700K WTW

Reference:

U3350220WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 23º 3000K NTW

Reference:

U3350221NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 23º 3000K WTW

Reference:

U3350221WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 23º 4000K NTW

Reference:

U3350222NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 23º 4000K WTW

Reference:

U3350222WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 34º 2700K NTW

Reference:

U3350230NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 34º 2700K WTW

Reference:

U3350230WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

470 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 34º 3000K NTW

Reference:

U3350231NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 34º 3000K WTW

Reference:

U3350231WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

500 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 34º 4000K NTW

Reference:

U3350232NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
SIX XS 48V UL DIM DALI 34º 4000K WTW

Reference:

U3350232WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

530 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-

Accessories

TRACK 48V OPTIONS

¿Te interesa este producto? Contáctanos

Instagram

This field is for validation purposes and should be left unchanged.

Nombre*

Apellidos*

Email*

Teléfono*

País*

Ciudad*

Empresa*

Profesión*

Especifica tu profesión*

Tu mensaje

He leído y acepto la política de privacidad. *

Quiero suscribirme al newsletter.

SIX 48V

TRACK LIGHTS

Awards

German Design Award Winner 2019

Good Design Award 2018

SIX XS 48V

Luminous flux

Power

Colour temperature

Lighting efficiency

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Accessories

¿Te interesa este producto? Contáctanos

Related products

FIT 48V

PLUS 48V

iO 48V

LINE 48V

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
