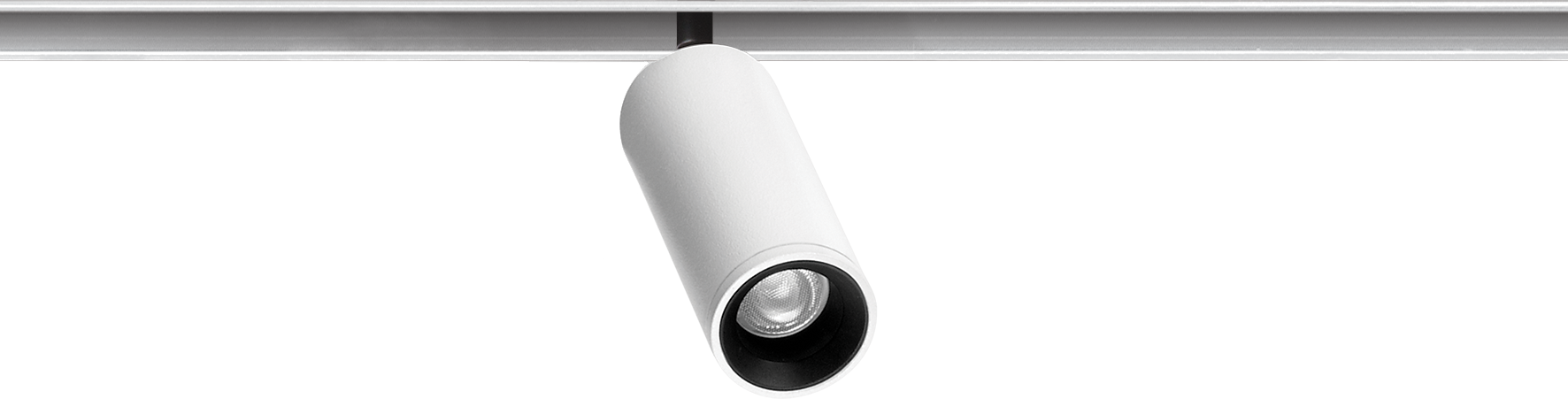

FIT 48V

TRACK LIGHTS

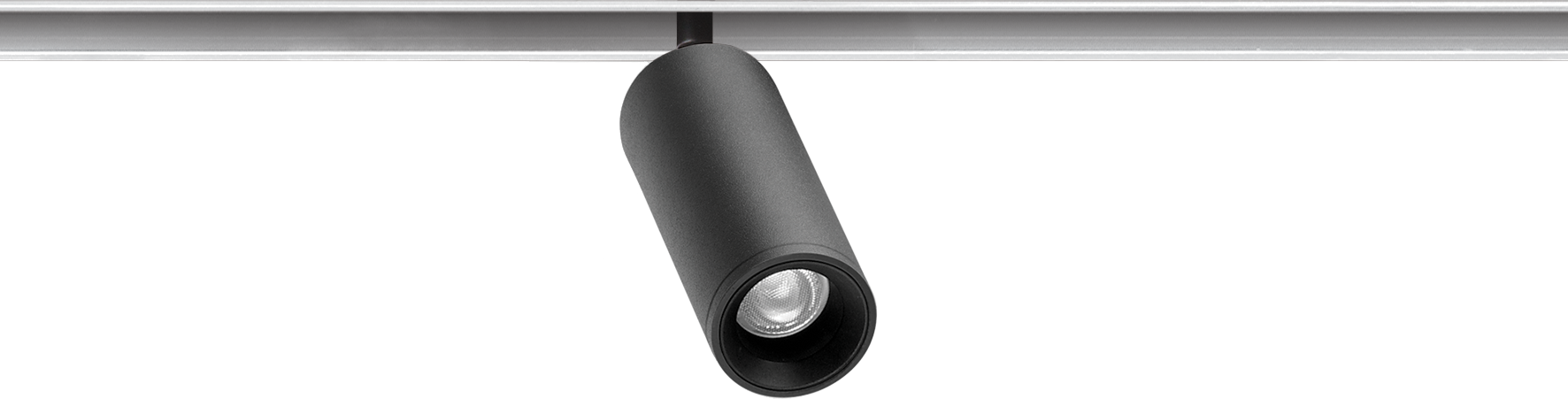

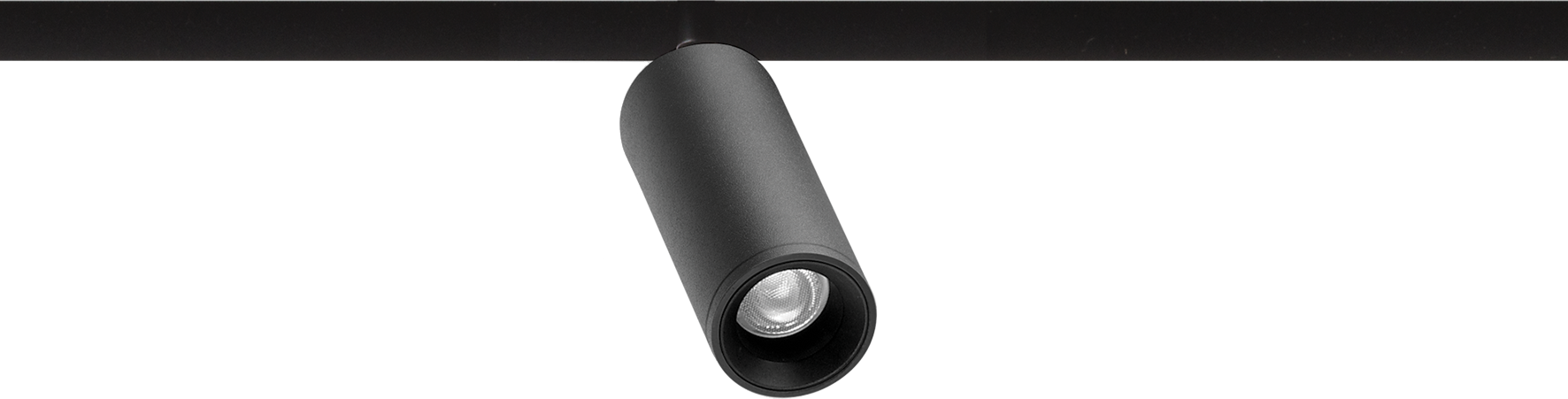

Fit 48V is a cylindrical spotlight available in three sizes. A functional light that can be orientated in any direction. The black perimeter around its head and the optional honeycomb accessory reduces glare to a minimum.

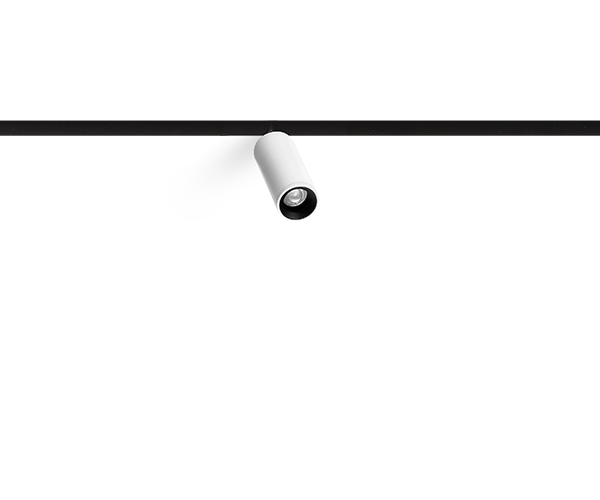

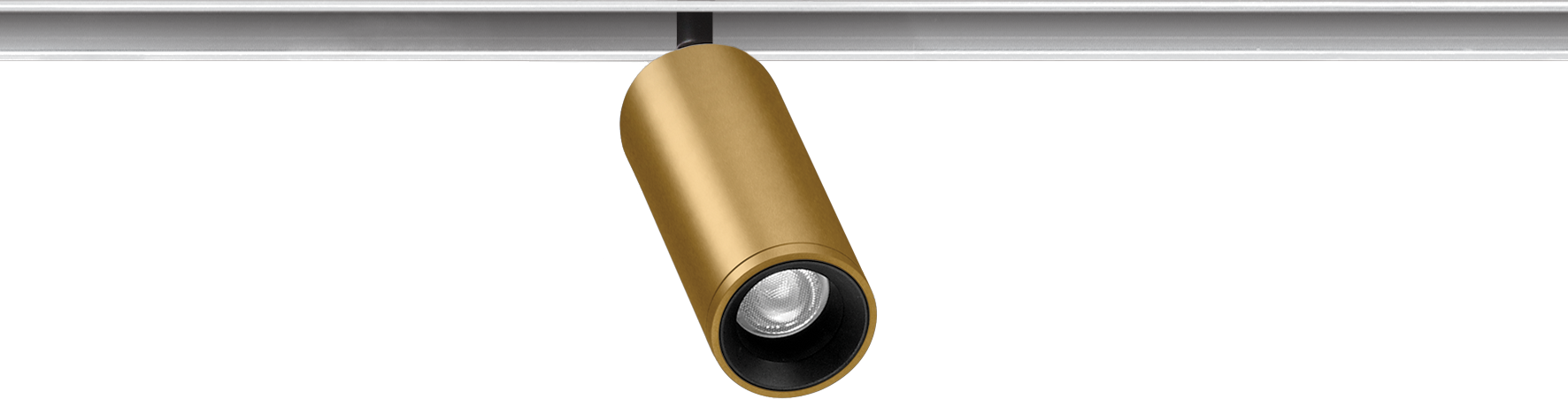

FIT 20 48V

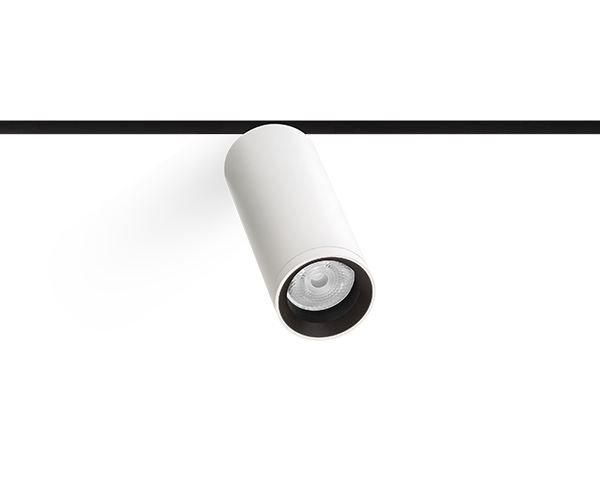

FIT 50 48V

FIT 35 48V

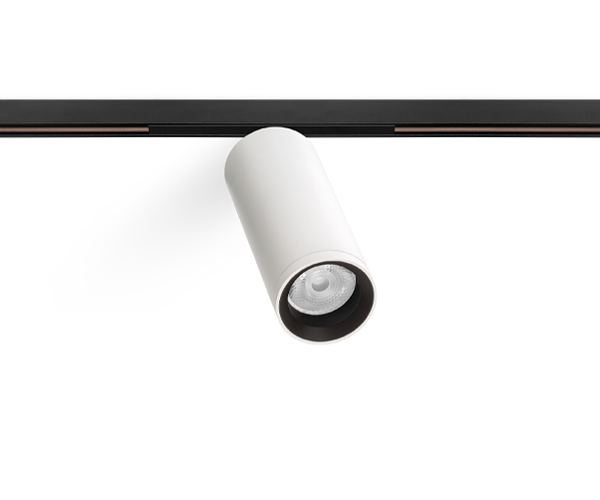

FIT 50 48V SHORT

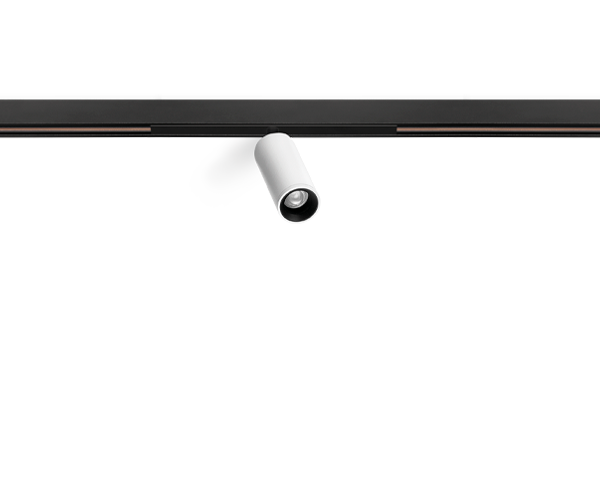

FIT 20 48V SHORT

FIT 35 48V SHORT

FIT 20 48V

Luminous flux

127 lm / 150 lm
Lighting efficiency

81% / 87% / 88%
Power

2.1 W
Dimming

0-10V, DALI
Colour temperature

2700K / 3000K
Chromatic stability

MacAdam Step 3
Light beam angle

12° / 30° / 54°

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Input Voltage

Temp.

CRI

Beam angle

Efficiency

Dimming

IC Rated

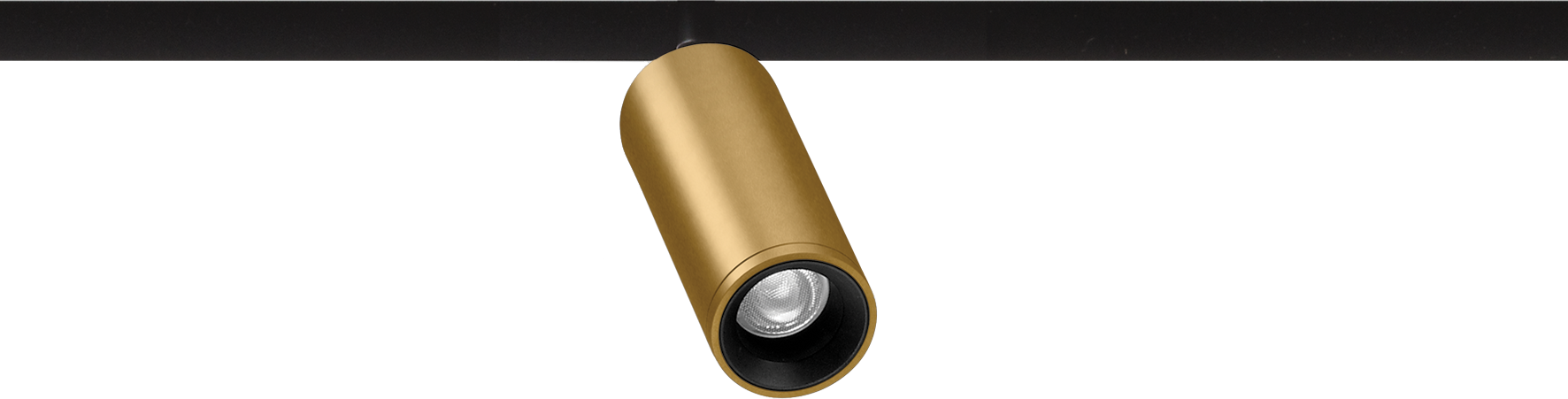

FIT 20 48V UL DIM 0/10V SPOT 2700K G

Reference:

U3440110G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V SPOT 2700K NT

Reference:

U3440110NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

0-10V

IC Rated:

-

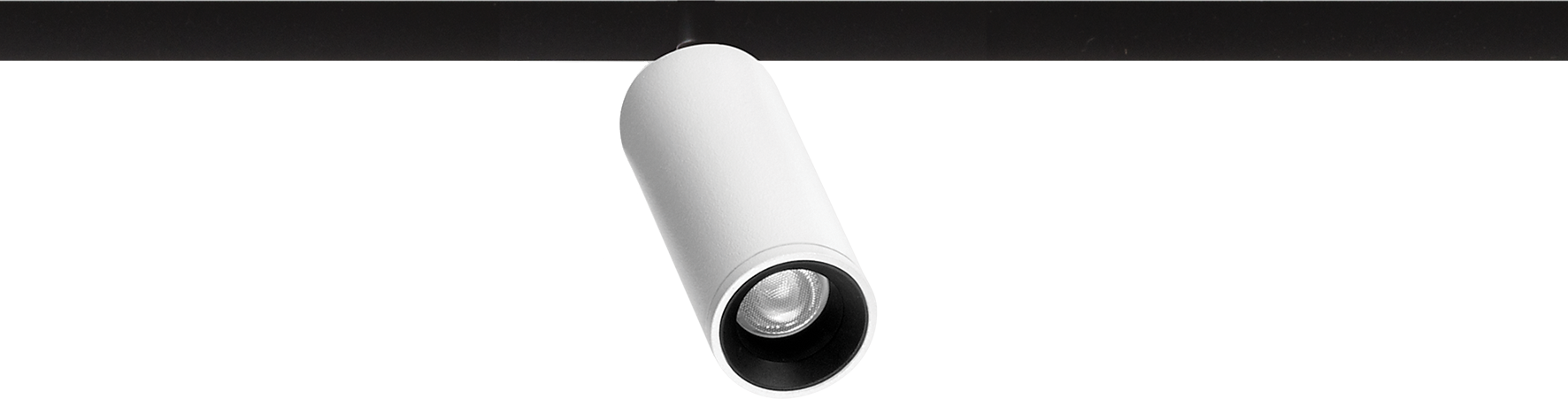

FIT 20 48V UL DIM 0/10V SPOT 2700K WT

Reference:

U3440110WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V SPOT 3000K G

Reference:

U3440111G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V SPOT 3000K NT

Reference:

U3440111NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V SPOT 3000K WT

Reference:

U3440111WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V MEDIUM 2700K G

Reference:

U3440120G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V MEDIUM 2700K NT

Reference:

U3440120NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V MEDIUM 2700K WT

Reference:

U3440120WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V MEDIUM 3000K G

Reference:

U3440121G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V MEDIUM 3000K NT

Reference:

U3440121NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V MEDIUM 3000K WT

Reference:

U3440121WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V FLOOD 2700K G

Reference:

U3440130G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V FLOOD 2700K NT

Reference:

U3440130NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V FLOOD 2700K WT

Reference:

U3440130WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V FLOOD 3000K G

Reference:

U3440131G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V FLOOD 3000K NT

Reference:

U3440131NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V FLOOD 3000K WT

Reference:

U3440131WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM DALI SPOT 2700K G

Reference:

U3440210G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI SPOT 2700K NT

Reference:

U3440210NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI SPOT 2700K WT

Reference:

U3440210WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI SPOT 3000K G

Reference:

U3440211G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI SPOT 3000K NT

Reference:

U3440211NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI SPOT 3000K WT

Reference:

U3440211WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI MEDIUM 2700K G

Reference:

U3440220G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI MEDIUM 2700K NT

Reference:

U3440220NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI MEDIUM 2700K WT

Reference:

U3440220WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI MEDIUM 3000K G

Reference:

U3440221G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI MEDIUM 3000K NT

Reference:

U3440221NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI MEDIUM 3000K WT

Reference:

U3440221WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI FLOOD 2700K G

Reference:

U3440230G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI FLOOD 2700K NT

Reference:

U3440230NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI FLOOD 2700K WT

Reference:

U3440230WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI FLOOD 3000K G

Reference:

U3440231G

Mounting Accessory / Driver:

-

Colour:

Gold

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI FLOOD 3000K NT

Reference:

U3440231NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI FLOOD 3000K WT

Reference:

U3440231WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM 0/10V SPOT 2700K GW

Reference:

U3440110GW

Mounting Accessory / Driver:

-

Colour:

Gold - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V SPOT 2700K NTW

Reference:

U3440110NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V SPOT 2700K WTW

Reference:

U3440110WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V SPOT 3000K GW

Reference:

U3440111GW

Mounting Accessory / Driver:

-

Colour:

Gold - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V SPOT 3000K NTW

Reference:

U3440111NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V SPOT 3000K WTW

Reference:

U3440111WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V MEDIUM 2700K GW

Reference:

U3440120GW

Mounting Accessory / Driver:

-

Colour:

Gold - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V MEDIUM 2700K NTW

Reference:

U3440120NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V MEDIUM 2700K WTW

Reference:

U3440120WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V MEDIUM 3000K GW

Reference:

U3440121GW

Mounting Accessory / Driver:

-

Colour:

Gold - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V MEDIUM 3000K NTW

Reference:

U3440121NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V MEDIUM 3000K WTW

Reference:

U3440121WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V FLOOD 2700K GW

Reference:

U3440130GW

Mounting Accessory / Driver:

-

Colour:

Gold - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V FLOOD 2700K NTW

Reference:

U3440130NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V FLOOD 2700K WTW

Reference:

U3440130WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V FLOOD 3000K GW

Reference:

U3440131GW

Mounting Accessory / Driver:

-

Colour:

Gold - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V FLOOD 3000K NTW

Reference:

U3440131NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM 0/10V FLOOD 3000K WTW

Reference:

U3440131WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

0-10V

IC Rated:

-
FIT 20 48V UL DIM DALI SPOT 2700K GW

Reference:

U3440210GW

Mounting Accessory / Driver:

-

Colour:

Gold - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI SPOT 2700K NTW

Reference:

U3440210NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI SPOT 2700K WTW

Reference:

U3440210WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI SPOT 3000K GW

Reference:

U3440211GW

Mounting Accessory / Driver:

-

Colour:

Gold - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI SPOT 3000K NTW

Reference:

U3440211NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI SPOT 3000K WTW

Reference:

U3440211WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

12°

Lighting efficiency:

87%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI MEDIUM 2700K GW

Reference:

U3440220GW

Mounting Accessory / Driver:

-

Colour:

Gold - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI MEDIUM 2700K NTW

Reference:

U3440220NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI MEDIUM 2700K WTW

Reference:

U3440220WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI MEDIUM 3000K GW

Reference:

U3440221GW

Mounting Accessory / Driver:

-

Colour:

Gold - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI MEDIUM 3000K NTW

Reference:

U3440221NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI MEDIUM 3000K WTW

Reference:

U3440221WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

88%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI FLOOD 2700K GW

Reference:

U3440230GW

Mounting Accessory / Driver:

-

Colour:

Gold - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI FLOOD 2700K NTW

Reference:

U3440230NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI FLOOD 2700K WTW

Reference:

U3440230WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

127 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI FLOOD 3000K GW

Reference:

U3440231GW

Mounting Accessory / Driver:

-

Colour:

Gold - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI FLOOD 3000K NTW

Reference:

U3440231NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DALI

IC Rated:

-
FIT 20 48V UL DIM DALI FLOOD 3000K WTW

Reference:

U3440231WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

150 lm

Power:

2.1 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

81%

Dimming:

DALI

IC Rated:

-

Accessories

TRACK 48V OPTIONS

¿Te interesa este producto? Contáctanos

Instagram

This field is for validation purposes and should be left unchanged.

Nombre*

Apellidos*

Email*

Teléfono*

País*

Ciudad*

Empresa*

Profesión*

Especifica tu profesión*

Tu mensaje

He leído y acepto la política de privacidad. *

Quiero suscribirme al newsletter.

FIT 48V

TRACK LIGHTS

FIT 20 48V

Luminous flux

Power

Colour temperature

Lighting efficiency

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Accessories

¿Te interesa este producto? Contáctanos

Related products

SIX 48V

PLUS 48V

iO 48V

LINE 48V

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads
