LINE 48V

TRACK LIGHTS

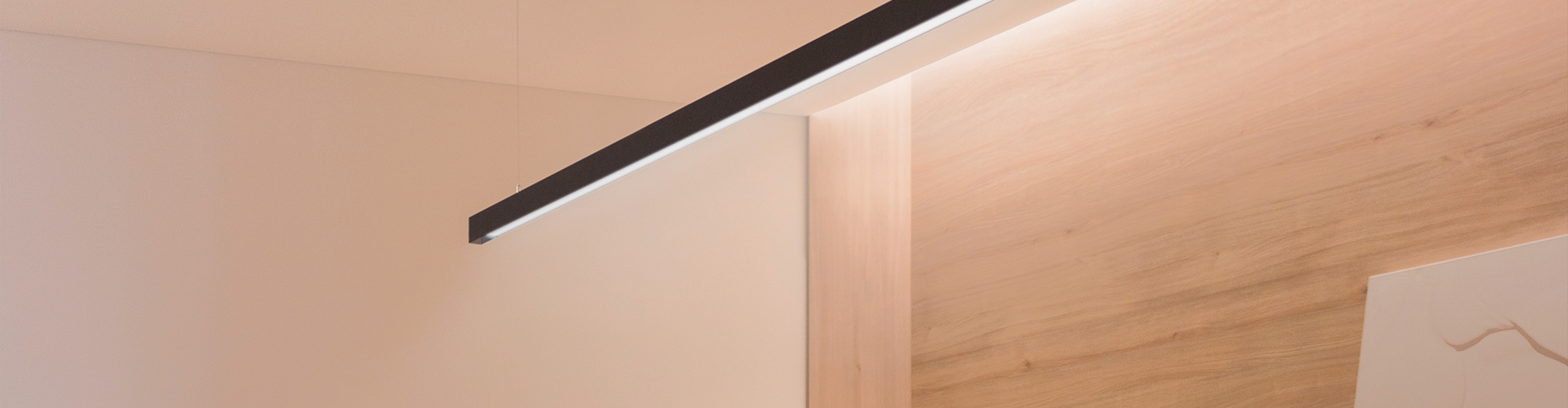

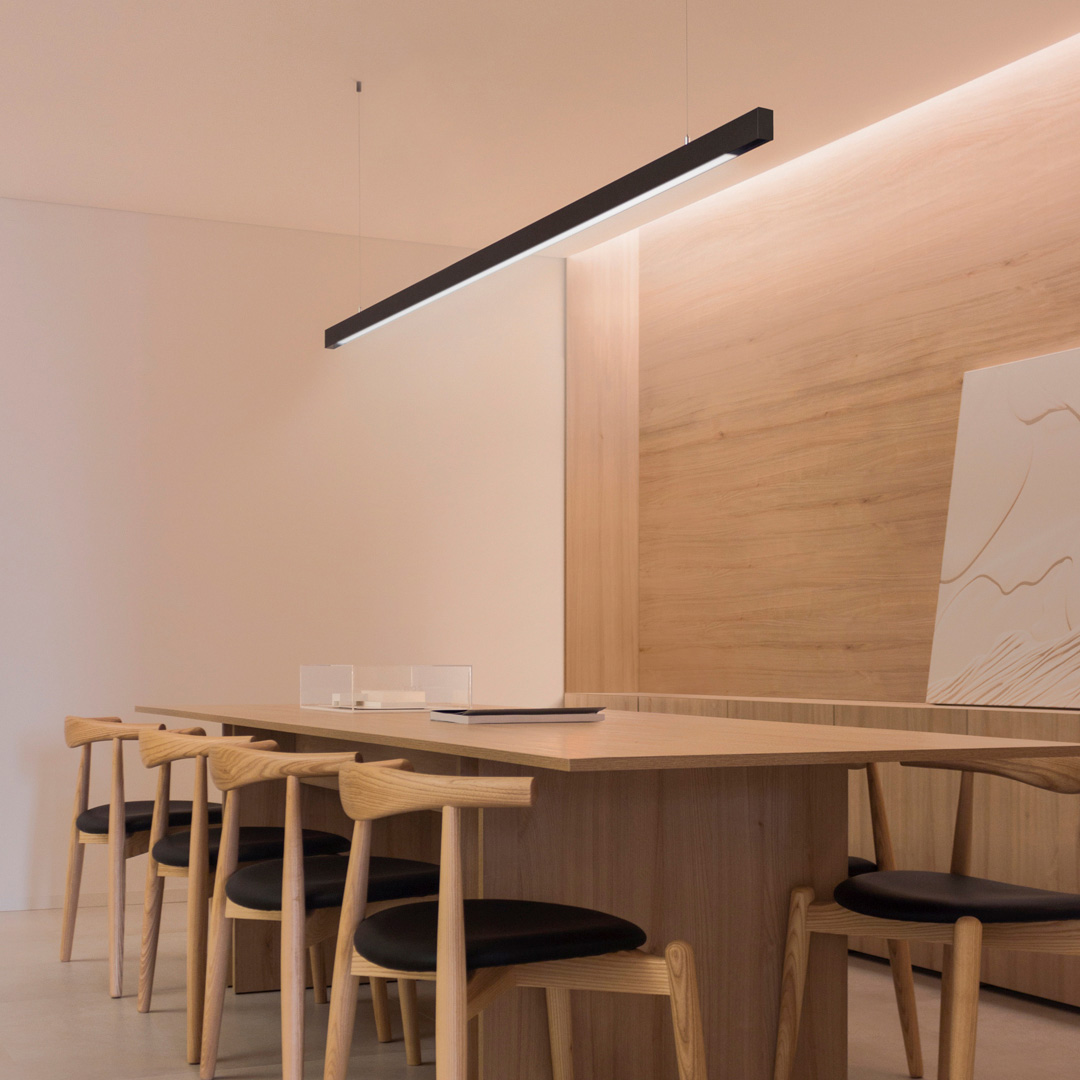

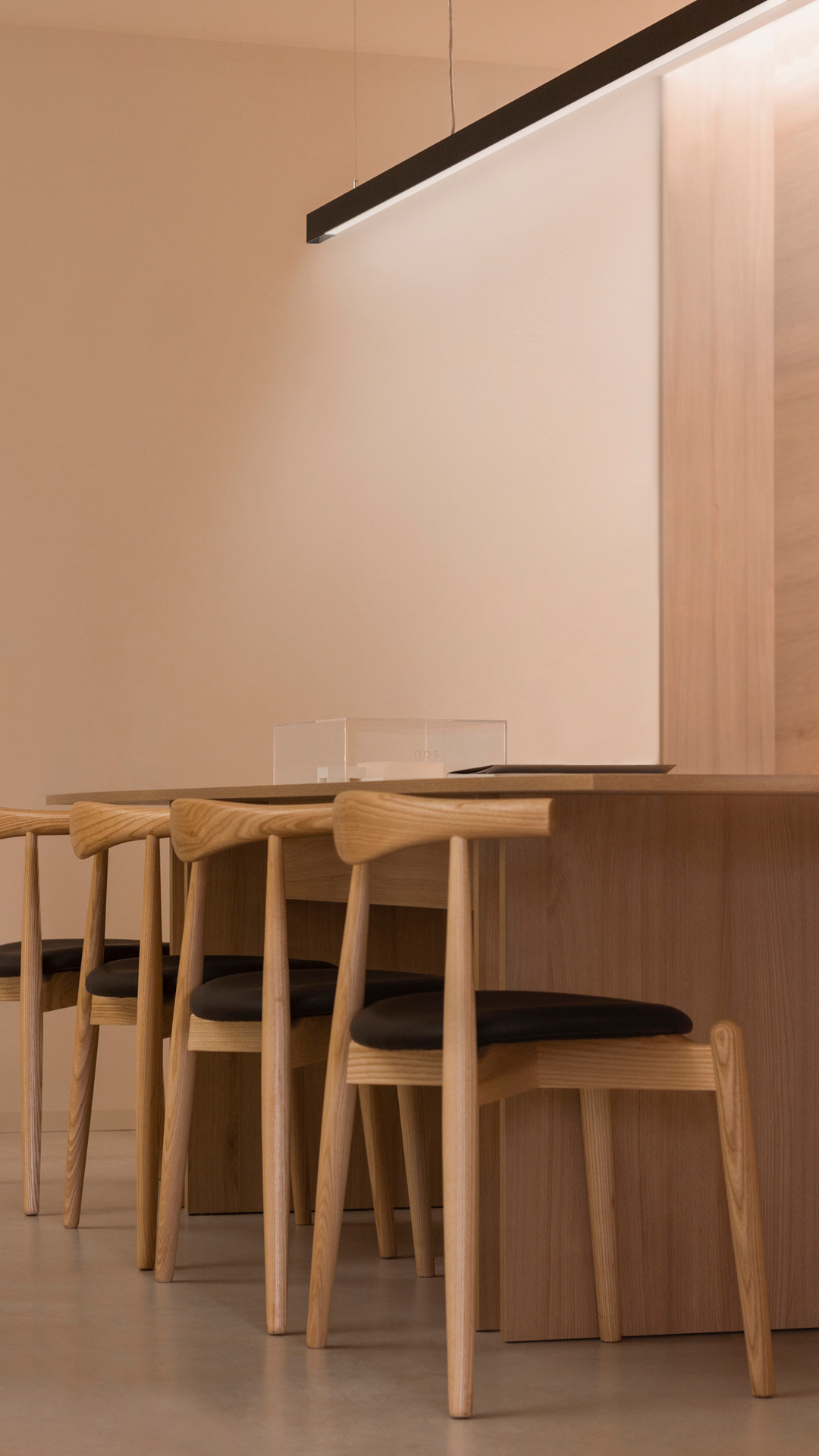

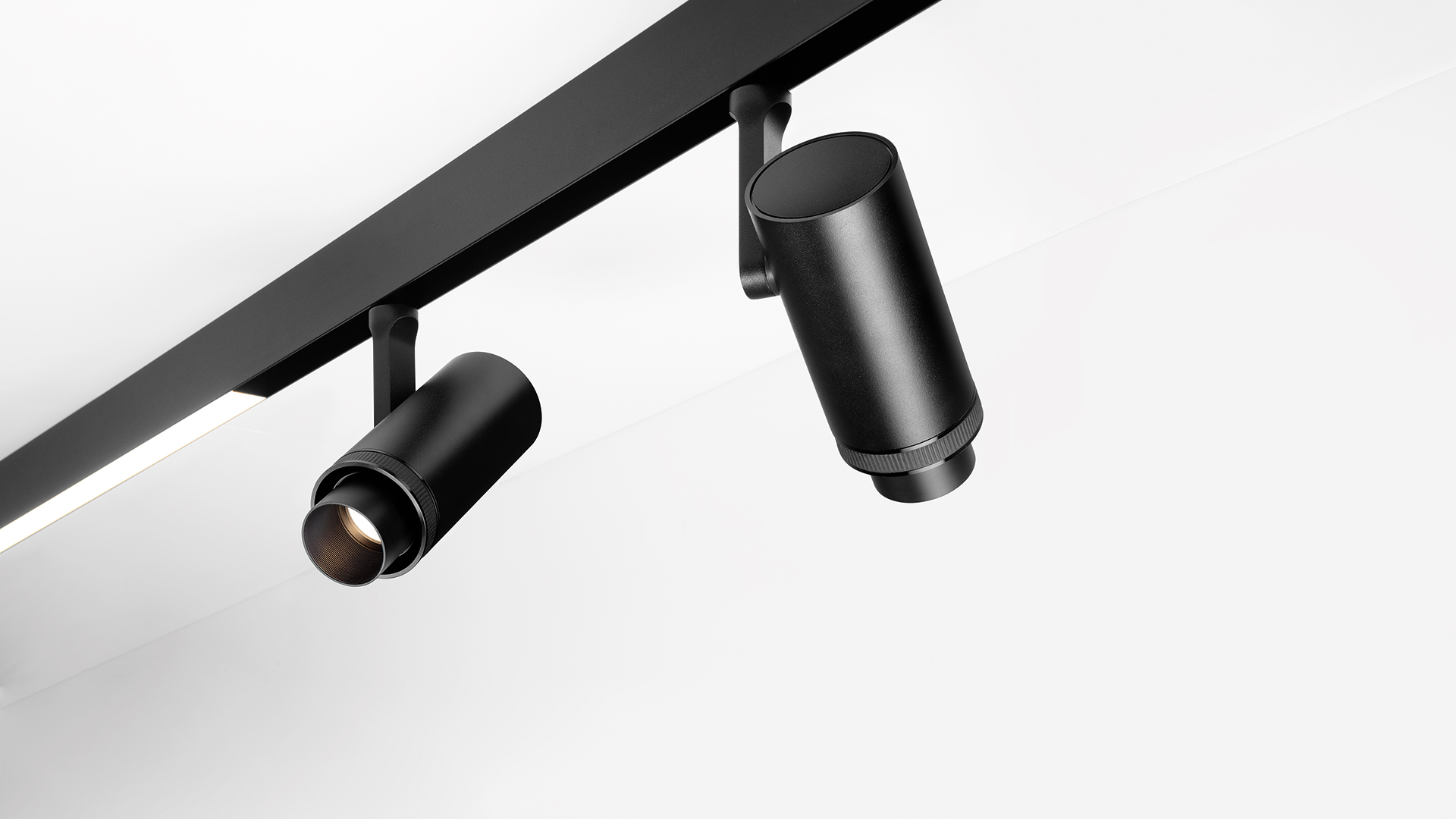

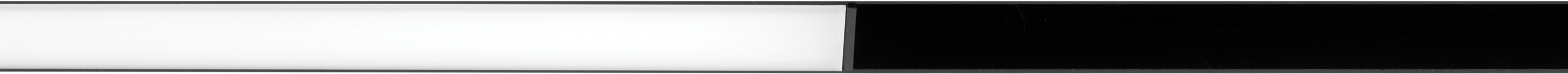

Line 48V, is the line-luminary of diffused light for 48 voltage tracklight applications. This lighting solution allows Jokerlight’s 48V tracklight to combine accent lighting with longitudinal general lighting where required.

LINE 48V 500
LINE 48V 500
LINE 48V 1000
LINE 48V 1000
LINE 48V 2000
LINE 48V 2000

LINE 48V 500

  • Luminous flux

    1480 lm / 1600 lm

  • Lighting efficiency

    43% / 65%

  • Power

    10.5 W

  • Dimming

    0-10V, DALI

  • Colour temperature

    2700K / 3000K

  • Chromatic stability

    MacAdam Step 2

  • Light beam angle

    98°

EPD Instructions BIM
Luminous flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • Mounting Accessory
      IC Rated
        Input Voltage
          CRI
            Light beam angle
              Dimming
                Cord length
                  Colour

                    • Model

                      Ref.

                      Mounting Accessory / Driver

                      Colour

                      Lum. flux

                      Power

                      Input Voltage

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      IC Rated

                    • LINE 500 48V UL DIM 0/10V 2700K N
                      Reference:

                      U3761010N

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Matt black

                      Luminous flux:

                      1480 lm

                      Power:

                      10.5 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      43%

                      Dimming:

                      0-10V

                      IC Rated:

                      -

                    • LINE 500 48V UL DIM 0/10V 3000K N
                      Reference:

                      U3761011N

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Matt black

                      Luminous flux:

                      1600 lm

                      Power:

                      10.5 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      43%

                      Dimming:

                      0-10V

                      IC Rated:

                      -

                    • LINE 500 48V UL DIM DALI 2700K N
                      Reference:

                      U3761020N

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Matt black

                      Luminous flux:

                      1480 lm

                      Power:

                      10.5 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      43%

                      Dimming:

                      DALI

                      IC Rated:

                      -

                    • LINE 500 48V UL DIM DALI 3000K N
                      Reference:

                      U3761021N

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Matt black

                      Luminous flux:

                      1600 lm

                      Power:

                      10.5 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      43%

                      Dimming:

                      DALI

                      IC Rated:

                      -

                    • LINE 500 48V UL DIM 0/10V 2700K WT
                      Reference:

                      U3761010WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      1480 lm

                      Power:

                      10.5 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      65%

                      Dimming:

                      0-10V

                      IC Rated:

                      -

                    • LINE 500 48V UL DIM 0/10V 3000K WT
                      Reference:

                      U3761011WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      1600 lm

                      Power:

                      10.5 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      65%

                      Dimming:

                      0-10V

                      IC Rated:

                      -

                    • LINE 500 48V UL DIM DALI 2700K WT
                      Reference:

                      U3761020WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      1480 lm

                      Power:

                      10.5 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      65%

                      Dimming:

                      DALI

                      IC Rated:

                      -

                    • LINE 500 48V UL DIM DALI 3000K WT
                      Reference:

                      U3761021WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      1600 lm

                      Power:

                      10.5 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      98°

                      Lighting efficiency:

                      65%

                      Dimming:

                      DALI

                      IC Rated:

                      -
