PLUS 48V

TRACK LIGHTS

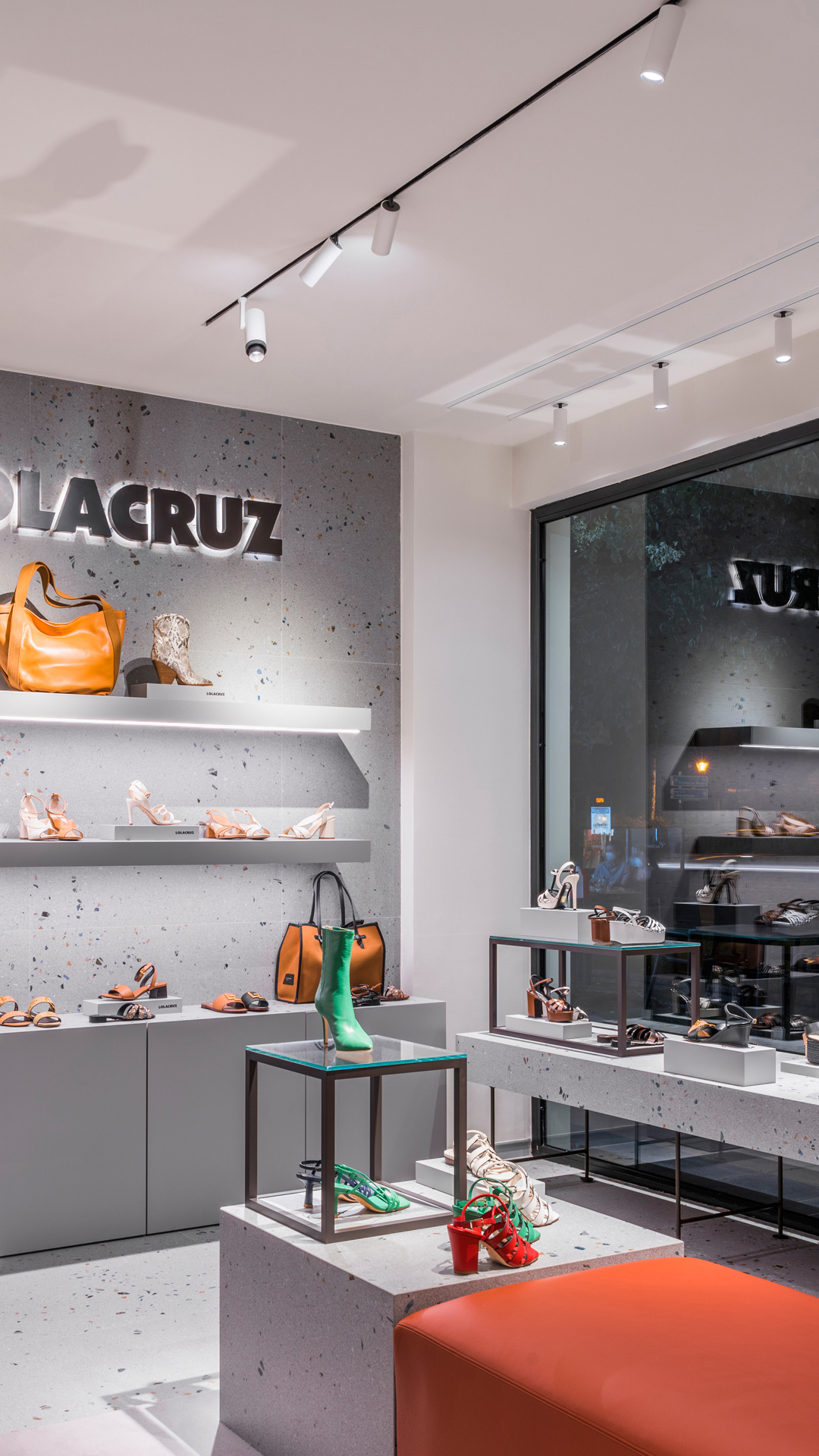

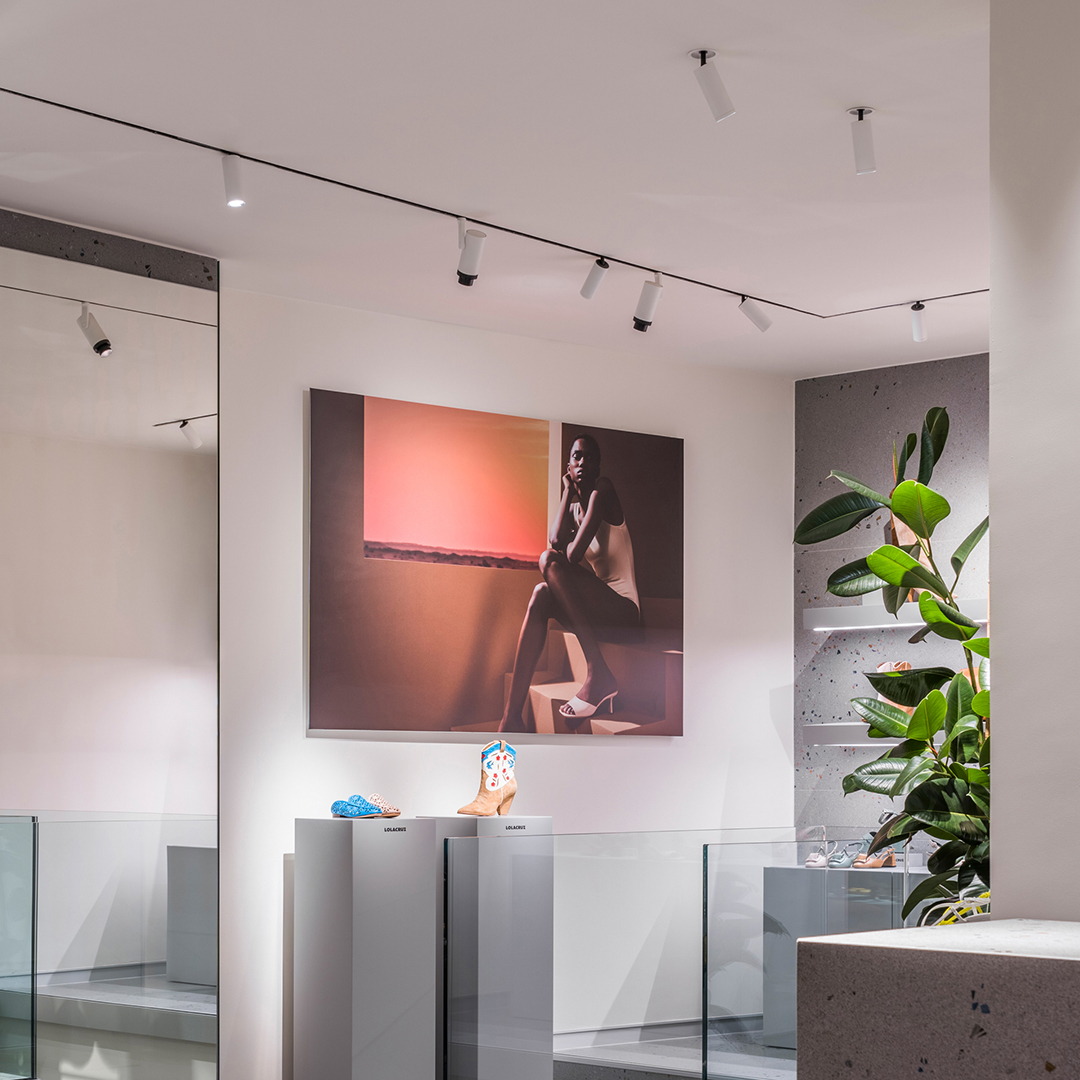

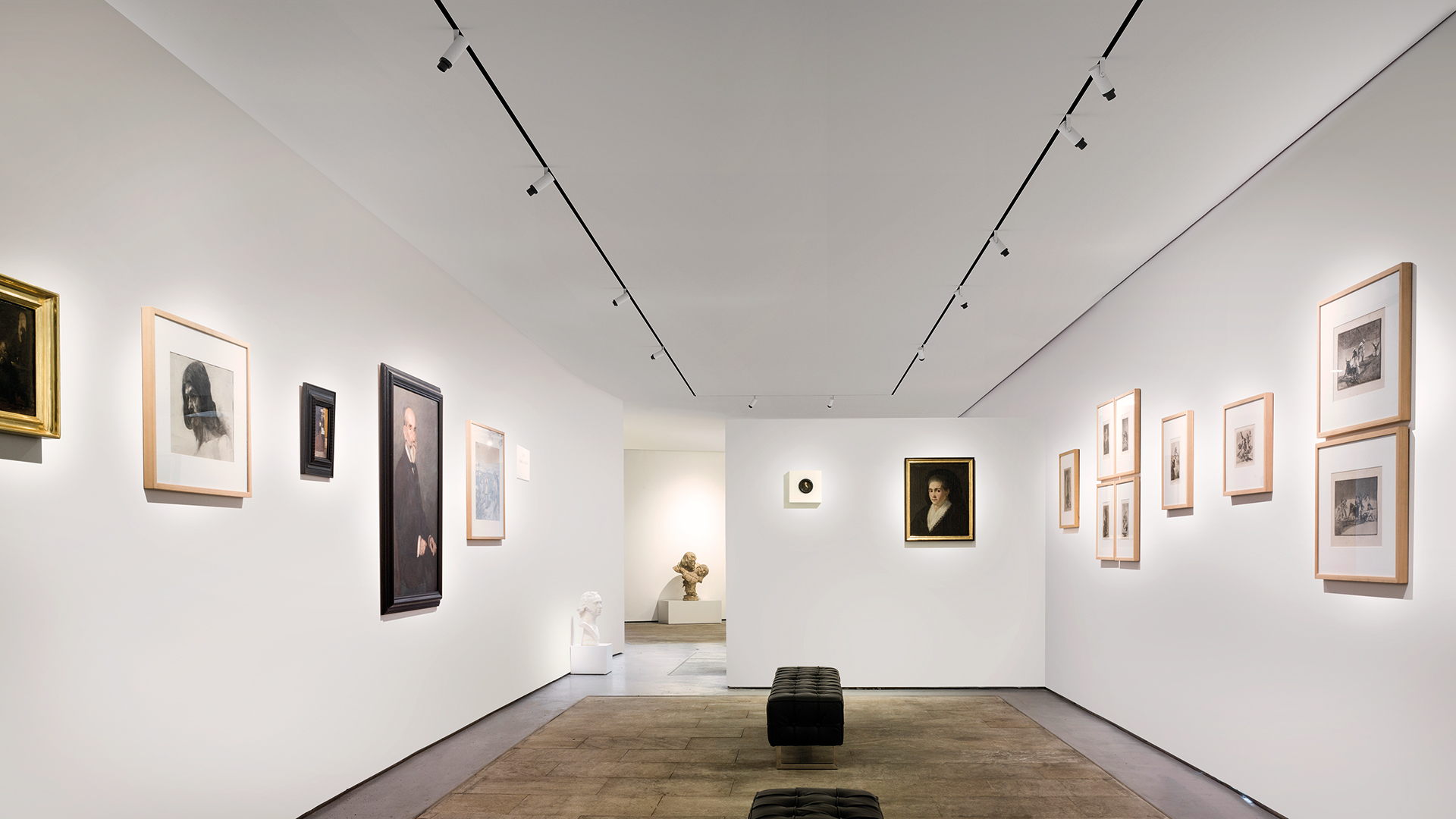

Plus 48V is a spotlight for low voltage tracklight applications that offers the possibility of expanding or concentrating the beam light with just a smooth manual gesture. This characteristic makes Plus the ideal alternative for applications where the precision whithin the beam of light is essential- like for example: museums, expositions, retail or accent lighting applications.

Awards

Adcv Gold 2019
Fx International Interior Design Award Shortlist 2019

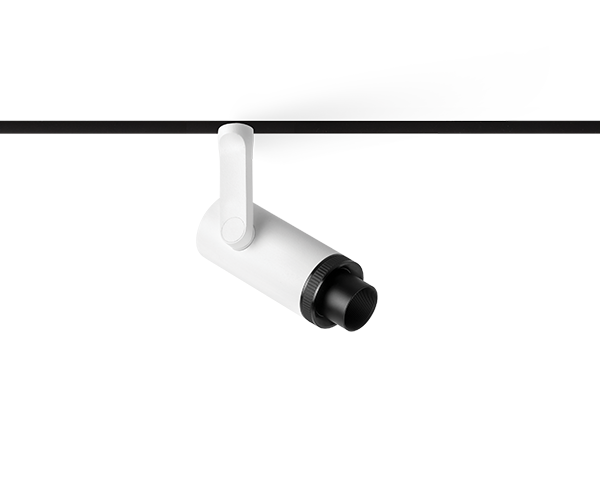

PLUS MINI 48V

PLUS 48V

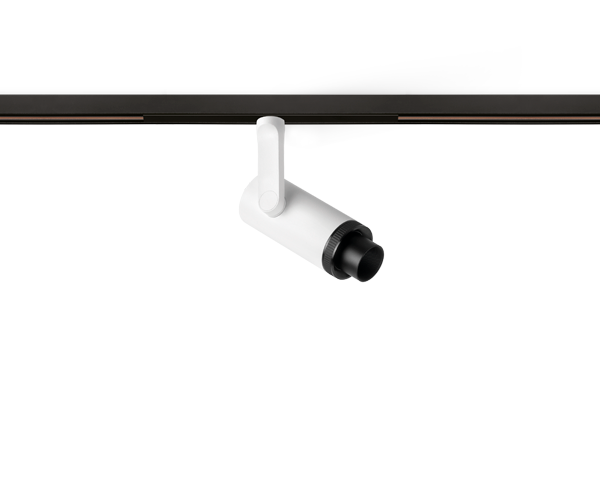

PLUS MINI 48V SHORT

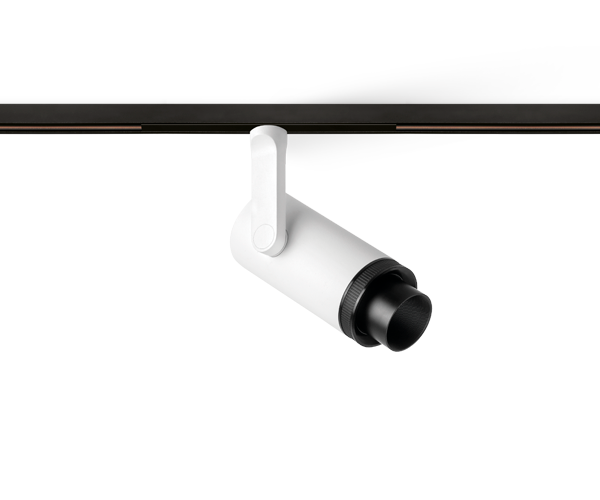

PLUS 48V SHORT

PLUS MINI 48V

Luminous flux

630 lm / 660 lm / 680 lm
Lighting efficiency

20-40%
Power

6.5 W
Dimming

0-10V, DALI
Colour temperature

2700K / 3000K / 4000K
Chromatic stability

MacAdam Step 2
Light beam angle

10°-41°

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Input Voltage

Temp.

CRI

Beam angle

Efficiency

Dimming

IC Rated

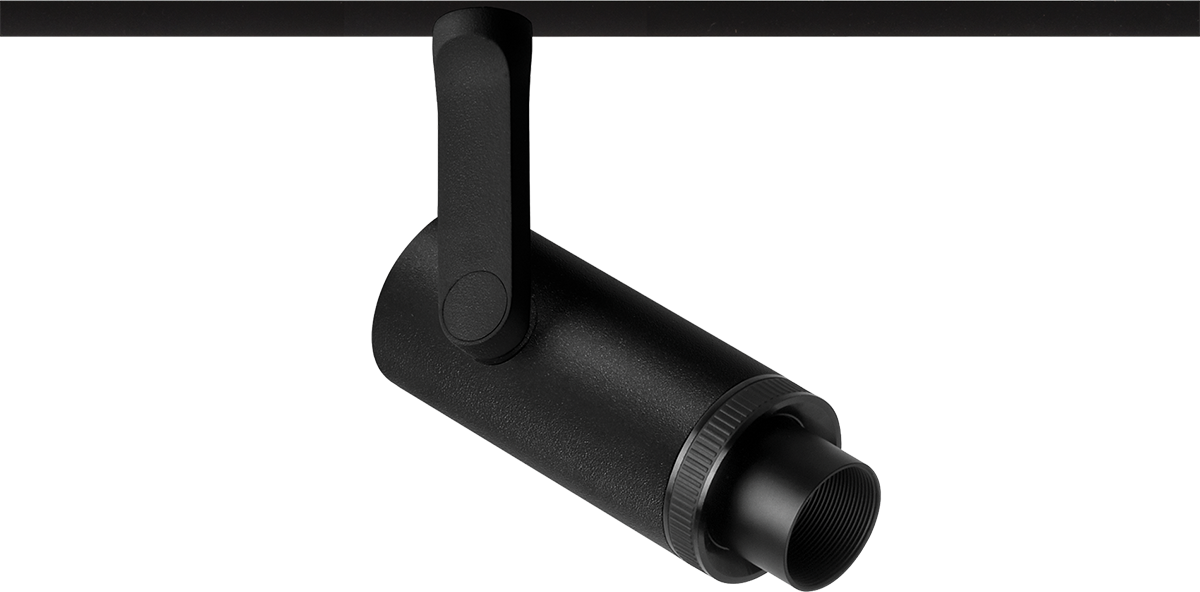

PLUS MINI 48V UL DIM 0/10V 2700K NT

Reference:

U3260010NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

630 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

0-10V

IC Rated:

-
PLUS MINI 48V UL DIM 0/10V 2700K WT

Reference:

U3260010WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

630 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

0-10V

IC Rated:

-
PLUS MINI 48V UL DIM 0/10V 3000K NT

Reference:

U3260011NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

660 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

0-10V

IC Rated:

-
PLUS MINI 48V UL DIM 0/10V 3000K WT

Reference:

U3260011WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

660 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

0-10V

IC Rated:

-
PLUS MINI 48V UL DIM 0/10V 4000K NT

Reference:

U3260012NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

680 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

0-10V

IC Rated:

-

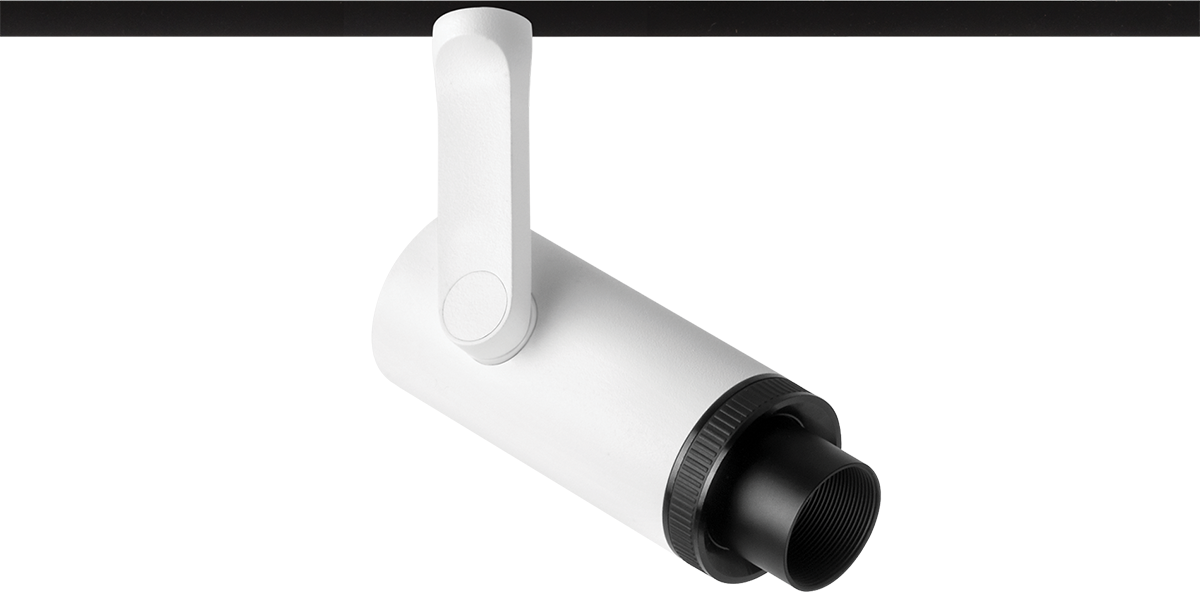

PLUS MINI 48V UL DIM 0/10V 4000K WT

Reference:

U3260012WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

680 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

0-10V

IC Rated:

-
PLUS MINI 48V UL DIM DALI 2700K NT

Reference:

U3260020NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

630 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

DALI

IC Rated:

-
PLUS MINI 48V UL DIM DALI 2700K WT

Reference:

U3260020WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

630 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

DALI

IC Rated:

-
PLUS MINI 48V UL DIM DALI 3000K NT

Reference:

U3260021NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

660 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

DALI

IC Rated:

-
PLUS MINI 48V UL DIM DALI 3000K WT

Reference:

U3260021WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

660 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

DALI

IC Rated:

-
PLUS MINI 48V UL DIM DALI 4000K NT

Reference:

U3260022NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

680 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

DALI

IC Rated:

-
PLUS MINI 48V UL DIM DALI 4000K WT

Reference:

U3260022WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

680 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

DALI

IC Rated:

-

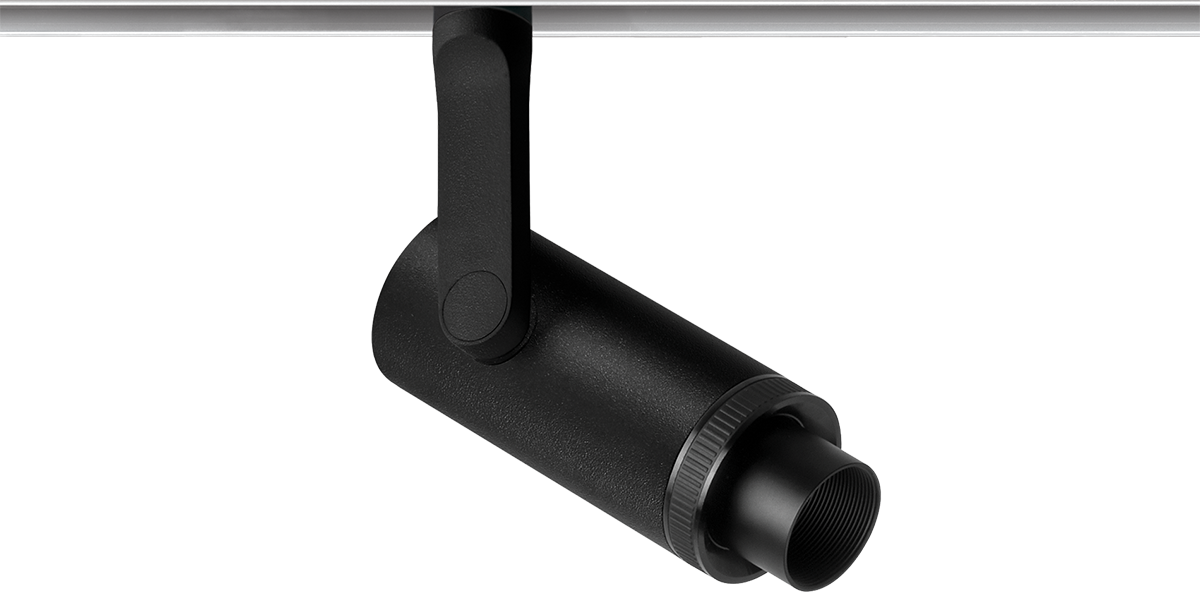

PLUS MINI 48V UL DIM 0/10V 2700K NTW

Reference:

U3260010NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

630 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

0-10V

IC Rated:

-

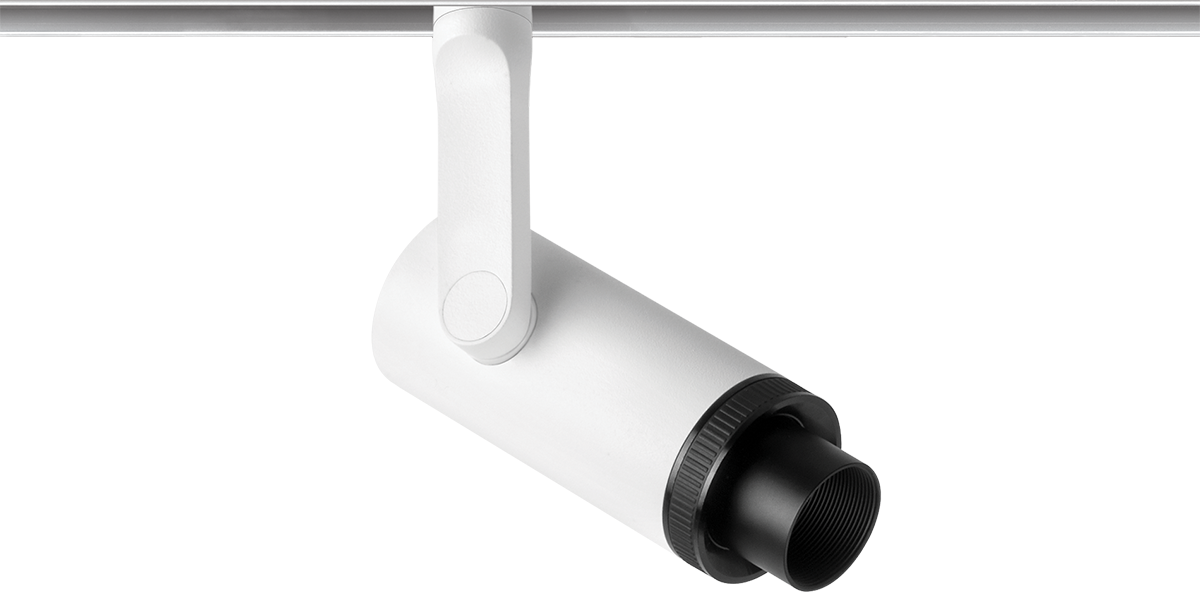

PLUS MINI 48V UL DIM 0/10V 2700K WTW

Reference:

U3260010WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

630 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

0-10V

IC Rated:

-
PLUS MINI 48V UL DIM 0/10V 3000K NTW

Reference:

U3260011NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

660 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

0-10V

IC Rated:

-
PLUS MINI 48V UL DIM 0/10V 3000K WTW

Reference:

U3260011WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

660 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

0-10V

IC Rated:

-
PLUS MINI 48V UL DIM 0/10V 4000K NTW

Reference:

U3260012NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

680 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

0-10V

IC Rated:

-
PLUS MINI 48V UL DIM 0/10V 4000K WTW

Reference:

U3260012WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

680 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

0-10V

IC Rated:

-
PLUS MINI 48V UL DIM DALI 2700K NTW

Reference:

U3260020NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

630 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

DALI

IC Rated:

-
PLUS MINI 48V UL DIM DALI 2700K WTW

Reference:

U3260020WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

630 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

DALI

IC Rated:

-
PLUS MINI 48V UL DIM DALI 3000K NTW

Reference:

U3260021NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

660 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

DALI

IC Rated:

-
PLUS MINI 48V UL DIM DALI 3000K WTW

Reference:

U3260021WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

660 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

DALI

IC Rated:

-
PLUS MINI 48V UL DIM DALI 4000K NTW

Reference:

U3260022NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

680 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

DALI

IC Rated:

-
PLUS MINI 48V UL DIM DALI 4000K WTW

Reference:

U3260022WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

680 lm

Power:

6.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

10°-41°

Lighting efficiency:

20-40%

Dimming:

DALI

IC Rated:

-

Accessories

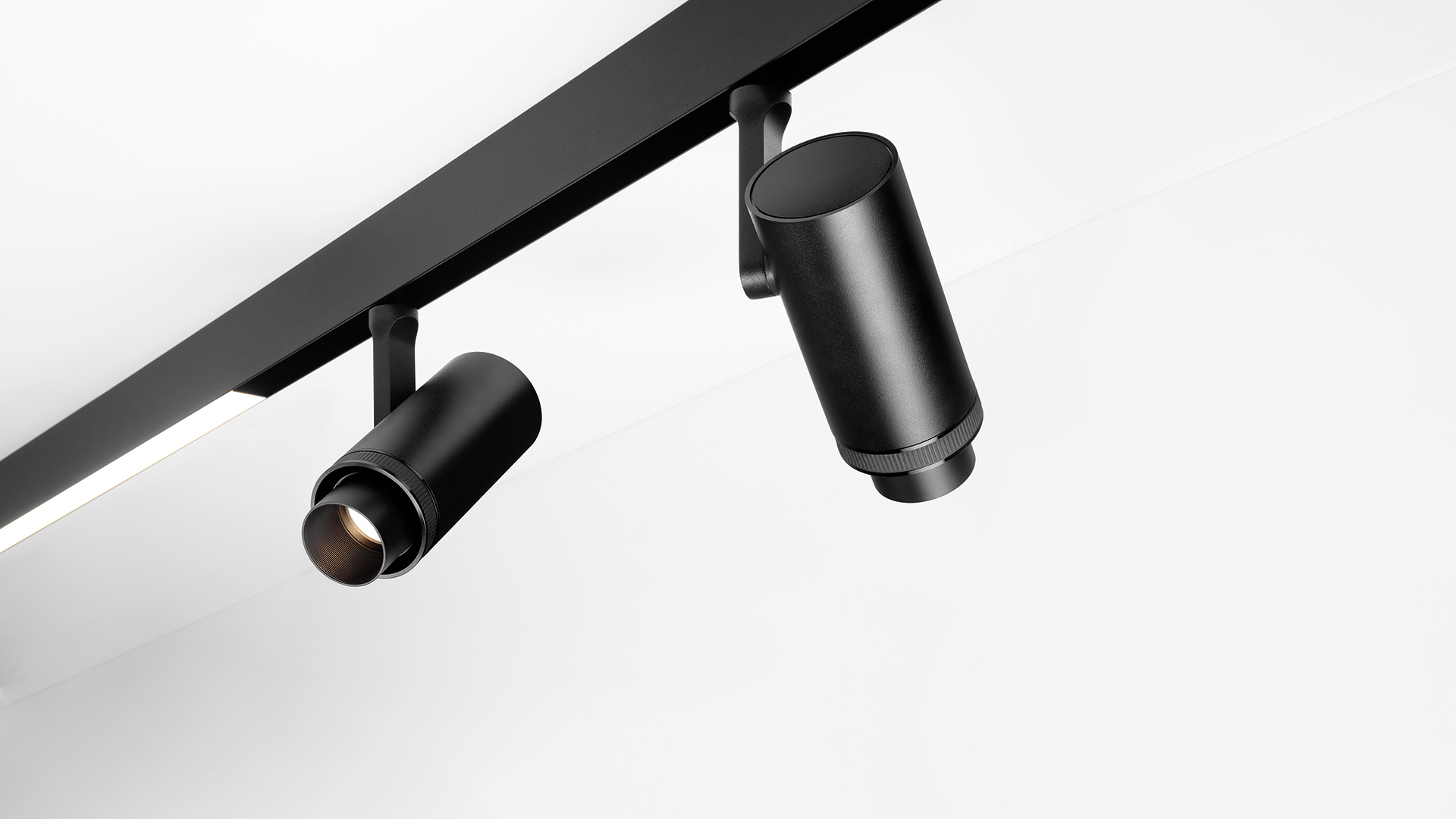

TRACK 48V OPTIONS
