iO 48V

TRACK LIGHTS

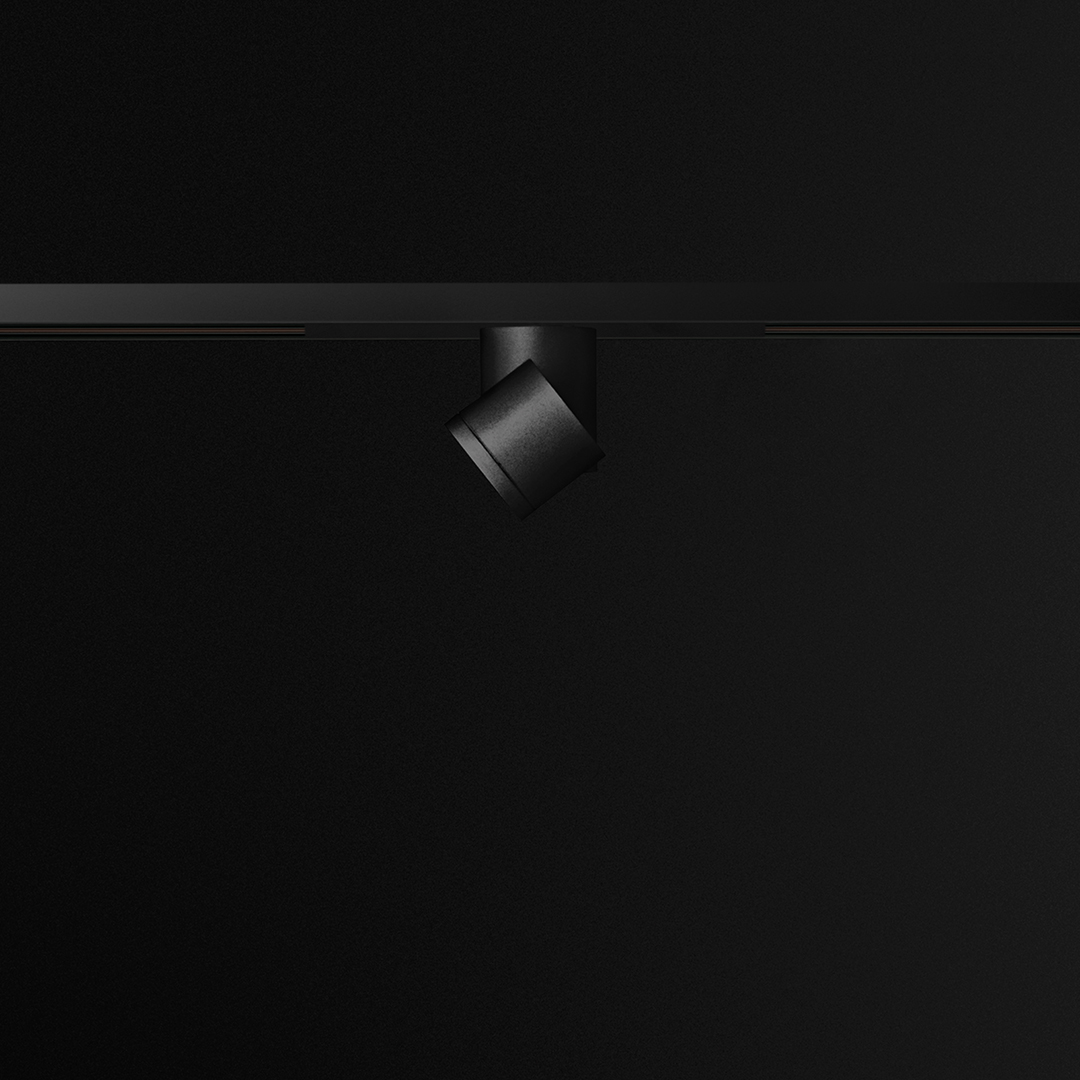

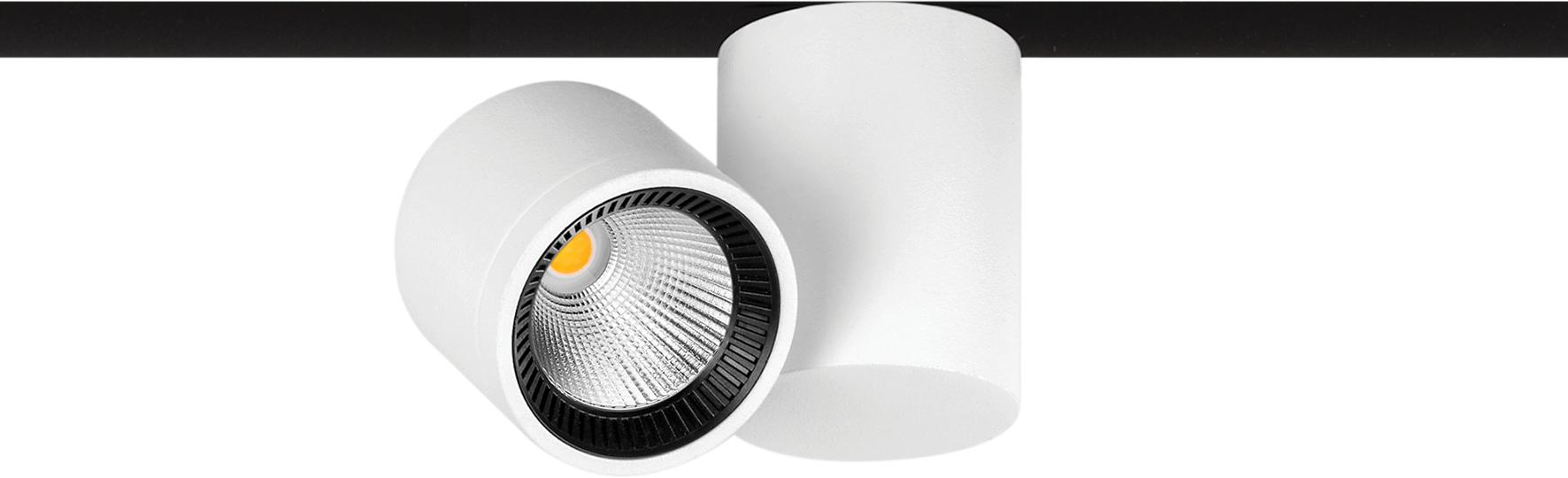

iO 48V is an LED spotlight that fits in the palm of your hand. Designed to be used with our track, it offers all the features of the best spotlights, but with minimal and hyper-reduced size.

Awards

Silver Delta Adi Awards 2016
If Product Design Award 2017 Winner
Adcv Gold 2017
Good Design Award 2017

iO 48V

iO 48V SHORT

iO 48V

Luminous flux

485 lm / 505 lm
Lighting efficiency

86% / 89% / 92%
Power

4.5 W
Dimming

0-10V, DALI
Colour temperature

2700K / 3000K
Chromatic stability

MacAdam Step 2
Light beam angle

20° / 30° / 56°

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Input Voltage

Temp.

CRI

Beam angle

Efficiency

Dimming

IC Rated

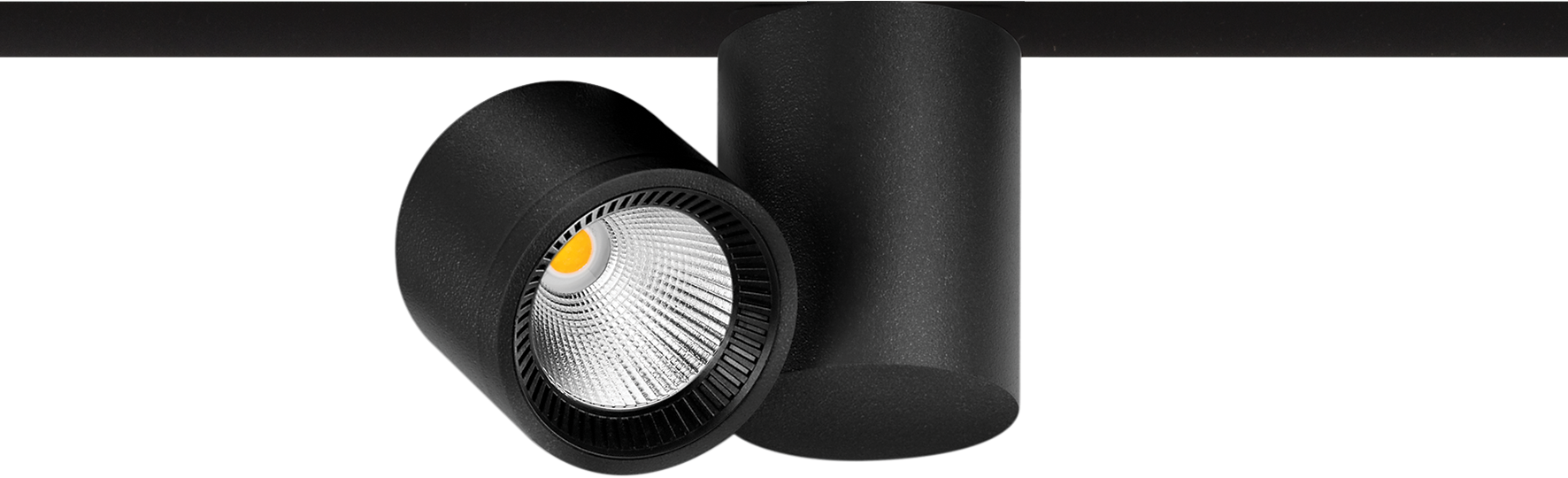

iO 48V UL DIM 0-10V 20º 2700K NT

Reference:

U3480110NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 20º 2700K WT

Reference:

U3480110WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 20º 3000K NT

Reference:

U3480111NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 20º 3000K WT

Reference:

U3480111WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 30º 2700K NT

Reference:

U3480120NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 30º 2700K WT

Reference:

U3480120WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 30º 3000K NT

Reference:

U3480121NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 30º 3000K WT

Reference:

U3480121WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 56º 2700K NT

Reference:

U3480130NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 56º 2700K WT

Reference:

U3480130WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 56º 3000K NT

Reference:

U3480131NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 56º 3000K WT

Reference:

U3480131WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM DALI 20º 2700K NT

Reference:

U3480210NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 20º 2700K WT

Reference:

U3480210WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 20º 3000K NT

Reference:

U3480211NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 20º 3000K WT

Reference:

U3480211WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 30º 2700K NT

Reference:

U3480220NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 30º 2700K WT

Reference:

U3480220WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 30º 3000K NT

Reference:

U3480221NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 30º 3000K WT

Reference:

U3480221WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 56º 2700K NT

Reference:

U3480230NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 56º 2700K WT

Reference:

U3480230WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 56º 3000K NT

Reference:

U3480231NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 56º 3000K WT

Reference:

U3480231WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-

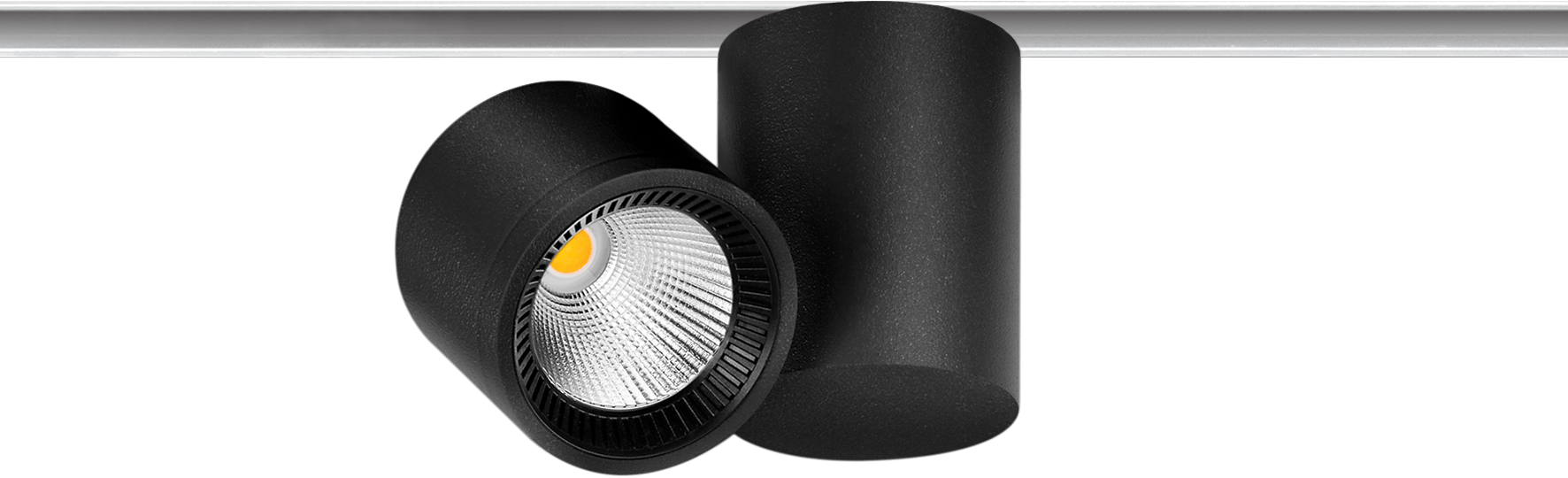

iO 48V UL DIM 0-10V 20º 2700K NTW

Reference:

U3480110NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-

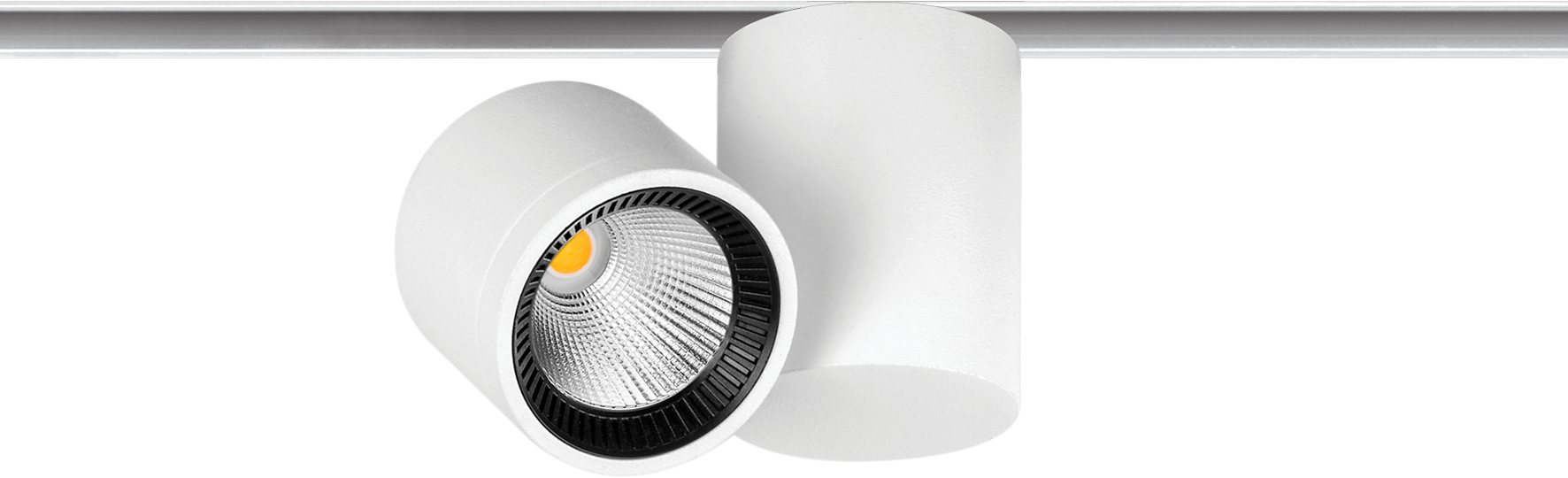

iO 48V UL DIM 0-10V 20º 2700K WTW

Reference:

U3480110WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 20º 3000K NTW

Reference:

U3480111NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 20º 3000K WTW

Reference:

U3480111WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 30º 2700K NTW

Reference:

U3480120NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 30º 2700K WTW

Reference:

U3480120WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 30º 3000K NTW

Reference:

U3480121NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 30º 3000K WTW

Reference:

U3480121WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 56º 2700K NTW

Reference:

U3480130NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 56º 2700K WTW

Reference:

U3480130WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 56º 3000K NTW

Reference:

U3480131NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM 0-10V 56º 3000K WTW

Reference:

U3480131WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

0-10V

IC Rated:

-
iO 48V UL DIM DALI 20º 2700K NTW

Reference:

U3480210NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 20º 2700K WTW

Reference:

U3480210WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 20º 3000K NTW

Reference:

U3480211NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 20º 3000K WTW

Reference:

U3480211WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

92%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 30º 2700K NTW

Reference:

U3480220NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 30º 2700K WTW

Reference:

U3480220WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 30º 3000K NTW

Reference:

U3480221NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 30º 3000K WTW

Reference:

U3480221WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

30°

Lighting efficiency:

89%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 56º 2700K NTW

Reference:

U3480230NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 56º 2700K WTW

Reference:

U3480230WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

485 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 56º 3000K NTW

Reference:

U3480231NTW

Mounting Accessory / Driver:

-

Colour:

Textured black - White track

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-
iO 48V UL DIM DALI 56º 3000K WTW

Reference:

U3480231WTW

Mounting Accessory / Driver:

-

Colour:

Textured white - White track

Luminous flux:

505 lm

Power:

4.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

56°

Lighting efficiency:

86%

Dimming:

DALI

IC Rated:

-

Accessories

BEAM MIXER DIFFUSER

ANTI-GLARE HONEYCOMB LOUVER

TRACK 48V OPTIONS

¿Te interesa este producto? Contáctanos

Phone

This field is for validation purposes and should be left unchanged.

Nombre*

Apellidos*

Email*

Teléfono*

País*

Ciudad*

Empresa*

Profesión*

Especifica tu profesión*

Tu mensaje

He leído y acepto la política de privacidad. *

Quiero suscribirme al newsletter.

iO 48V

TRACK LIGHTS

Awards

Silver Delta Adi Awards 2016

If Product Design Award 2017 Winner

Adcv Gold 2017

Good Design Award 2017

iO 48V

Luminous flux

Power

Colour temperature

Lighting efficiency

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Accessories

¿Te interesa este producto? Contáctanos

Related products

SIX 48V

FIT 48V

PLUS 48V

LINE 48V

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

EPD

Downloads

Register

Log in
