LENS LIGHT

CEILING RECESSED

The compact Lens Light luminaire bathes the figure with scenic, powerful and concentrated light, perfect for accent lighting. Its design follows the discreet and seemingly simple line of the Shot Light. But it gains a more decorative presence as a point of light designed to explore the most dramatic aspect of interior lighting.

LENS LIGHT
LENS LIGHT

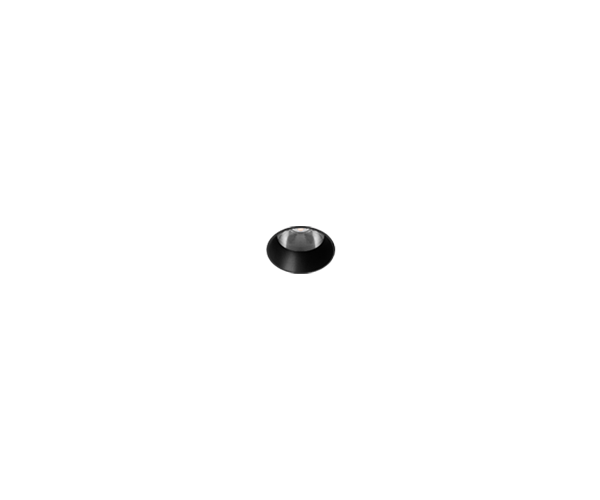

LENS LIGHT TRIMLESS
LENS LIGHT TRIMLESS

LENS LIGHT

  • Mounting accessories

    Remote Box

  • Luminous flux

    290 lm / 310 lm / 330 lm

  • Lighting efficiency

    79% / 82%

  • Power

    2.7 W

  • Dimming

    0-10V

  • Colour temperature

    2700K / 3000K / 4000K

  • Chromatic stability

    MacAdam Step 2

  • Light beam angle

    12°

EPD Instructions
Luminous flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • Mounting Accessory
      IC Rated
        Input Voltage
          CRI
            Light beam angle
              Dimming
                Cord length
                  Colour

                    • Model

                      Ref.

                      Mounting Accessory / Driver

                      Colour

                      Lum. flux

                      Power

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      IC Rated

                    • LENS LIGHT UL 2700K N
                      Reference:

                      U4690000N

                      Mounting Accessory / Driver:

                      Remote Box
                      REMOTE BOX 2-12.4W 250mA
                      U1000128 · 1 to 4 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Black

                      Luminous flux:

                      290 lm

                      Power:

                      2.7 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      12°

                      Lighting efficiency:

                      79%

                      IC Rated:

                      Yes

                    • LENS LIGHT UL 2700K W
                      Reference:

                      U4690000W

                      Mounting Accessory / Driver:

                      Remote Box
                      REMOTE BOX 2-12.4W 250mA
                      U1000128 · 1 to 4 Luminaires
                      (Mandatory / not included)

                      Colour:

                      White

                      Luminous flux:

                      290 lm

                      Power:

                      2.7 W

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      12°

                      Lighting efficiency:

                      82%

                      IC Rated:

                      Yes

                    • LENS LIGHT UL 3000K N
                      Reference:

                      U4690001N

                      Mounting Accessory / Driver:

                      Remote Box
                      REMOTE BOX 2-12.4W 250mA
                      U1000128 · 1 to 4 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Black

                      Luminous flux:

                      310 lm

                      Power:

                      2.7 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      12°

                      Lighting efficiency:

                      79%

                      IC Rated:

                      Yes

                    • LENS LIGHT UL 3000K W
                      Reference:

                      U4690001W

                      Mounting Accessory / Driver:

                      Remote Box
                      REMOTE BOX 2-12.4W 250mA
                      U1000128 · 1 to 4 Luminaires
                      (Mandatory / not included)

                      Colour:

                      White

                      Luminous flux:

                      310 lm

                      Power:

                      2.7 W

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      12°

                      Lighting efficiency:

                      82%

                      IC Rated:

                      Yes

                    • LENS LIGHT UL 4000K N
                      Reference:

                      U4690002N

                      Mounting Accessory / Driver:

                      Remote Box
                      REMOTE BOX 2-12.4W 250mA
                      U1000128 · 1 to 4 Luminaires
                      (Mandatory / not included)

                      Colour:

                      Black

                      Luminous flux:

                      330 lm

                      Power:

                      2.7 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      12°

                      Lighting efficiency:

                      79%

                      IC Rated:

                      Yes

                    • LENS LIGHT UL 4000K W
                      Reference:

                      U4690002W

                      Mounting Accessory / Driver:

                      Remote Box
                      REMOTE BOX 2-12.4W 250mA
                      U1000128 · 1 to 4 Luminaires
                      (Mandatory / not included)

                      Colour:

                      White

                      Luminous flux:

                      330 lm

                      Power:

                      2.7 W

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      12°

                      Lighting efficiency:

                      82%

                      IC Rated:

                      Yes
