LEX

CEILING RECESSED

As the location of its LED is set back, Lex achieves great visual comfort. Its matte finish shade fosters this aspect and offers elegant aesthetics.

Awards

Design Plus 2012 Award
Premios Delta´12 SelecciÓn

LEX

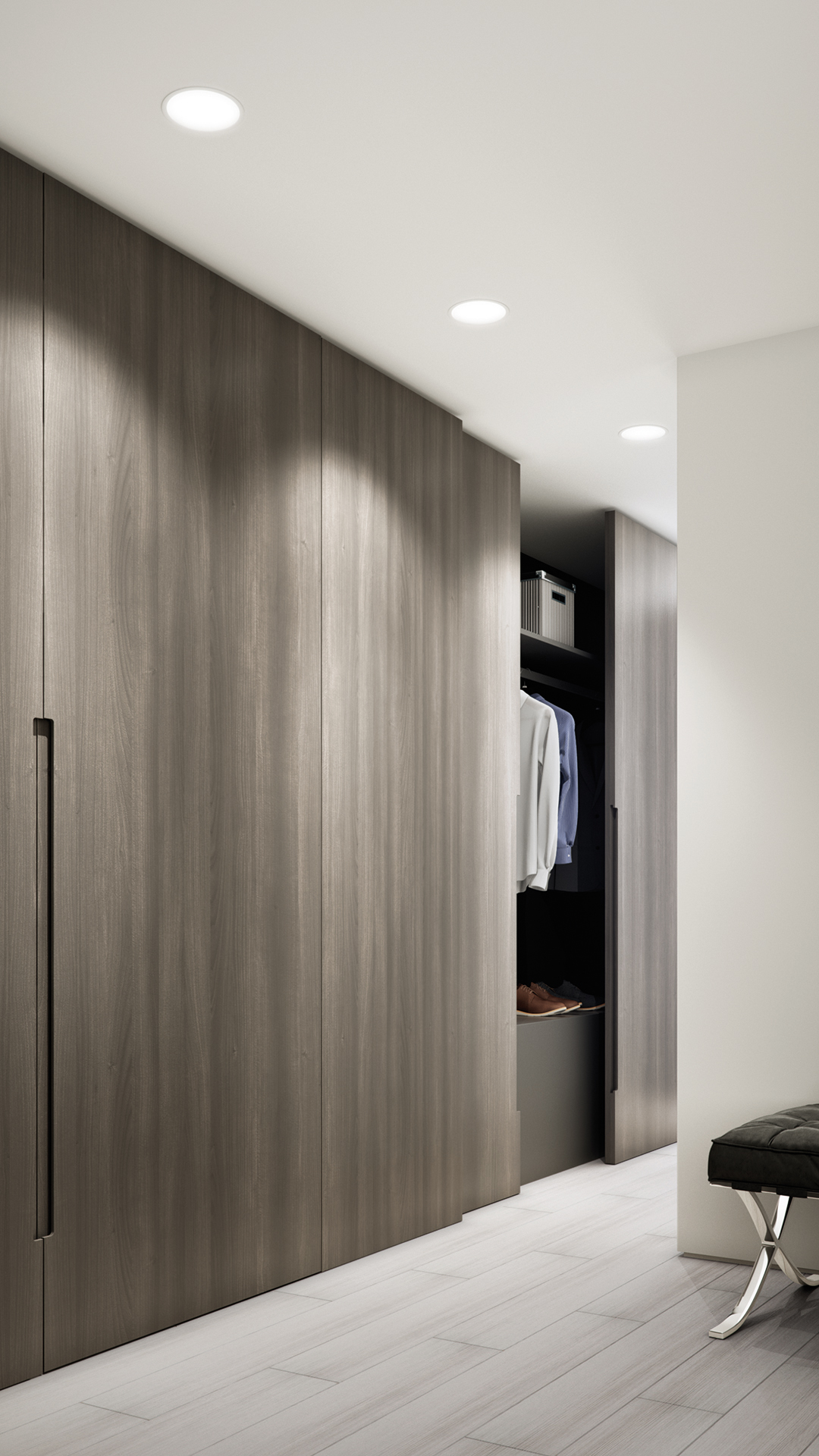

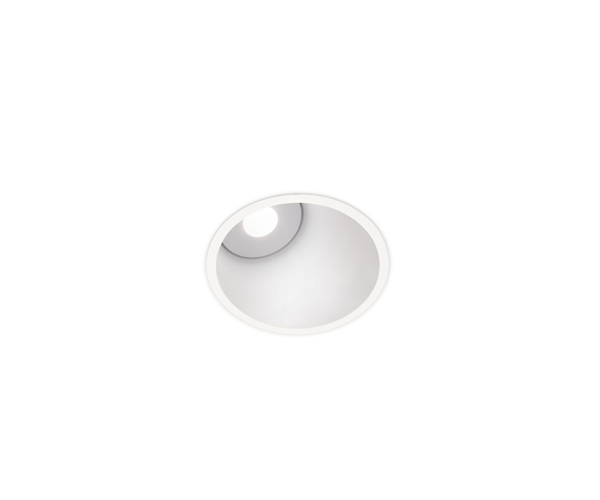

LEX ASYMMETRIC

LEX

Mounting accessories

Remote Box - Case L
Luminous flux

950 lm / 990 lm / 1000 lm / 1005 lm
Lighting efficiency

60% / 66% / 67% / 70%
Power

7.1 W
Dimming

0-10V
Colour temperature

2700K / 3000K / 3500K / 4000K
Chromatic stability

MacAdam Step 2
Light beam angle

71°

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

IC Rated

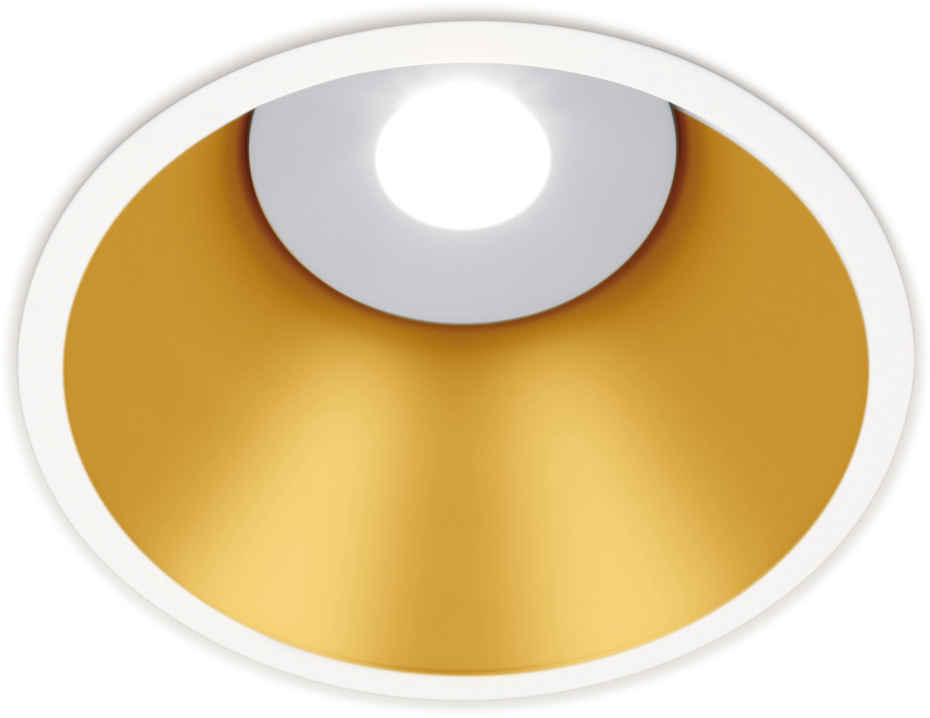

LEX UL 2700K G

Reference:

U0700100G

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Gold

Luminous flux:

950 lm

Power:

7.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

IC Rated:

Yes

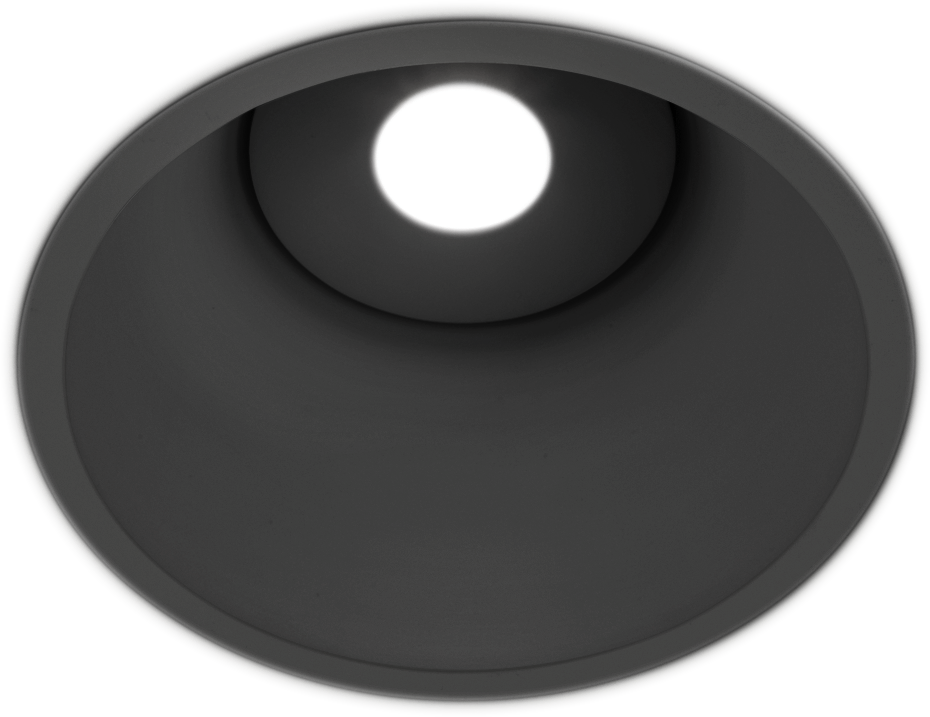

LEX UL 2700K N

Reference:

U0700100N

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Matt black

Luminous flux:

950 lm

Power:

7.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

IC Rated:

Yes

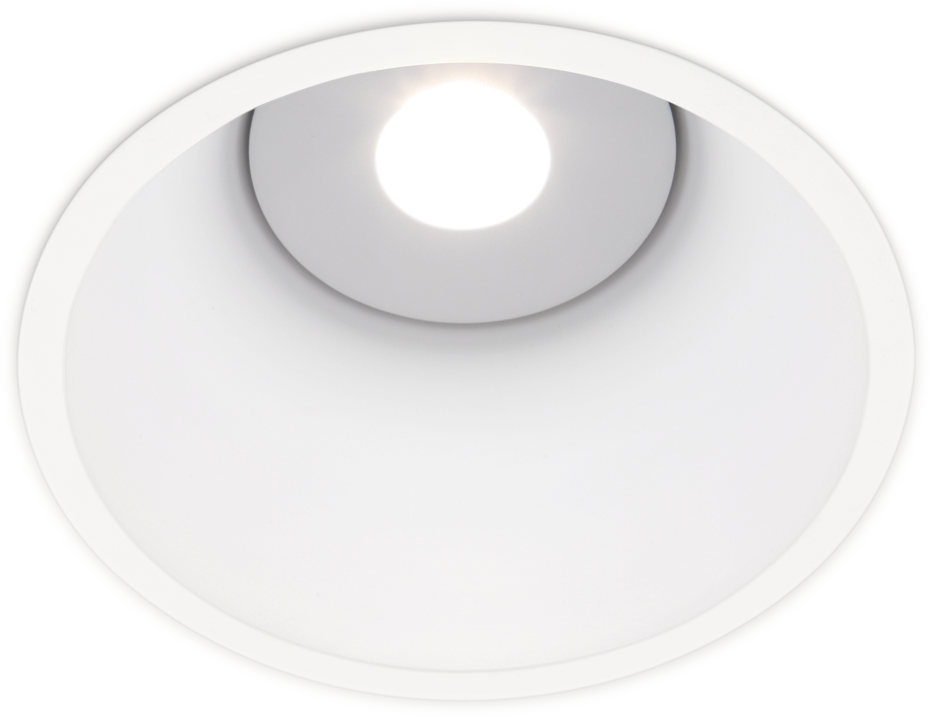

LEX UL 2700K W

Reference:

U0700100W

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Matt white

Luminous flux:

950 lm

Power:

7.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

IC Rated:

Yes

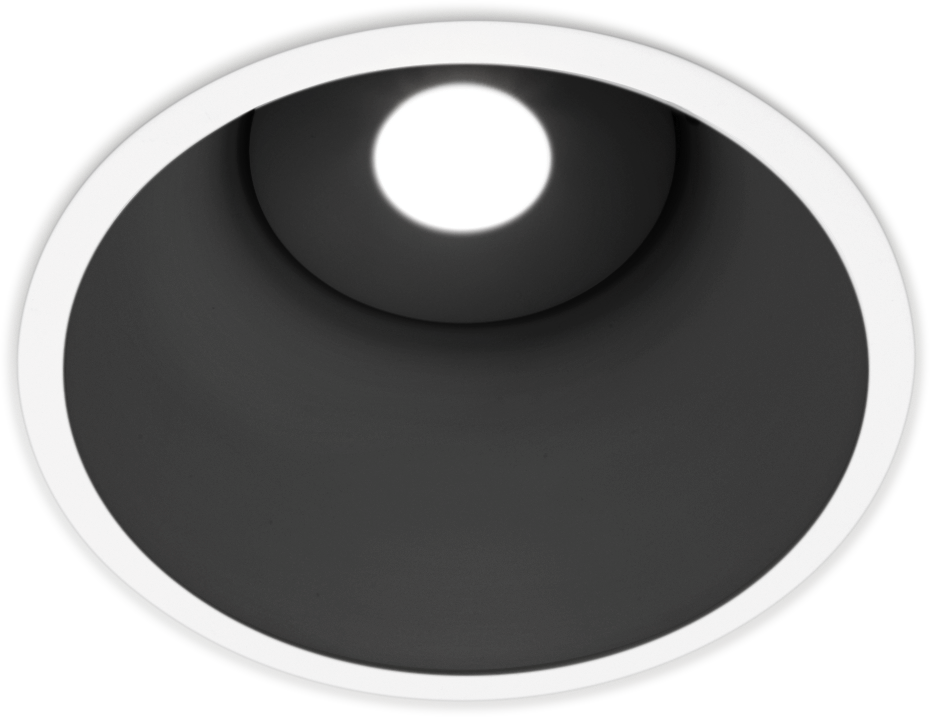

LEX UL 2700K WN

Reference:

U0700100WN

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

White-Black

Luminous flux:

950 lm

Power:

7.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

IC Rated:

Yes

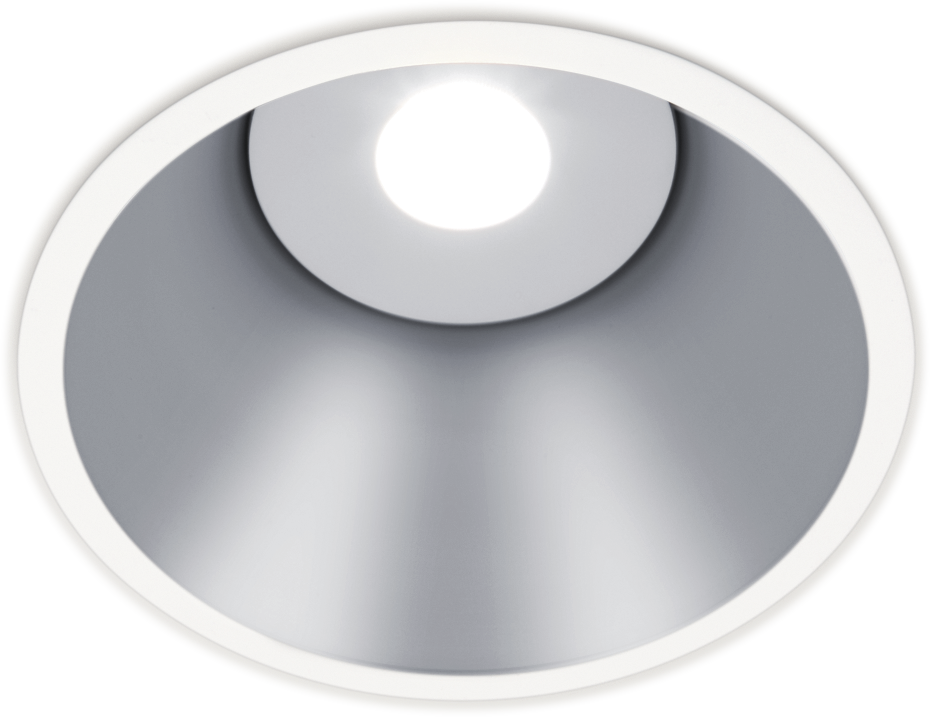

LEX UL 2700K Z

Reference:

U0700100Z

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Aluminium

Luminous flux:

950 lm

Power:

7.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

IC Rated:

Yes
LEX UL 3000K G

Reference:

U0700101G

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Gold

Luminous flux:

990 lm

Power:

7.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

IC Rated:

Yes
LEX UL 3000K N

Reference:

U0700101N

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Matt black

Luminous flux:

990 lm

Power:

7.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

IC Rated:

Yes
LEX UL 3000K W

Reference:

U0700101W

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Matt white

Luminous flux:

990 lm

Power:

7.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

IC Rated:

Yes
LEX UL 3000K WN

Reference:

U0700101WN

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

White-Black

Luminous flux:

990 lm

Power:

7.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

IC Rated:

Yes
LEX UL 3000K Z

Reference:

U0700101Z

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Aluminium

Luminous flux:

990 lm

Power:

7.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

IC Rated:

Yes
LEX UL 4000K G

Reference:

U0700102G

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Gold

Luminous flux:

1005 lm

Power:

7.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

IC Rated:

Yes
LEX UL 4000K N

Reference:

U0700102N

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Matt black

Luminous flux:

1005 lm

Power:

7.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

IC Rated:

Yes
LEX UL 4000K W

Reference:

U0700102W

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Matt white

Luminous flux:

1005 lm

Power:

7.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

IC Rated:

Yes
LEX UL 4000K WN

Reference:

U0700102WN

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

White-Black

Luminous flux:

1005 lm

Power:

7.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

IC Rated:

Yes
LEX UL 4000K Z

Reference:

U0700102Z

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Aluminium

Luminous flux:

1005 lm

Power:

7.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

IC Rated:

Yes
LEX UL 3500K G

Reference:

U0700103G

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Gold

Luminous flux:

1000 lm

Power:

7.1 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

67%

IC Rated:

Yes
LEX UL 3500K N

Reference:

U0700103N

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Matt black

Luminous flux:

1000 lm

Power:

7.1 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

IC Rated:

Yes
LEX UL 3500K W

Reference:

U0700103W

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Matt white

Luminous flux:

1000 lm

Power:

7.1 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

70%

IC Rated:

Yes
LEX UL 3500K WN

Reference:

U0700103WN

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

White-Black

Luminous flux:

1000 lm

Power:

7.1 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

60%

IC Rated:

Yes
LEX UL 3500K Z

Reference:

U0700103Z

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 3.5-12.3W 220mA
(Mandatory / not included)

Colour:

Aluminium

Luminous flux:

1000 lm

Power:

7.1 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

71°

Lighting efficiency:

66%

IC Rated:

Yes

Accessories

OPTIONAL MOUNTING ACCESSORY
