NANO

CEILING RECESSED

Nano is an exercise in formal synthesis that redraws the boundaries of technical lighting, offering maximum light output with minimum use of raw materials.

NANO RECESSED

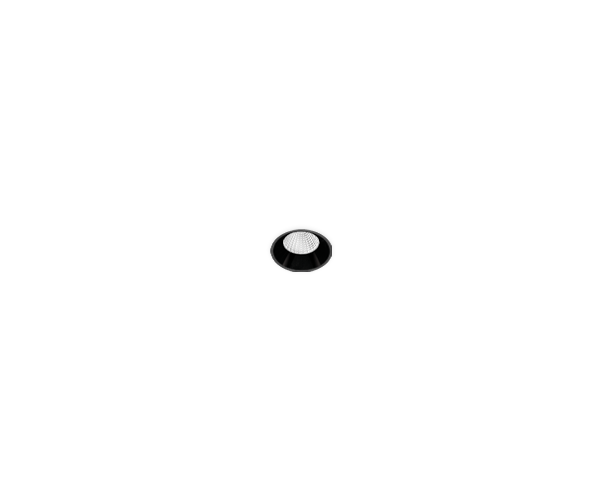

NANO TRIMLESS

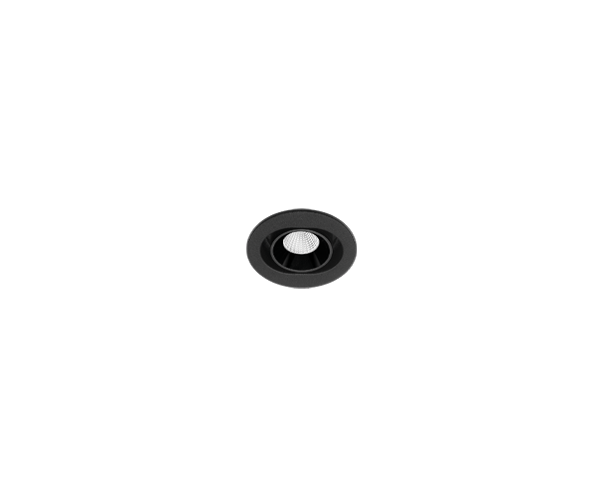

NANO TILT

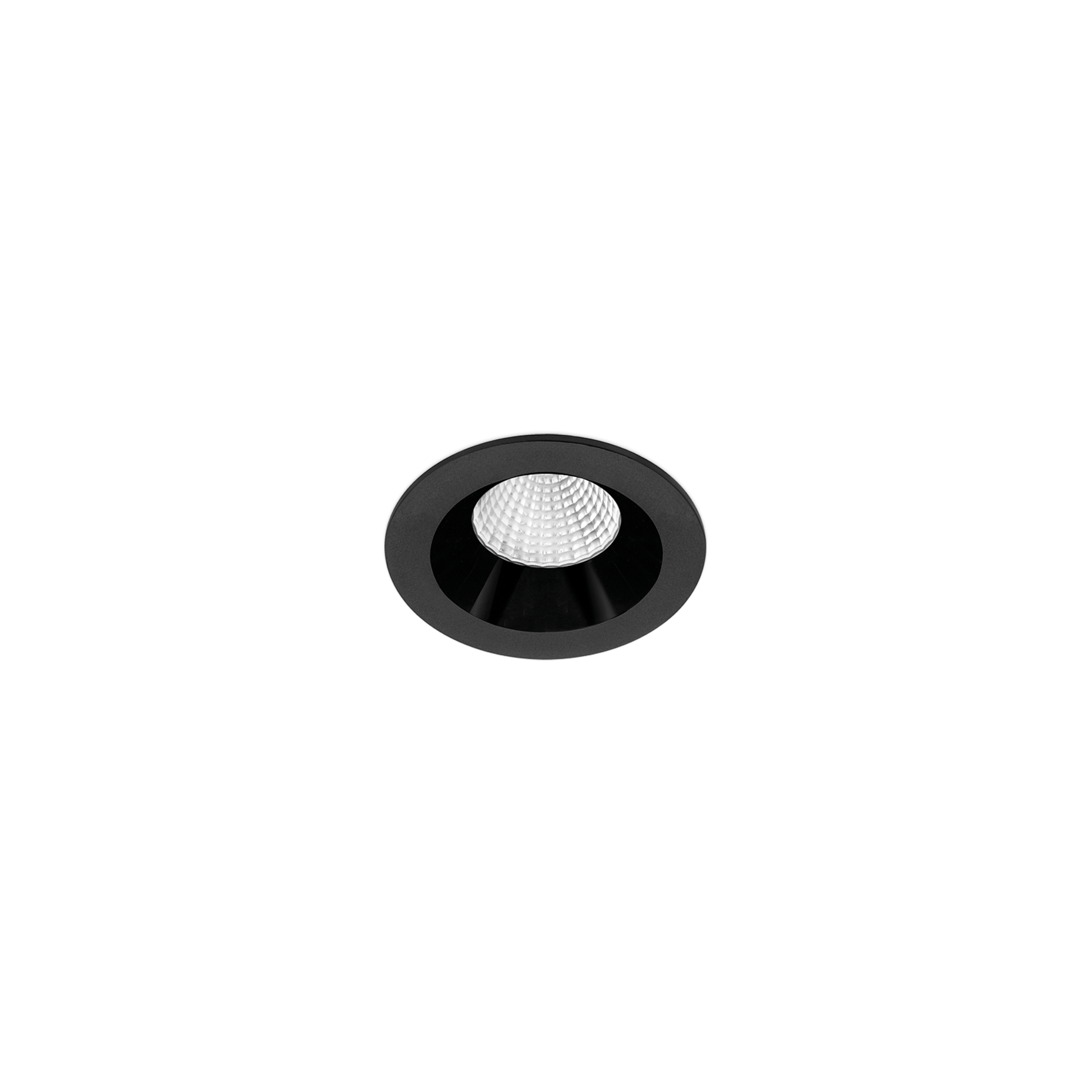

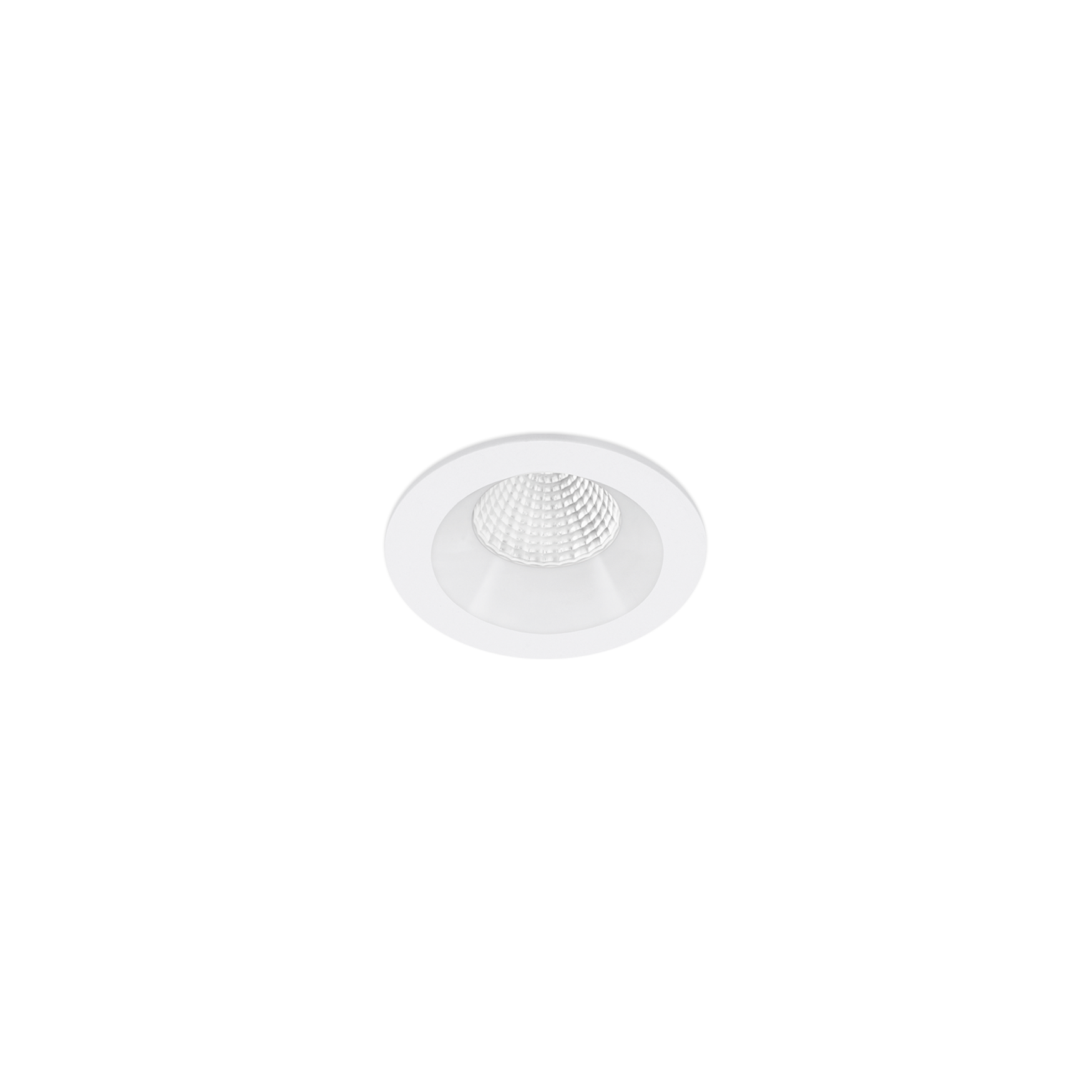

NANO RECESSED

Mounting accessories

Remote Box
Luminous flux

280 lm / 300 lm / 310 lm / 320 lm
Lighting efficiency

76% / 84%
Power

2 W
Dimming

0-10V / TRIAC/ELV
Colour temperature

2700K / 3000K / 3500K / 4000K
Chromatic stability

MacAdam Step 2
Light beam angle

18° / 34°

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

IC Rated
NANO RECESSED UL SPOT 2700K N

Reference:

U5390000N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

Black

Luminous flux:

280 lm

Power:

2 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

76%

IC Rated:

Yes
NANO RECESSED UL SPOT 2700K W

Reference:

U5390000W

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

White

Luminous flux:

280 lm

Power:

2 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

76%

IC Rated:

Yes
NANO RECESSED UL SPOT 3000K N

Reference:

U5390001N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

Black

Luminous flux:

300 lm

Power:

2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

76%

IC Rated:

Yes
NANO RECESSED UL SPOT 3000K W

Reference:

U5390001W

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

White

Luminous flux:

300 lm

Power:

2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

76%

IC Rated:

Yes
NANO RECESSED UL SPOT 3500K N

Reference:

U5390003N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

Black

Luminous flux:

310 lm

Power:

2 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

76%

IC Rated:

Yes
NANO RECESSED UL SPOT 3500K W

Reference:

U5390003W

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

White

Luminous flux:

310 lm

Power:

2 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

76%

IC Rated:

Yes
NANO RECESSED UL SPOT 4000K N

Reference:

U5390002N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

Black

Luminous flux:

320 lm

Power:

2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

76%

IC Rated:

Yes
NANO RECESSED UL SPOT 4000K W

Reference:

U5390002W

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

White

Luminous flux:

320 lm

Power:

2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

18°

Lighting efficiency:

76%

IC Rated:

Yes
NANO RECESSED UL FLOOD 2700K N

Reference:

U5390010N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

Black

Luminous flux:

280 lm

Power:

2 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

84%

IC Rated:

Yes
NANO RECESSED UL FLOOD 2700K W

Reference:

U5390010W

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

White

Luminous flux:

280 lm

Power:

2 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

84%

IC Rated:

Yes
NANO RECESSED UL FLOOD 3000K N

Reference:

U5390011N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

Black

Luminous flux:

300 lm

Power:

2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

84%

IC Rated:

Yes
NANO RECESSED UL FLOOD 3000K W

Reference:

U5390011W

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

White

Luminous flux:

300 lm

Power:

2 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

84%

IC Rated:

Yes
NANO RECESSED UL FLOOD 3500K N

Reference:

U5390013N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

Black

Luminous flux:

310 lm

Power:

2 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

84%

IC Rated:

Yes
NANO RECESSED UL FLOOD 3500K W

Reference:

U5390013W

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

White

Luminous flux:

310 lm

Power:

2 W

Colour temperature:

3500K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

84%

IC Rated:

Yes
NANO RECESSED UL FLOOD 4000K N

Reference:

U5390012N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

Black

Luminous flux:

320 lm

Power:

2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

84%

IC Rated:

Yes
NANO RECESSED UL FLOOD 4000K W

Reference:

U5390012W

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1–3.6W 100mA
(Mandatory / not included)

Colour:

White

Luminous flux:

320 lm

Power:

2 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

84%

IC Rated:

Yes
