PLUS MICRO 24V

TRACK LIGHTS

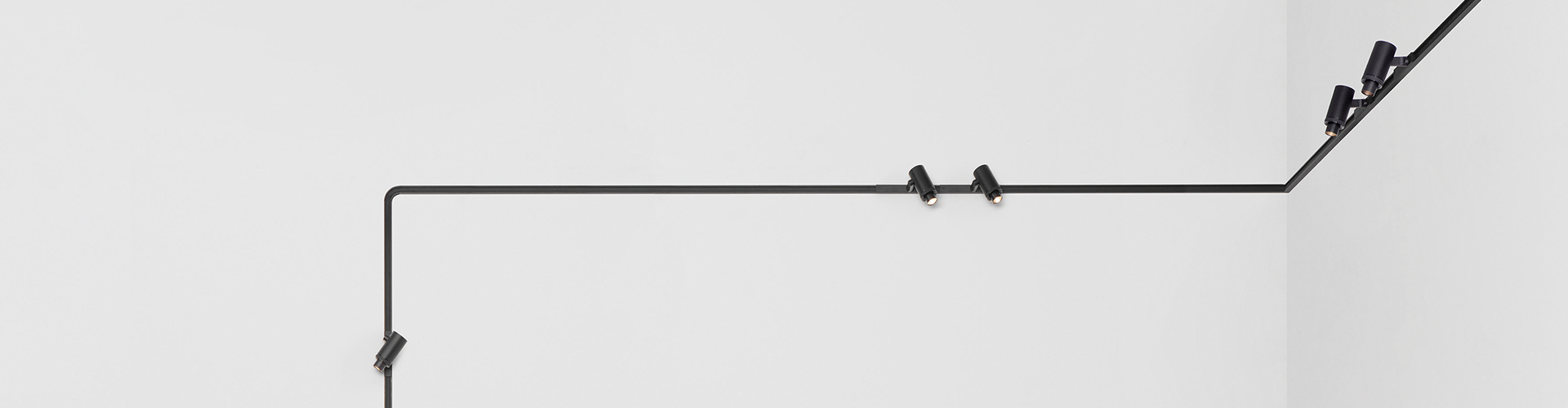

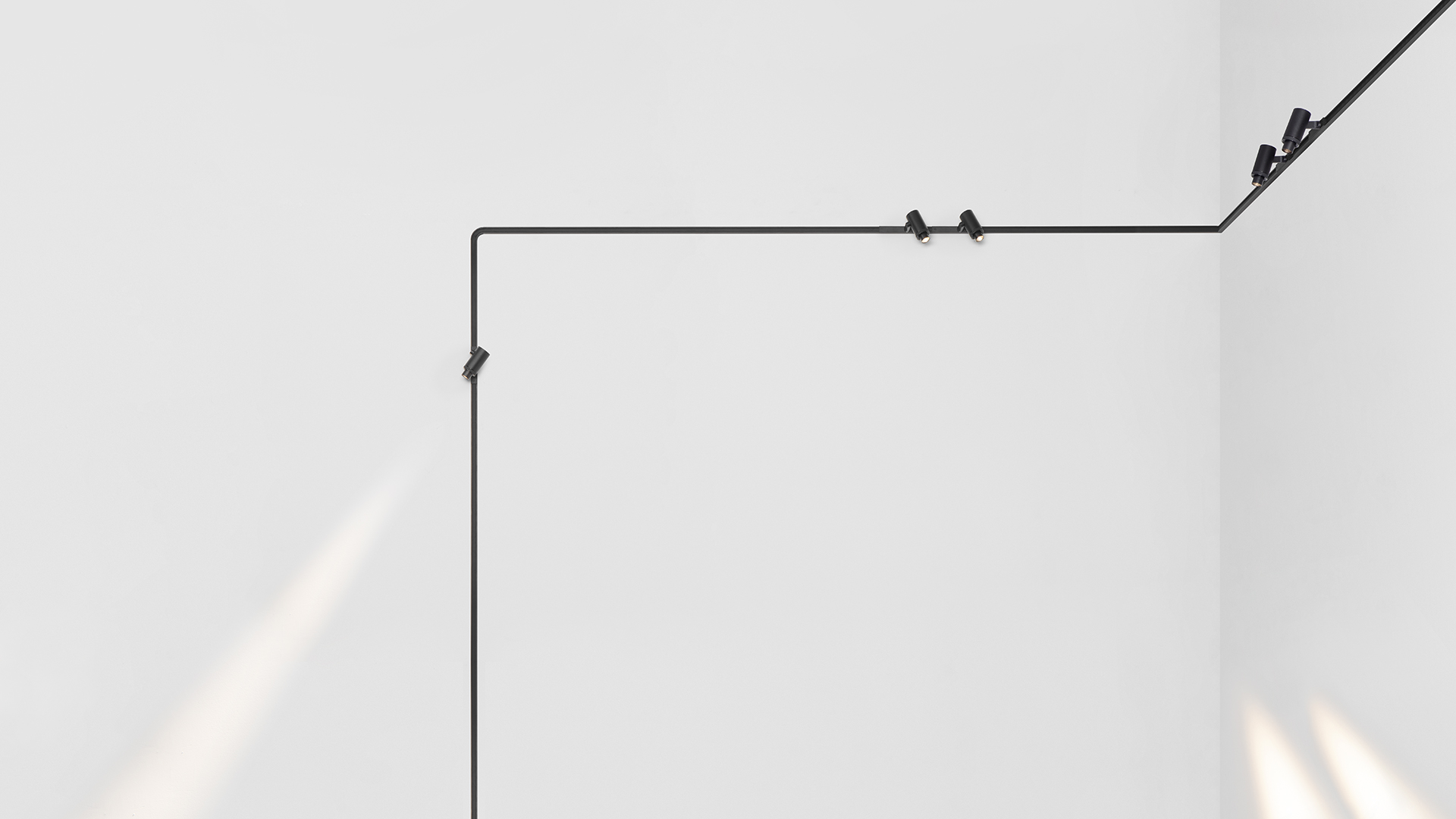

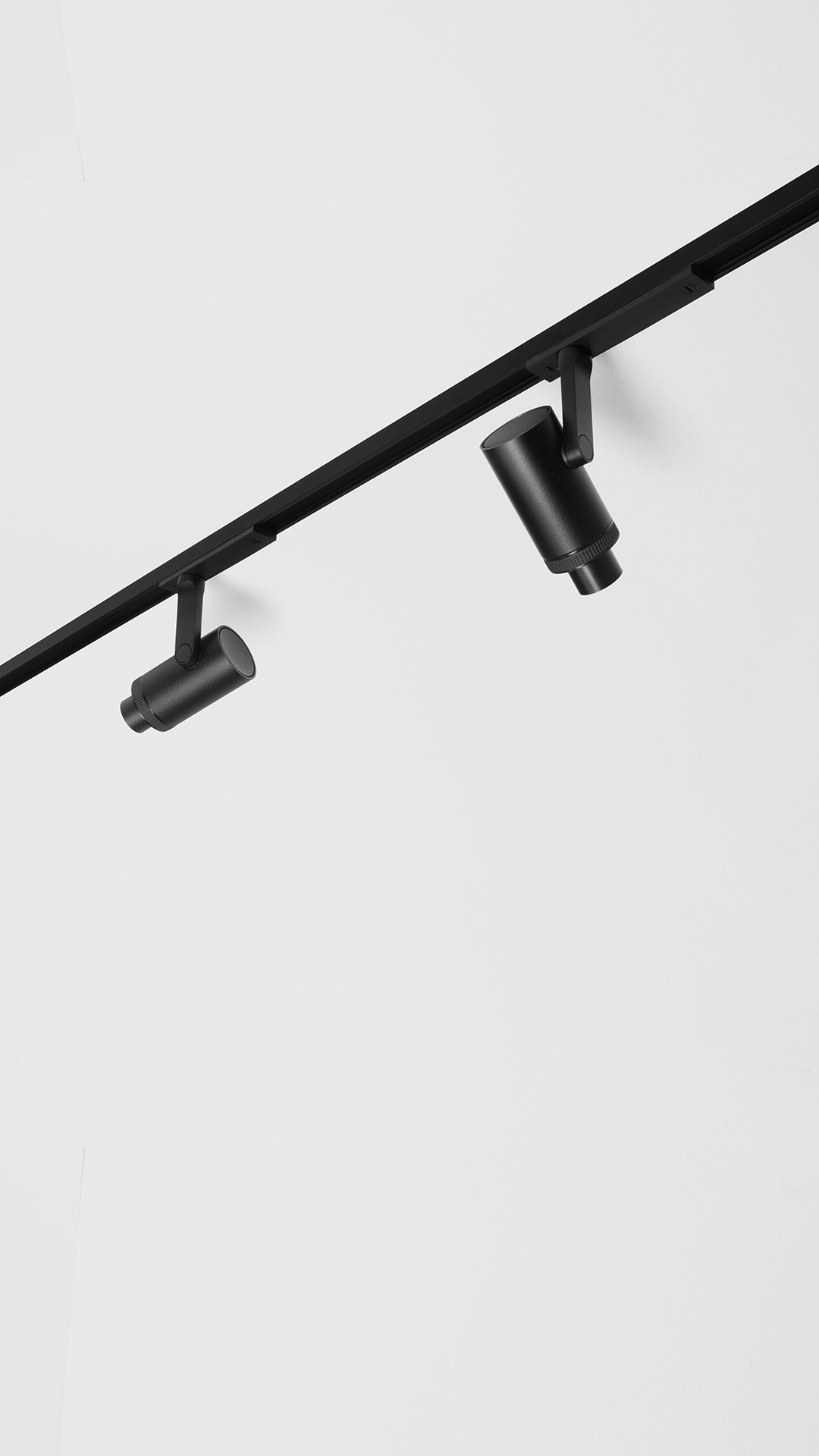

Plus Micro 24V is a projector for the Minimal Track system that offers the possibility of expanding or concentrating the beam light with just a smooth manual gesture. This characteristic makes Plus the ideal alternative for applications where the precision whithin the beam of light is essential.

Awards

  • Reddot Design Award Innovate Product Winner 2020

    Reddot Design Award Innovate Product Winner 2020

  • Reddot Design Award Lighting Design Winner 2020

    Reddot Design Award Lighting Design Winner 2020

  • Delta Awards´20 Bronze

    Delta Awards´20 Bronze

  • European Product Design 2020 Honorable Mention

    European Product Design 2020 Honorable Mention

  • Fx International Interior Design Award

    Fx International Interior Design Award

  • Archiproduct Design Award Winner 2020

    Archiproduct Design Award Winner 2020

PLUS MICRO 24V

  • Luminous flux

    530 lm / 550 lm / 590 lm

  • Lighting efficiency

    10-17%

  • Power

    4.7 W

  • Dimming

    Dim options

  • Colour temperature

    2700K / 3000K / 4000K

  • Chromatic stability

    MacAdam Step 2

  • Light beam angle

    10°-35°

EPD Instructions BIM
Luminous flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • Mounting Accessory
      IC Rated
        Input Voltage
          CRI
            Light beam angle
              Dimming
                Cord length
                  Colour

                    • Model

                      Ref.

                      Mounting Accessory / Driver

                      Colour

                      Lum. flux

                      Power

                      Input Voltage

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      IC Rated

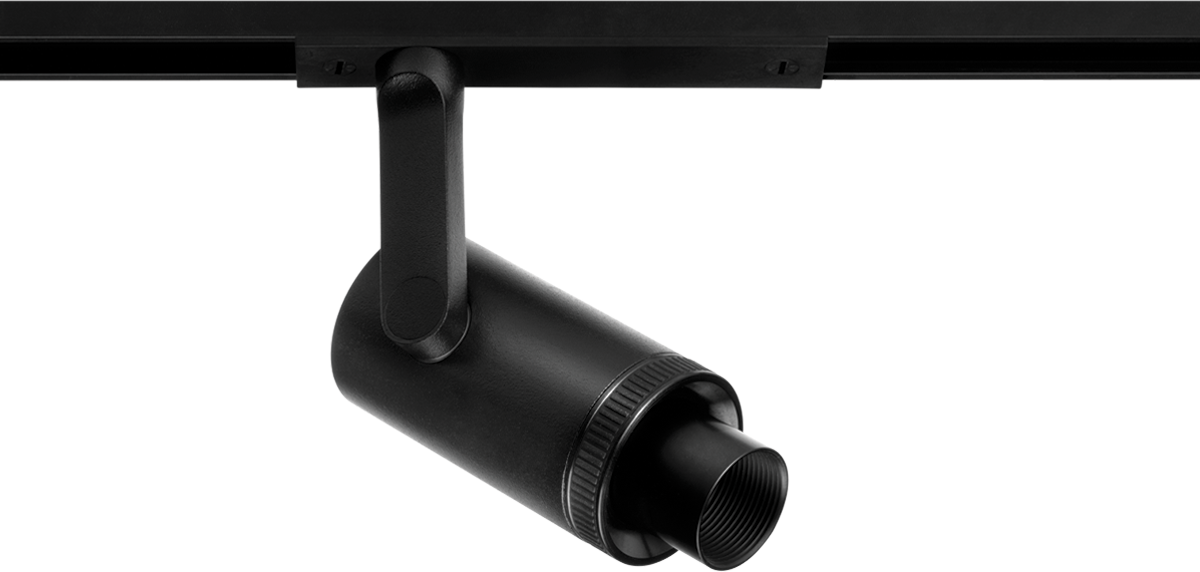

                    • PLUS MICRO 24V UL 2700K NT
                      Reference:

                      U3880000NT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured black

                      Luminous flux:

                      530 lm

                      Power:

                      4.7 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      10°-35°

                      Lighting efficiency:

                      10-17%

                      Dimming:

                      Dim options

                      IC Rated:

                      -

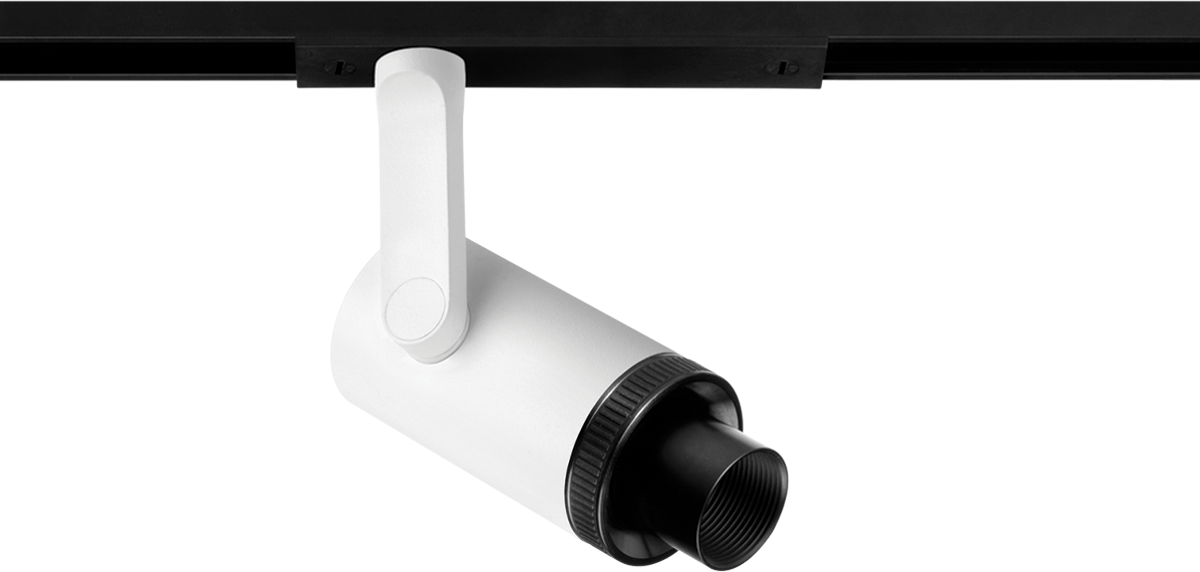

                    • PLUS MICRO 24V UL 2700K WT
                      Reference:

                      U3880000WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      530 lm

                      Power:

                      4.7 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      10°-35°

                      Lighting efficiency:

                      10-17%

                      Dimming:

                      Dim options

                      IC Rated:

                      -

                    • PLUS MICRO 24V UL 3000K NT
                      Reference:

                      U3880001NT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured black

                      Luminous flux:

                      550 lm

                      Power:

                      4.7 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      10°-35°

                      Lighting efficiency:

                      10-17%

                      Dimming:

                      Dim options

                      IC Rated:

                      -

                    • PLUS MICRO 24V UL 3000K WT
                      Reference:

                      U3880001WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      550 lm

                      Power:

                      4.7 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      10°-35°

                      Lighting efficiency:

                      10-17%

                      Dimming:

                      Dim options

                      IC Rated:

                      -

                    • PLUS MICRO 24V UL 4000K NT
                      Reference:

                      U3880002NT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured black

                      Luminous flux:

                      590 lm

                      Power:

                      4.7 W

                      Input Voltage:

                      -

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      10°-35°

                      Lighting efficiency:

                      10-17%

                      Dimming:

                      Dim options

                      IC Rated:

                      -

                    • PLUS MICRO 24V UL 4000K WT
                      Reference:

                      U3880002WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      590 lm

                      Power:

                      4.7 W

                      Input Voltage:

                      -

                      Colour temperature:

                      4000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      10°-35°

                      Lighting efficiency:

                      10-17%

                      Dimming:

                      Dim options

                      IC Rated:

                      -

                    Accessories

                    MINIMAL TRACK OPTIONS
