SHOT LIGHT

CEILING RECESSED

A luminaire conceived to be a small and discreet point of light in the ceiling, that hides the light source to offer maximum visual comfort. Specifically designed with an anti-glare screen and a micro-reflector, Shot Light generates a perfectly defined light beam.

Awards

Iconic Award Interior Innovation 2017 Winner
If Product Design Award 2017 Winner
Delta Award Selection 2018

SHOT LIGHT

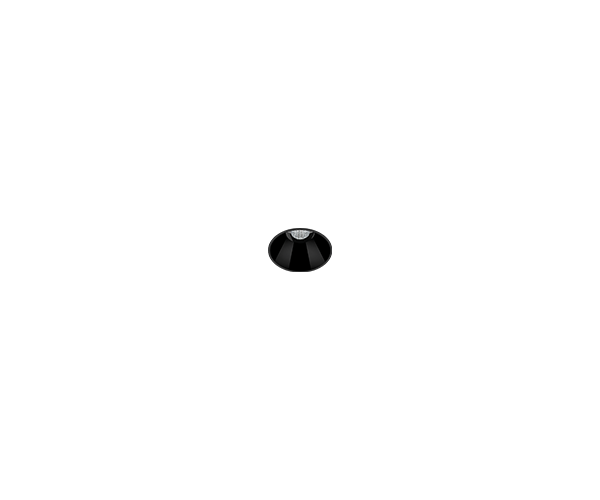

SHOT LIGHT TRIMLESS

SHOT LIGHT M

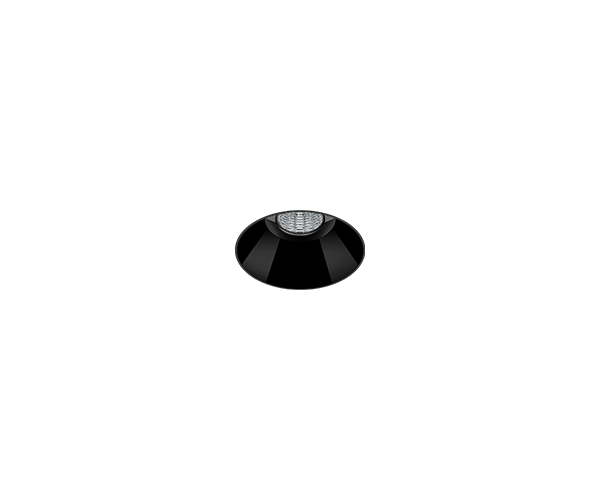

SHOT LIGHT M TRIMLESS

SHOT LIGHT M ASYMMETRIC

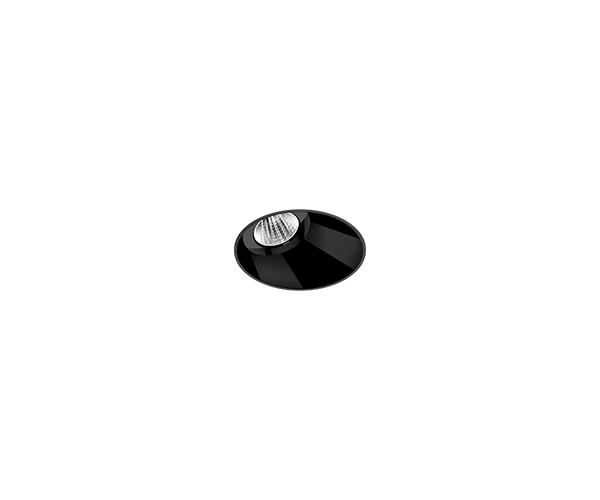

SHOT LIGHT M ASYMMETRIC TRIMLESS

SHOT LIGHT

Mounting accessories

Remote Box
Luminous flux

190 lm / 210 lm / 250 lm
Lighting efficiency

90% / 92%
Power

2.1 W
Dimming

0-10V
Colour temperature

2700K / 3000K / 4000K
Chromatic stability

MacAdam Step 3
Light beam angle

19 / 38

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

IC Rated

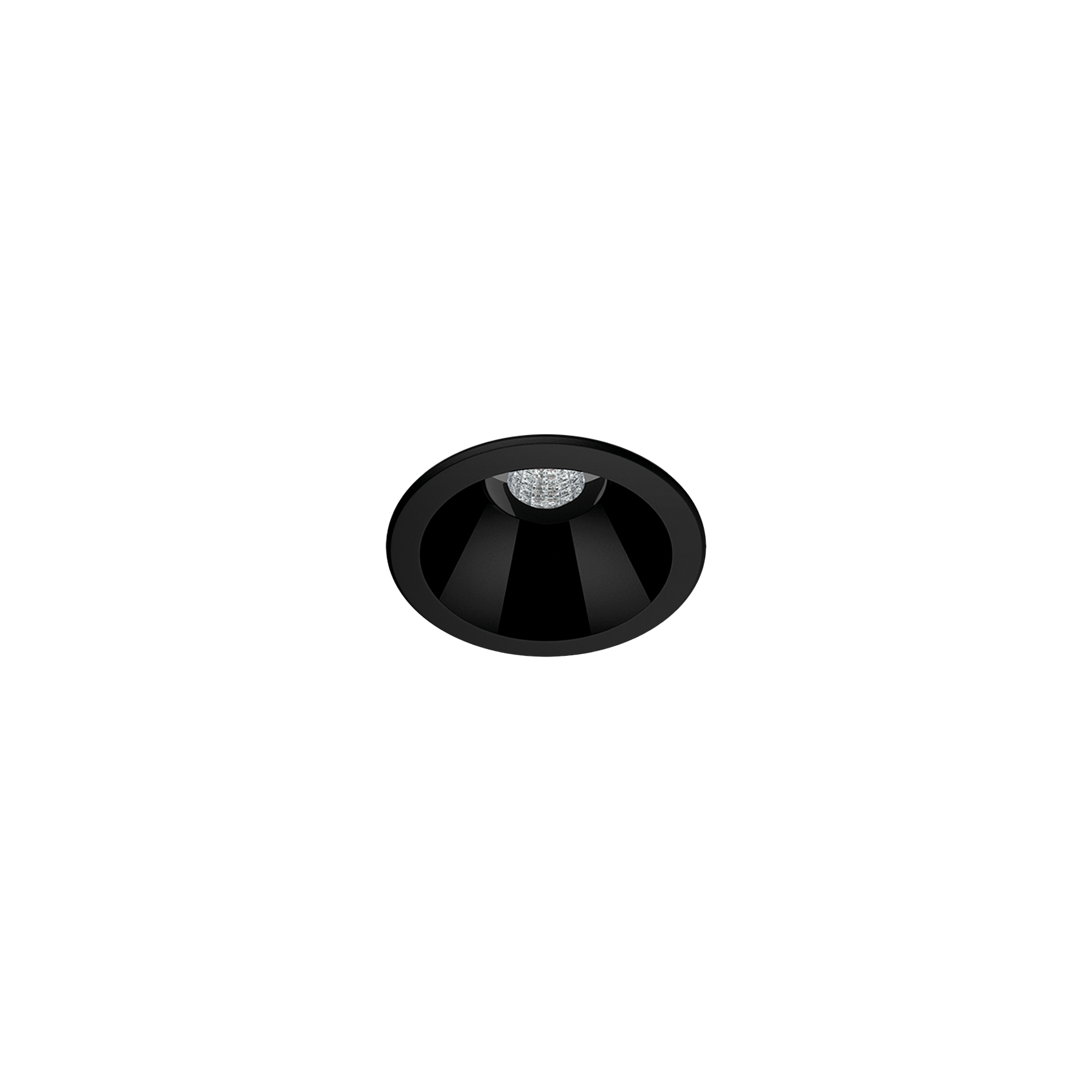

SHOT LIGHT UL 19º 2700K N

Reference:

U2681110N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

Black

Luminous flux:

190 lm

Power:

2.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 2700K N

Reference:

U2681110N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

Black

Luminous flux:

190 lm

Power:

2.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes

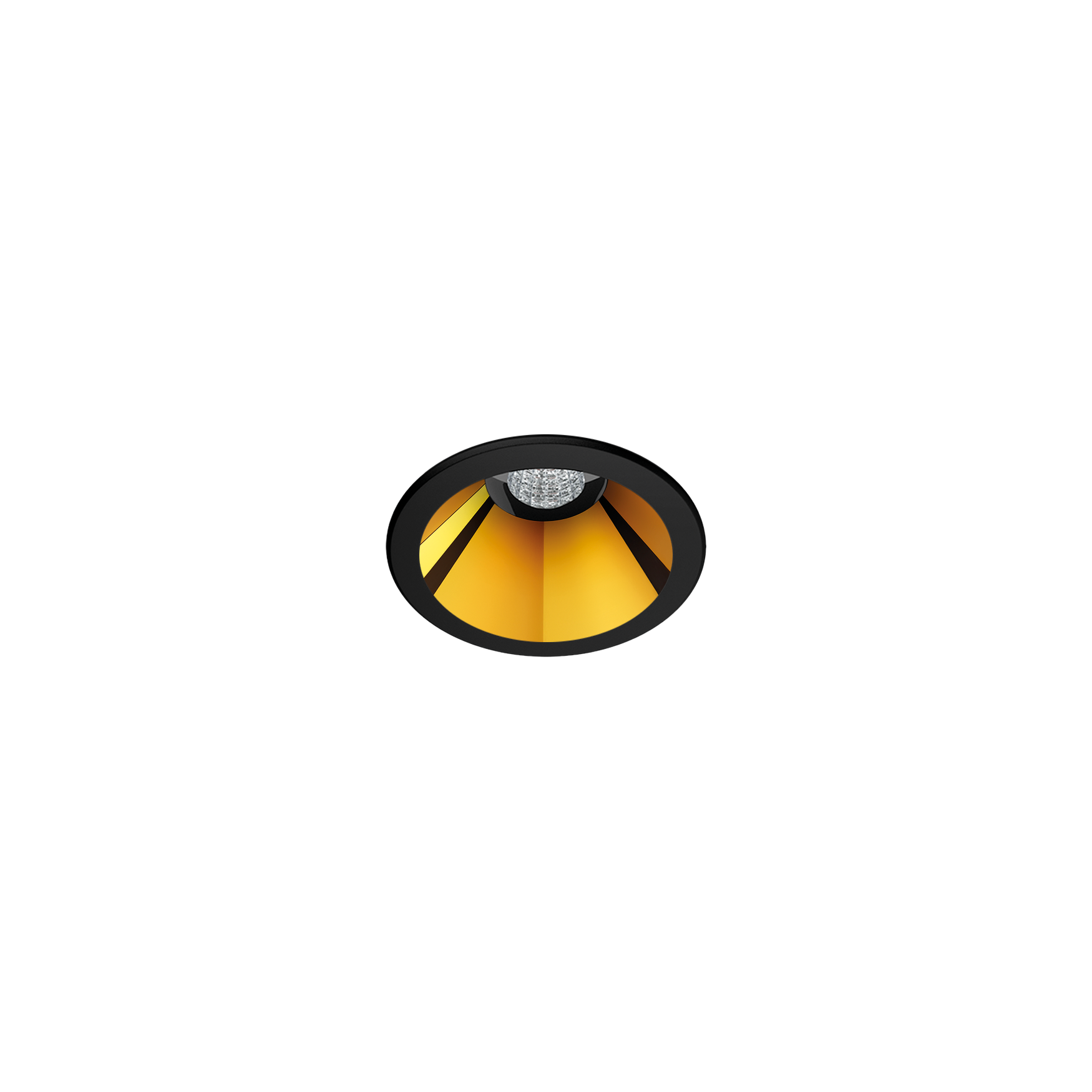

SHOT LIGHT UL 19º 2700K NMG

Reference:

U2681110NMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

Black-Metallized gold

Luminous flux:

190 lm

Power:

2.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 2700K NMG

Reference:

U2681110NMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

Black-Metallized gold

Luminous flux:

190 lm

Power:

2.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 2700K WMG

Reference:

U2681110WMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

White-Metallized gold

Luminous flux:

190 lm

Power:

2.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 2700K WMG

Reference:

U2681110WMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

White-Metallized gold

Luminous flux:

190 lm

Power:

2.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 3000K N

Reference:

U2681111N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

Black

Luminous flux:

210 lm

Power:

2.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 3000K N

Reference:

U2681111N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

Black

Luminous flux:

210 lm

Power:

2.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 3000K NMG

Reference:

U2681111NMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

Black-Metallized gold

Luminous flux:

210 lm

Power:

2.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 3000K NMG

Reference:

U2681111NMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

Black-Metallized gold

Luminous flux:

210 lm

Power:

2.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 3000K WMG

Reference:

U2681111WMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

White-Metallized gold

Luminous flux:

210 lm

Power:

2.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 3000K WMG

Reference:

U2681111WMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

White-Metallized gold

Luminous flux:

210 lm

Power:

2.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 4000K N

Reference:

U2681112N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

Black

Luminous flux:

250 lm

Power:

2.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 4000K N

Reference:

U2681112N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

Black

Luminous flux:

250 lm

Power:

2.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 4000K NMG

Reference:

U2681112NMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

Black-Metallized gold

Luminous flux:

250 lm

Power:

2.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 4000K NMG

Reference:

U2681112NMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

Black-Metallized gold

Luminous flux:

250 lm

Power:

2.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 4000K WMG

Reference:

U2681112WMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

White-Metallized gold

Luminous flux:

250 lm

Power:

2.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 19º 4000K WMG

Reference:

U2681112WMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

White-Metallized gold

Luminous flux:

250 lm

Power:

2.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

19

Lighting efficiency:

90%

IC Rated:

Yes
SHOT LIGHT UL 38º 2700K N

Reference:

U2681120N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

Black

Luminous flux:

190 lm

Power:

2.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 2700K N

Reference:

U2681120N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

Black

Luminous flux:

190 lm

Power:

2.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 2700K NMG

Reference:

U2681120NMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

Black-Metallized gold

Luminous flux:

190 lm

Power:

2.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 2700K NMG

Reference:

U2681120NMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

Black-Metallized gold

Luminous flux:

190 lm

Power:

2.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 2700K W

Reference:

U2681120W

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

White

Luminous flux:

190 lm

Power:

2.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 2700K W

Reference:

U2681120W

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

White

Luminous flux:

190 lm

Power:

2.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 2700K WMG

Reference:

U2681120WMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

White-Metallized gold

Luminous flux:

190 lm

Power:

2.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 2700K WMG

Reference:

U2681120WMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

White-Metallized gold

Luminous flux:

190 lm

Power:

2.1 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 3000K N

Reference:

U2681121N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

Black

Luminous flux:

210 lm

Power:

2.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 3000K N

Reference:

U2681121N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

Black

Luminous flux:

210 lm

Power:

2.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 3000K NMG

Reference:

U2681121NMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

Black-Metallized gold

Luminous flux:

210 lm

Power:

2.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 3000K NMG

Reference:

U2681121NMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

Black-Metallized gold

Luminous flux:

210 lm

Power:

2.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes

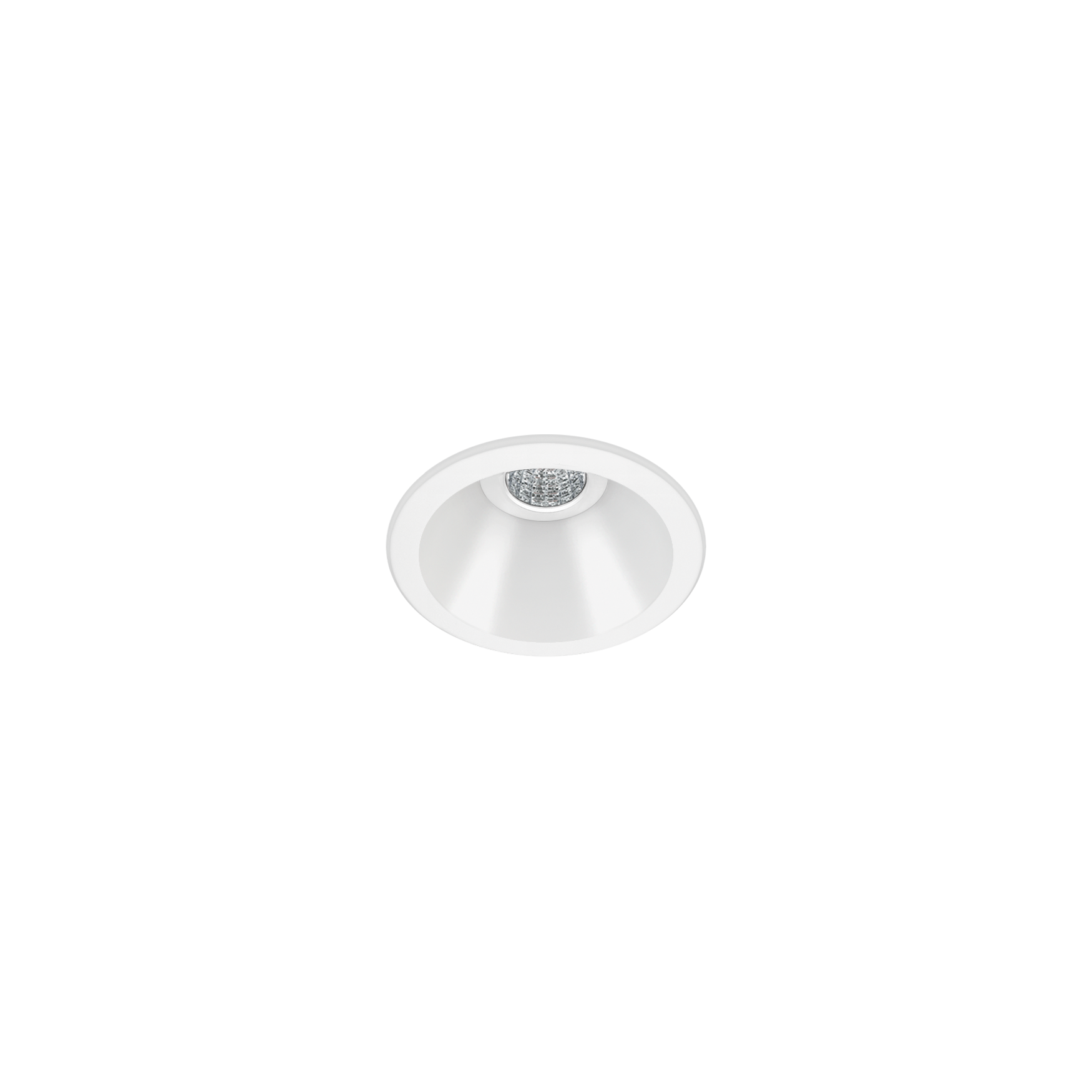

SHOT LIGHT UL 38º 3000K W

Reference:

U2681121W

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

White

Luminous flux:

210 lm

Power:

2.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 3000K W

Reference:

U2681121W

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

White

Luminous flux:

210 lm

Power:

2.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes

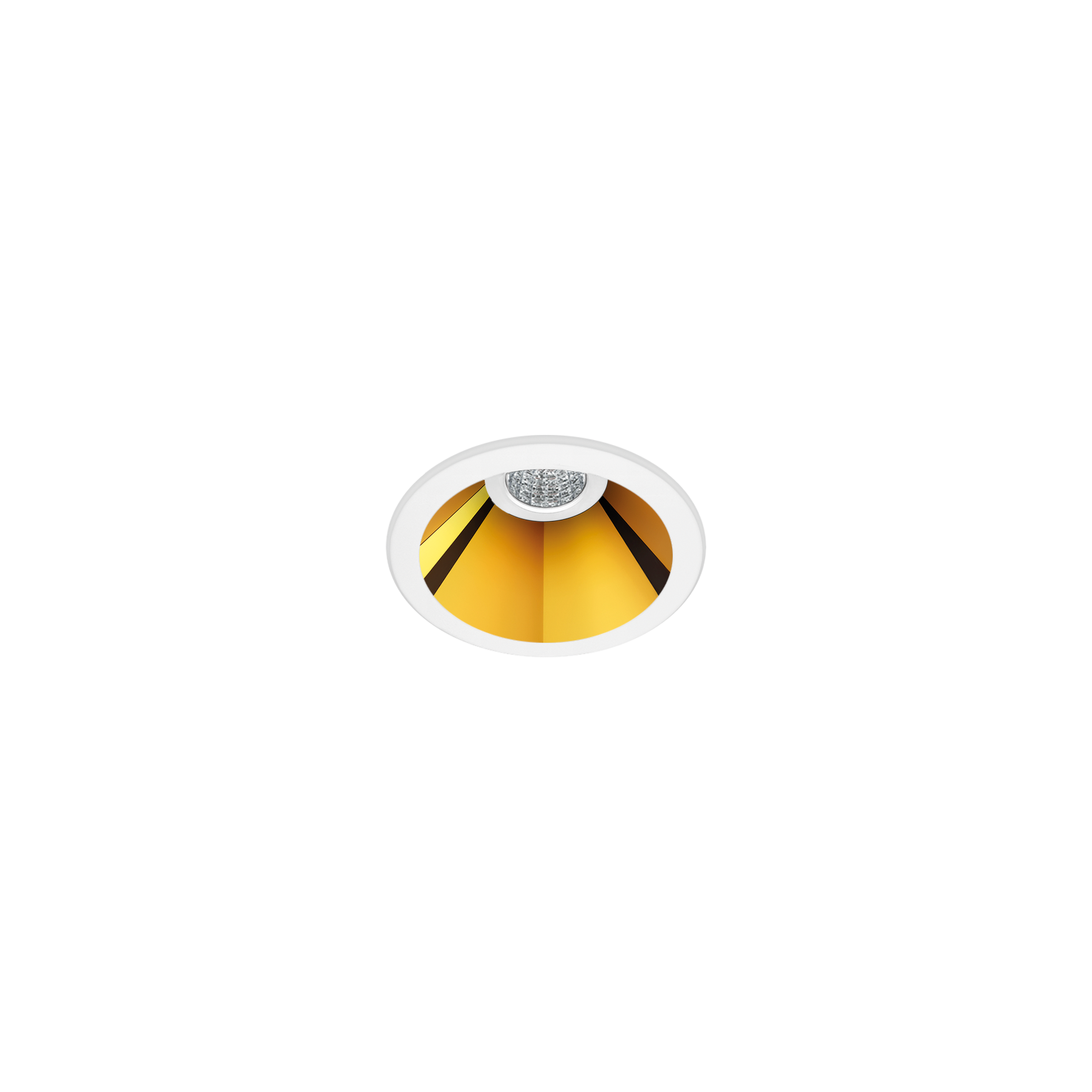

SHOT LIGHT UL 38º 3000K WMG

Reference:

U2681121WMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

White-Metallized gold

Luminous flux:

210 lm

Power:

2.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 3000K WMG

Reference:

U2681121WMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

White-Metallized gold

Luminous flux:

210 lm

Power:

2.1 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 4000K N

Reference:

U2681122N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

Black

Luminous flux:

250 lm

Power:

2.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 4000K N

Reference:

U2681122N

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

Black

Luminous flux:

250 lm

Power:

2.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 4000K NMG

Reference:

U2681122NMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

Black-Metallized gold

Luminous flux:

250 lm

Power:

2.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 4000K NMG

Reference:

U2681122NMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

Black-Metallized gold

Luminous flux:

250 lm

Power:

2.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 4000K W

Reference:

U2681122W

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

White

Luminous flux:

250 lm

Power:

2.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 4000K W

Reference:

U2681122W

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

White

Luminous flux:

250 lm

Power:

2.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 4000K WMG

Reference:

U2681122WMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 1.4-17W 700mA
U100003601 · 1 to 8 Luminaires
(Mandatory / not included)

Colour:

White-Metallized gold

Luminous flux:

250 lm

Power:

2.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes
SHOT LIGHT UL 38º 4000K WMG

Reference:

U2681122WMG

Mounting Accessory / Driver:

Remote Box
REMOTE BOX 5.6-33W 700mA
U100003602 · 3 to 12 Luminaires
(Mandatory / not included)

Colour:

White-Metallized gold

Luminous flux:

250 lm

Power:

2.1 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

38

Lighting efficiency:

92%

IC Rated:

Yes

¿Te interesa este producto? Contáctanos

This field is for validation purposes and should be left unchanged.

Nombre*

Apellidos*

Email*

Teléfono*

País*

Ciudad*

Empresa*

Profesión*

Especifica tu profesión*

Tu mensaje

He leído y acepto la política de privacidad. *

Quiero suscribirme al newsletter.

SHOT LIGHT

CEILING RECESSED

Awards

Iconic Award Interior Innovation 2017 Winner

If Product Design Award 2017 Winner

Delta Award Selection 2018

SHOT LIGHT

Luminous flux

Power

Colour temperature

Lighting efficiency

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

¿Te interesa este producto? Contáctanos

Related products

DEEP

QUAD

STRAM

MIX

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

Downloads

CAD 2D/3D

EPD

Downloads

Register

Log in

Select your location

Select your market
