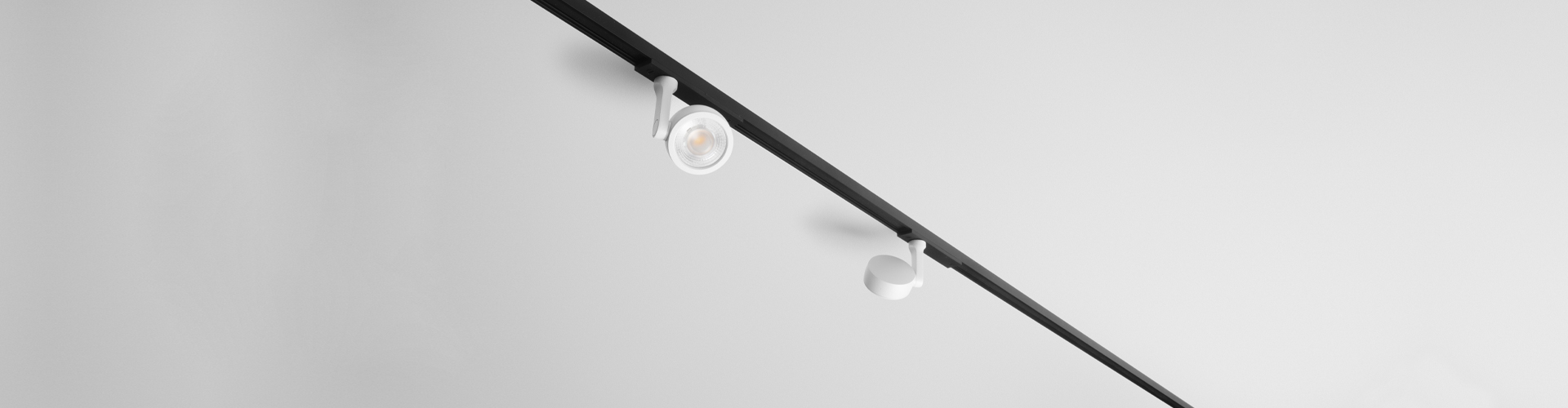

SIX 24V

TRACK LIGHTS

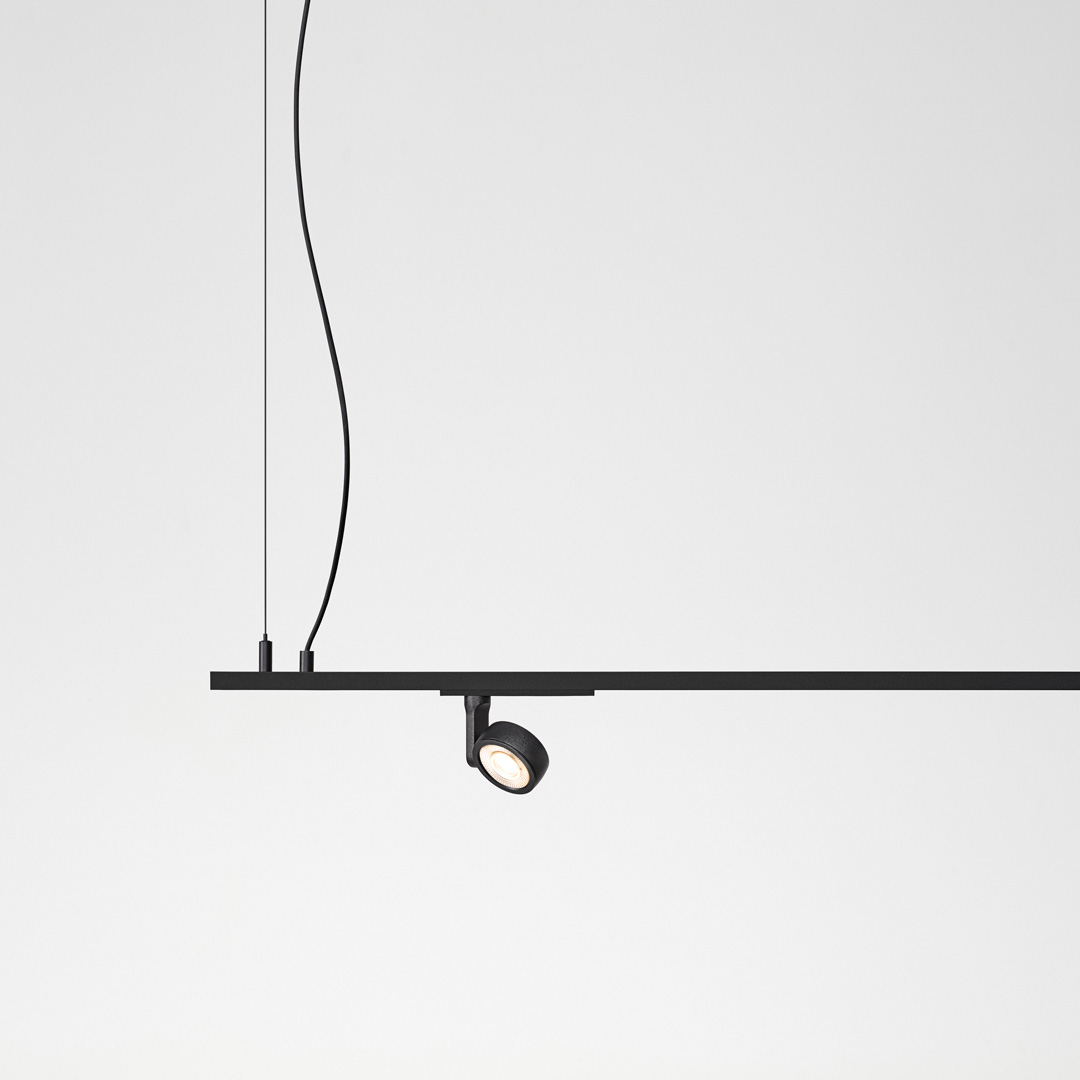

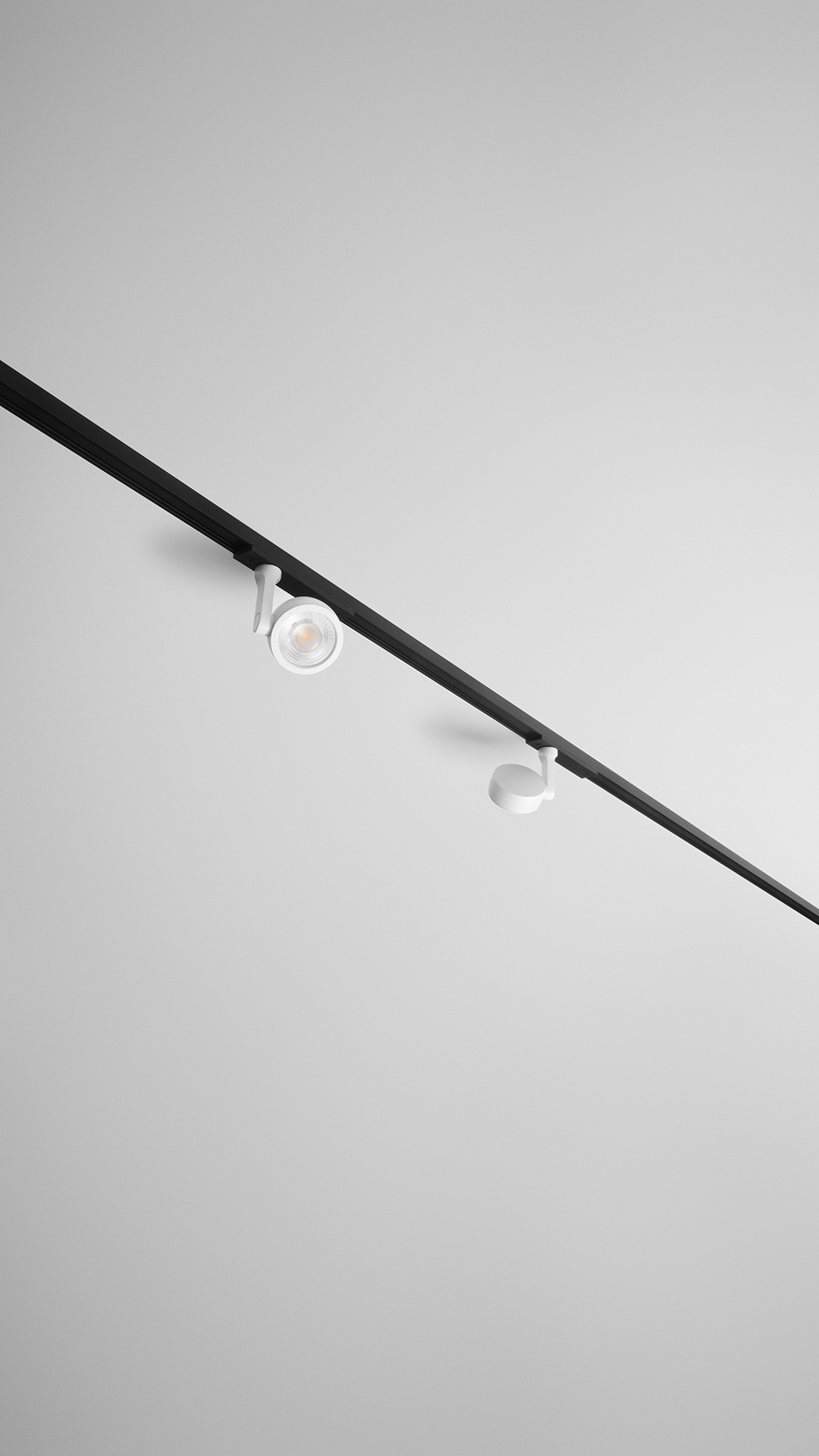

Six XS 24V is a projector for the Minimal Track system that stands out for its lightness and elegance. Its body; disk looking, rounded shaped, encloses an innovative combination of reflector and lens. The combined action of both, allows Six to direct light rays with the maximum uniformity in a very small distance that, at the same time, has made possible its differential design-reduced and minimalist-.

Awards

Reddot Design Award Innovate Product Winner 2020
Reddot Design Award Lighting Design Winner 2020
Delta Awards´20 Bronze
European Product Design 2020 Honorable Mention
Fx International Interior Design Award
Archiproduct Design Award Winner 2020

SIX XS 24V

Luminous flux

400 lm / 420 lm / 450 lm
Lighting efficiency

86% / 88% / 90%
Power

3.5 W
Dimming

Dim options
Colour temperature

2700K / 3000K / 4000K
Chromatic stability

MacAdam Step 2
Light beam angle

17° / 23° / 34°

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Input Voltage

Temp.

CRI

Beam angle

Efficiency

Dimming

IC Rated

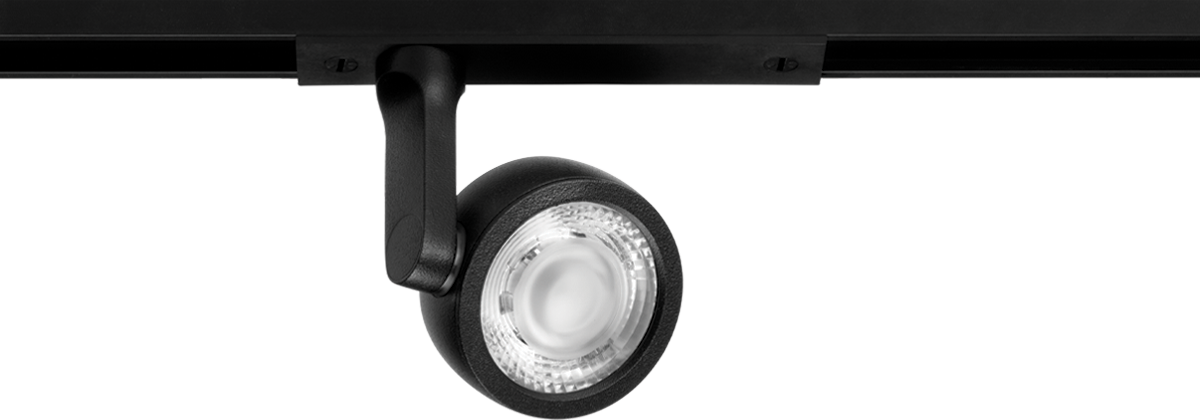

SIX XS 24V UL 17º 2700K NT

Reference:

U3890010NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

400 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

Dim options

IC Rated:

-

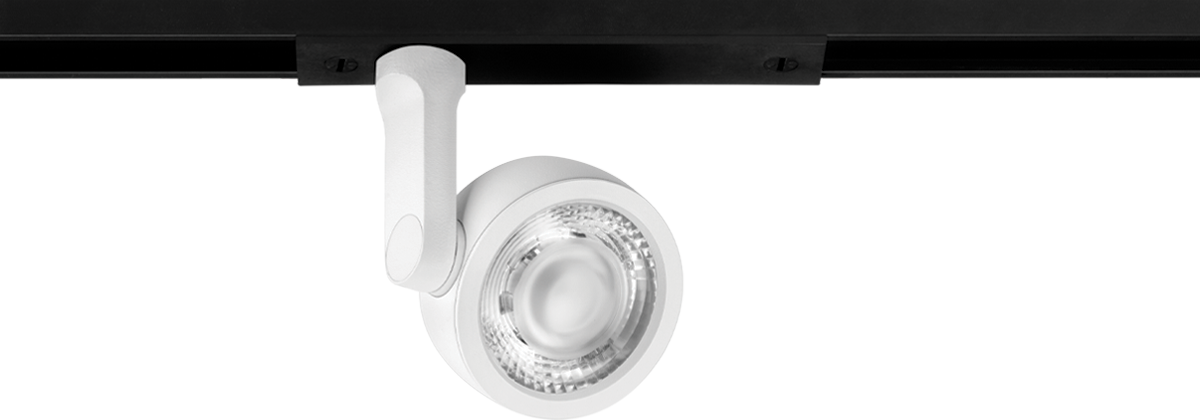

SIX XS 24V UL 17º 2700K WT

Reference:

U3890010WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

400 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 17º 3000K NT

Reference:

U3890011NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

420 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 17º 3000K WT

Reference:

U3890011WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

420 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 17º 4000K NT

Reference:

U3890012NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

450 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 17º 4000K WT

Reference:

U3890012WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

450 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

17°

Lighting efficiency:

90%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 23º 2700K NT

Reference:

U3890020NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

400 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 23º 2700K WT

Reference:

U3890020WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

400 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 23º 3000K NT

Reference:

U3890021NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

420 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 23º 3000K WT

Reference:

U3890021WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

420 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 23º 4000K NT

Reference:

U3890022NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

450 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 23º 4000K WT

Reference:

U3890022WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

450 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

23°

Lighting efficiency:

86%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 34º 2700K NT

Reference:

U3890030NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

400 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 34º 2700K WT

Reference:

U3890030WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

400 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 34º 3000K NT

Reference:

U3890031NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

420 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 34º 3000K WT

Reference:

U3890031WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

420 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 34º 4000K NT

Reference:

U3890032NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

450 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

Dim options

IC Rated:

-
SIX XS 24V UL 34º 4000K WT

Reference:

U3890032WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

450 lm

Power:

3.5 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

34°

Lighting efficiency:

88%

Dimming:

Dim options

IC Rated:

-
