SWAP

CEILING RECESSED

Swap is a family of recessed LED spots that comes in 2 sizes (M, L) and two light beam directions (symmetrical or asymmetrical). The Swap range offers a very extensive variety of colour options, luminous flux, colour temperatures, chromatic reproduction, sealing and dimming protocols. Minimalist design and easy fitting make it an unbeatable offer.

Awards

Reddot Design Award 2015
German Design Award Nominee 2016

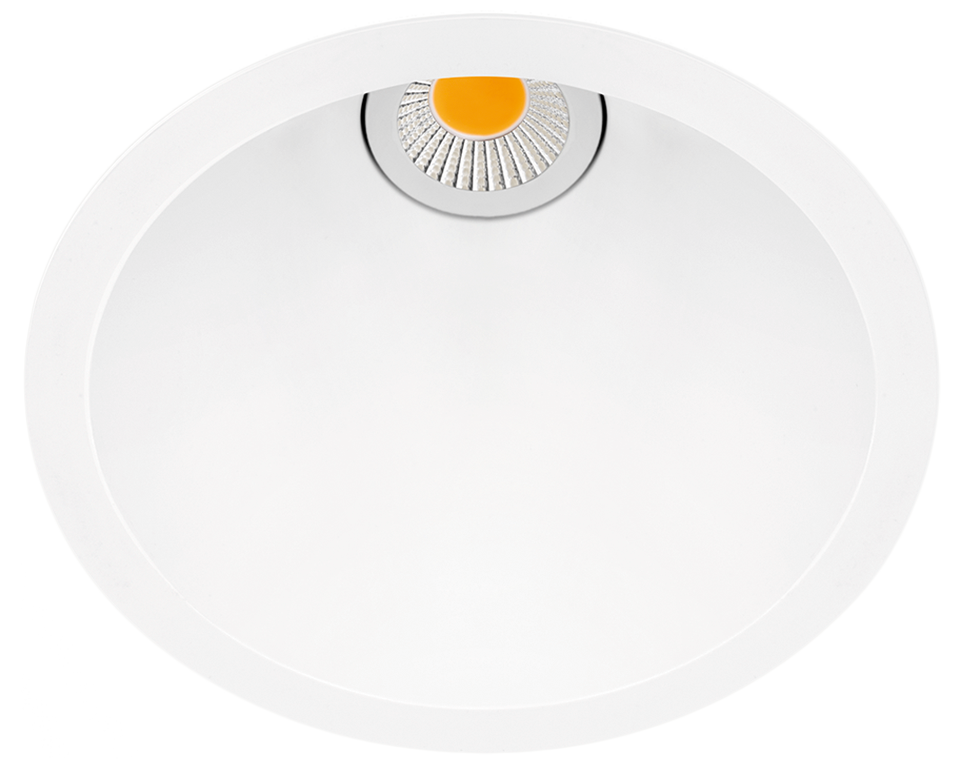

SWAP M

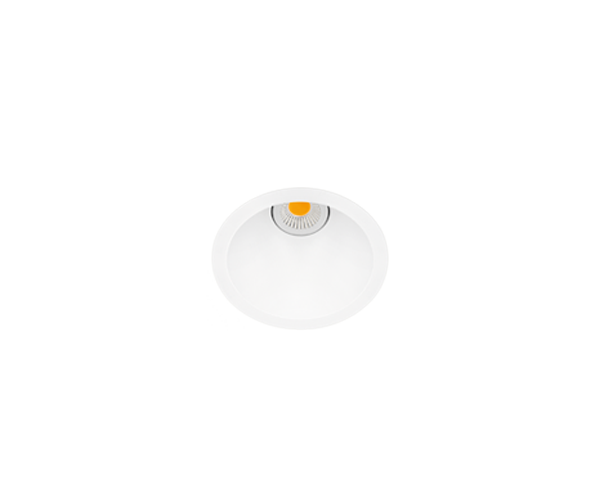

SWAP L

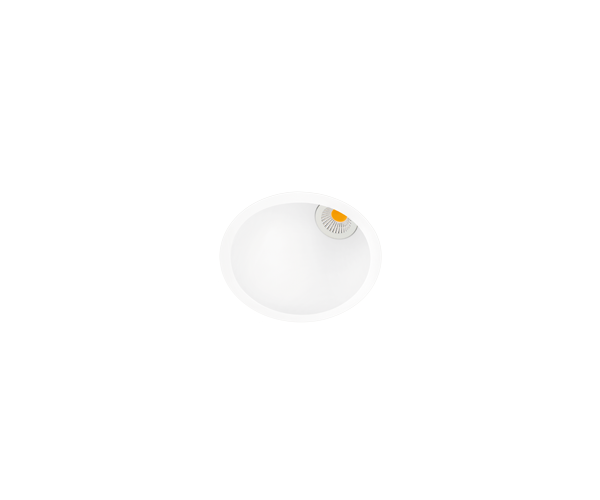

SWAP M ASYMMETRIC

SWAP M ASYMMETRIC

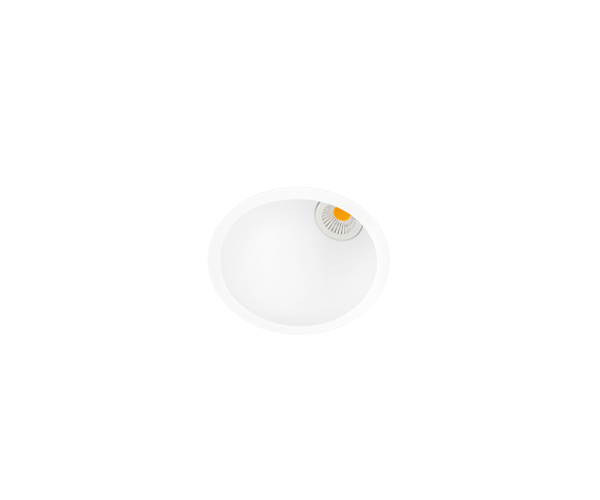

SWAP L ASYMMETRIC

SWAP L ASYMMETRIC

SWAP M

Mounting accessories

Remote Box - Case L
Luminous flux

477 lm / 495 lm / 504 lm
Lighting efficiency

64% / 77% / 78% / 86%
Power

3.6 W
Dimming

0-10V
Colour temperature

2700K / 3000K / 4000K
Chromatic stability

MacAdam Step 2
Light beam angle

42°

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Temp.

CRI

Beam angle

Efficiency

IC Rated
SWAP M UL 2700K G

Reference:

U2122210G

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 1.8-6.2W 110mA
(Mandatory / not included)

Colour:

Gold

Luminous flux:

477 lm

Power:

3.6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

77%

IC Rated:

Yes
SWAP M UL 2700K N

Reference:

U2122210N

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 1.8-6.2W 110mA
(Mandatory / not included)

Colour:

Matt black

Luminous flux:

477 lm

Power:

3.6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

64%

IC Rated:

Yes
SWAP M UL 2700K W

Reference:

U2122210W

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 1.8-6.2W 110mA
(Mandatory / not included)

Colour:

Matt white

Luminous flux:

477 lm

Power:

3.6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

86%

IC Rated:

Yes
SWAP M UL 2700K WN

Reference:

U2122210WN

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 1.8-6.2W 110mA
(Mandatory / not included)

Colour:

White-Black

Luminous flux:

477 lm

Power:

3.6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

64%

IC Rated:

Yes
SWAP M UL 2700K Z

Reference:

U2122210Z

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 1.8-6.2W 110mA
(Mandatory / not included)

Colour:

Aluminium

Luminous flux:

477 lm

Power:

3.6 W

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

78%

IC Rated:

Yes

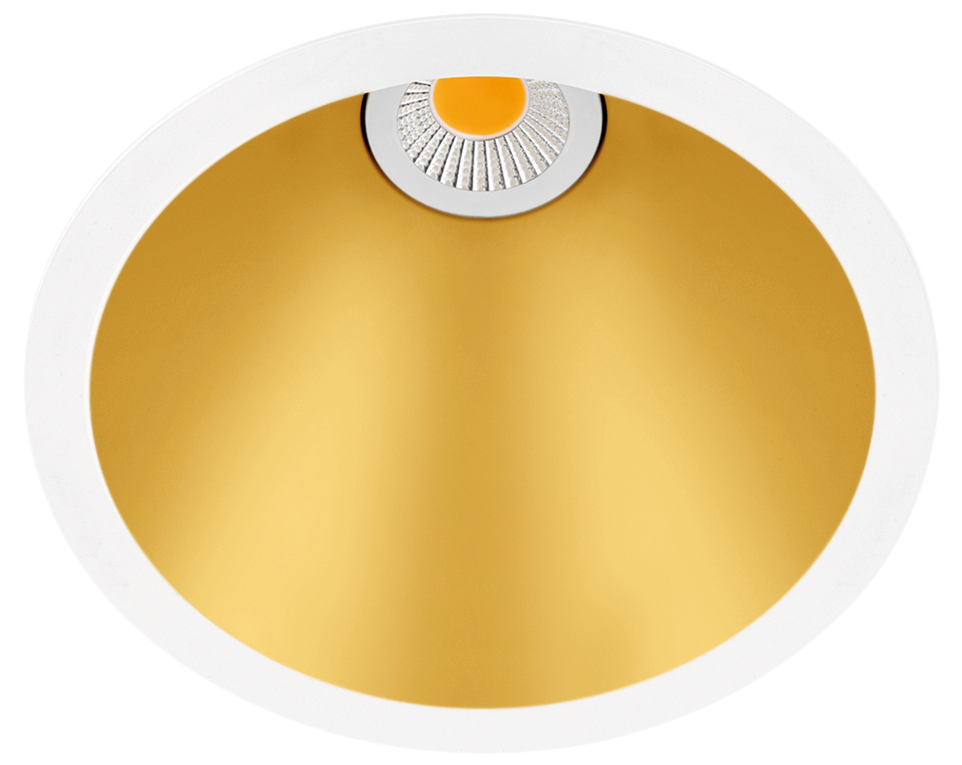

SWAP M UL 3000K G

Reference:

U2122211G

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 1.8-6.2W 110mA
(Mandatory / not included)

Colour:

Gold

Luminous flux:

495 lm

Power:

3.6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

77%

IC Rated:

Yes

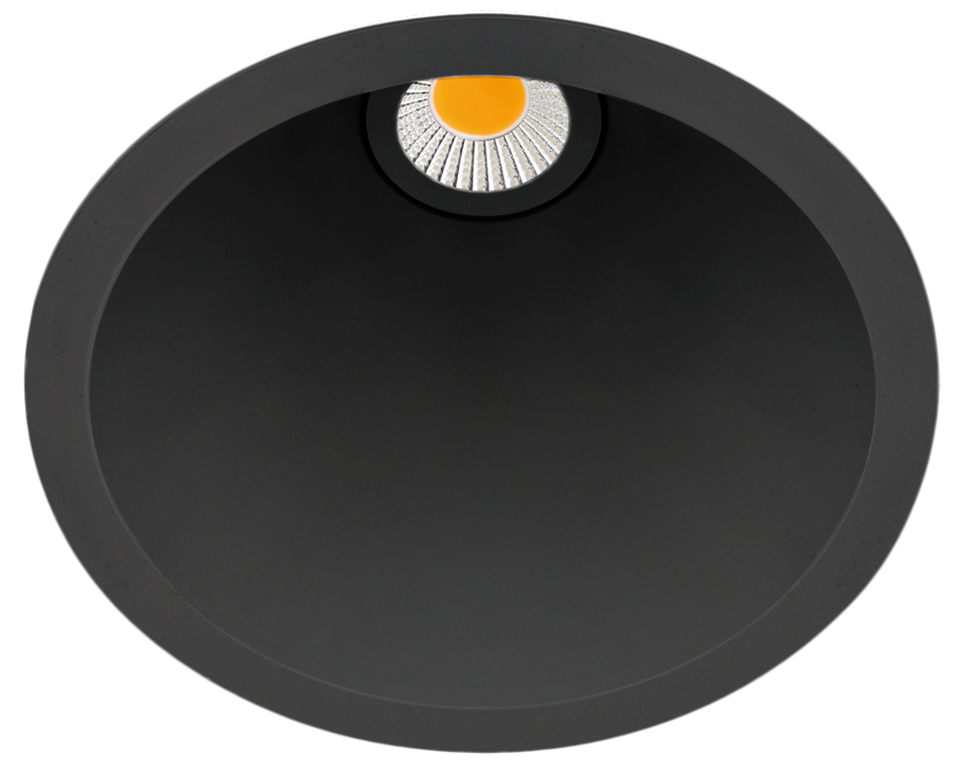

SWAP M UL 3000K N

Reference:

U2122211N

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 1.8-6.2W 110mA
(Mandatory / not included)

Colour:

Matt black

Luminous flux:

495 lm

Power:

3.6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

64%

IC Rated:

Yes
SWAP M UL 3000K W

Reference:

U2122211W

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 1.8-6.2W 110mA
(Mandatory / not included)

Colour:

Matt white

Luminous flux:

495 lm

Power:

3.6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

86%

IC Rated:

Yes

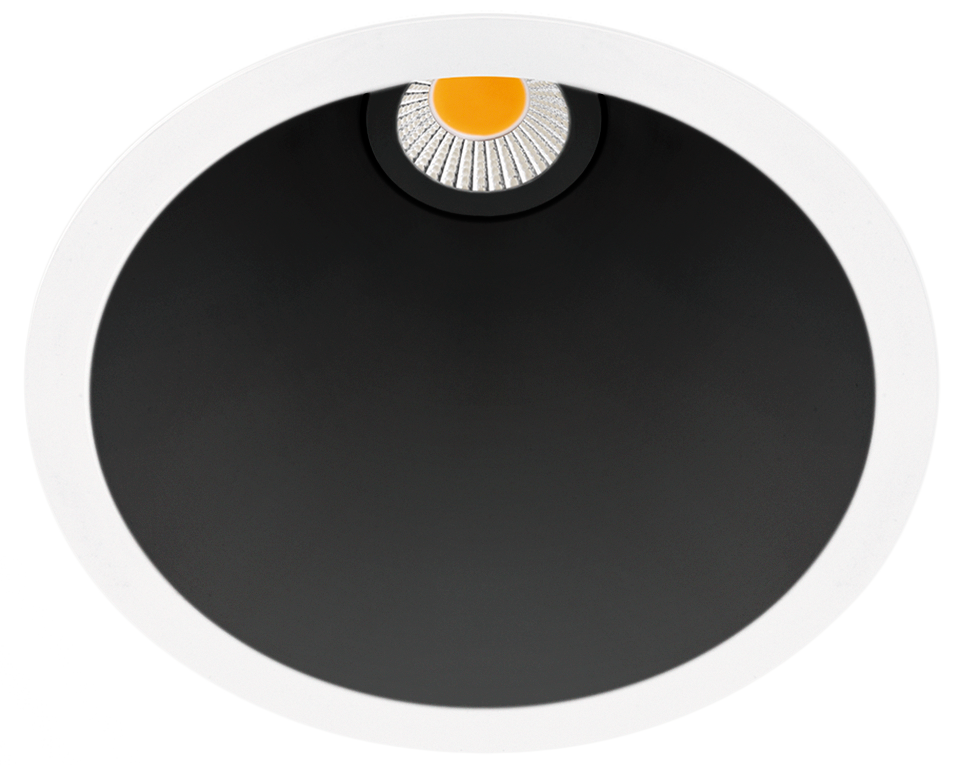

SWAP M UL 3000K WN

Reference:

U2122211WN

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 1.8-6.2W 110mA
(Mandatory / not included)

Colour:

White-Black

Luminous flux:

495 lm

Power:

3.6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

64%

IC Rated:

Yes

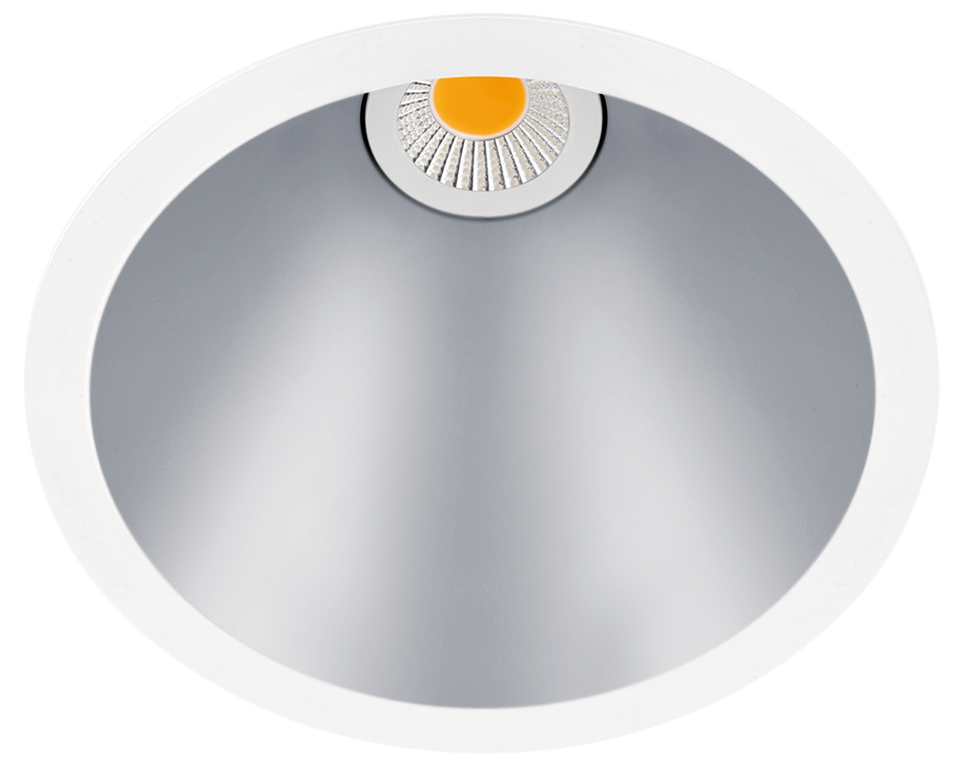

SWAP M UL 3000K Z

Reference:

U2122211Z

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 1.8-6.2W 110mA
(Mandatory / not included)

Colour:

Aluminium

Luminous flux:

495 lm

Power:

3.6 W

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

78%

IC Rated:

Yes
SWAP M UL 4000K G

Reference:

U2122212G

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 1.8-6.2W 110mA
(Mandatory / not included)

Colour:

Gold

Luminous flux:

504 lm

Power:

3.6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

77%

IC Rated:

Yes
SWAP M UL 4000K N

Reference:

U2122212N

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 1.8-6.2W 110mA
(Mandatory / not included)

Colour:

Matt black

Luminous flux:

504 lm

Power:

3.6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

64%

IC Rated:

Yes
SWAP M UL 4000K W

Reference:

U2122212W

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 1.8-6.2W 110mA
(Mandatory / not included)

Colour:

Matt white

Luminous flux:

504 lm

Power:

3.6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

86%

IC Rated:

Yes
SWAP M UL 4000K WN

Reference:

U2122212WN

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 1.8-6.2W 110mA
(Mandatory / not included)

Colour:

White-Black

Luminous flux:

504 lm

Power:

3.6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

64%

IC Rated:

Yes
SWAP M UL 4000K Z

Reference:

U2122212Z

Mounting Accessory / Driver:

Remote Box - Case L
REMOTE BOX 1.8-6.2W 110mA
(Mandatory / not included)

Colour:

Aluminium

Luminous flux:

504 lm

Power:

3.6 W

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

42°

Lighting efficiency:

78%

IC Rated:

Yes

Accessories

OPTIONAL MOUNTING ACCESSORY
