TOP MICRO 24V

TRACK LIGHTS

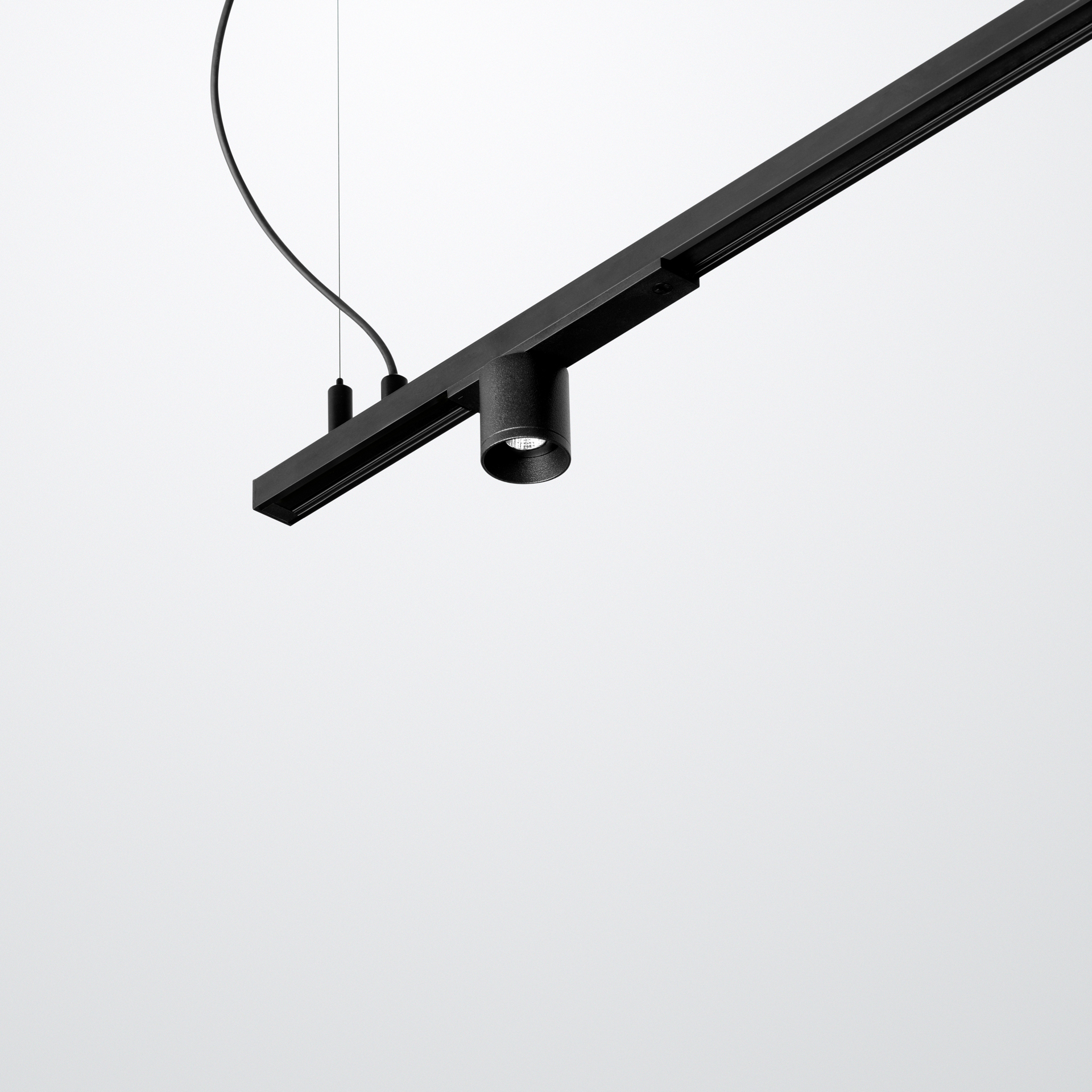

Top Micro 24V is miniaturized luminary that serves as a downlight for the Minimal Track system. Its reduced dimensions make Top the perfect candidate for projects where a discrete precense and a perfect integration are needed. It is a pure line and an architectural aesthetic design. Moreover, in terms of lighting performance, Top offers a conical distribution with two possible beam angles.

Awards

  • Reddot Design Award Innovate Product Winner 2020

    Reddot Design Award Innovate Product Winner 2020

  • Reddot Design Award Lighting Design Winner 2020

    Reddot Design Award Lighting Design Winner 2020

  • Delta Awards´20 Bronze

    Delta Awards´20 Bronze

  • European Product Design 2020 Honorable Mention

    European Product Design 2020 Honorable Mention

  • Fx International Interior Design Award

    Fx International Interior Design Award

  • Archiproduct Design Award Winner 2020

    Archiproduct Design Award Winner 2020

TOP MICRO 24V

  • Luminous flux

    190 lm / 210 lm

  • Lighting efficiency

    90% / 92%

  • Power

    2.1 W

  • Dimming

    Dim options

  • Colour temperature

    2700K / 3000K

  • Chromatic stability

    MacAdam Step 3

  • Light beam angle

    19° / 38°

EPD Instructions BIM
Luminous flux
    • Power
    • Colour temperature
    • Lighting efficiency
    • Mounting Accessory
      IC Rated
        Input Voltage
          CRI
            Light beam angle
              Dimming
                Cord length
                  Colour

                    • Model

                      Ref.

                      Mounting Accessory / Driver

                      Colour

                      Lum. flux

                      Power

                      Input Voltage

                      Temp.

                      CRI

                      Beam angle

                      Efficiency

                      Dimming

                      IC Rated

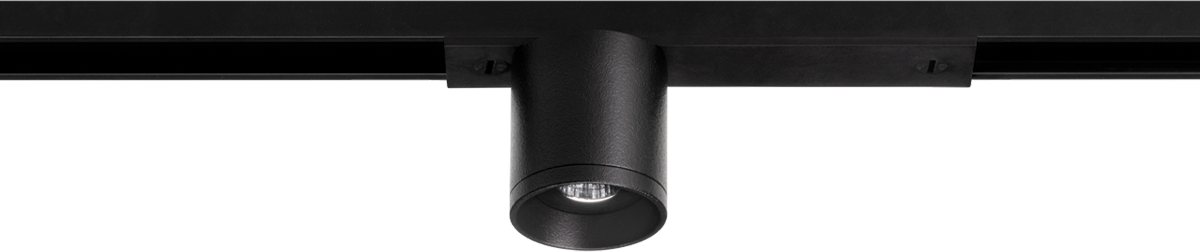

                    • TOP MICRO 24V UL 19º 2700K NT
                      Reference:

                      U3830010NT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured black

                      Luminous flux:

                      190 lm

                      Power:

                      2.1 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      19°

                      Lighting efficiency:

                      90%

                      Dimming:

                      Dim options

                      IC Rated:

                      -

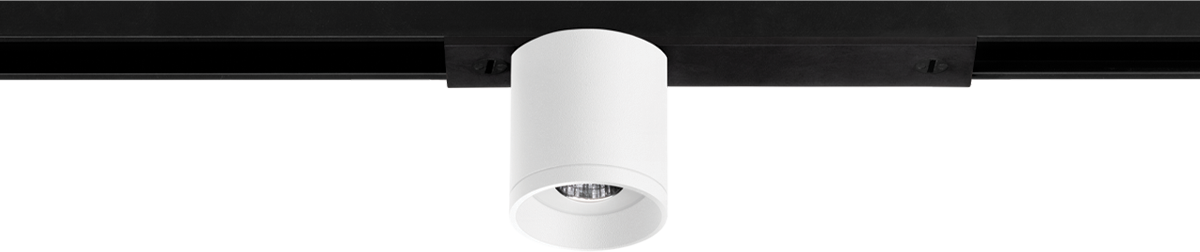

                    • TOP MICRO 24V UL 19º 2700K WT
                      Reference:

                      U3830010WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      190 lm

                      Power:

                      2.1 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      19°

                      Lighting efficiency:

                      90%

                      Dimming:

                      Dim options

                      IC Rated:

                      -

                    • TOP MICRO 24V UL 19º 3000K NT
                      Reference:

                      U3830011NT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured black

                      Luminous flux:

                      210 lm

                      Power:

                      2.1 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      19°

                      Lighting efficiency:

                      90%

                      Dimming:

                      Dim options

                      IC Rated:

                      -

                    • TOP MICRO 24V UL 19º 3000K WT
                      Reference:

                      U3830011WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      210 lm

                      Power:

                      2.1 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      19°

                      Lighting efficiency:

                      90%

                      Dimming:

                      Dim options

                      IC Rated:

                      -

                    • TOP MICRO 24V UL 38º 2700K NT
                      Reference:

                      U3830020NT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured black

                      Luminous flux:

                      190 lm

                      Power:

                      2.1 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      92%

                      Dimming:

                      Dim options

                      IC Rated:

                      -

                    • TOP MICRO 24V UL 38º 2700K WT
                      Reference:

                      U3830020WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      190 lm

                      Power:

                      2.1 W

                      Input Voltage:

                      -

                      Colour temperature:

                      2700K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      92%

                      Dimming:

                      Dim options

                      IC Rated:

                      -

                    • TOP MICRO 24V UL 38º 3000K NT
                      Reference:

                      U3830021NT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured black

                      Luminous flux:

                      210 lm

                      Power:

                      2.1 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      92%

                      Dimming:

                      Dim options

                      IC Rated:

                      -

                    • TOP MICRO 24V UL 38º 3000K WT
                      Reference:

                      U3830021WT

                      Mounting Accessory / Driver:

                      -

                      Colour:

                      Textured white

                      Luminous flux:

                      210 lm

                      Power:

                      2.1 W

                      Input Voltage:

                      -

                      Colour temperature:

                      3000K

                      CRI:

                      CRI>90

                      Light beam angle:

                      38°

                      Lighting efficiency:

                      92%

                      Dimming:

                      Dim options

                      IC Rated:

                      -
