iO MICRO 24V

TRACK LIGHTS

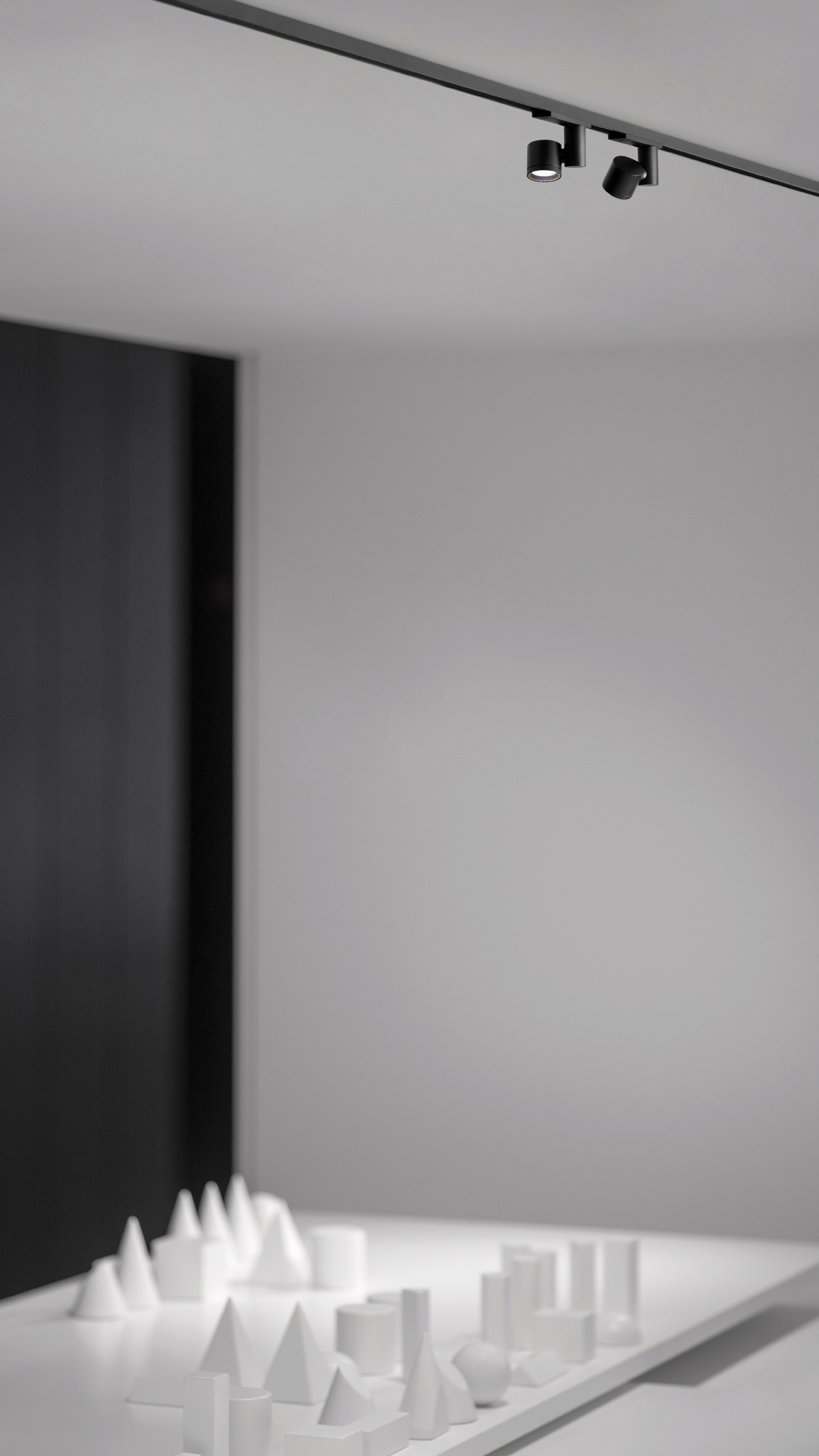

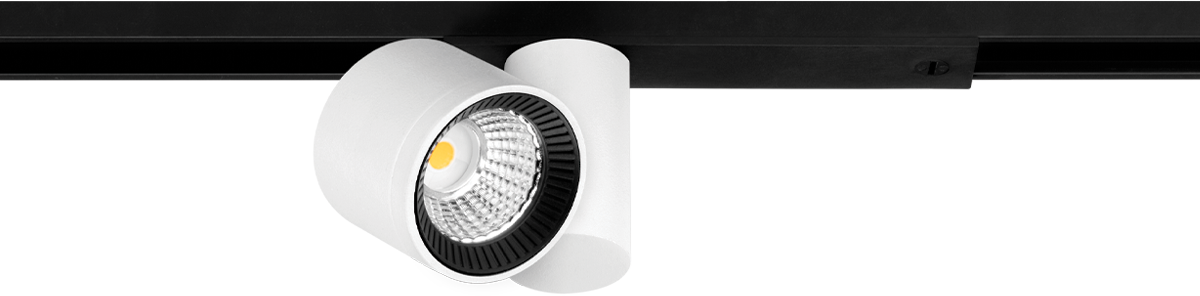

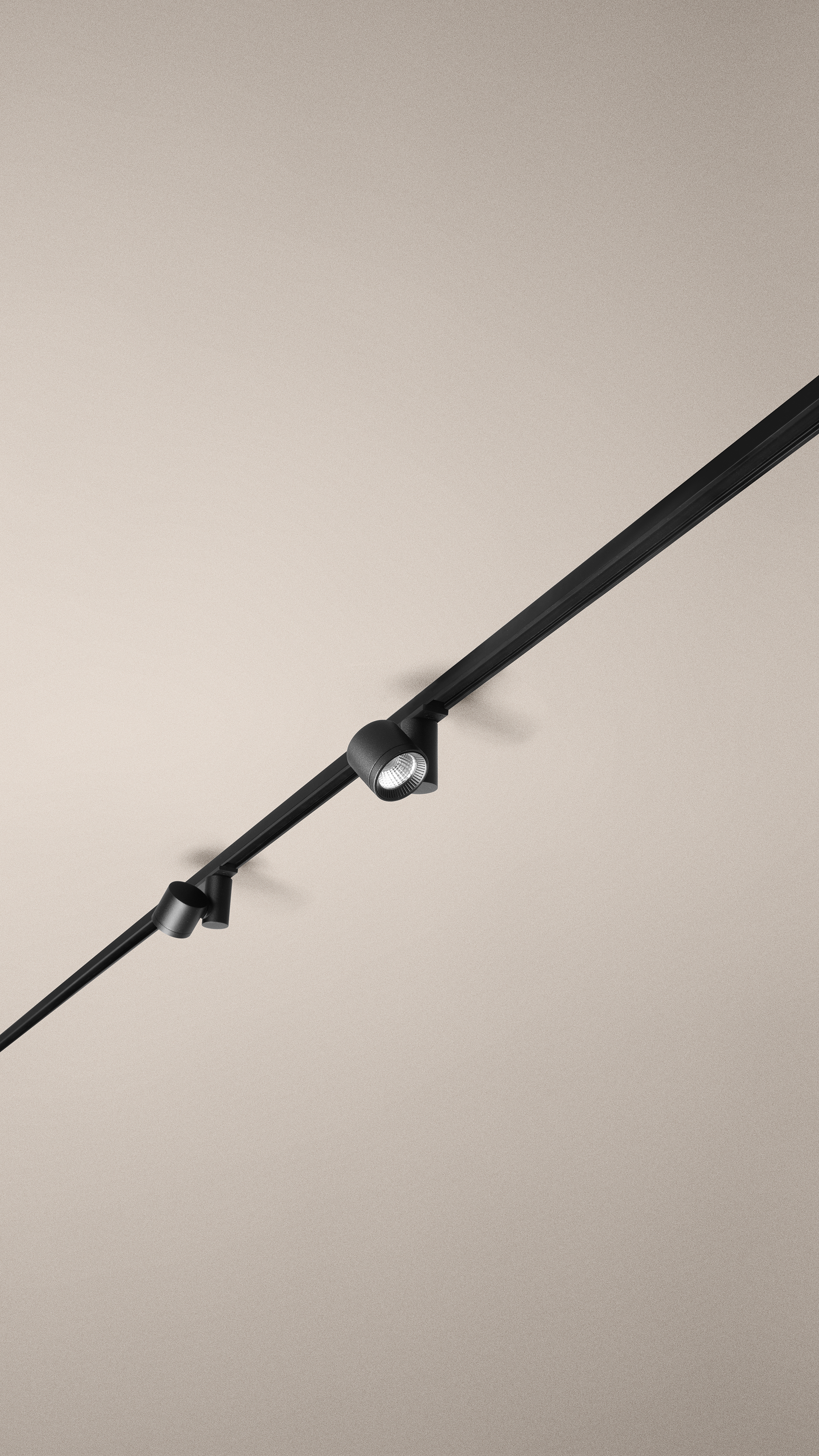

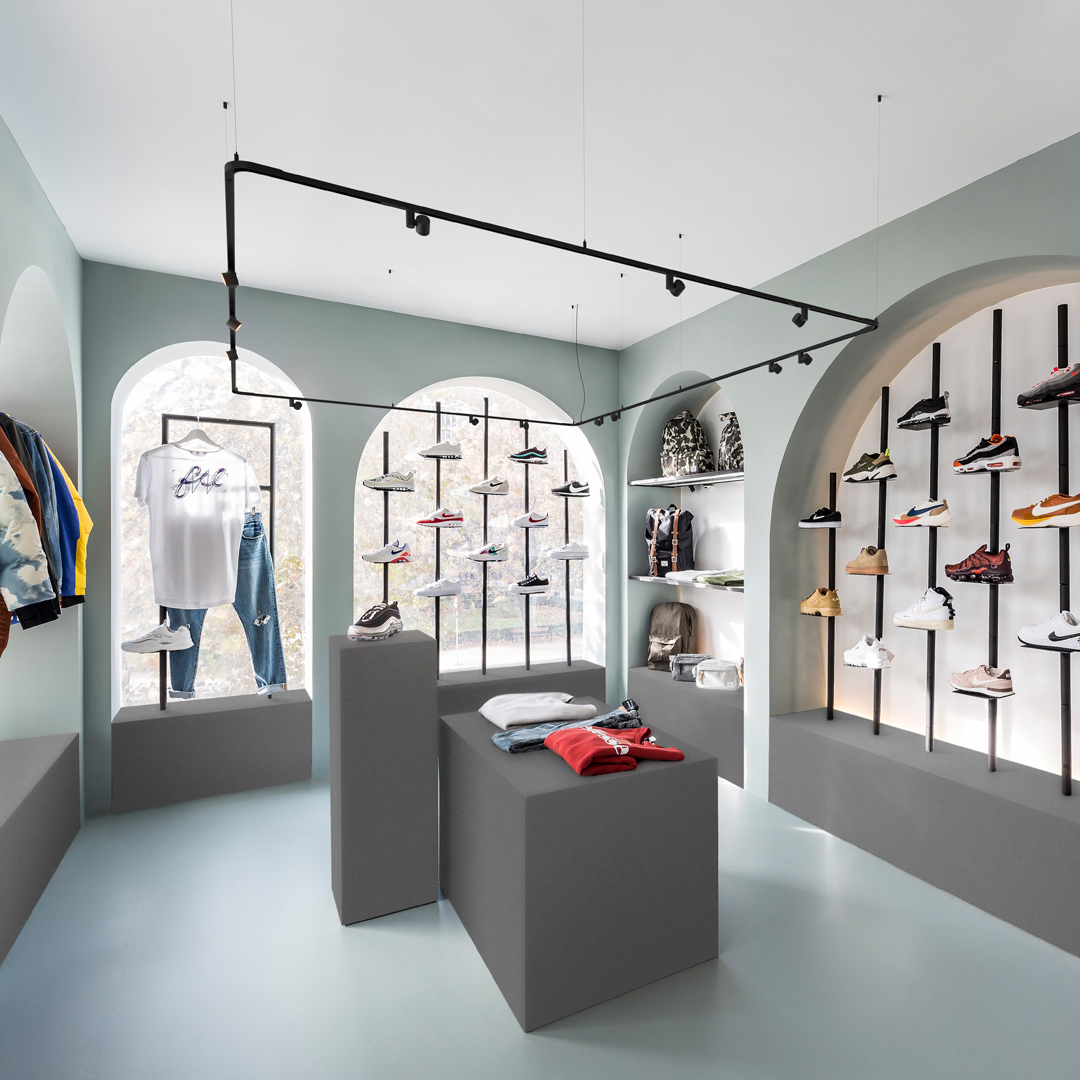

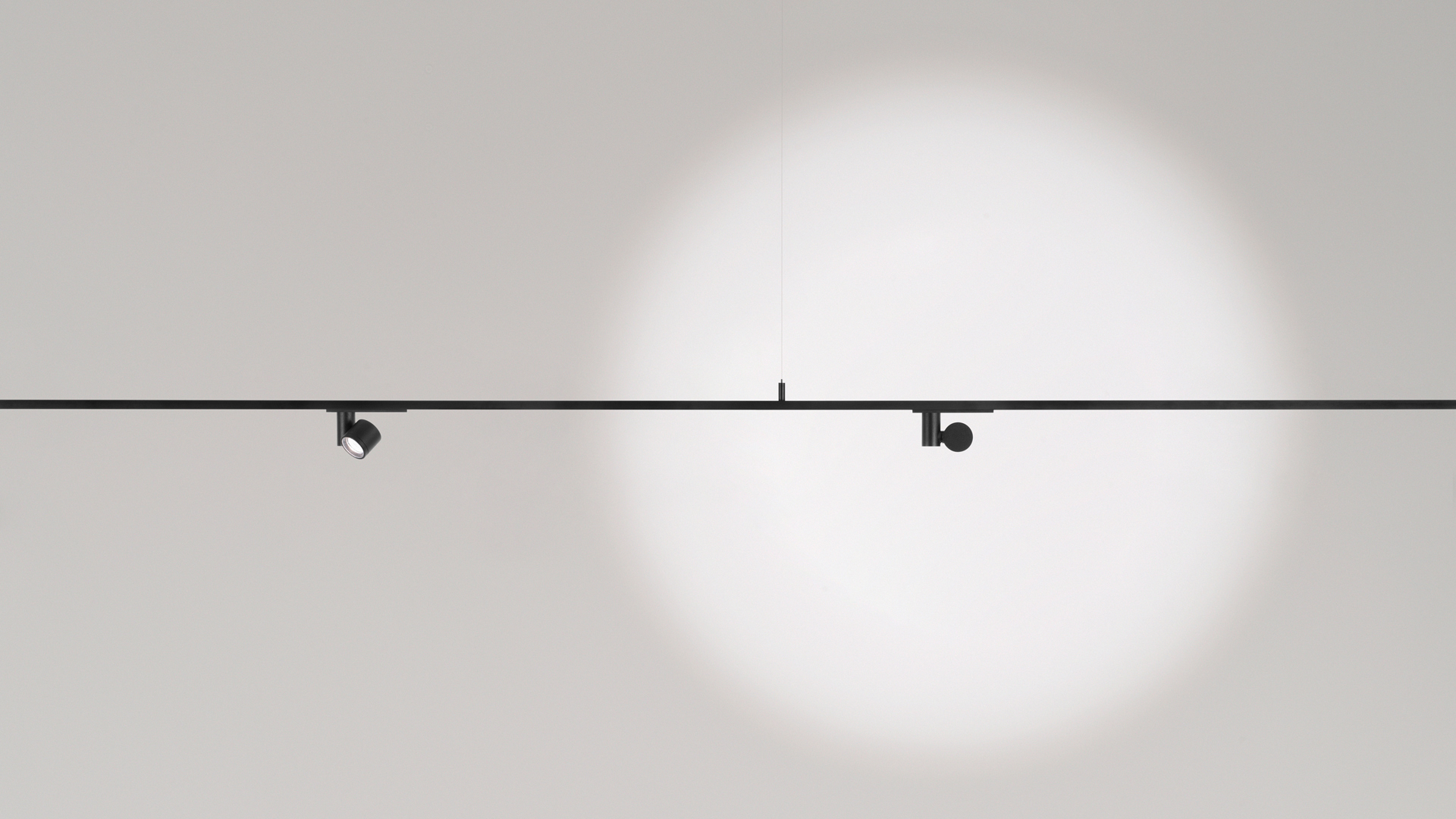

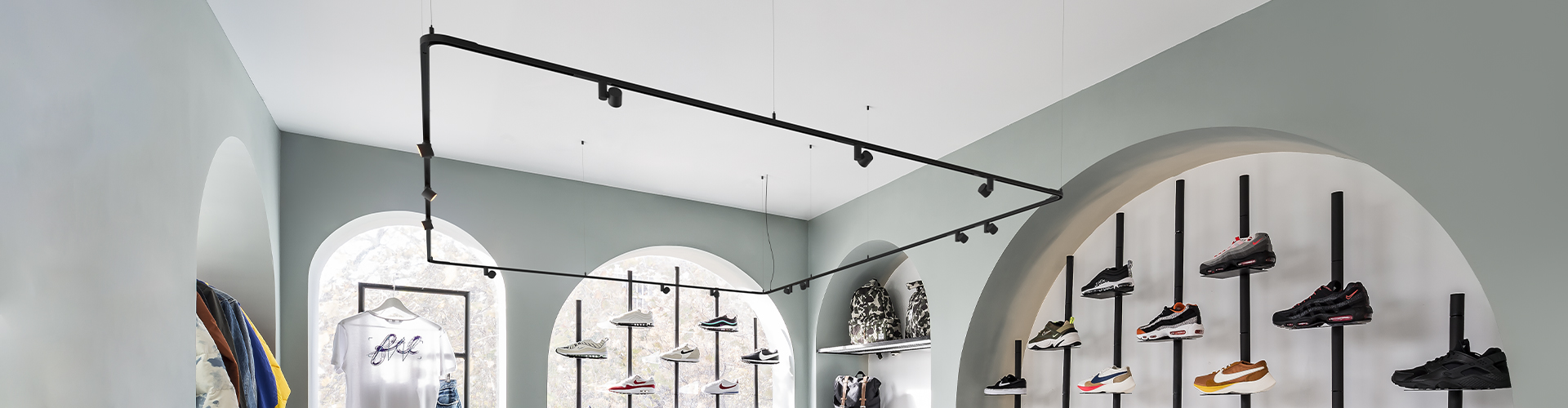

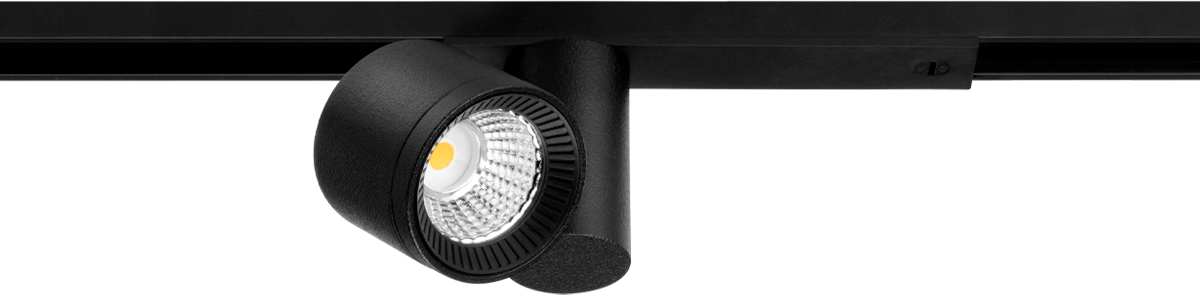

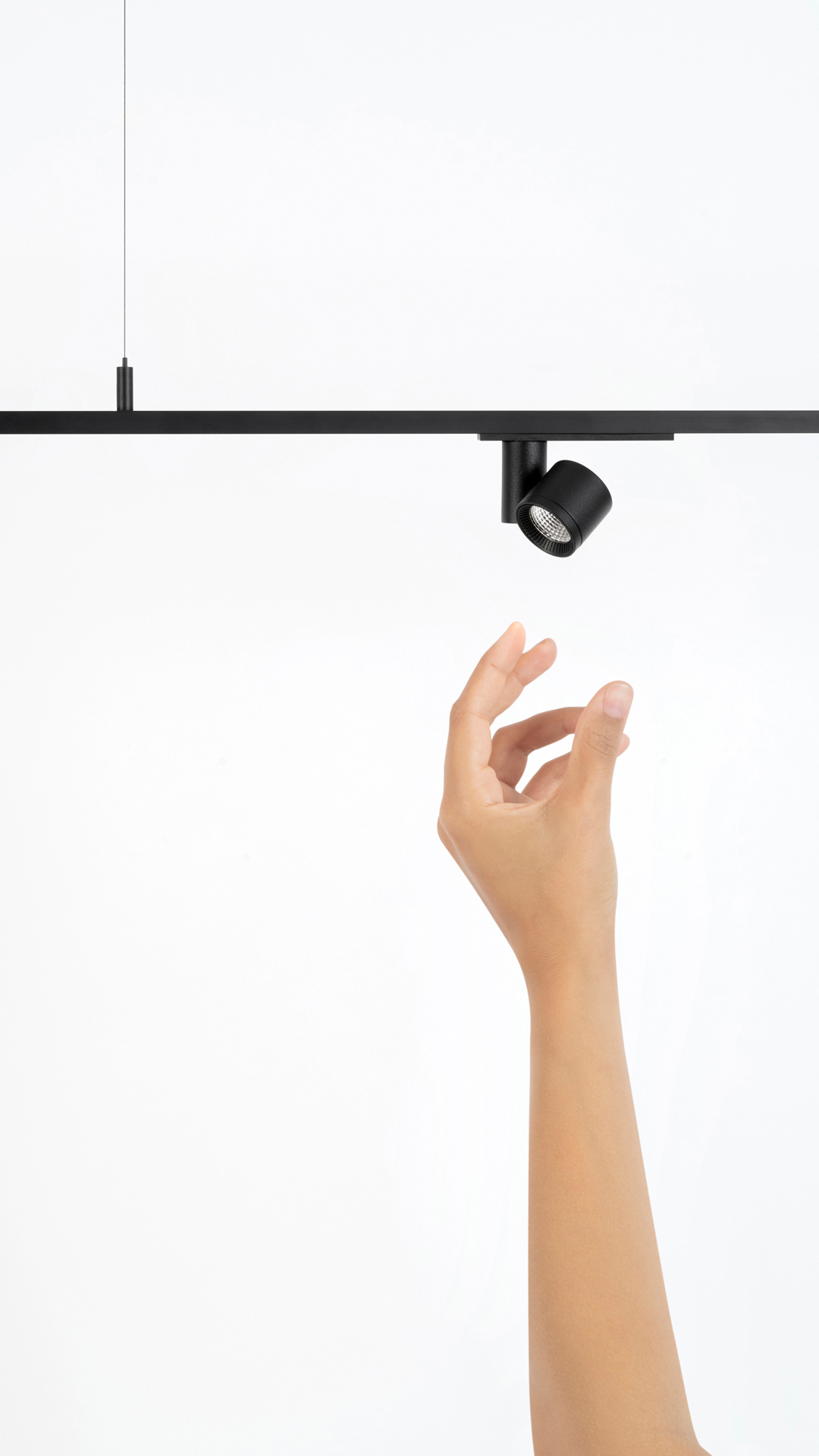

iO Micro 24V is a LED spotlight miniaturised in a fixture that is so small that it fits on the palm of your hand. Designed for accent lighting applications, its small dimensions mean it can be fitted in display cabinets, shop windows and small places without generating an invasive presence on the scene. Created to be placed on the Minimal Track system, it offers all the features of concentrated LED spotlights with a minimalist and hyper-reduced design.

Awards

Reddot Design Award Innovate Product Winner 2020
Reddot Design Award Lighting Design Winner 2020
Delta Awards´20 Bronze
European Product Design 2020 Honorable Mention
Fx International Interior Design Award
Archiproduct Design Award Winner 2020

iO MICRO 24V

Luminous flux

530 lm / 550 lm / 590 lm
Lighting efficiency

83% / 84% / 85%
Power

4.7 W
Dimming

Dim options
Colour temperature

2700K / 3000K / 4000K
Chromatic stability

MacAdam Step 2
Light beam angle

20° / 40° / 54°

EPD Instructions BIM Brochure

Luminous flux

Select

Power

Select

Colour temperature

Select

Lighting efficiency

Select

Mounting Accessory

IC Rated

Input Voltage

CRI

Light beam angle

Dimming

Cord length

Colour

Model

Ref.

Mounting Accessory / Driver

Colour

Lum. flux

Power

Input Voltage

Temp.

CRI

Beam angle

Efficiency

Dimming

IC Rated
IO MICRO 24V UL 20º 2700K NT

Reference:

U3870010NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

530 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

83%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 20º 2700K WT

Reference:

U3870010WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

530 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

83%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 20º 3000K NT

Reference:

U3870011NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

550 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

83%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 20º 3000K WT

Reference:

U3870011WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

550 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

83%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 20º 4000K NT

Reference:

U3870012NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

590 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

83%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 20º 4000K WT

Reference:

U3870012WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

590 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

20°

Lighting efficiency:

83%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 40º 2700K NT

Reference:

U3870020NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

530 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

84%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 40º 2700K WT

Reference:

U3870020WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

530 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

84%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 40º 3000K NT

Reference:

U3870021NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

550 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

84%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 40º 3000K WT

Reference:

U3870021WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

550 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

84%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 40º 4000K NT

Reference:

U3870022NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

590 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

84%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 40º 4000K WT

Reference:

U3870022WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

590 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

40°

Lighting efficiency:

84%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 54º 2700K NT

Reference:

U3870030NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

530 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

85%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 54º 2700K WT

Reference:

U3870030WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

530 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

2700K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

85%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 54º 3000K NT

Reference:

U3870031NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

550 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

85%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 54º 3000K WT

Reference:

U3870031WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

550 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

3000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

85%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 54º 4000K NT

Reference:

U3870032NT

Mounting Accessory / Driver:

-

Colour:

Textured black

Luminous flux:

590 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

85%

Dimming:

Dim options

IC Rated:

-
IO MICRO 24V UL 54º 4000K WT

Reference:

U3870032WT

Mounting Accessory / Driver:

-

Colour:

Textured white

Luminous flux:

590 lm

Power:

4.7 W

Input Voltage:

-

Colour temperature:

4000K

CRI:

CRI>90

Light beam angle:

54°

Lighting efficiency:

85%

Dimming:

Dim options

IC Rated:

-

Accessories

BEAM MIXER DIFFUSER

ANTI-GLARE HONEYCOMB LOUVER

MINIMAL TRACK OPTIONS
